Specifications
- Color FinishStainless steelProduct Height36 1/8 inchesProduct Width35 3/4 inchesProduct Depth27 1/2 inchesRange TypeFreestandingOven Cleaning MethodManual cleaning
- Key Specs
- Color Finish: Stainless steel
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 6
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: ZLINE
- Model Number: RA36
- Product Name: 36" Legacy Dual Fuel Range w/ 6 Burner Gas Cooktop and Electric Convection Oven (RA36)
- Color: Stainless steel
- Color Finish: Stainless steel

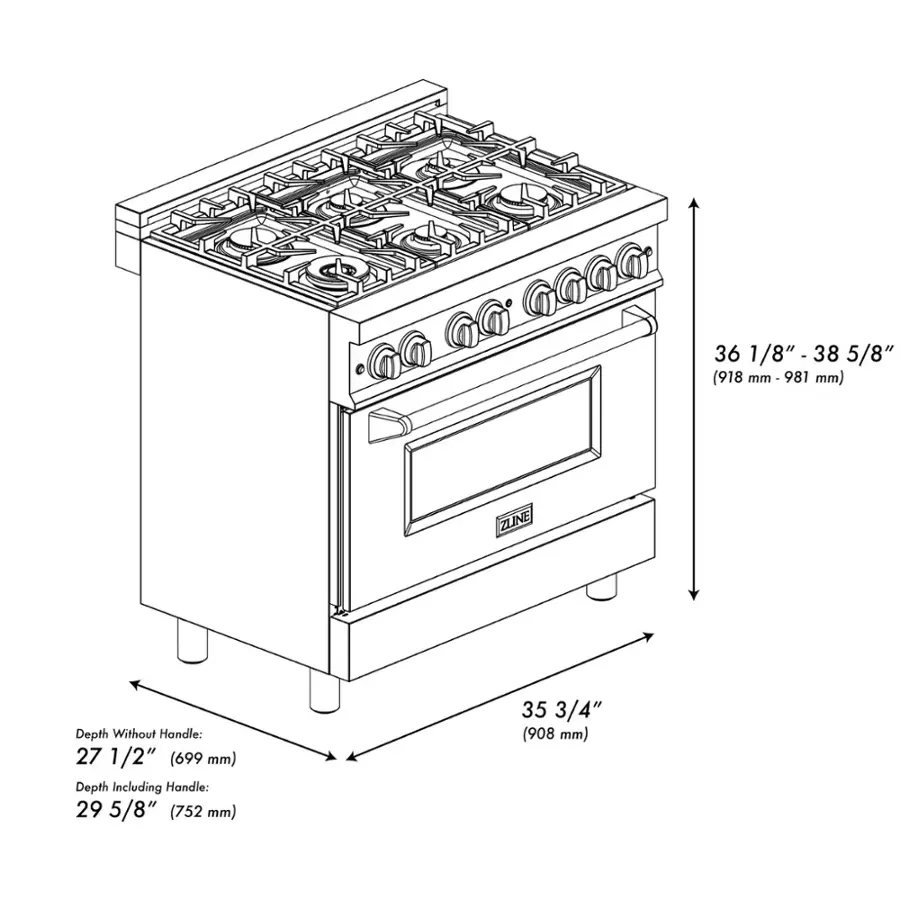

- Dimensions
- Product Height: 36 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 253 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 4.6 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: true

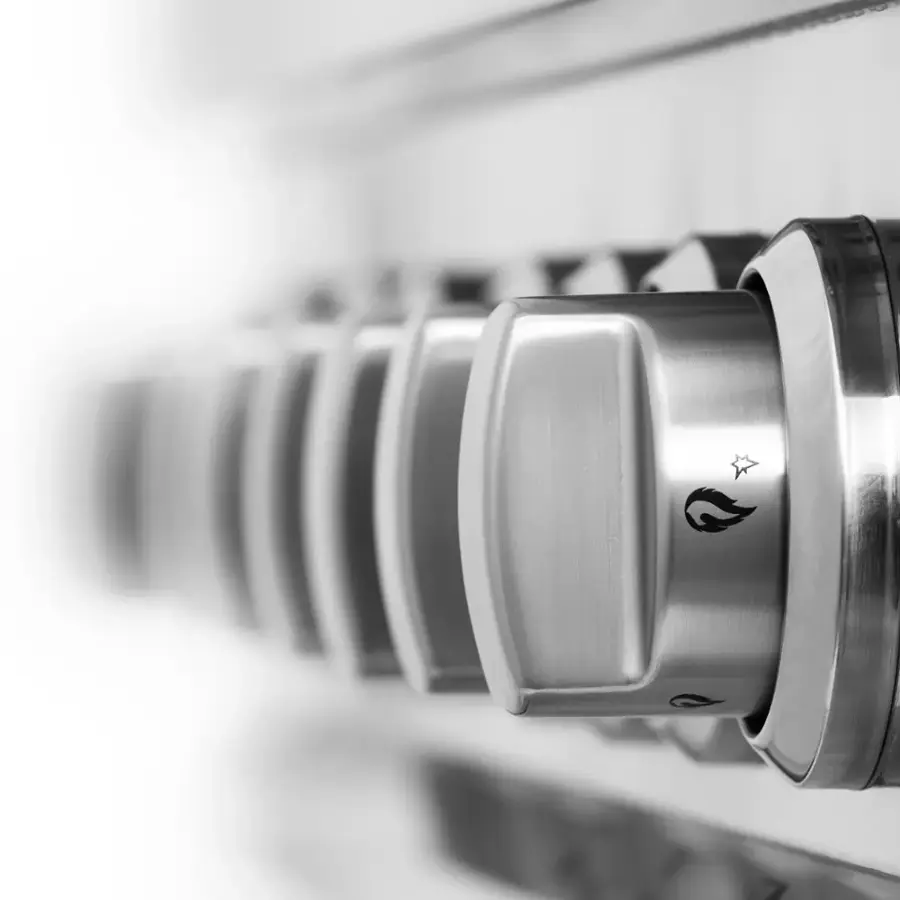

- Control Type: Knob
- Oven Control Location: Front panel
- Oven Light: true
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: RA-HG-PK-36
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)

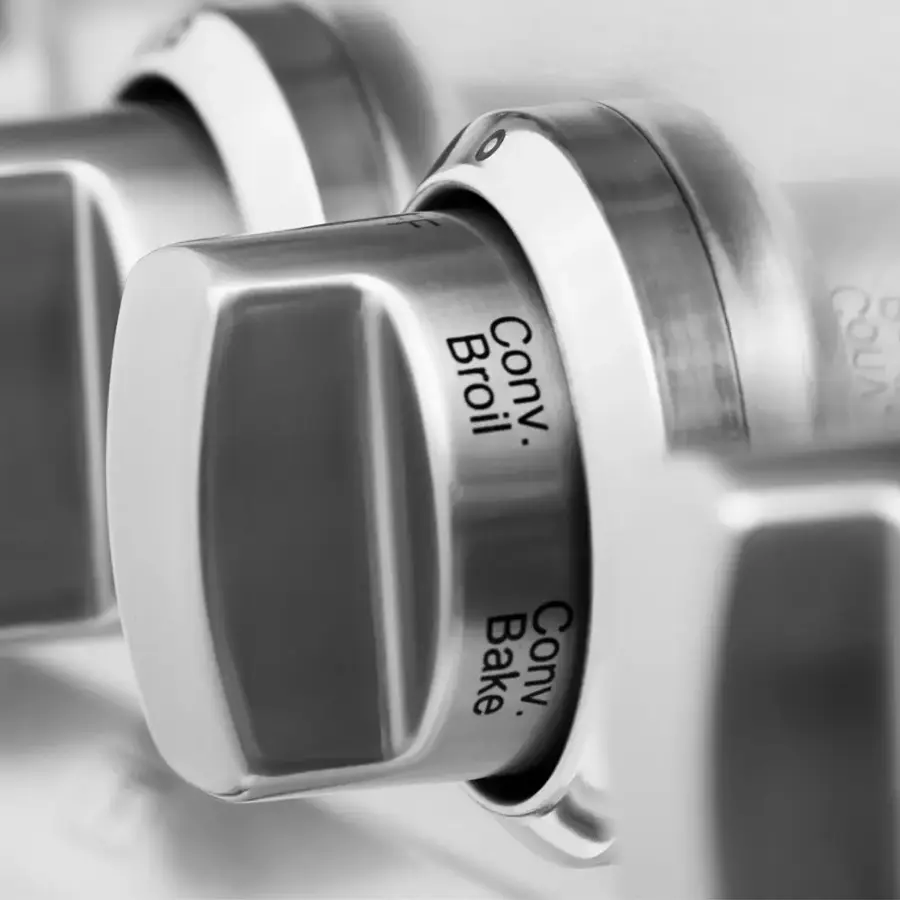

- Oven Cooking Modes: Convection, Bake, Broil
- Oven Settings: Bake, Broil
- Oven Features
- Convection Type: Single-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Single Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Oven Window: true
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Porcelain
- Number of Burners: 6
- Sealed Burners: false (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Dual Wok, rapid, semi-rapid, auxiliary (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Burner Rating
- Burner 1 Rating: 18000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 13000 british thermal units
- Burner 3 Rating: 13000 british thermal units
- Burner 4 Rating: 8500 british thermal units
- Burner 5 Rating: 8500 british thermal units
- Burner 6 Rating: 4200 british thermal units
- Total Maximum BTU Rating: 67500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: nickel (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 817299023487

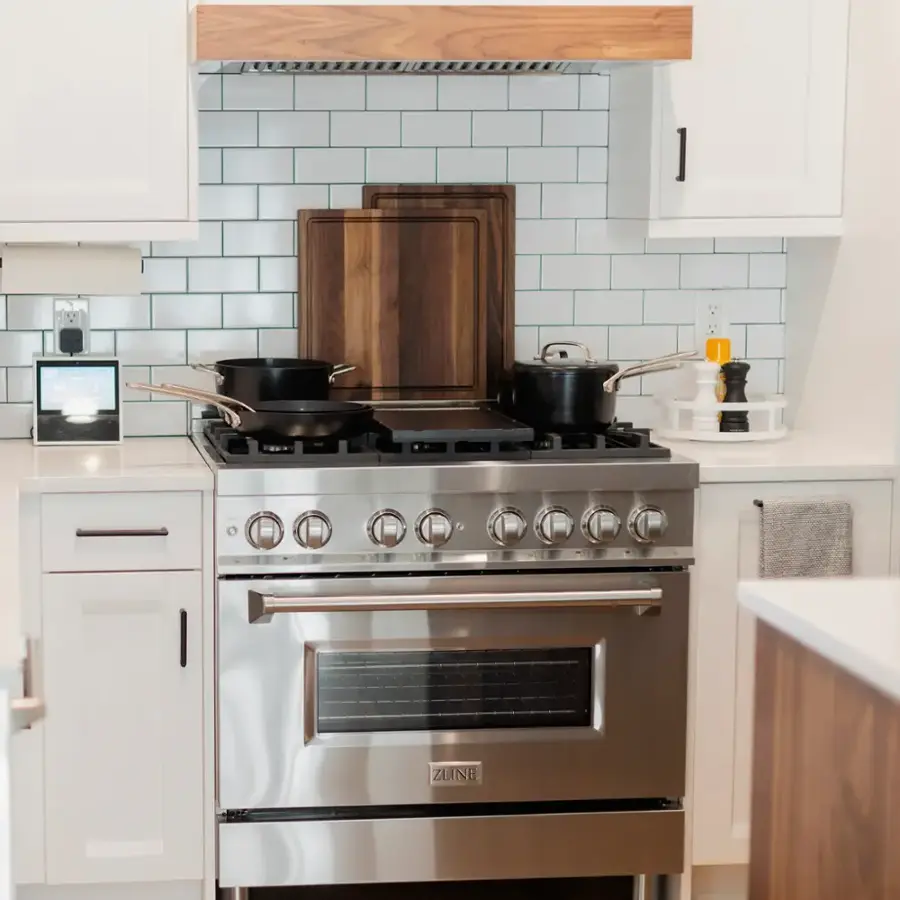

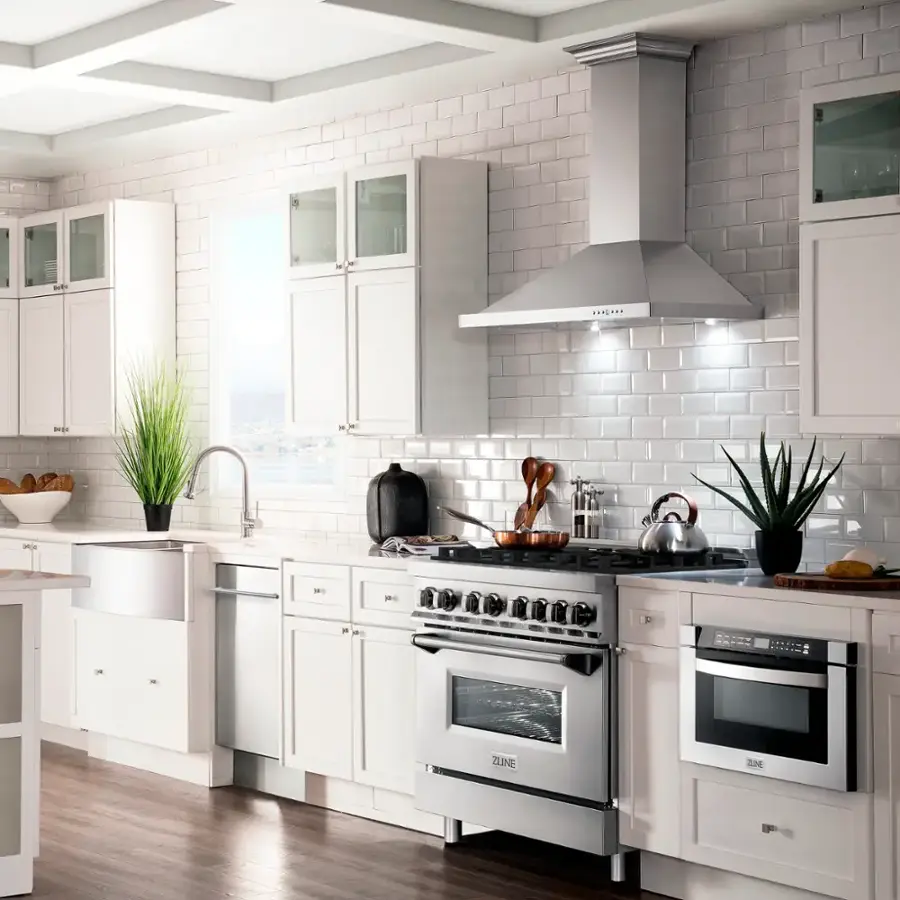

Luxury isn’t meant to be desired - it’s meant to be attainable. The ZLINE 36 in. 4.6 cu. ft. Legacy Dual Fuel Range with 6 Burner Gas Cooktop and Electric Convection Oven in Stainless Steel (RA36) pairs a powerful gas cooktop with 6 Italian-crafted burners and an electric convection oven with a Landscape oven door window design. With innovative features designed to enhance your kitchen’s capability, ZLINE Legacy Dual Fuel Ranges provide a professional culinary experience by pairing unmatched performance with timeless style.
- ZLINE Legacy Series: The Legacy Professional Range Series represents the foundation for ZLINE’s family-focused mission of attainable luxury
- Professional Dual Fuel Cooking: Optimize every meal with even heat distribution thanks to high-performance technology of a gas cooktop and an electric convection oven

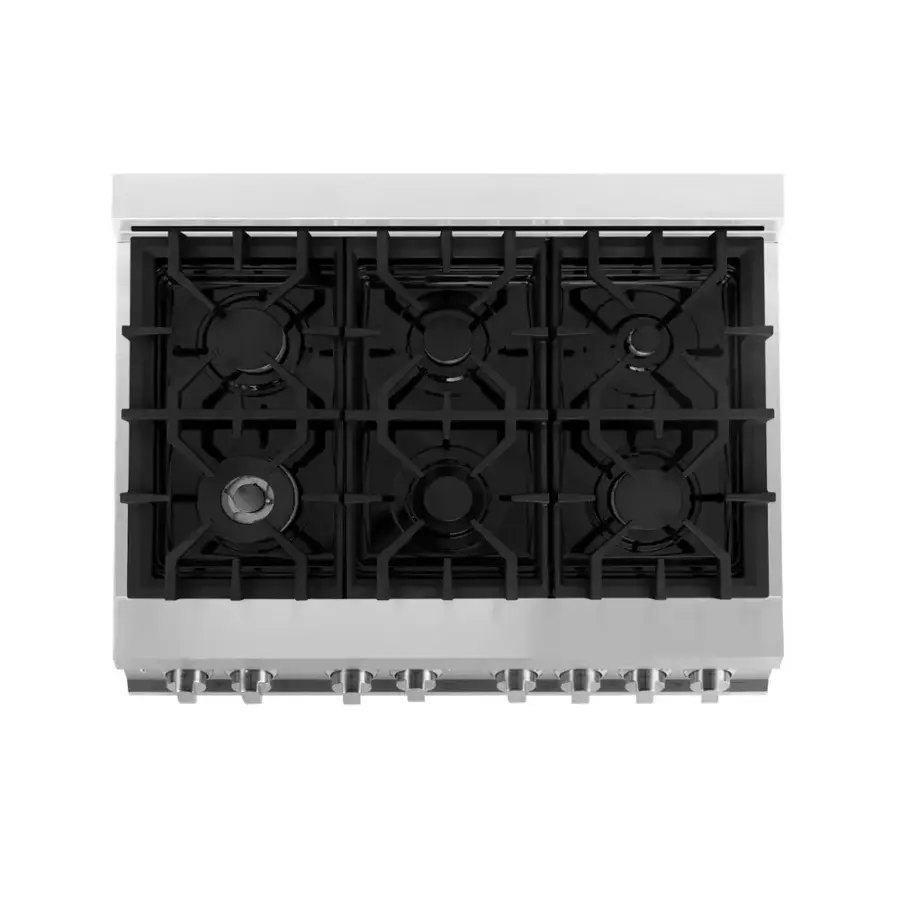

- Italian-Made Sealed Burners: Industry-leading gas cooktop includes 6 hand-cast burners with 1,000 - 18,000 BTUs of cooking power

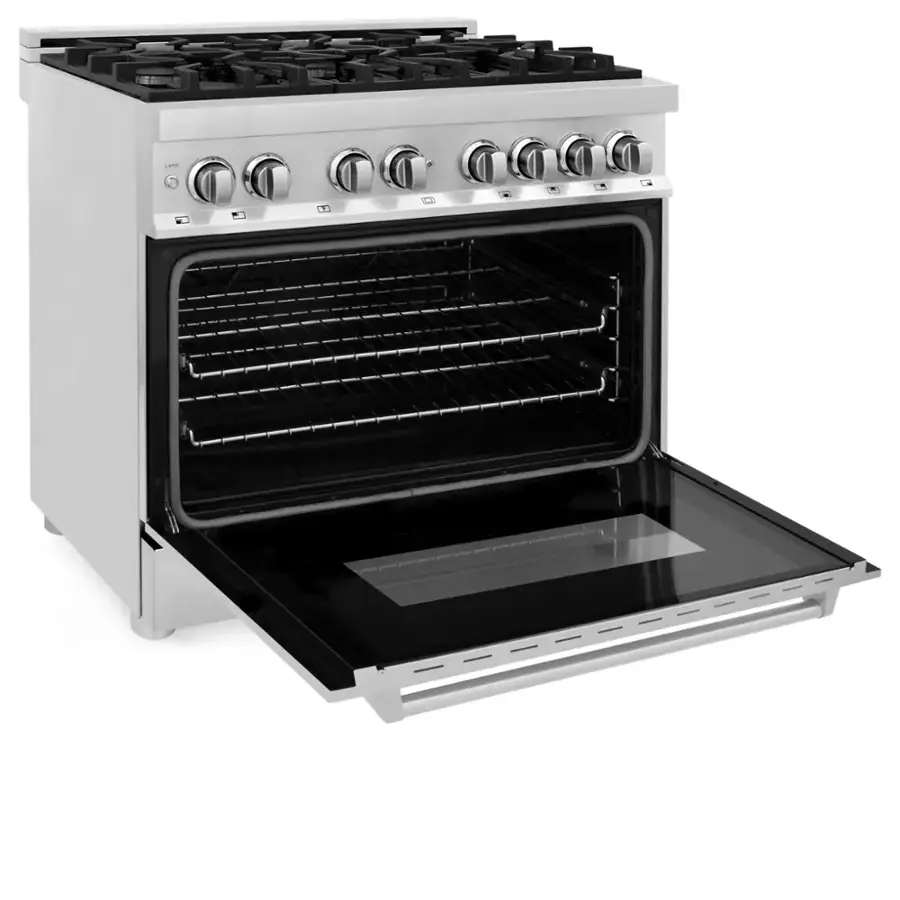

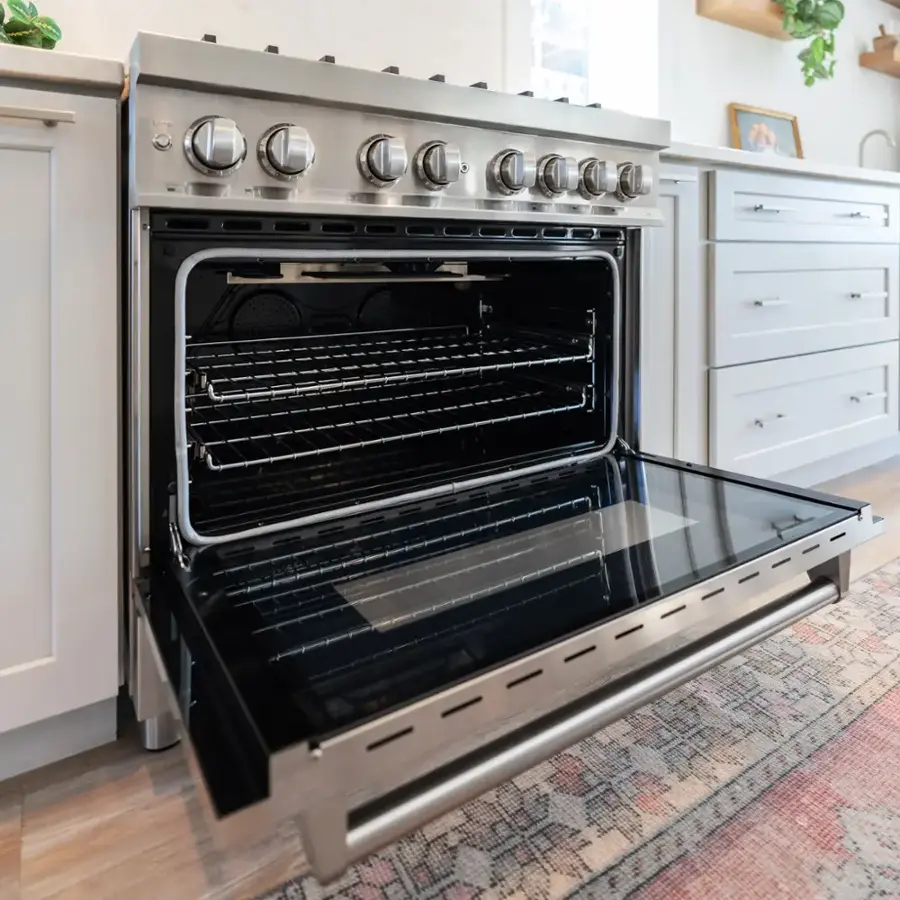

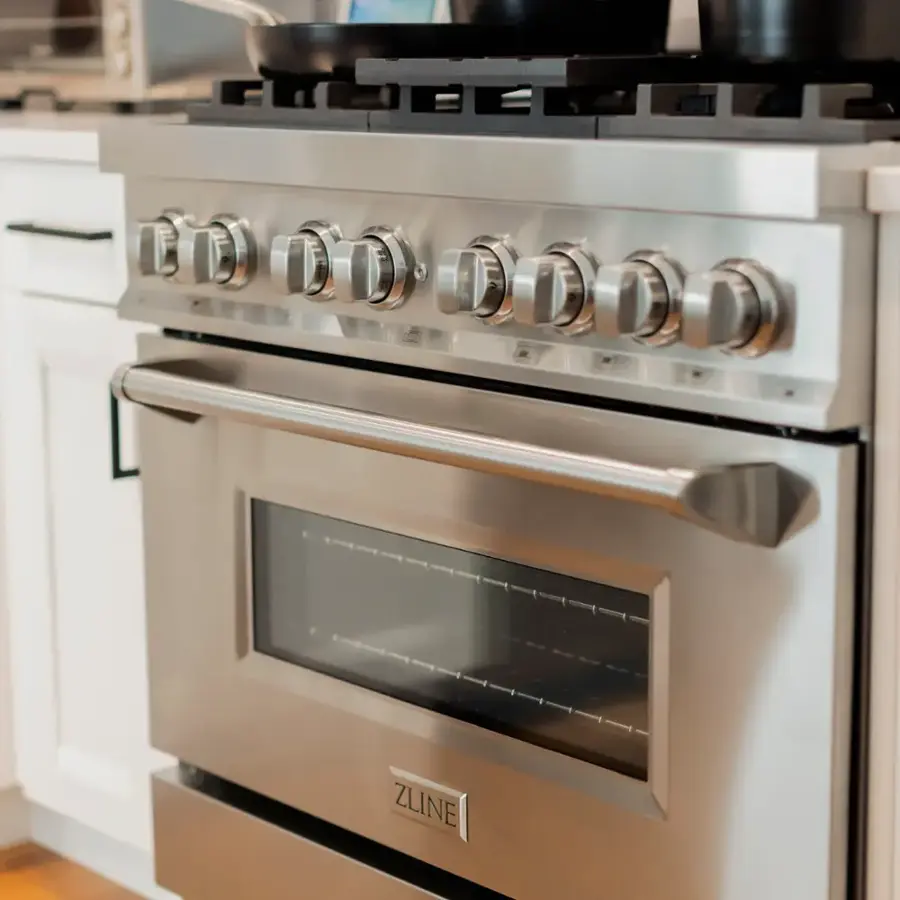

- Landscape Oven Window: ZLINE Legacy Series ranges feature a sleek Landscape oven door design that provides ample viewing space to ensure your dishes are perfectly cooked
- Large Oven Capacity: A 4.6 cu. ft oven fits pans up to 27 in. wide for maximum space and convenience with everyday cooking

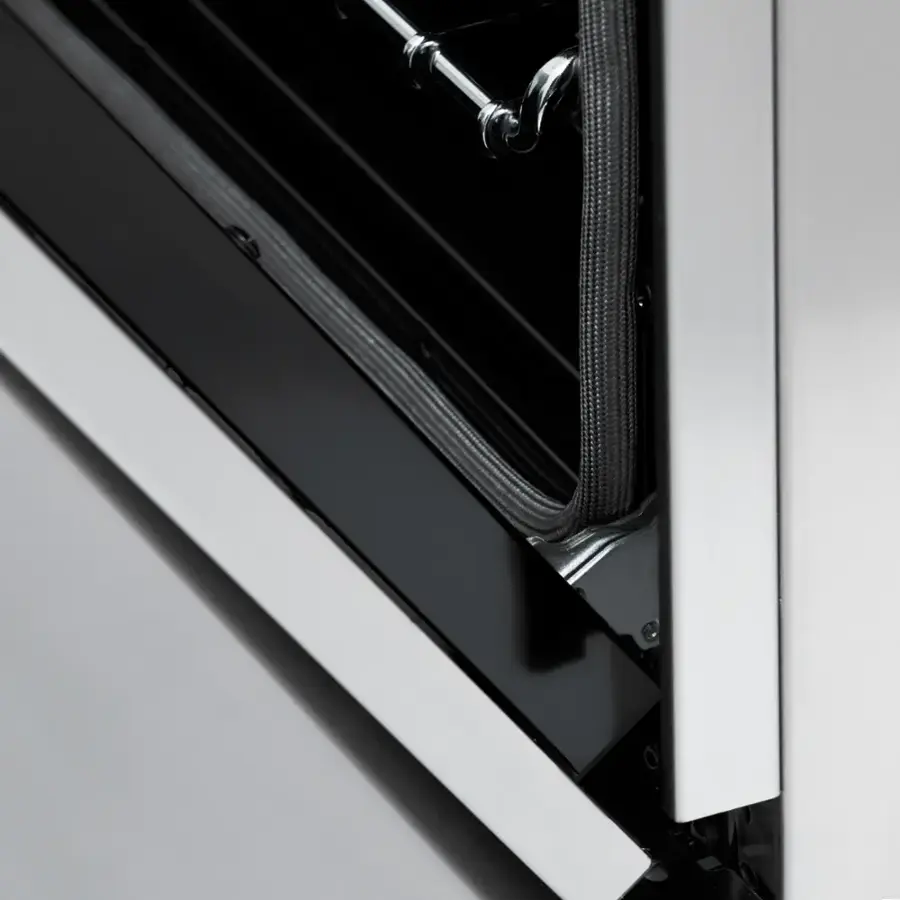

- Premium Oven Insulation: Triple layered glass and an aluminum mesh seal offers superior heat retention and consistent temperatures
- Adjustable Range Height: Easy adjustable legs let you modify the total range height anywhere from 36 inches to 38.5 inches
- Stunning Stainless Steel: Featuring high-grade 304 grade stainless steel with durable cast iron grates that exceed industry standards
- StayPut Oven Door Hinges: Designed to support the full weight of the oven door, offering additional convenience and safety

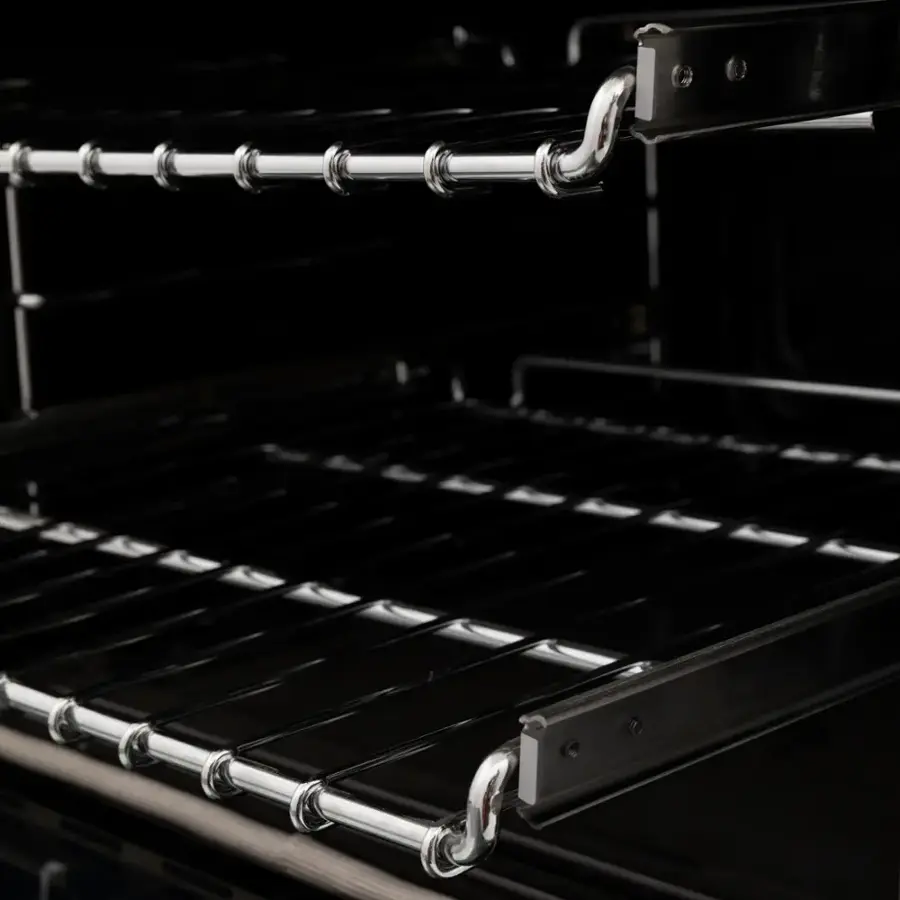

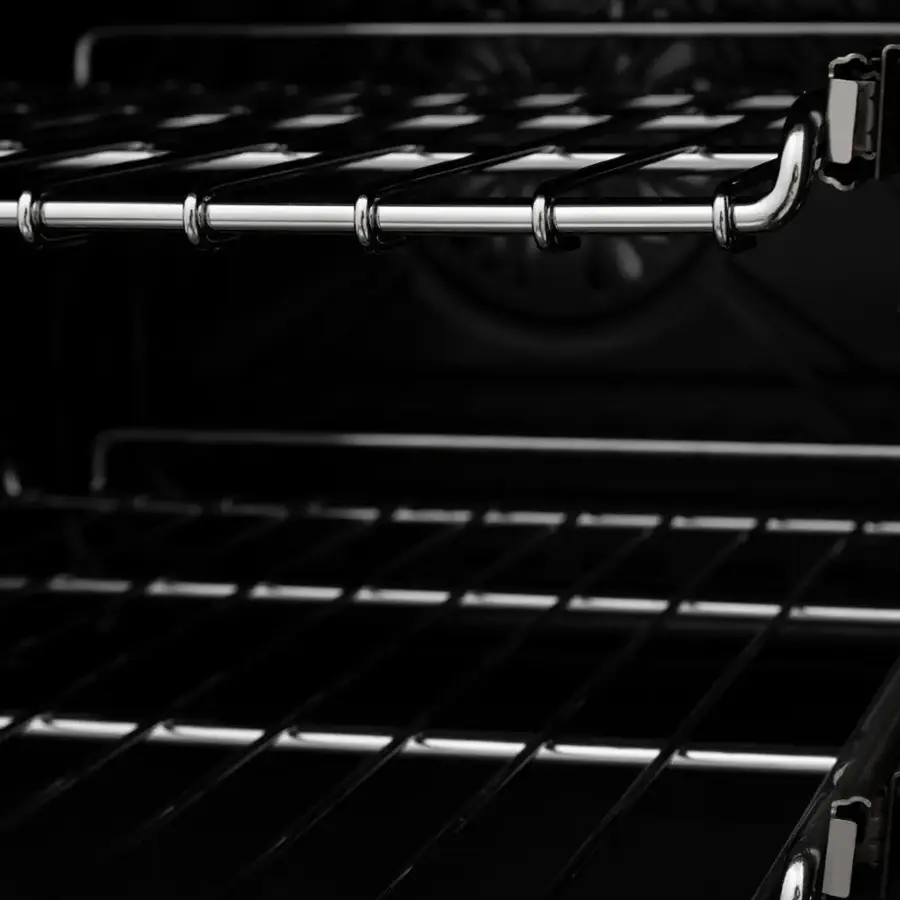

- Smooth Glide Ball-Bearing Oven Racks: 2 durable ball-bearing oven racks provide extra convenience and ease when working with larger dishes
- Dual Oven Lights: Illuminate your oven space with dual halogen lighting, controlled by a switch located on the front control panel
- Minimal Cleaning: Hand-finished porcelain one-piece cooktop allows for easy cleaning and maintenance
- LP Conversion Kit: Comes equipped with an LP conversion kit to convert the cooktop from natural gas to liquid propane (must be done by a professional), offering versatility with your cooking preference
- Industry First Lifetime Burner Warranty: Limited lifetime warranty on ZLINE Italian burners includes part replacements for burners and burner caps, and parts and labor for spark tips if parts prove to be defective in materials or workmanship
- Manufacturer Warranty: 1-year parts and service warranty
Whats Included
- ZLINE Professional 4.6 Cu. Ft. Freestanding Dual Fuel Convection Range
Product Manuals
Q: With a 4.6 cubic feet oven capacity, can this range accommodate multiple dishes at once?
A: Yes, this range can accommodate multiple dishes at once. The oven has a 4.6 cubic feet capacity and can fit pans up to 27 inches wide.
Q: What type of ignition system does this range use, and how does it contribute to ease of use?
A: This range uses an electric ignition system. To activate it, simply push and turn the knob counter-clockwise to release the gas and generate a spark. This user-friendly design allows for easy and convenient burner ignition.
Q: What are the different burner power ratings, and how do they cater to various cooking needs?
A: The burner power ratings of the ZLINE Professional 4.6 Cu. Ft. Freestanding Dual Fuel Convection Range vary from 1,000 to 18,000 BTUs. The lower BTU burners are suitable for simmering and delicate cooking, while the higher BTU burners are ideal for boiling, searing, and stir-frying. This range of power ratings allows for precise temperature control and versatility in cooking different types of dishes.
Q: How many burners does this range have, and what are their respective BTU ratings?
A: This range has six burners with the following BTU ratings: - Burner 1: 18,000 BTU - Burner 2: 13,000 BTU - Burner 3: 13,000 BTU - Burner 4: 8,500 BTU - Burner 5: 8,500 BTU - Burner 6: 4,200 BTU
Q: What is the significance of the three-layered insulated glass oven in terms of cooking efficiency?
A: The three-layered insulated glass oven in the Professional 4.6 Cu. Ft. Freestanding Dual Fuel Convection Range by ZLINE offers superior heat retention and consistent temperature, resulting in efficient cooking and perfectly cooked dishes every time. This feature minimizes heat loss and maintains optimal cooking conditions, ensuring even baking and roasting.
Q: How does the electric convection oven ensure even heating for precise cooking?
A: The electric convection oven ensures even heating for precise cooking by circulating hot air throughout the oven with a single fan and heating element. This technology helps to eliminate hot and cold spots, resulting in consistent cooking and baking. The oven also features a three-layered insulated glass door that helps to retain heat and maintain a consistent temperature.
Q: What is the manufacturer's warranty coverage for both parts and labor?
A: The manufacturer's warranty coverage for both parts and labor is one year from the original purchase date. This warranty covers all parts and labor for necessary repairs if any part of the product proves to be defective in materials or workmanship.
Q: What safety features do the StayPut Italian hinges provide during baking?
A: The StayPut Italian hinges provide a secure and stable cooking environment by preventing the oven door from accidentally opening during baking. This safety feature helps to keep the heat inside the oven, ensuring consistent cooking and reducing the risk of burns or accidents in the kitchen. Additionally, the hinges are designed to withstand high temperatures and heavy usage, ensuring long-lasting durability and reliability.
