AGPtek - Full Set RFID Door Access Control System Kit Electric Magnetic Lock - White
Reviews coming soon
About this product
This RFID Proximity access controller using proximity system is one of the modern access control systems. The state-of-the-art CPU and integrated circuit techniques are applied to keep all the data from loss due to power failure. It is powerful and can open the door using proximity cards, passwords, or the hybrid. The access controller can provide users with more convenience by connecting to terminals, including the button for opening the door, doorbell, and electric lock that is normally open or closed. This product offers a method for controlling access safely and automatically, qualifying it as an ideal equipment for businesses, offices, factories, and communities.
Features

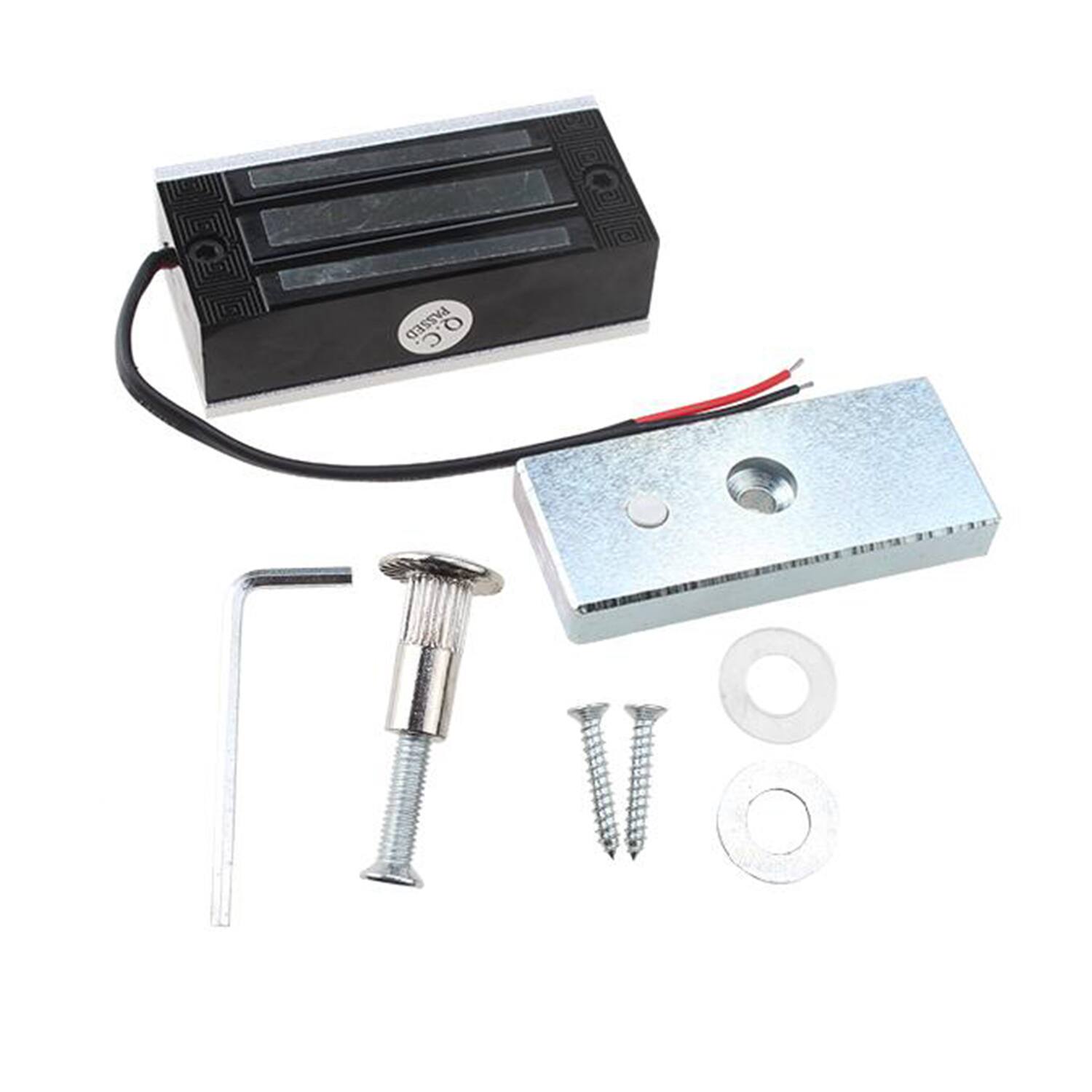

Electric Magnetic Lock Specifications
Lock Size: 80L x 37.3W x 23.3H(mm); Armature Plate: 74L x 32W x 11H(mm); Holding Force: 60kg (130lbs); Mode: NC (locked whilst power supply is operating), fail safe mode; Voltage: DC 12V; Current Draw: 0.11A ~0.15A; Safety Function: Built-in voltage spike suppressor; Opening Mode: 90 degree swinging door.

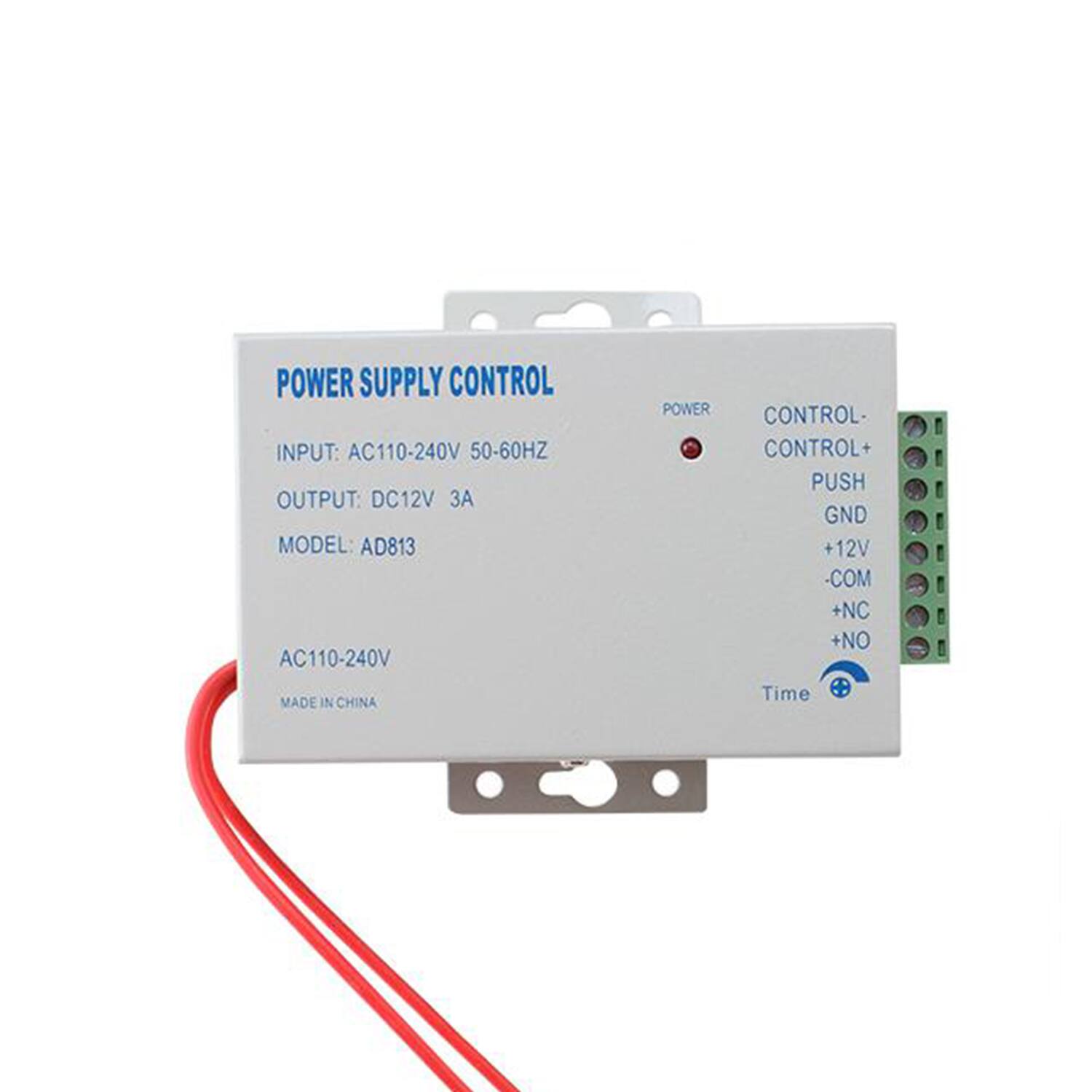

Power Supply Specifications
AC Input: Standard AC 100V-240V 50-60HZ 36W; DC Output: Stabilizator DC 12V/ 3 A; Automatic Protection Function: It will protect automatical and no voltage output when short circuit happening in the circumferential circuit. Outside Iron Shell Size: 120 * 95 * 38 mm. Set NC / NO outputs, can control various types of electric locks.
Power Supply Advantages
Voltage range input regularly from 100V-240V, compatible with world voltage, light weight, convenient transportation, small disturbance, output voltage fluctuation is only ±1% from no-load to full load, lock temperature rising reduces greatly (compared with power frequency supply).

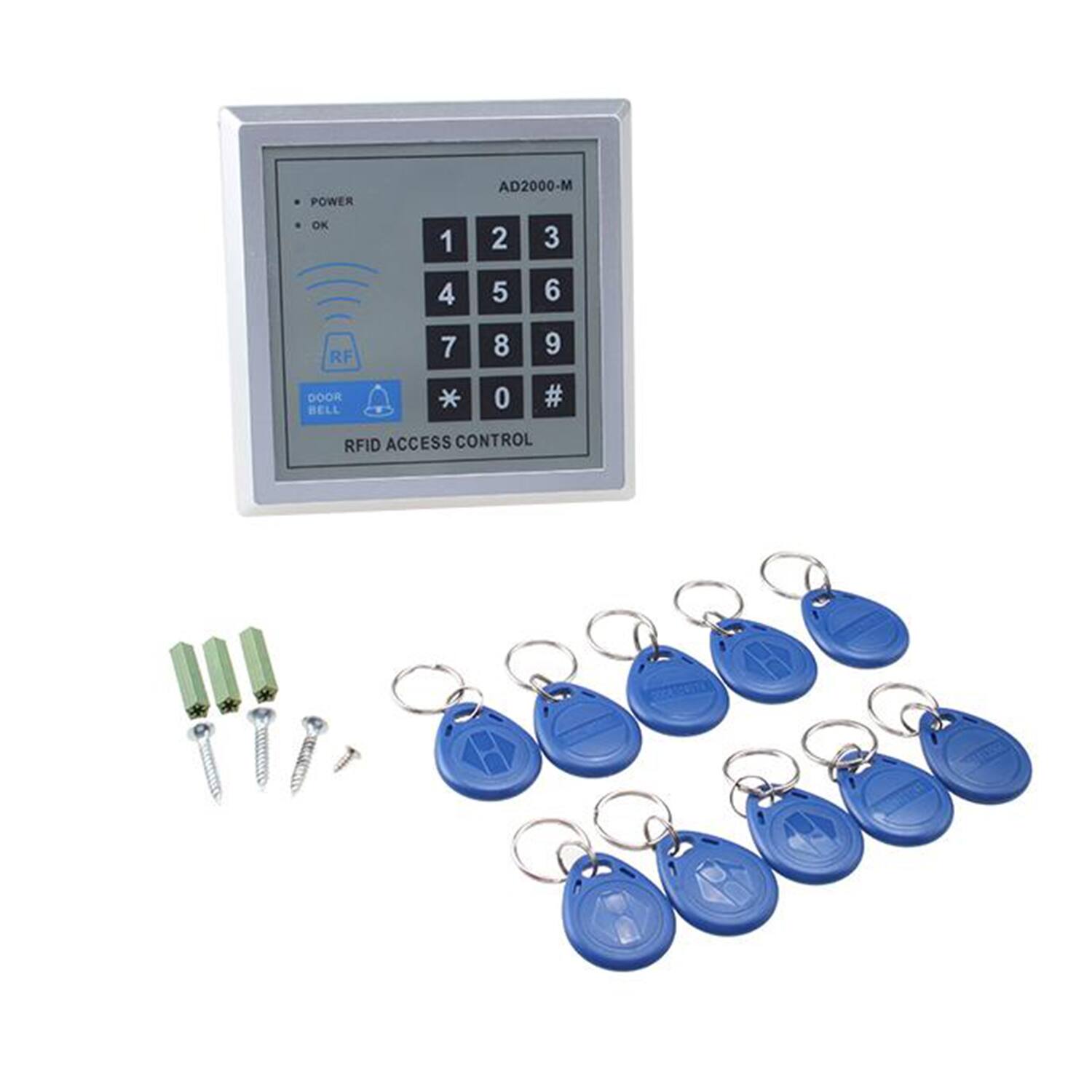

Control System Keypad Specifications
Power Supply: DC Voltage 12V±10% Current < 0.1A; Size: 116 × 116 × 20 mm; Ambient temperature: 0℃—60℃; Relative humidity: 20%—80%; Memory Capacity: 500 user cards or 50 door opening passwords; Working Distance: 5－15CM; Card Type: EM or EM compatible cards.

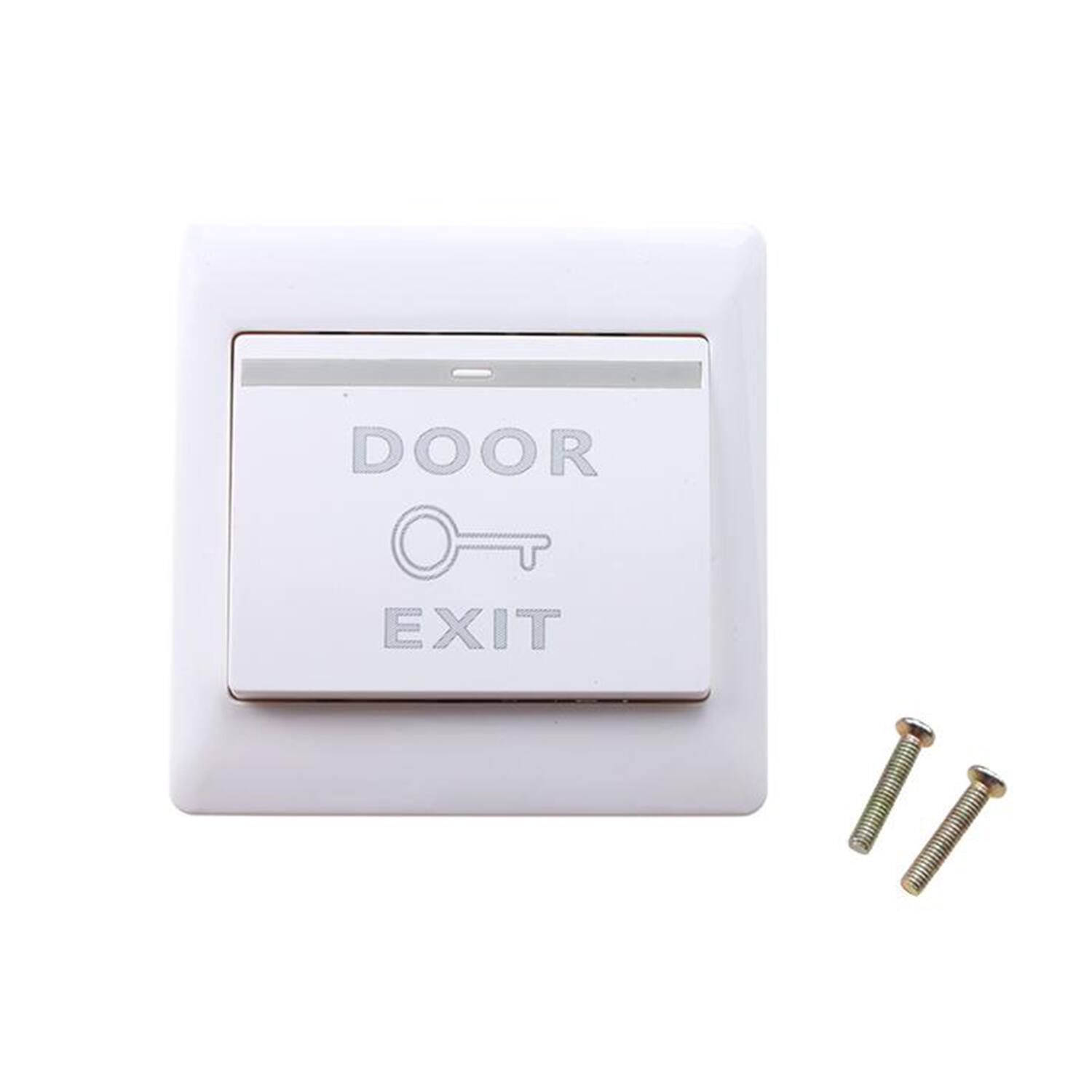

Push Release Button Exit Switch Specifications
Dimensions: 86L x 86W x 20H(mm); Current Rating: 3A 36VDC Max; Suitable for Door: Hollow Door; Operating Temp: 10～+55℃ (14-131F); Operating Humidity: 0-95% (non- condensing); Panel Material: Fireproof Material.
Specifications
- BrandAGPtekModel NumberHS0028+HS0015+HS0016+HS0017Product NameFull Set RFID Door Access Control System Kit Electric Magnetic LockColorWhiteProduct Group(s) ControlledSecurity/CamerasApp CompatibleNo
