Alpine - 9" Android Auto and Apple CarPlay Bluetooth Digital Media Receiver - Black
Specifications
- App CompatibleNoMobile Device SyncingAndroid Auto, Apple CarPlayBluetooth EnabledYesSteering Wheel Control CompatibleYesTuner Type(s)HD, Satellite Ready, AM/FM, Satellite Ready, HDCD PlayerNo
- Key Specs
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Device Syncing: Android Auto, Apple CarPlay
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Steering Wheel Control Compatible: true
- Tuner Type(s): HD, Satellite Ready, AM/FM, Satellite Ready, HD
- CD Player: false
- Screen Size: 9 inches (Size of the screen, measured diagonally from corner to corner.)
- Works With: Siri, Google Assistant, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Alpine
- Model Number: iLX-F509
- Product Name: 9" Android Auto and Apple CarPlay Bluetooth Digital Media Receiver
- Color: Black
- Audio
- RMS Power: 16 watts (The maximum amount of continuous power the device is able to handle.)
- Compatibility
- Mount Style: Single DIN
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Device Syncing: Android Auto, Apple CarPlay
- Mobile Operating System Compatibility: Android, Apple iOS
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Number of Camera Inputs: 2
- Steering Wheel Control Compatible: true
- Original Equipment Manufacturer (OEM) Integration: iDatalink Maestro RR2 (The aftermarket solution for linking to the Original Equipment Manufacturer’s (OEM) hardware or software, sometimes requiring an additional interface.)
- Works With: Siri, Google Assistant, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Tuner
- Tuner Type(s): HD, Satellite Ready, AM/FM, Satellite Ready, HD
- Satellite Radio: SiriusXM Ready
- Receivers With HD Radio: true
- Players
- CD Player: false
- Features
- USB Device Charging: true
- Hands-Free Calling: true
- External Microphone: Included
- EQ Presets: true
- Display
- Screen Size: 9 inches (Size of the screen, measured diagonally from corner to corner.)
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Touch Screen Type: Capacitive
- Faceplate Style: Fixed
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.26 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.76 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.32 pounds (The out of box weight of the item.)
- Other
- UPC: 793276084378

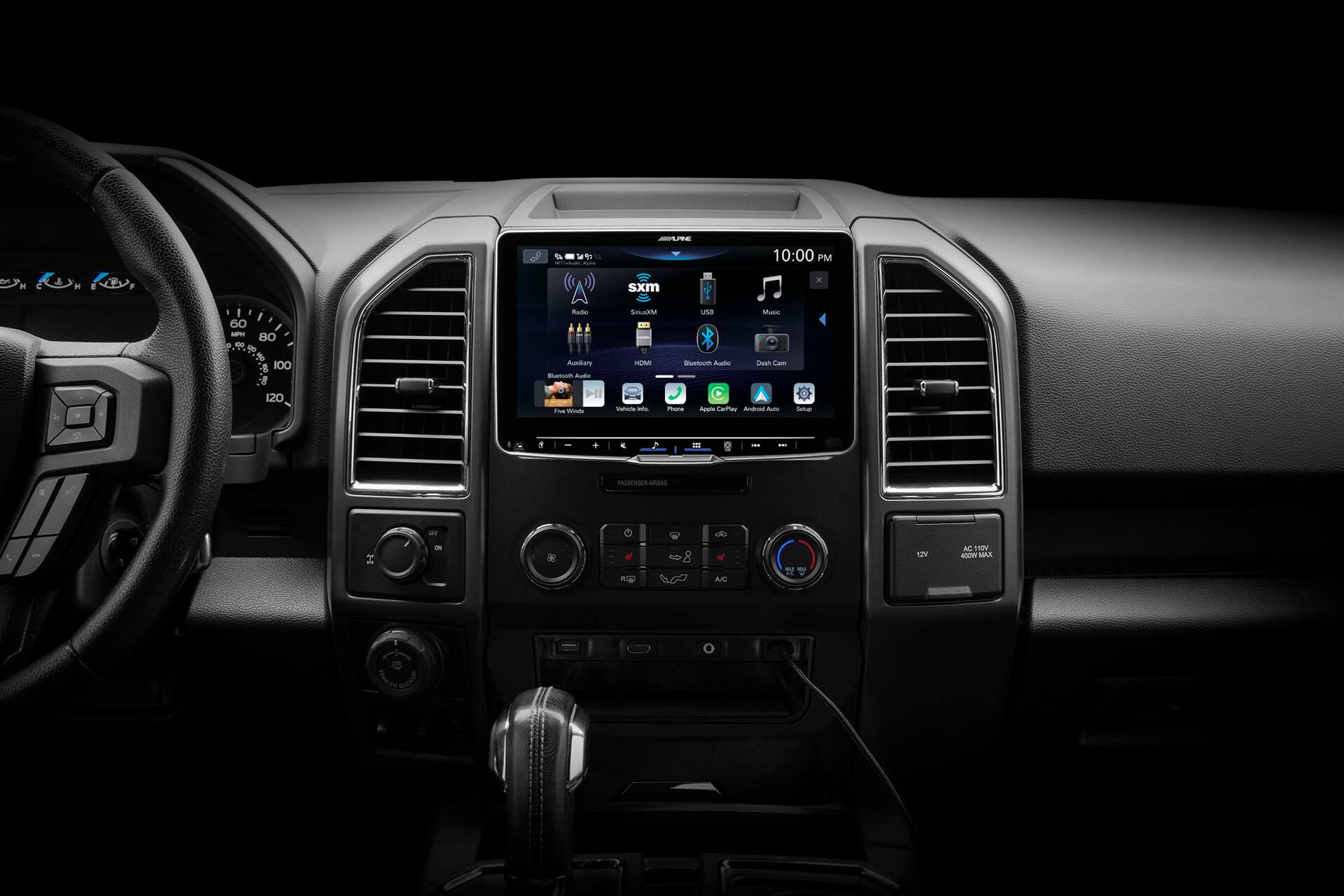

The Next-Gen Alpine Halo9 boasts an impressive 9" touch display, yet can fit in most single-DIN dash openings. It's 720p high-resolution capacitive screen delivers high-quality images and responds quickly. The screen is adjustable, so you can set it at the perfect angle for you, and still access your climate controls. With wireless Apple CarPlay, Android Auto, and built-in Bluetooth, you can make or receive hands-free phone calls, or stream music from your phone with ease. More entertainment options include built-in HD Radio, SiriusXM satellite compatibility, and streaming through apps like Pandora, Spotify, and Tidal.
- 9" floating style display: Adjustable height, depth and angle mounting bracket

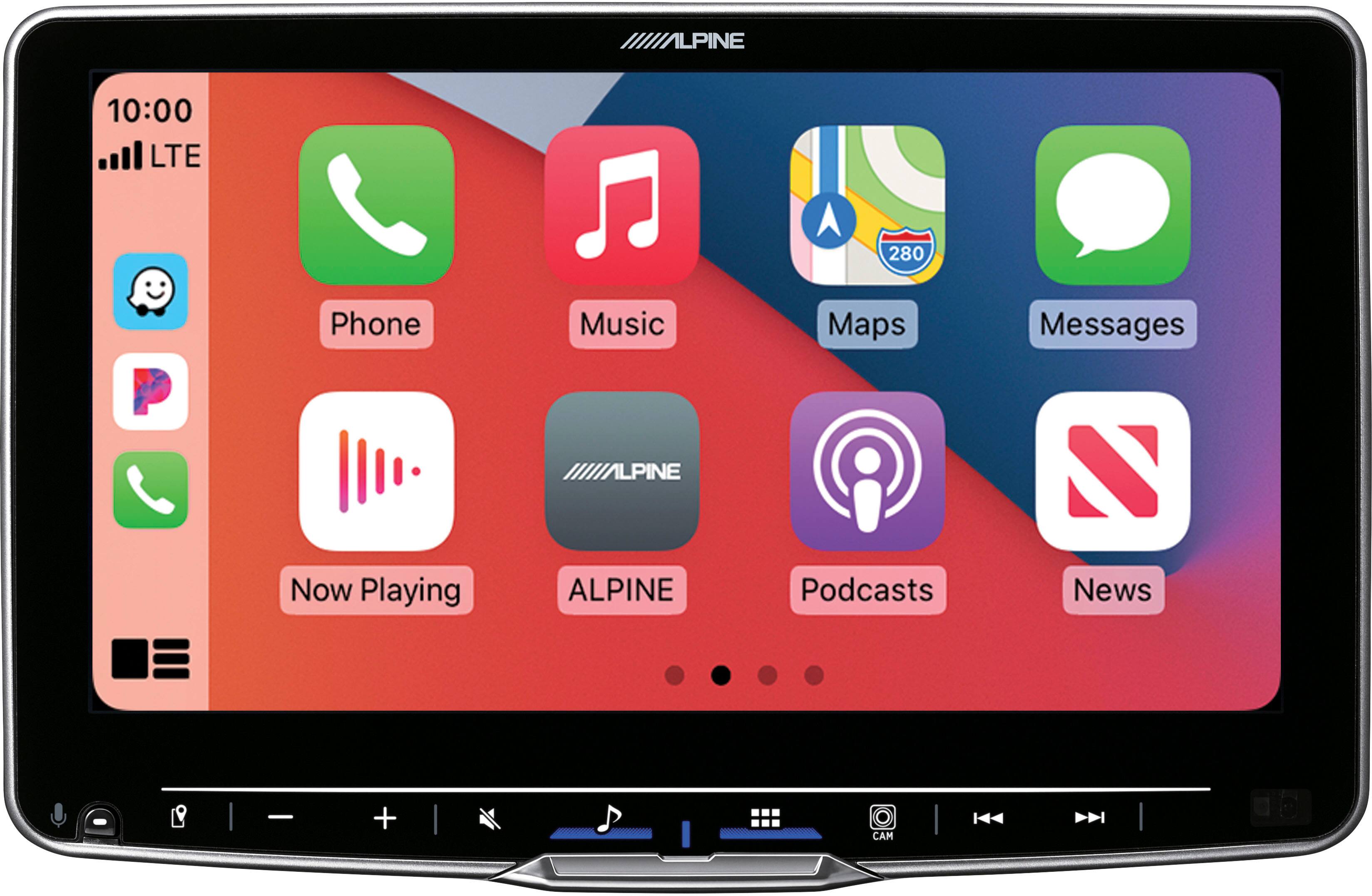

- Mobile operating systems: Works with Apple CarPlay and Android Auto
- Hands-free calling and audio streaming: Bluetooth built-in
- Customizable user interface: 3 pages with 22 available widgets; Customizable wallpaper (user photos)
- SiriusXM-Ready/ SiriusXM NGS-Ready: Requires a SiriusXM tuner and subscription, sold separately
- Dash cam input: Control and view Alpine's DVR-C320R dash camera (sold separately) with an integrated dash cam input
- Optional dual camera interface: The Alpine KCX-C2600B Multi-Camera Selector Interface (sold separately) allows as many as two cameras to be connected
- iDatalink serial port: Compatible with the iDatalink Maestro RR or RR2 (sold separately)
- Floating screen: Fits in most single-DIN dash openings
- Hi-resolution audio playback: 96kHz/24bit
- 720p HD display: 1280 x 720 px
- Navigation compatible: KTX-NS01 Navigation Module (Sold separately)

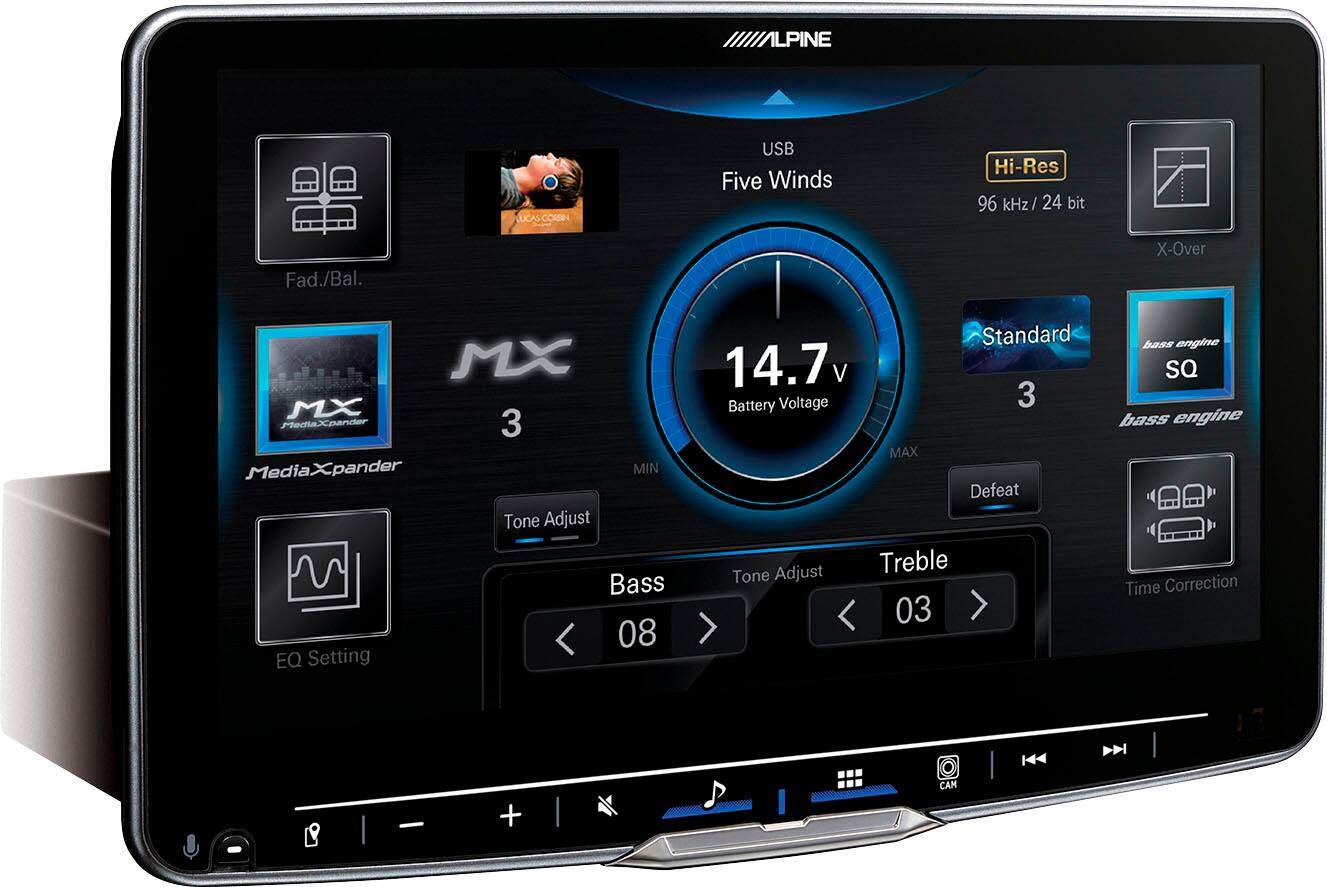

- Media Xpander (MX): Alpine's unique sound function that simulates lossy compressed sound sources such as MP3 and brings them closer to the original sound
- Fader/balancing: Adjust the output from each speaker, front and back, left and right
- Parametric EQ: 13-band adjustment allows equalization independently
- X-Over: Cut-off/slope adjustable for front/rear/subwoofers respectively
- Bass engine SQ: Preset 5 low-frequency settings, set arrangements according to taste
- Time correction: Reproduce favorite sound field by performing distance correction of each speaker
- Dual USB Input: 1 data and 1 charge-only
- Built-in amplifier: 16-watts RMS/50 peak x 4 channels
- 9" floating style display: Adjustable height, depth and angle mounting bracket
- Mobile operating systems: Works with Apple CarPlay and Android Auto
- Hands-free calling and audio streaming: Bluetooth built-in
- Customizable user interface: 3 pages with 22 available widgets; Customizable wallpaper (user photos)
- SiriusXM-Ready/ SiriusXM NGS-Ready: Requires a SiriusXM tuner and subscription, sold separately
- Dash cam input: Control and view Alpine's DVR-C320R dash camera (sold separately) with an integrated dash cam input
- Optional dual camera interface: The Alpine KCX-C2600B Multi-Camera Selector Interface (sold separately) allows as many as two cameras to be connected
- iDatalink serial port: Compatible with the iDatalink Maestro RR or RR2 (sold separately)
- Floating screen: Fits in most single-DIN dash openings
- Hi-resolution audio playback: 96kHz/24bit
- 720p HD display: 1280 x 720 px
- Navigation compatible: KTX-NS01 Navigation Module (Sold separately)
- Media Xpander (MX): Alpine's unique sound function that simulates lossy compressed sound sources such as MP3 and brings them closer to the original sound
- Fader/balancing: Adjust the output from each speaker, front and back, left and right
- Parametric EQ: 13-band adjustment allows equalization independently
- X-Over: Cut-off/slope adjustable for front/rear/subwoofers respectively
- Bass engine SQ: Preset 5 low-frequency settings, set arrangements according to taste
- Time correction: Reproduce favorite sound field by performing distance correction of each speaker
- Dual USB Input: 1 data and 1 charge-only
- Built-in amplifier: 16-watts RMS/50 peak x 4 channels
Product Manuals
Q: How many USB inputs does this receiver have?
A: This receiver has dual USB inputs - one for data and one for charging only.
Q: What is the screen resolution of this receiver?
A: This receiver has a 720p HD display with a resolution of 1280 x 720 pixels.
Q: Does this Alpine receiver have a built-in amplifier?
A: Yes, it has a built-in amplifier with 16-watts RMS/50 peak x 4 channels.
Q: Can I connect a dash cam to this Alpine receiver?
A: Yes, you can connect the Alpine DVR-C320R dash camera to this receiver.
Q: Is this receiver compatible with SiriusXM?
A: Yes, this receiver is SiriusXM-Ready/SiriusXM NGS-Ready but requires a SiriusXM tuner and subscription, sold separately.
Compare similar products
The Next-Gen Alpine Halo9 boasts an impressive 9" touch display, yet can fit in most single-DIN dash openings. It's 720p high-resolution capacitive screen delivers high-quality images and responds quickly. The screen is adjustable, so you can set it at the perfect angle for you, and still access your climate controls. With wireless Apple CarPlay, Android Auto, and built-in Bluetooth, you can make or receive hands-free phone calls, or stream music from your phone with ease. More entertainment options include built-in HD Radio, SiriusXM satellite compatibility, and streaming through apps like Pandora, Spotify, and Tidal.

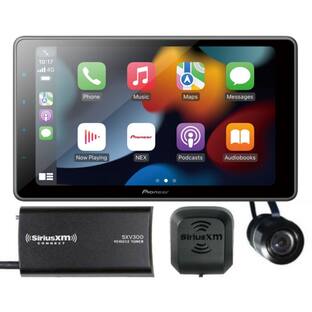

The DMH-WT5000NEX features a large 9.0" HD resolution capacitive touchscreen with a unique mounting solution that floats the screen in front of the radio location. With the latest connectivity solutions designed especially for todays smartphone-driven lifestyle, the Pioneer PxLink App allows you to customize your receivers home screen, quickly access features, and easily perform OTA firmware updates. Features include Android Auto, Apple CarPlay, built-in Bluetooth, SiriusXM-Ready, and built-in HD Radio. With its fast-processing power and a refreshing user interface design, this receiver offers you an incomparable sound experience for any type of listening and sources. Whether connected via wires or wirelessly, you can always expect high-quality sound and ease of use.
