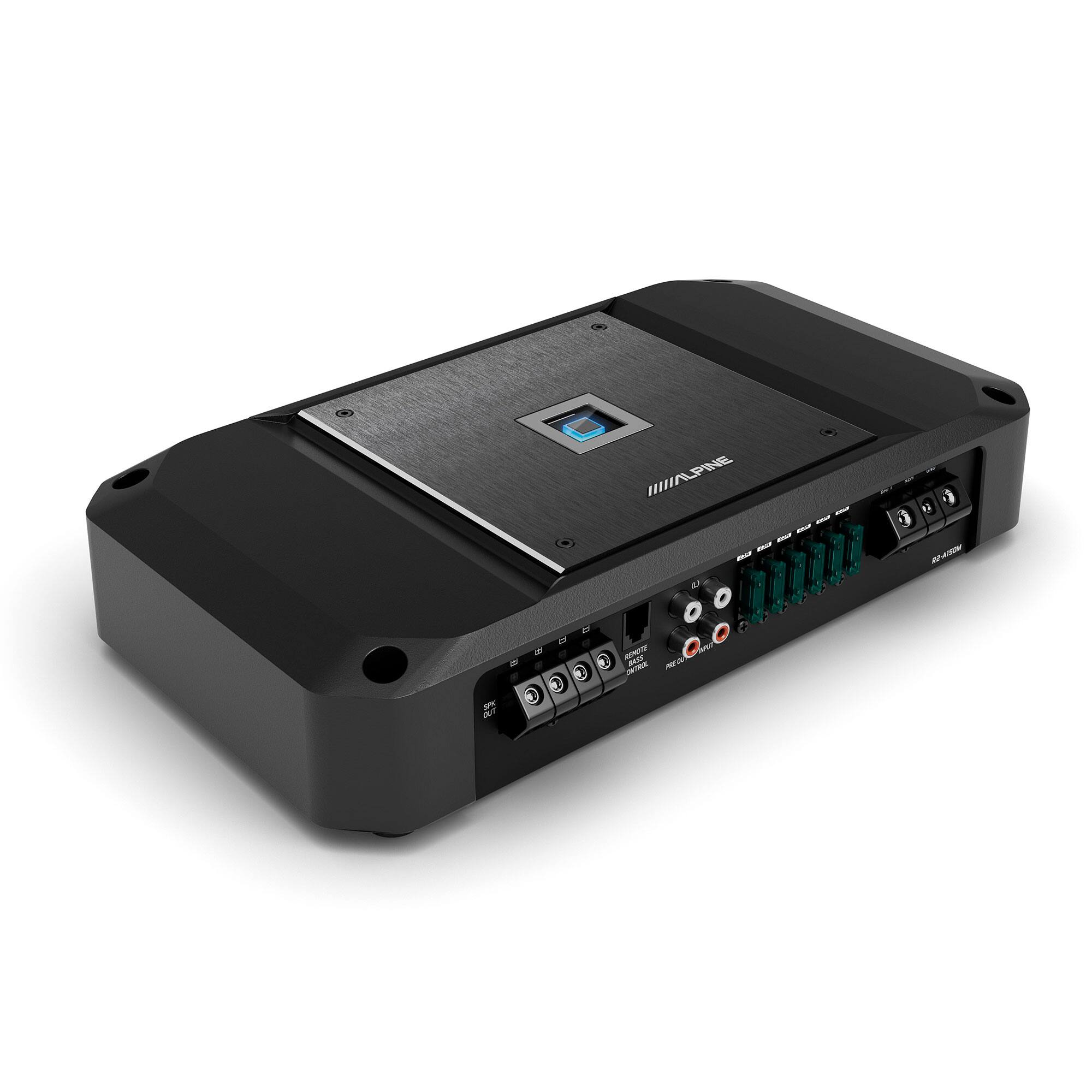

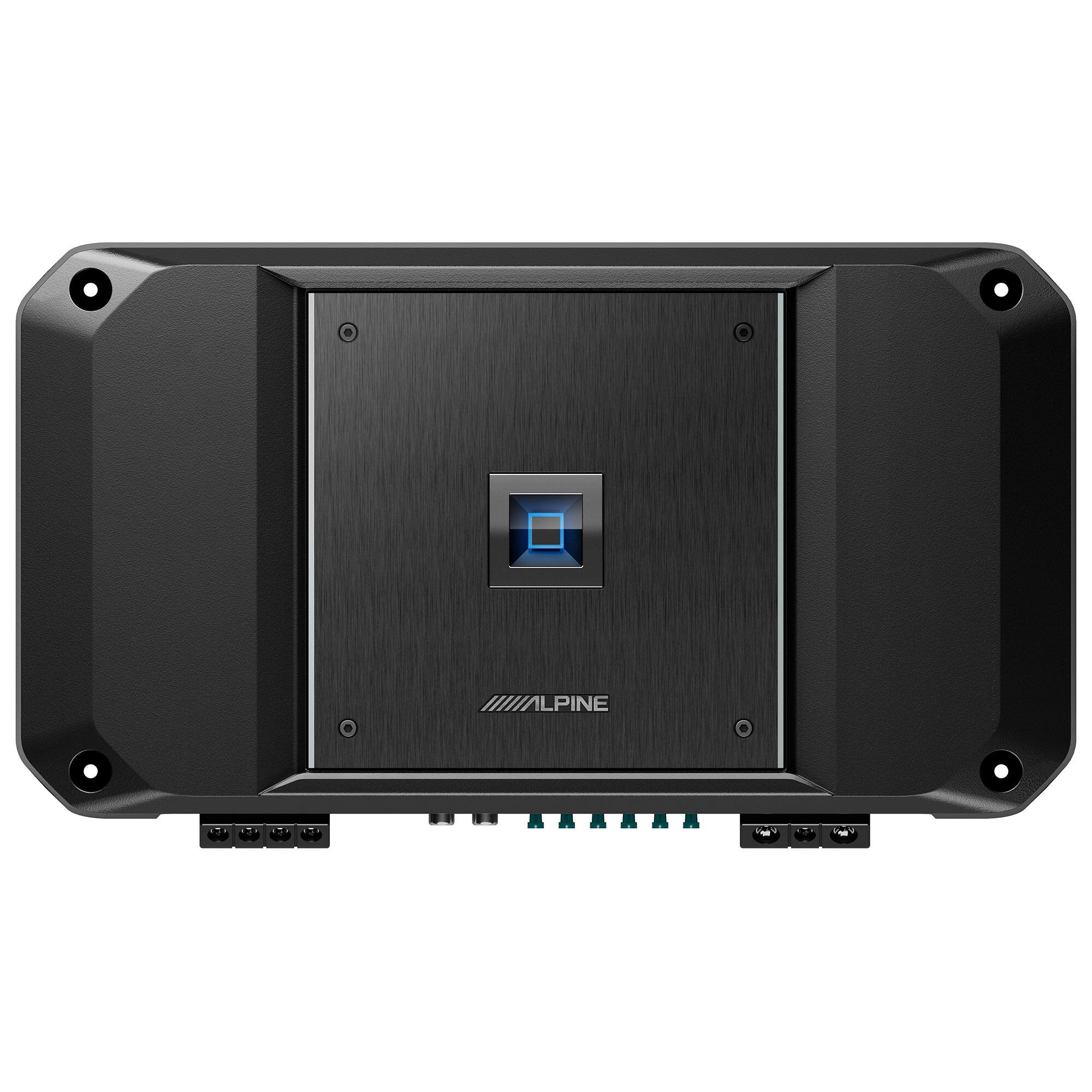

Alpine - R2-A150M R-Series Mono Subwoofer Amplifier - 1500W at 1-Ohm, Hi-Res Certified - Black/Gray
FREE shipping to
More Buying Options
Specifications
- Continuous Watts x Channel @ Ohms0Amplifier ClassDNumber Of Channels1Bass BoostVariable
- Key Specs
- Continuous Watts x Channel @ Ohms: 0
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Alpine
- Model Number: R2-A150M
- Product Name: Alpine R2-A150M R-Series Mono Subwoofer Amplifier - 1500W at 1-Ohm, Hi-Res Certified
- Color: Black/Gray
- Audio Power
- Continuous Watts x Channel @ Ohms: 0
- Total Power Handling RMS: 1500 watts
- Total Power Handling Maximum: 3000 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Dimensions
- Product Height: 2.580 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 13.440 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.730 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 11.0 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 793276084965
The Alpine “R-Series” line of speakers, subwoofers and amplifiers have a heritage of sound quality you can hear from a block away, and the newly added R-Series amplifiers are no exception. Aside from their best-in-class performance, these amplifiers are tuned to emphasize the characteristics of the R-Series speakers and subwoofers, giving you that legendary R-Series experience. They have a 15% reduced footprint compared to the previous models and are easier to install. FEATURES Install Terminal Layout: One side Small footprint for easy installation Screw terminals (for speaker and power cables) General Class-D Amplification (Digital) Channel Design: Mono Channel Top panel controls Thermal Management Control Top Mounted LED Power/Status Indicator Speaker Level Input with remote turn on Crossover: Adjustable Low-pass (LPF) and Variable Subsonic filter Adjustable Gain Control Bass EQ Remote Bass Control (RUX-KNOB2) Ready SPECIFICATIONS Max Power Output Ratings Total Max Power: 2300W RMS Power Ratings Per Channel into 1 Ohms, 14.4V (≤1%THD+N): 1 x 1500W Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 1200W Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 700W Sound Tuning Crossover: Variable LPF: 50-400Hz (-24dB/oct) Crossover: Variable Subsonic: 8Hz-40Hz (-24dB/oct) General Power Requirements: 14.4 V.DC (9 - 16 V allowable) Input Sensitivity (RCA Input): Hi: 0.4V - 10V / Low: 0.1V - 4.0V High Level Input with automatic power on Cable size: Power Cable AWG 4, SPK Cable AWG 8 Frequency Response: 10Hz – 400Hz THD+N (@ 10W into 4 Ohms): <0.04% Damping Factor: >250 Weight: 5kg Dimensions Heat Sink (WxHxD) mm: 341 x 65 x 185
- Key Feature: The R2-A150M is designed to exactly match the power handling of two 10” or 12” R-Series subwoofers – or even four 8” R-Series subs (1200 Watts @ 2 Ohms)

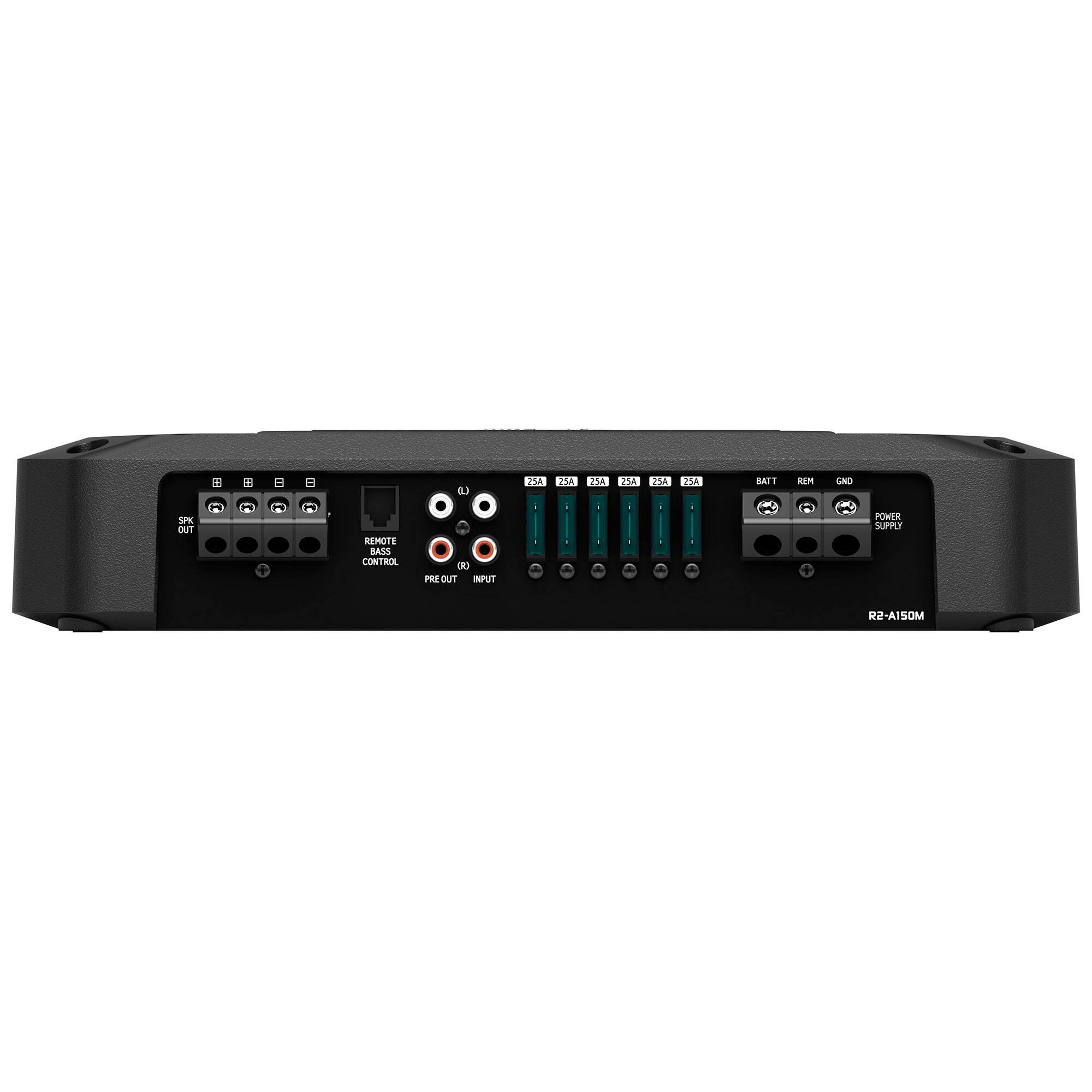

- Key Feature: All speaker connections are consolidated on one side of the device for easy access, while the amplifier controls have been relocated to the top under a removable plate, allowing for quick adjustments to gain and crossover controls.
- Key Feature: To simplify the installation process, mounting brackets are integrated onto the chassis of the amplifier.
- Key Feature: Build a large subwoofer system in your vehicle and run it with one single R2-A150M mono amp.
- Key Feature: Built with Alpine's cutting-edge Class-D Amplifier Circuit, this next-generation R-Series amp offers exceptional sound quality and efficiency, making it the perfect addition to any car audio system.
- Key Feature: The R2-A150M is designed to exactly match the power handling of two 10” or 12” R-Series subwoofers – or even four 8” R-Series subs (1200 Watts @ 2 Ohms)
- Key Feature: All speaker connections are consolidated on one side of the device for easy access, while the amplifier controls have been relocated to the top under a removable plate, allowing for quick adjustments to gain and crossover controls.
- Key Feature: To simplify the installation process, mounting brackets are integrated onto the chassis of the amplifier.
- Key Feature: Build a large subwoofer system in your vehicle and run it with one single R2-A150M mono amp.
- Key Feature: Built with Alpine's cutting-edge Class-D Amplifier Circuit, this next-generation R-Series amp offers exceptional sound quality and efficiency, making it the perfect addition to any car audio system.
Whats Included
- Alpine R2-A150M R-Series Mono Subwoofer Amplifier - 1500W at 1-Ohm, Hi-Res Certified
- Alpine R2-A150M R-Series Mono Subwoofer Amplifier - 1500W at 1-Ohm, Hi-Res Certified
