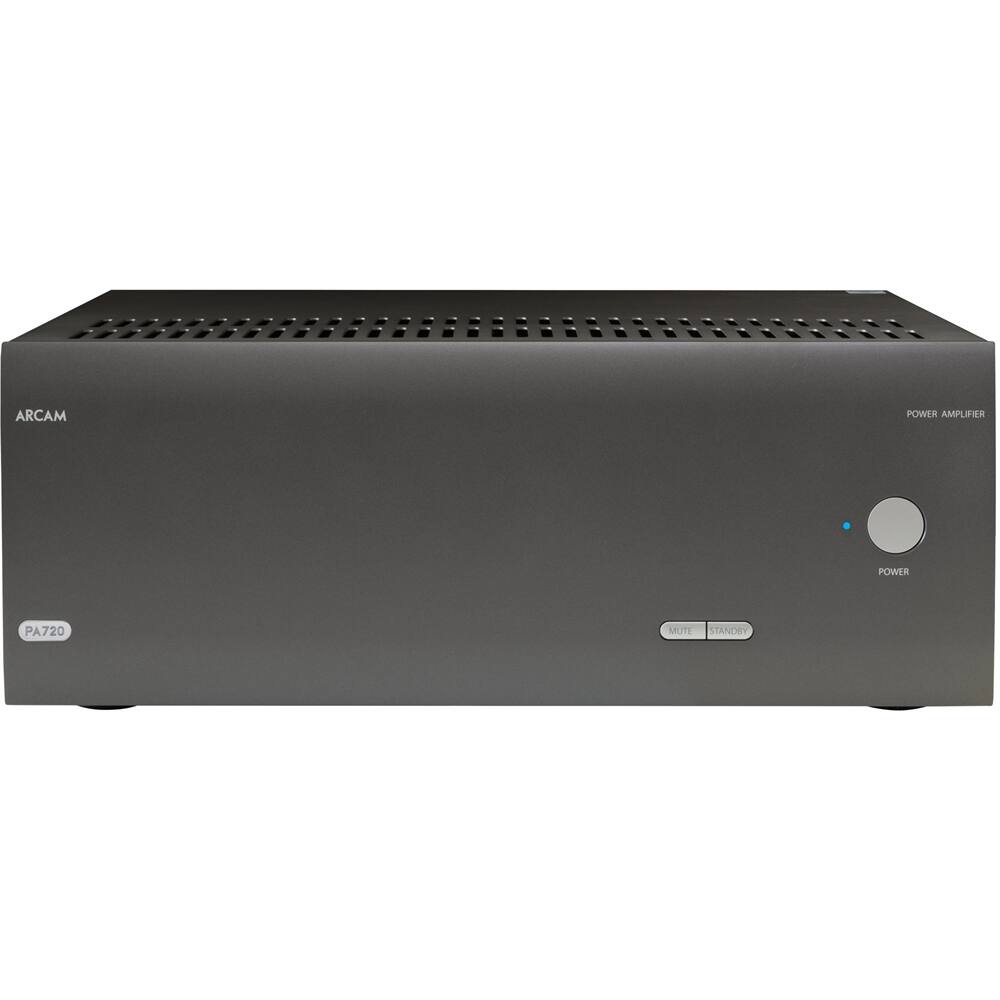

Arcam - PA720 980W 7.0-Ch. Power Amplifier - Black
Model: ARCPA720AM
SKU: 6391973
This item is no longer available in new condition. See similar items below
- Key Specs
- Number of Channels: 7 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- General
- Brand: Arcam
- Model Number: ARCPA720AM
- Product Name: PA720 980W 7.0-Ch. Power Amplifier
- Color: Black
- Audio
- Number of Channels: 7 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.002 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Type: Power amplifiers
- Signal-to-Noise Ratio (SNR): 105 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Audio
- Impedance: 4 (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: RCA, Banana Jack/Screw Terminals
- Dimensions
- Product Height: 7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 39.7 pounds (The out of box weight of the item.)
- Other
- UPC: 050667374099
Reproduce even the smallest details and nuances of your favorite music with this Arcam amplifier. Seven 140W Class G amplified channels offer exceptional power and flexibility while maintaining control and providing efficient performance. The acoustically damped chassis of this Arcam amplifier helps to reduce excess noise and provide high-quality sound.
- 980W total power: RMS rating of 140W x 7 @ 4 ohms, 20 Hz - 20 kHz, 0.2% THD, 7 channels driven for robust audio.
- Up to 8 ohms of speakers impedance: Efficiently conducts power.
- Class-G design: Combines efficiency with fidelity for high-powered operation.
- Network connection: Can be easily controlled and monitored remotely.
- 980W total power: RMS rating of 140W x 7 @ 4 ohms, 20 Hz - 20 kHz, 0.2% THD, 7 channels driven for robust audio.
- Up to 8 ohms of speakers impedance: Efficiently conducts power.
- Class-G design: Combines efficiency with fidelity for high-powered operation.
- Network connection: Can be easily controlled and monitored remotely.
Whats Included
- Arcam HDA PA720 980W 7.0-Ch. Power Amplifier
- Arcam HDA PA720 980W 7.0-Ch. Power Amplifier
A: Don't waste your time. It feels tempting, but you won't get any discernable improvement.
A: The HDA-980 power amp is strictly power. There are no video processing connections/HDMIs or conversion of any sort. The AVR10 is an actual AV Receiver with power integrated within. If you’re looking for space efficiency, you can go with the AVR10 and have everything in one box. If you want or need more power to your speaker, you can add the HDA 980 for more power (with Class G amplification)
