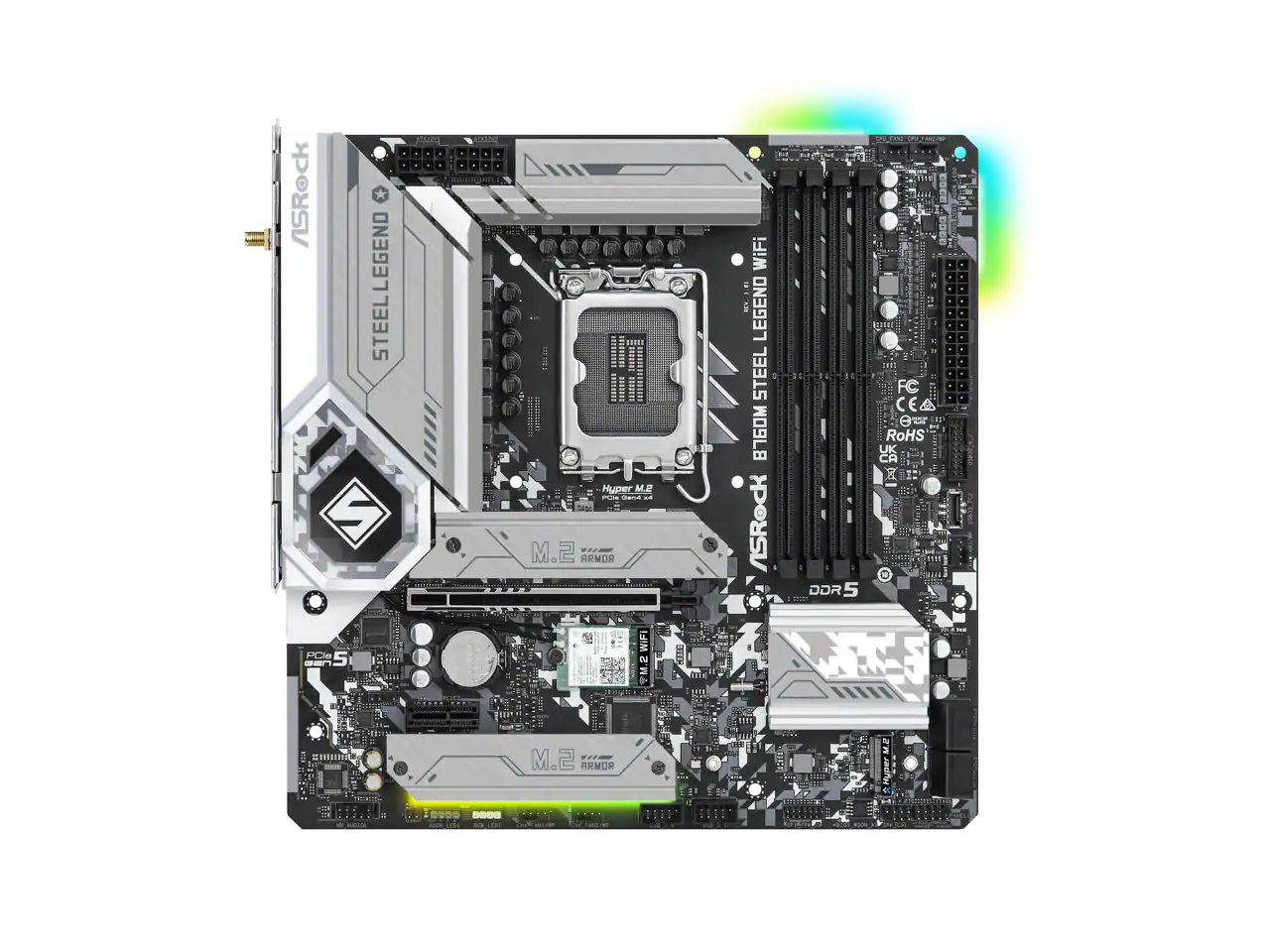

ASRock - B760M Steel Legend WiFi Micro-ATX Motherboard
FREE shipping to
Thermaltake - Toughpower GF A3 850W 80 PLUS Gold PCIe Gen 5 ATX 3.0 Ready Fully Modular Power Supply - Black$89.99$129.99
Related Item
Specifications
- ChipsetIntel B760Form FactormicroATXProcessor SocketSocket LGA 1700Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4Maximum Memory Supported192 gigabytes
- Key Specs
- Chipset: Intel B760
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASRock
- Product Name: B760M Steel Legend WiFi Micro-ATX Motherboard
- Compatibility
- Chipset: Intel B760
- Chipset Compatibility: Intel
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-A 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 10.85 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 10.25 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.866 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 7200+ (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 4710483941795
The B760M Steel Legend WiFi Micro-ATX Motherboard is designed to support Intel's 14th, 13th, and 12th Gen Core processors (LGA1700). It offers 4 DDR5 DIMM slots with dual-channel support, accommodating memory speeds up to 7200+ MHz (OC) and a maximum capacity of 192GB. Expansion options include 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x1 slot. Graphics connectivity is versatile with HDMI, DisplayPort, and eDP outputs. Audio is managed by the Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio, while networking capabilities feature Dragon 2.5G LAN and 802.11ax (WiFi 6E) + Bluetooth 5.3.
- Processor Compatibility: Supports 14th, 13th, and 12th Gen Intel Core processors (LGA1700).
- Memory Support: Equipped with 4 DDR5 DIMM slots, supporting dual-channel memory up to 7200+ MHz (OC), with a maximum capacity of 192GB.
- Expansion Slots: Features 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x1 slot for expansion cards.
- Graphics Outputs: Provides HDMI, DisplayPort, and eDP interfaces for versatile display connectivity.
- Audio and Networking: Includes Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio, Dragon 2.5G LAN, and 802.11ax (WiFi 6E) + Bluetooth 5.3 for high-quality audio and fast networking.
- Processor Compatibility: Supports 14th, 13th, and 12th Gen Intel Core processors (LGA1700).
- Memory Support: Equipped with 4 DDR5 DIMM slots, supporting dual-channel memory up to 7200+ MHz (OC), with a maximum capacity of 192GB.
- Expansion Slots: Features 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x1 slot for expansion cards.
- Graphics Outputs: Provides HDMI, DisplayPort, and eDP interfaces for versatile display connectivity.
- Audio and Networking: Includes Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio, Dragon 2.5G LAN, and 802.11ax (WiFi 6E) + Bluetooth 5.3 for high-quality audio and fast networking.
