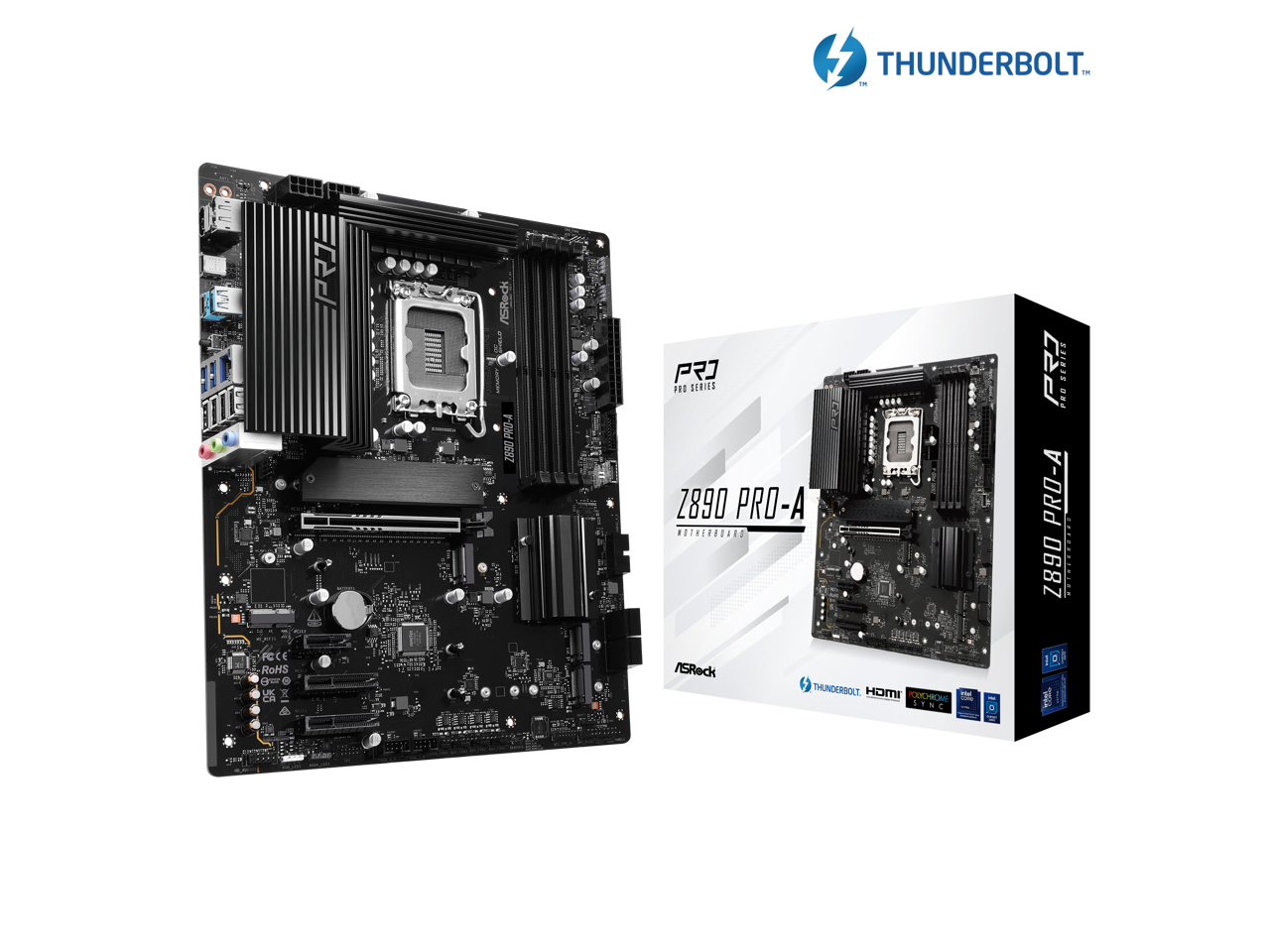

ASRock - Z890 Pro-A WiFi Motherboard
FREE shipping to
Intel - Core i7-14700K 14th Gen 20-Core 28-Thread - 4.3GHz (5.6GHz Turbo) Socket LGA 1700 Unlocked Desktop Processor - Multi$382.09$399.99
Related Item
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASRock
- Product Name: Z890 Pro-A WiFi Motherboard
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 5 Series 2
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-C 3.2, 1 x USB-C 4 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 13.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 11.1 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.2 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 9066 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 4710483947544
The Z890 Pro-A WiFi Motherboard is engineered to support Intel Core Ultra Processors (Series 2) on the LGA1851 socket, providing robust performance for demanding applications. It boasts a 16+1+1+1+1 power phase design with Dr.MOS for VCore+GT, ensuring stable power delivery. The motherboard supports dual-channel DDR5 memory with speeds up to 9066+ MHz (OC) and a maximum capacity of 256GB. Expansion options include 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, and 1 PCIe 4.0 x1 slots. Graphics connectivity is versatile with 1 HDMI, 1 DisplayPort, and 1 Thunderbolt™ 4 Type-C port. Networking is facilitated by Realtek 2.5G LAN, 802.11axe Wi-Fi 6E, and Bluetooth 5.3. Additional features include BIOS Flashback, Memory OC Shield, and durable capacitors with 1000uF capacitance.
- 16+1+1+1+1 Power Phase Design: Equipped with Dr.MOS for VCore+GT, ensuring stable power delivery for demanding tasks.
- Dual Channel DDR5 Memory Support: Supports up to 4 x DDR5 DIMMs, with speeds up to 9066+ MHz (OC), and a maximum capacity of 256GB.
- Comprehensive Expansion Slots: Includes 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, and 1 PCIe 4.0 x1 slots for versatile component integration.
- Multiple Graphics Outputs: Offers 1 HDMI, 1 DisplayPort, and 1 Thunderbolt™ 4 Type-C port for diverse display connectivity.
- Advanced Networking Capabilities: Features Realtek 2.5G LAN, 802.11axe Wi-Fi 6E, and Bluetooth 5.3 for high-speed and reliable connectivity.
