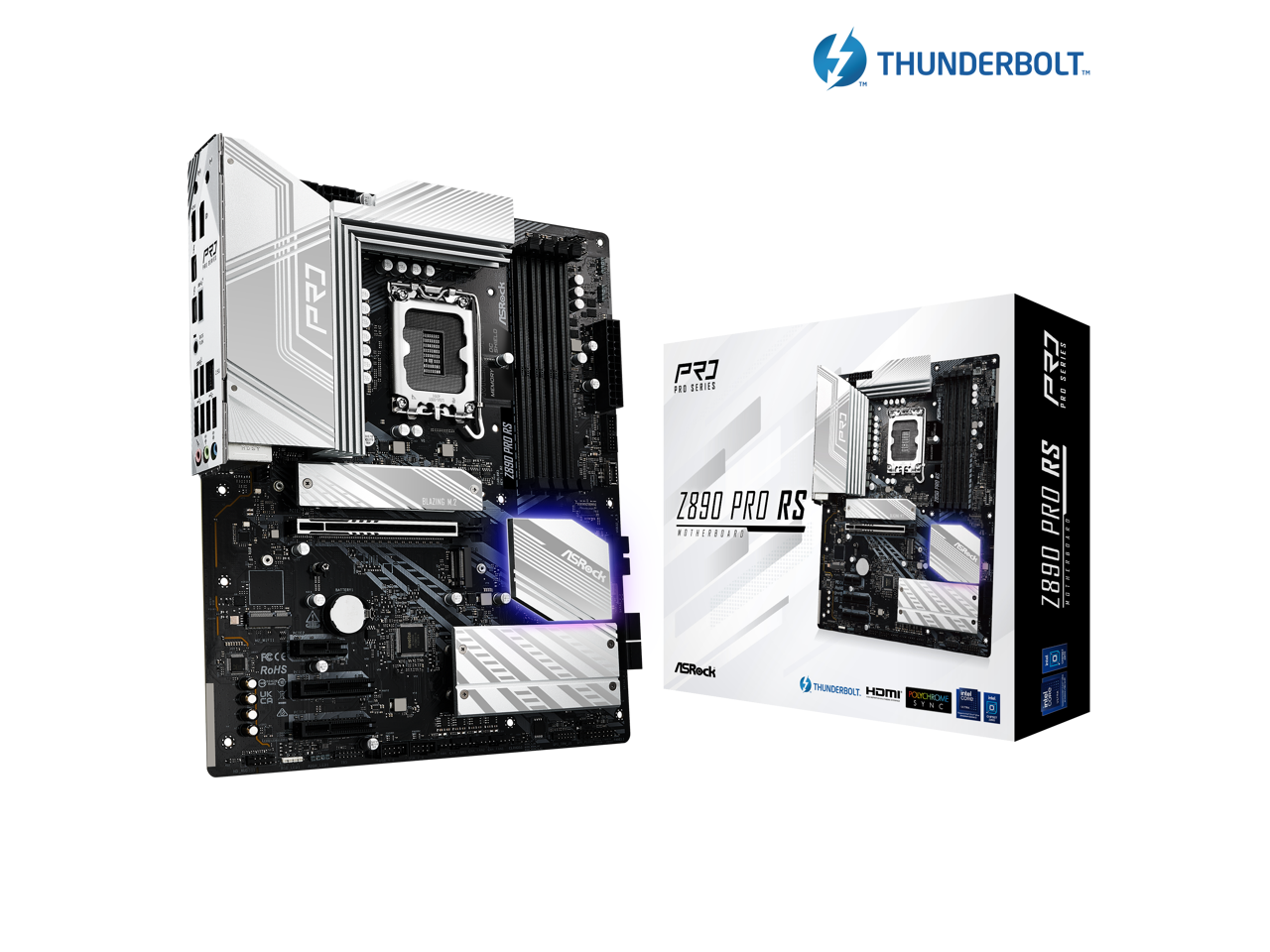

ASRock - Z890 Pro RS Motherboard
Reviews coming soon
FREE shipping to
- Thermaltake - Toughpower GX2 600W 80 PLUS Gold ATX Power Supply - Black$59.99The price was $69.99
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASRock
- Product Name: Z890 Pro RS Motherboard
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 5 Series 2
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-A 3.0, 1 x USB-A 3.2, 2 x USB-A 3.1, 4 x USB-C 3.2, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 13.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 11.1 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.8 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 9066 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 36 months
- Warranty - Labor: 36 months
- Other
- UPC: 4710483947452
The Z890 Pro RS Motherboard is engineered for high-performance computing, featuring a 16+1+1+1+1 power phase design with Dr.MOS for VCore and GT, ensuring stable power delivery. It supports dual-channel DDR5 memory configurations with overclocking capabilities up to 9066 MHz, and includes a Blazing M.2 PCIe Gen5 x4 slot for rapid storage performance. The motherboard offers comprehensive expansion options with 1 PCIe 5.0 x16 slot, 2 PCIe 4.0 x4 slots, and 1 PCIe 4.0 x1 slot. Connectivity is enhanced with Thunderbolt 4 Type-C ports, HDMI, DisplayPort, and multiple USB ports, catering to a wide range of peripherals.
- 16+1+1+1+1 Power Phase Design: Features a robust power phase design with Dr.MOS for VCore and GT, ensuring stable power delivery for high-performance computing.
- Dual-Channel DDR5 Memory Support: Equipped with 4 DDR5 DIMM slots, supporting dual-channel configurations and overclocking up to 9066 MHz.
- Blazing M.2 Slot: Includes a PCIe Gen5 x4 M.2 slot, offering data transfer speeds up to 128 Gb/s for rapid storage performance.
- Comprehensive Expansion Slots: Provides 1 PCIe 5.0 x16 slot, 2 PCIe 4.0 x4 slots, and 1 PCIe 4.0 x1 slot for versatile hardware configurations.
- Advanced Connectivity Options: Features Thunderbolt 4 Type-C ports, HDMI, DisplayPort, and multiple USB ports for extensive peripheral support.
- 16+1+1+1+1 Power Phase Design: Features a robust power phase design with Dr.MOS for VCore and GT, ensuring stable power delivery for high-performance computing.
- Dual-Channel DDR5 Memory Support: Equipped with 4 DDR5 DIMM slots, supporting dual-channel configurations and overclocking up to 9066 MHz.
- Blazing M.2 Slot: Includes a PCIe Gen5 x4 M.2 slot, offering data transfer speeds up to 128 Gb/s for rapid storage performance.
- Comprehensive Expansion Slots: Provides 1 PCIe 5.0 x16 slot, 2 PCIe 4.0 x4 slots, and 1 PCIe 4.0 x1 slot for versatile hardware configurations.
- Advanced Connectivity Options: Features Thunderbolt 4 Type-C ports, HDMI, DisplayPort, and multiple USB ports for extensive peripheral support.
Compare similar products
The Z890 Pro RS Motherboard is engineered for high-performance computing, featuring a 16+1+1+1+1 power phase design with Dr.MOS for VCore and GT, ensuring stable power delivery. It supports dual-channel DDR5 memory configurations with overclocking capabilities up to 9066 MHz, and includes a Blazing M.2 PCIe Gen5 x4 slot for rapid storage performance. The motherboard offers comprehensive expansion options with 1 PCIe 5.0 x16 slot, 2 PCIe 4.0 x4 slots, and 1 PCIe 4.0 x1 slot. Connectivity is enhanced with Thunderbolt 4 Type-C ports, HDMI, DisplayPort, and multiple USB ports, catering to a wide range of peripherals.
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.
The Z890 Pro RS Motherboard is designed for high-performance computing, featuring a 16+1+1+1+1 power phase design with Dr.MOS for VCore and GT, ensuring stable power delivery. It supports dual-channel DDR5 memory configurations with 4 DIMM slots, up to 9066+ MHz (OC), and a maximum capacity of 256GB. The motherboard includes a PCIe Gen5 x4 M.2 slot for ultra-fast storage solutions and offers multiple connectivity options including HDMI, DisplayPort, and two Thunderbolt™ 4 Type-C ports. Additionally, it provides 7.1 CH HD Audio with Realtek ALC897 codec and 2.5 Gigabit LAN for high-quality audio and fast network connections.
Ascend the Throne of Gaming with the Z790 EAGLE AX. The Z790 EAGLE AX supports 14th and 13th Gen Intel Core Processors unparalleled performance. Unlock your gaming potential with GIGABYTE Z790 Motherboards. GIGABYTE Z790 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance. Claim what is yours.
| Pros for ASRock - Z890 Pro RS Motherboard | |||
|---|---|---|---|
| There were no pros for this product— | Overall Performance, Installation Ease, BIOS Usability, Features, Connectivity | There were no pros for this product— | Overall Performance, BIOS Update Ease, VRM |
| Cons for ASRock - Z890 Pro RS Motherboard | |||
| There were no cons for this product— | Driver Support | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
This product doesn't have any reviews yet.
