MSI - PRO Z890-S WIFI PZ (Socket 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard - Gray White
MSI - PRO Z890-S WIFI PZ (Socket 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard - Gray White
- CORSAIR - iCUE LINK LX120-R RGB 120mm PWM Reverse Blade Computer Case Expansion Fan - Black$39.99The price was $44.99
More Buying Options
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: PRO Z890-S WIFI PZ
- Product Name: PRO Z890-S WIFI PZ (Socket 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Gray White
- Year of Release: 2025
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 9 Series 2, Intel Core Ultra 9 Series 1, Intel Core Ultra 7 Series 2, Intel Core Ultra 7 Series 1, Intel Core Ultra 5 Series 2
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 4
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

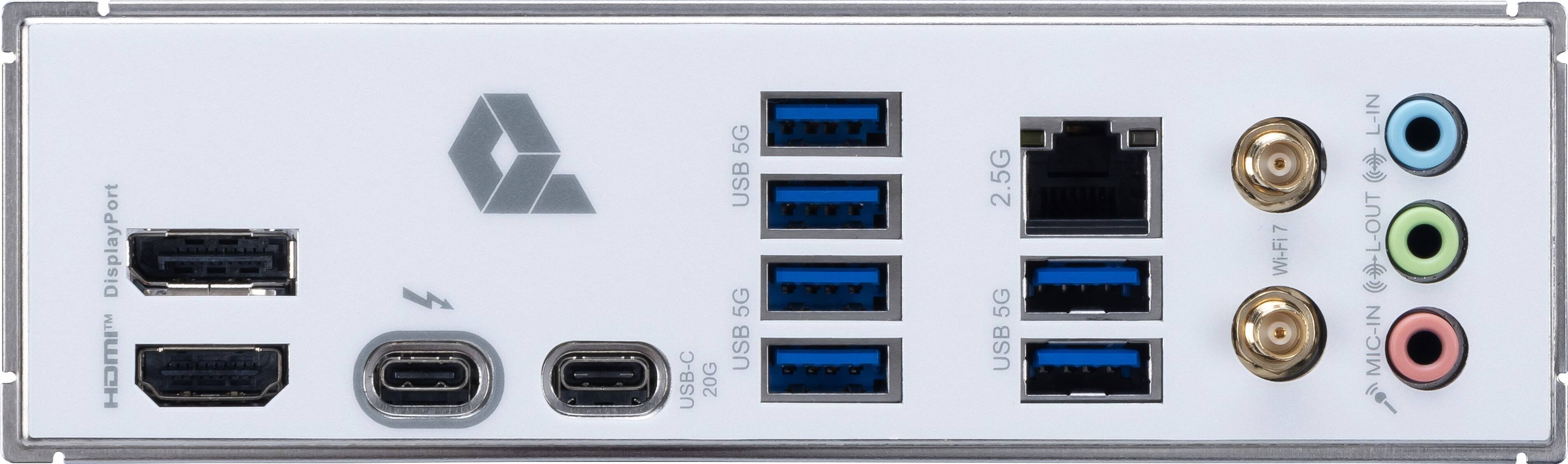

- USB Ports: 4 x USB-A 2.0, 6 x USB-A, 2 x USB-A, 1 x USB-C, 1 x USB-C (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 54.88 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142394205

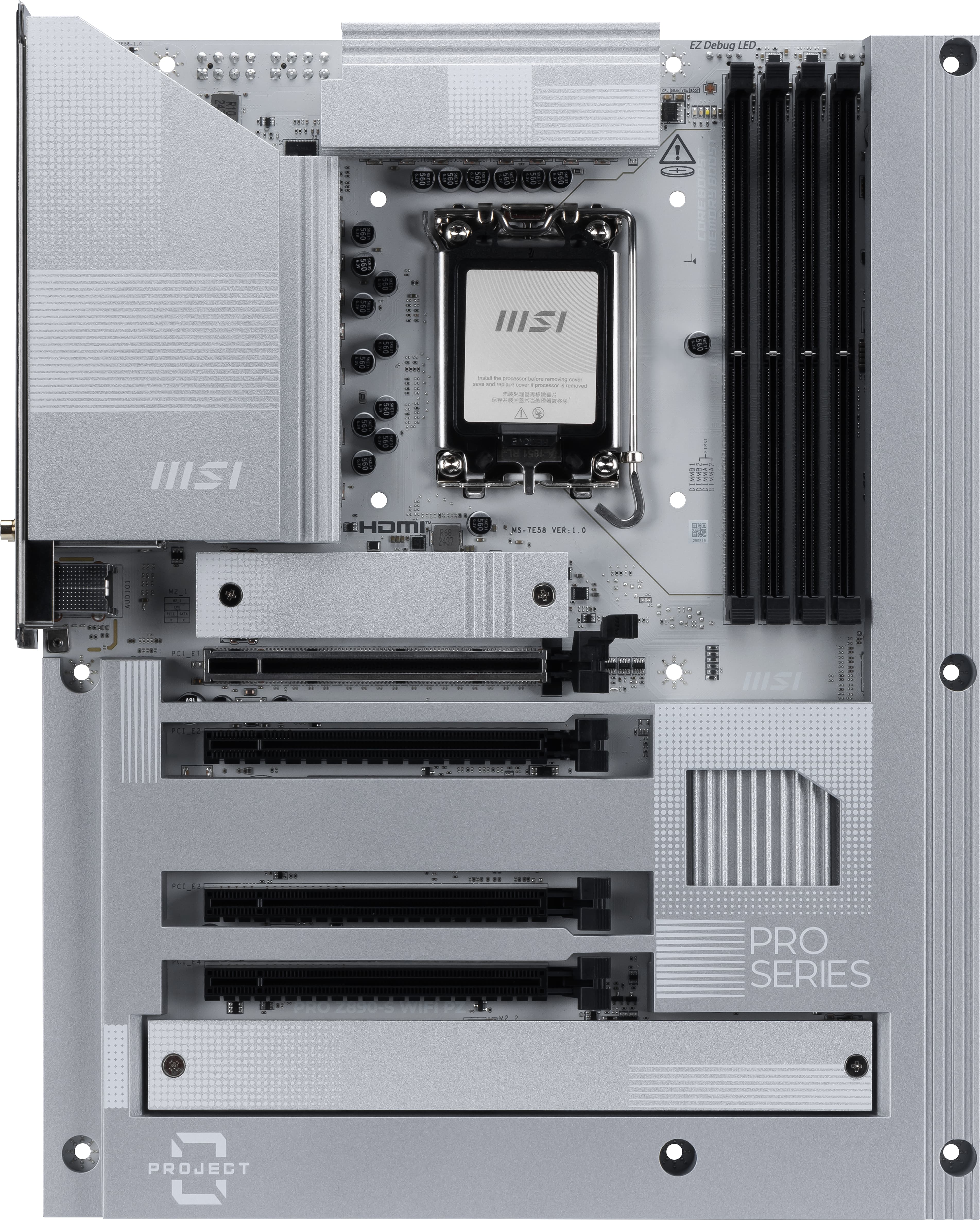

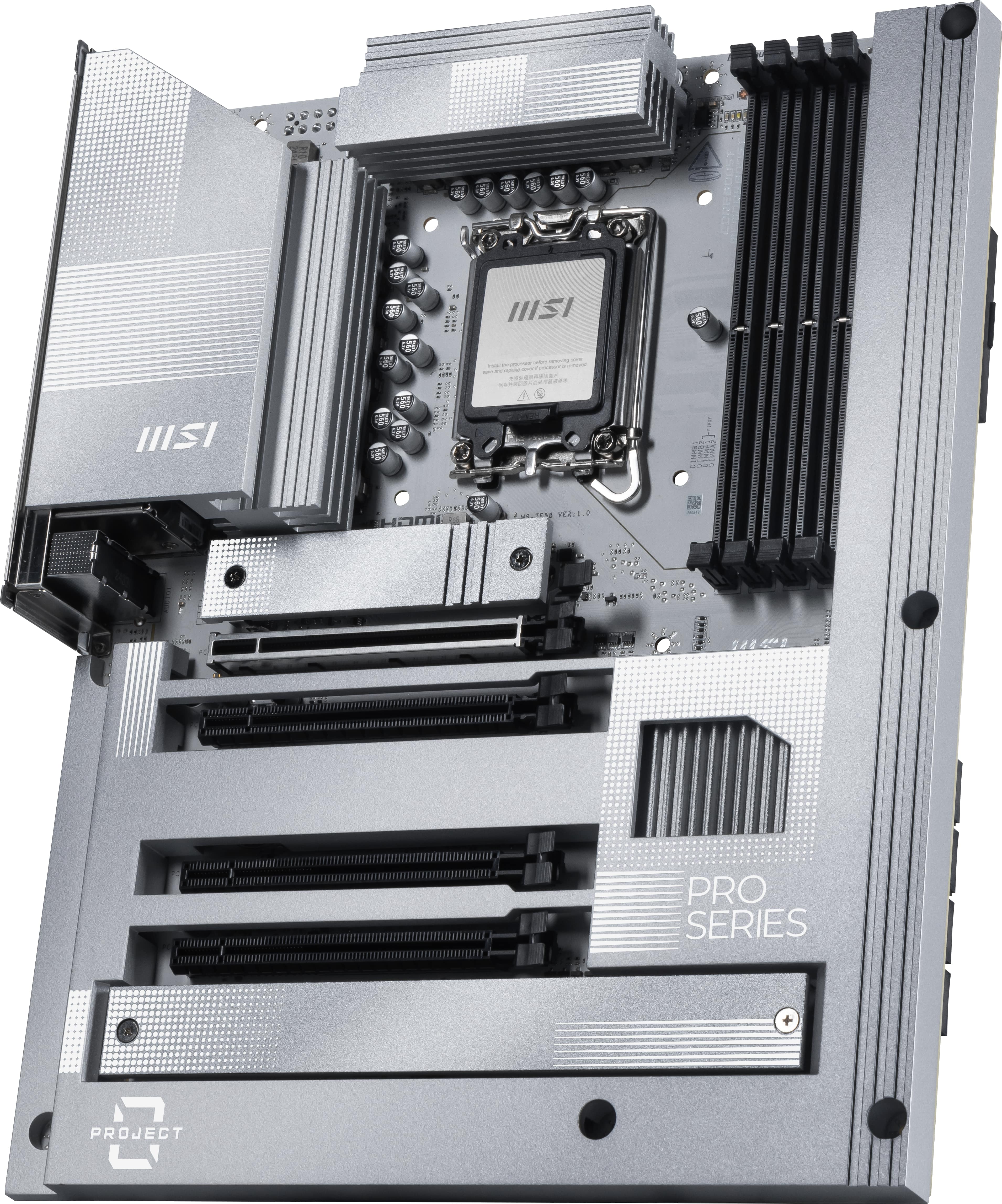

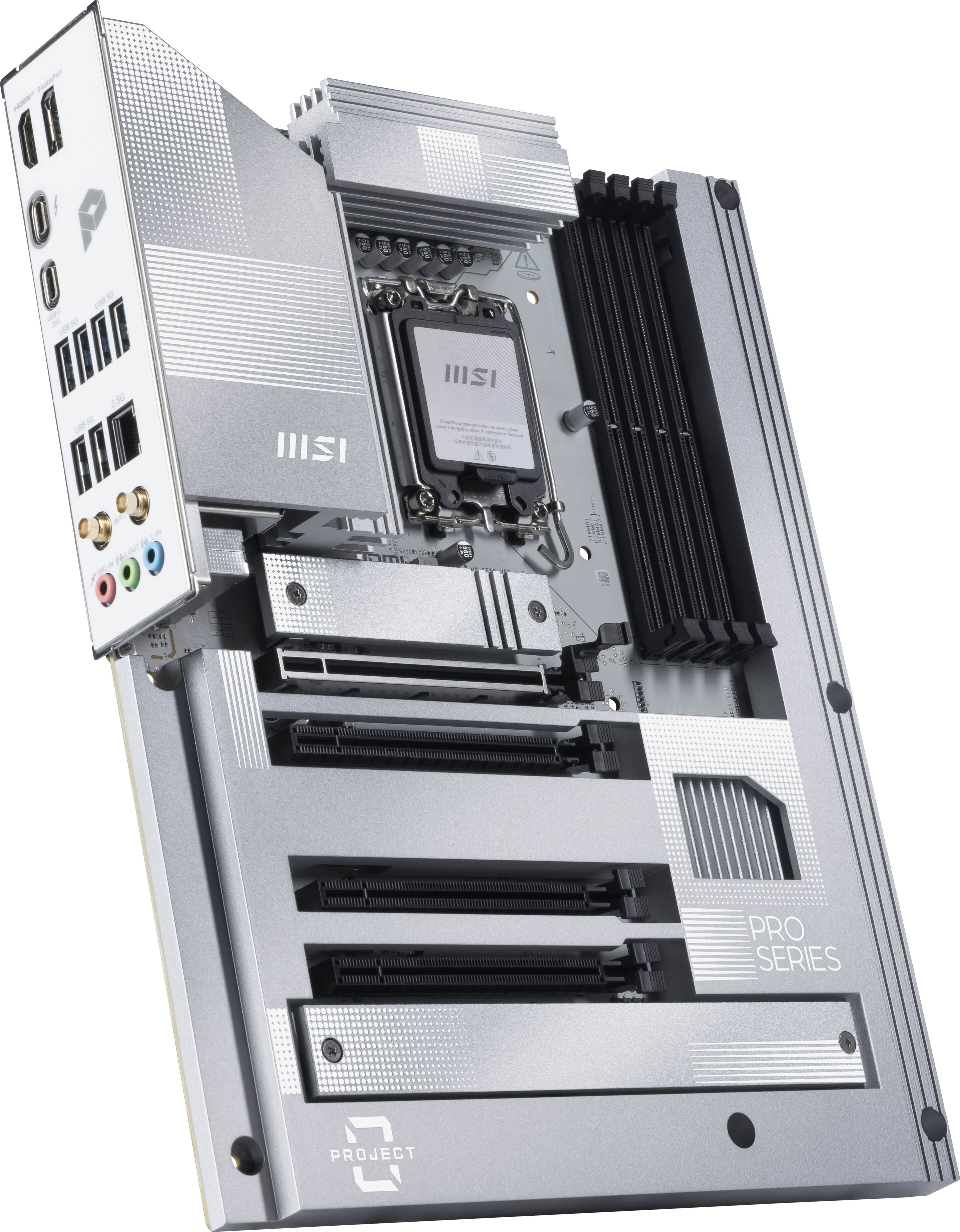

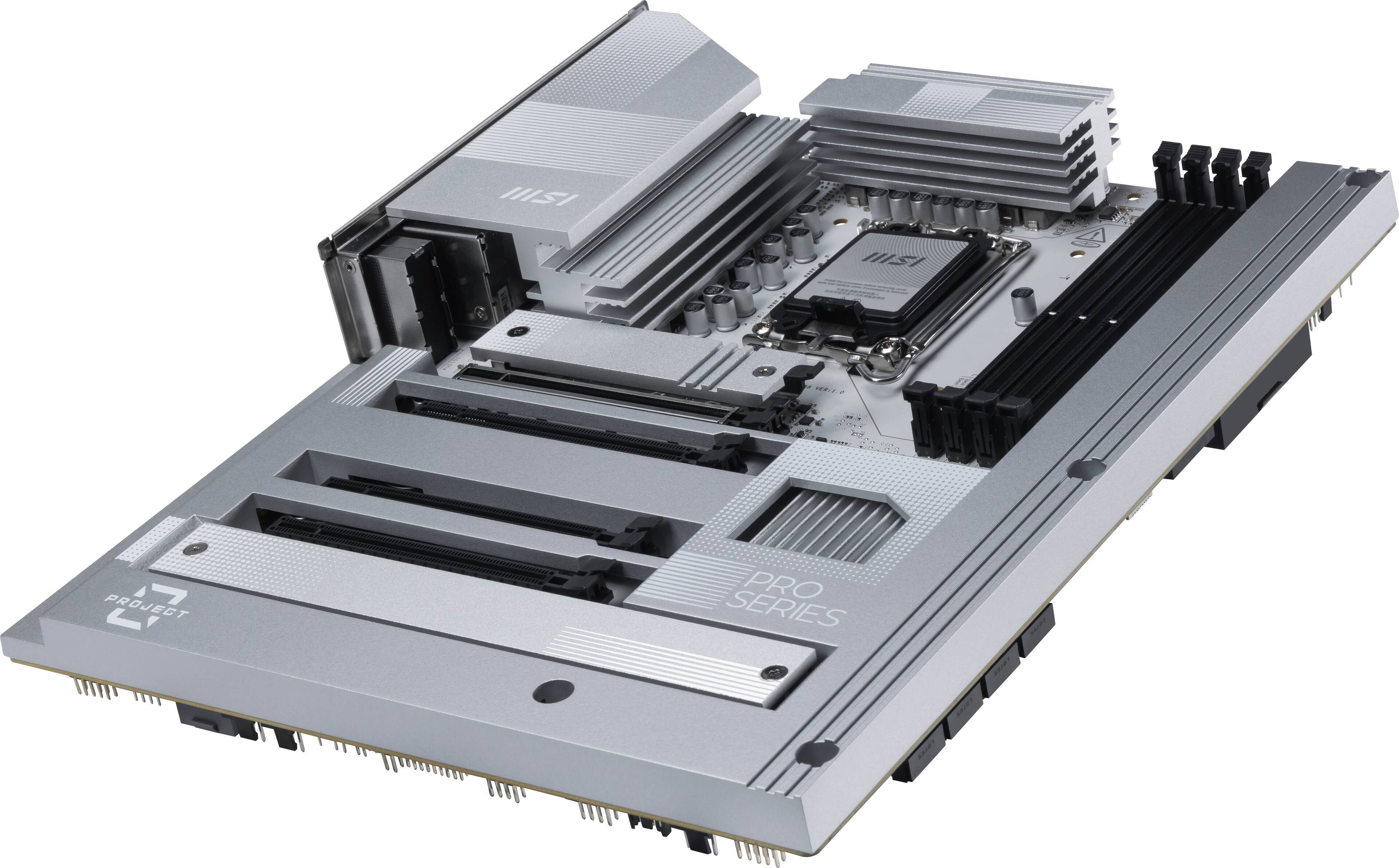

PRO Z890-S WIFI PZ features a sleek silver-white design ideal for white PC builds. Its innovative back-connect simplifies cable management for a clean look. Packed with MSI exclusives, it includes true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for Intel Core Ultra processors.
- Processor compatibility: Supports Intel Core Ultra Processors (Series 2)
- Speed (memory speed supported): 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s

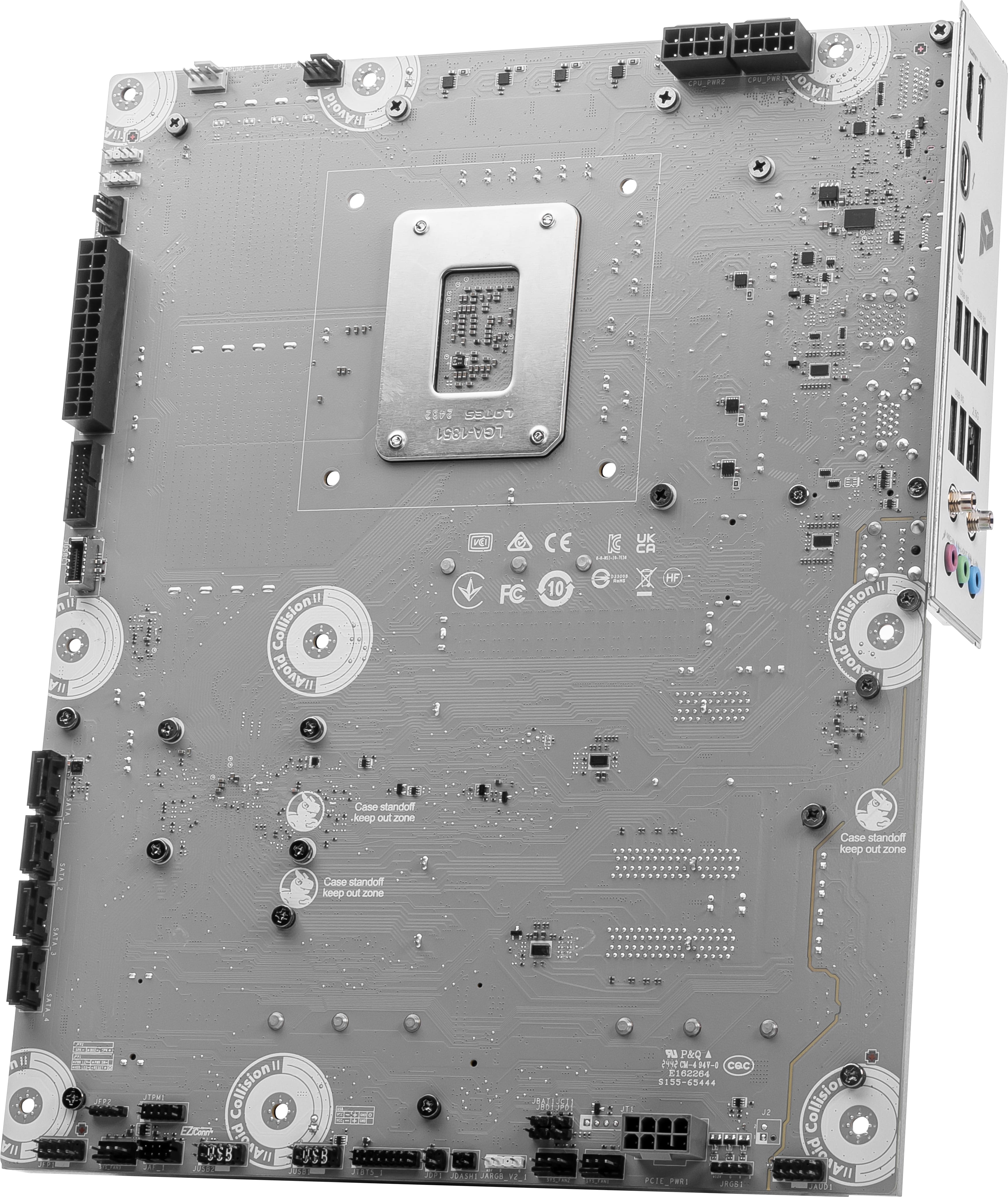

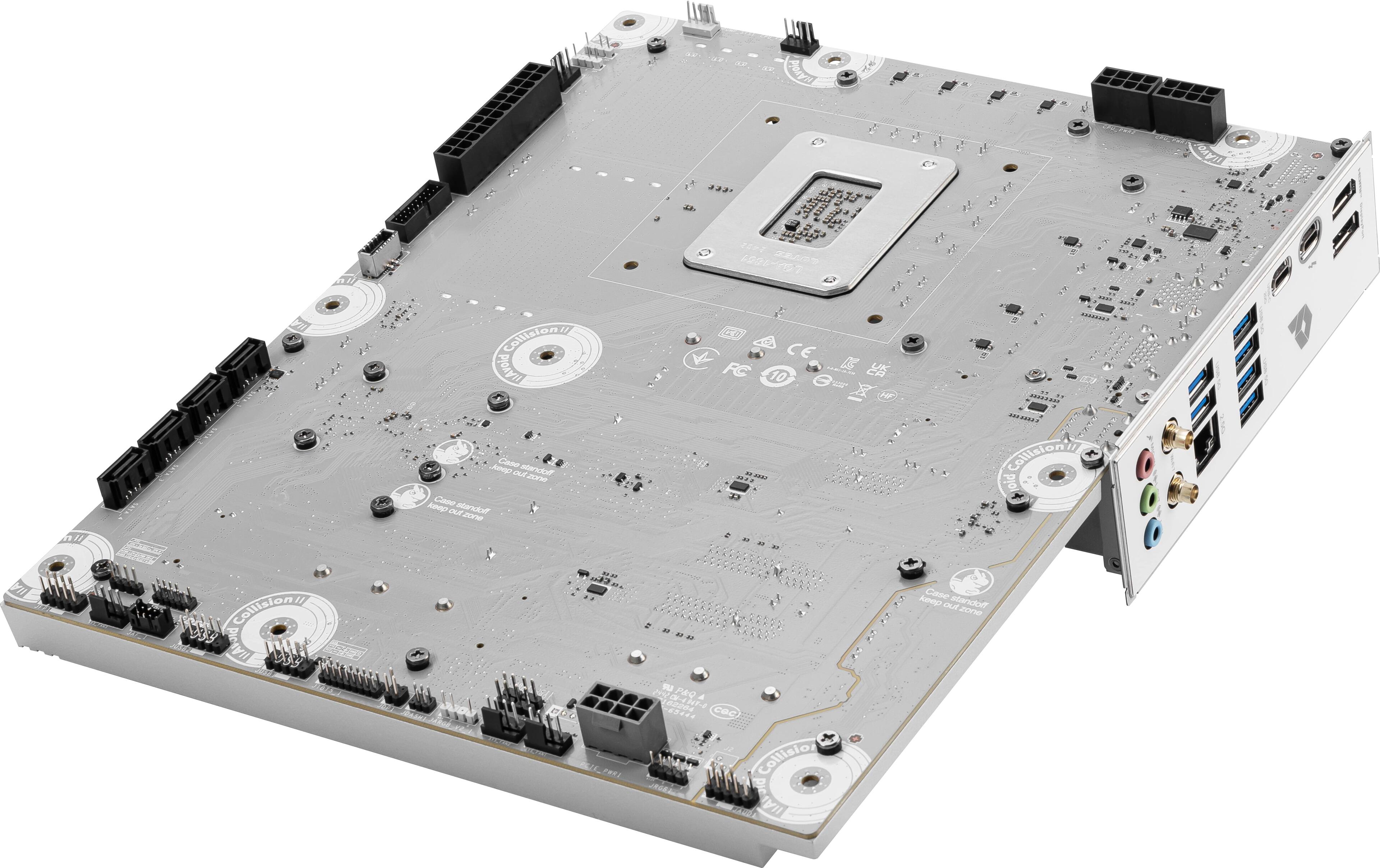

- Back-Connect Design: Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management.
- DDR5 memory: 4 DIMMs, Duel Channel DDR5 8800+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
- Processor compatibility: Supports Intel Core Ultra Processors (Series 2)
- Speed (memory speed supported): 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
- Back-Connect Design: Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management.
- DDR5 memory: 4 DIMMs, Duel Channel DDR5 8800+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost

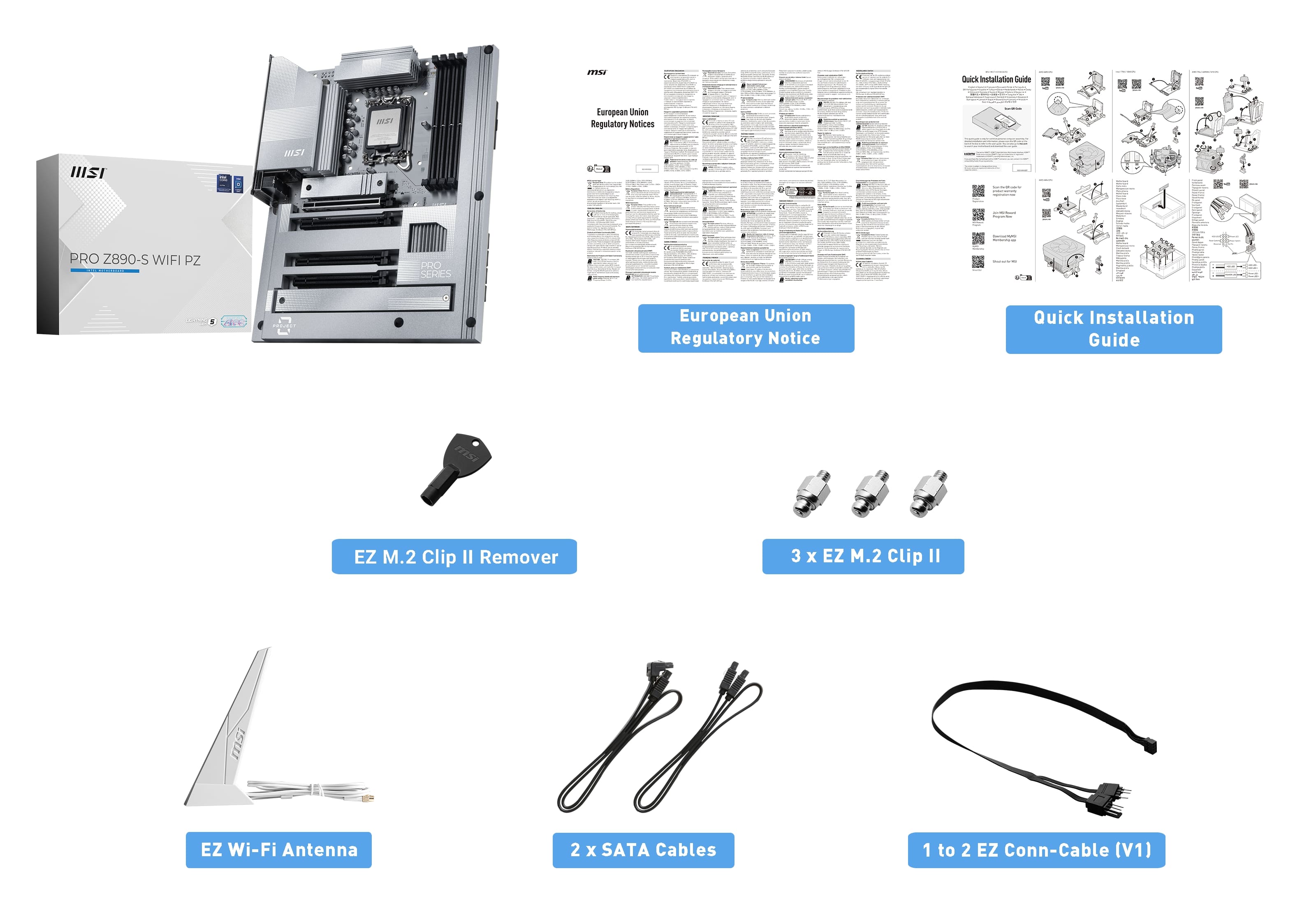

Whats Included
- PRO Z890-S WIFI PZ Motherboard
- EZ M.2 Clip II Remover
- 3 x EZ M.2 Clip II
- EZ WIFI Antenna
- 2 x SATA Cables
- 1 to 2 EZ Conn- cable
- PRO Z890-S WIFI PZ Motherboard
- EZ M.2 Clip II Remover
- 3 x EZ M.2 Clip II
- EZ WIFI Antenna
- 2 x SATA Cables
- 1 to 2 EZ Conn- cable
Q: What is the maximum memory capacity supported by the motherboard?
A: The maximum memory capacity supported is 256GB.
Q: Is this motherboard compatible with Intel processors?
A: Yes, it's compatible with Intel Core Ultra Processors (Series 2).
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR5 memory.
Q: What is the form factor of this motherboard?
A: The form factor is ATX.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, it has Wi-Fi 7.
Q: How many M.2 slots are available on this motherboard?
A: This motherboard has 3 M.2 slots.
Q: What kind of audio does the motherboard support?
A: It supports 8-Channel (7.1) HD Audio with Audio Boost.
Q: Does any SSD card can fit for it or is there any specific for it.
A: Hello Roy - this system includes support for ● 3x M.2 slots (Key M) ● M2_1 slot (From CPU) ● Supports up to PCIe 5.0 x4 ● Supports 2242/ 2260/ 2280 storage devices ● M2_2 slot (From Z890 chipset) ● Supports up to PCIe 4.0 x4 ● Supports 2242/ 2260/ 2280 storage devices ● M2_3 slot (From Z890 chipset) ● Supports up to PCIe 4.0 x4 ● Supports up to SATA 6Gb/s ● Supports 2242/ 2260/ 2280 storage devices
Compare similar products
PRO Z890-S WIFI PZ features a sleek silver-white design ideal for white PC builds. Its innovative back-connect simplifies cable management for a clean look. Packed with MSI exclusives, it includes true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for Intel Core Ultra processors.
PRO Z890-A WIFI takes all the essential elements of the Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability.
Outfit your computer build with a clean, minimalistic aesthetic while enjoying high performance with the white MSI B650M Project Zero AM5 Micro-ATX Motherboard as its foundation. Supporting AMD Ryzen 7000 series processors with the AM5 socket, this compact motherboard moves the power, fan, and other pin headers to the back, where they are hidden from glass side and front panel views with compatible chassis. At the same time, this compact micro-ATX motherboard may be packed with hardware to perform demanding tasks such as playing games at high settings and creating pro quality video content. Up to 128GB of 7600 MHz DDR5 memory in overclocked mode may be installed across four slots. An advanced graphics card can be installed into the PCIe 4.0 x16 slot, and a PCIe 3.0 x1 slot is also available for expansions. This motherboard also supports up to two M.2 NVMe PCIe 4.0 SSDs alongside four SATA III drives. The rear panel features high-speed connectivity, including a 20 Gb/s USB-C Gen 2x2 port and three 10 Gb/s USB-A Gen 2 ports. Built-in Wi-Fi 6E and a 2.5G Ethernet port allow you to connect to compatible networks. Windows 10 or 11 64-bit is required to take advantage of all the motherboard's features.
MSI MEG Z890 GODLIKE is engineered for Intel Core Ultra Processors (Series 2), delivering gaming-optimized features and exceptional durability.
| Pros for MSI - PRO Z890-S WIFI PZ (Socket 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard - Gray White | |||
|---|---|---|---|
| There were no pros for this product— | Overall Performance | There were no pros for this product— | There were no pros for this product— |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Replaced old motherboard with this one.
I gotta say, this motherboard makes my old PC feels like new. I should've give this 5 star but I still need to test it out still until I give my final review.
Rezoka1 Posted
- Rated 5 out of 5 stars
My best motherboard to date.
I found everything want at the right price and you BBY.
Clarence Posted
