MSI - PRO Z890-P WIFI (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard - Black
MSI - PRO Z890-P WIFI (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard - Black
- CORSAIR - RMx Shift Series RM1000x 80 Plus Gold Fully Modular ATX Power Supply with Modular Side Interface - Black$253.99
More Buying Options
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: PRO Z890-P WIFI
- Product Name: PRO Z890-P WIFI (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2024
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 5 Series 2, Intel Core Ultra 7 Series 2, Intel Core Ultra 9 Series 2
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Pro
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of PCI-E x4 Slots: 2
- Number Of PCI-E x1 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

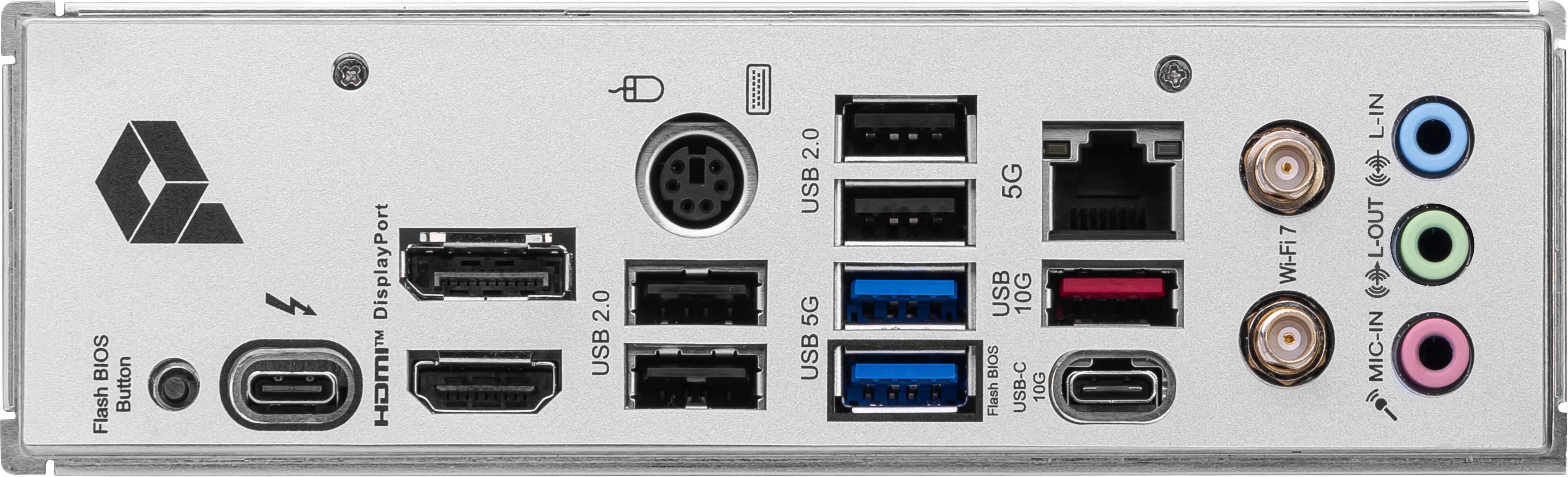

- USB Ports: 8 x USB-A 2.0, 6 x USB-A 3.2, 1 x USB-A 3.2, 1 x USB-C 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 48 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4x DDR5, Maximum Memory Capacity 256GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 824142381458
PRO Z890-P WIFI takes all the essential elements of the Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability.
- Processor compatibility: Supports Intel Core Ultra Processors (Series 2)
- Speed (memory speed supported): 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MH
- Graphics: Integrated Graphics Processor
- DDR5 memory: 4 DIMMs, Duel Channel DDR5 7800+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
Q: What is the form factor of the motherboard?
A: The form factor of the motherboard is ATX.
Q: Can the motherboard support Wi-Fi 7?
A: This motherboard offers support for the Wi-Fi 7 wireless networking standard.
Q: Does the motherboard support RAID 0?
A: This motherboard supports RAID 0.
Q: What is the maximum memory capacity supported by the motherboard?
A: The maximum memory capacity supported by the motherboard is 256 gigabytes.
Q: Does the motherboard have USB-A 2.0 ports?
A: The motherboard has 8 USB-A 2.0 ports.
Q: How many PCI-E x16 slots does the motherboard have?
A: The motherboard has one PCI-E x16 slot.
Q: Does the motherboard come with extra m.2 heatsinks if I want to use all available m.2 slots?
A: The PRO Z890-P WiFi comes with a singular M.2 heatshield. You may purchase an M.2 with included heatsink if you are worried about the SSD over heating.
Compare similar products
PRO Z890-P WIFI takes all the essential elements of the Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability.
Z890 GAMING PLUS WIFI takes all the essential elements of the Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability.
ASUS ROG STRIX Z890-E GAMING WIFI, Intel Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 18+2+1+2 power stages, DDR5 slots with NitroPath DRAM Technology, DIMM Fit, DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, seven M.2 slots, three PCIe 5.0 NVMe SSD slots, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt 4 ports, USB 10Gbps Type-Crear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting
ROG STRIX Z890-F GAMING WIFI, Intel Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 16+2+1+2 power stages, DDR5 slots , DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, one PCIe 5.0 NVMe SSD slot with M.2 Q-release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt 4 ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting
| Pros for MSI - PRO Z890-P WIFI (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Overall Performance | There were no pros for this product— |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Works good so far, got warranty through tech total
Came brand new and in excellent condition! Will definitely update if anything
Henry Posted
