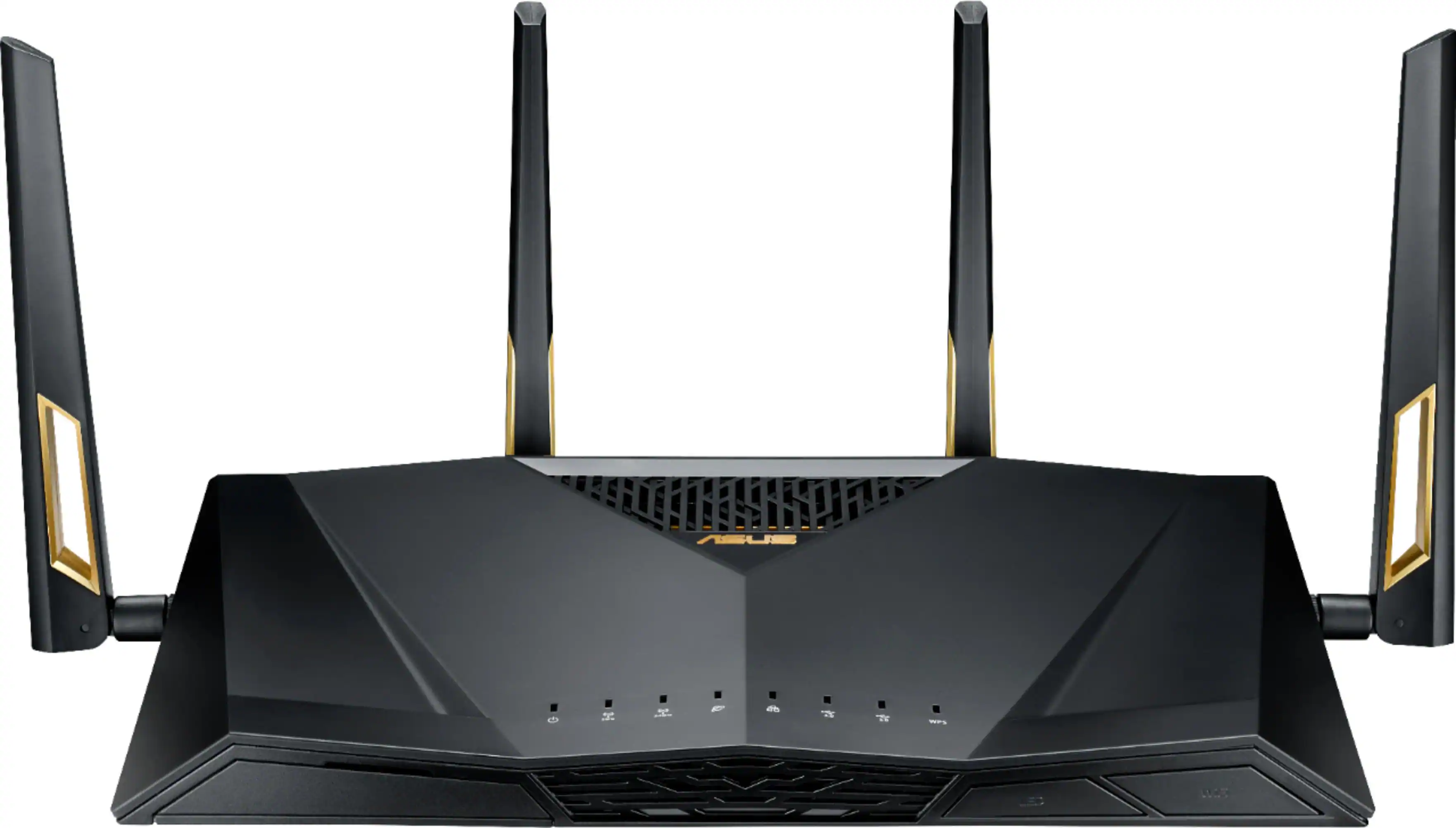

ASUS - AX6000 Dual Band Wi-Fi 6 Router - Black
- Key Specs
- Number Of LAN Ports: 8 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 6 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Brand: ASUS
- Model Number: RT-AX88U
- Product Name: AX6000 Dual Band Wi-Fi 6 Router
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: AiProtection Pro network security
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 4
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, AX, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Input/Output Technology: MU-MIMO (Multi-user Multiple-Input Multiple Output) (Generally, multiple-input multiple-output communication technologies allow for more signals to be transmitted at a single time, which can improve the device's overall performance.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 8 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 6 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 2.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 7.4 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 11.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.23 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 192876032787
Get fast, interruption-free Wi-Fi capabilities with this ASUS dual-band router. Speeds of up to 6000 Mbps mean less waiting for games and videos to load, and the Trend Micro security technology shields your devices from potential breaches. This ASUS dual-band router is compatible with Amazon Alexa, making it easy to integrate your network connection into your smart home setup.
- Wireless-AX technology: Faster performance and speed with AX Wi-Fi (up to 4804 Mbps on the 5.0GHz band). Ideal for smart home devices and large homes.
- Up to 6000 Mbps data transfer rates: Offer fast, efficient operation.
- Orthogonal frequency-division multiple access: Boosting speed, reliability, and range for both implicit and explicit 2.4GHz and 5.0GHz Wi-Fi devices for faster, stronger, and more reliable Wi-Fi connection.
- Adaptive QoS: Provides prioritization of gaming packages for smoother online gaming and minimizes gaming ping.
- Revolutionary combination of OFDMA and MU-MIMO technologies: Capable of simultaneous streaming of data to multiple devices.
- Smooth streaming: Better video streaming, lag-free gaming, surfing, and more with a powerful 1.8GHz 64-bit quad-core processor.
- Two USB 3.1 gen 1 ports: Offer faster streaming, backup, and easy access to your stored media.

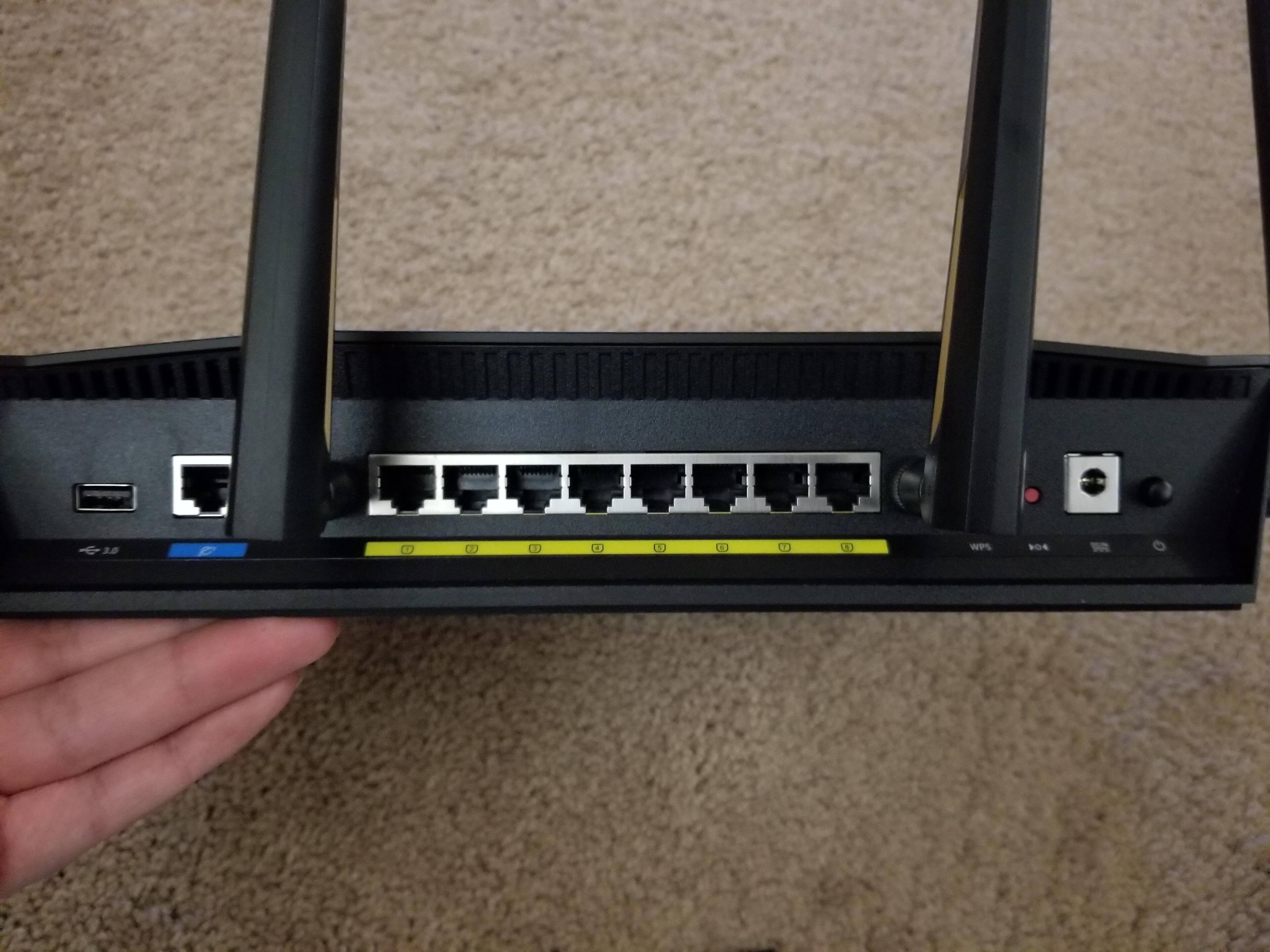

- Eight Gigabit Ethernet LAN ports: Directly connect all your wired devices for maximum speed and performance.
- SPI firewall, VPN pass-through, and MAC or IP address filtering: Advanced security ensures that your personal information stays private.

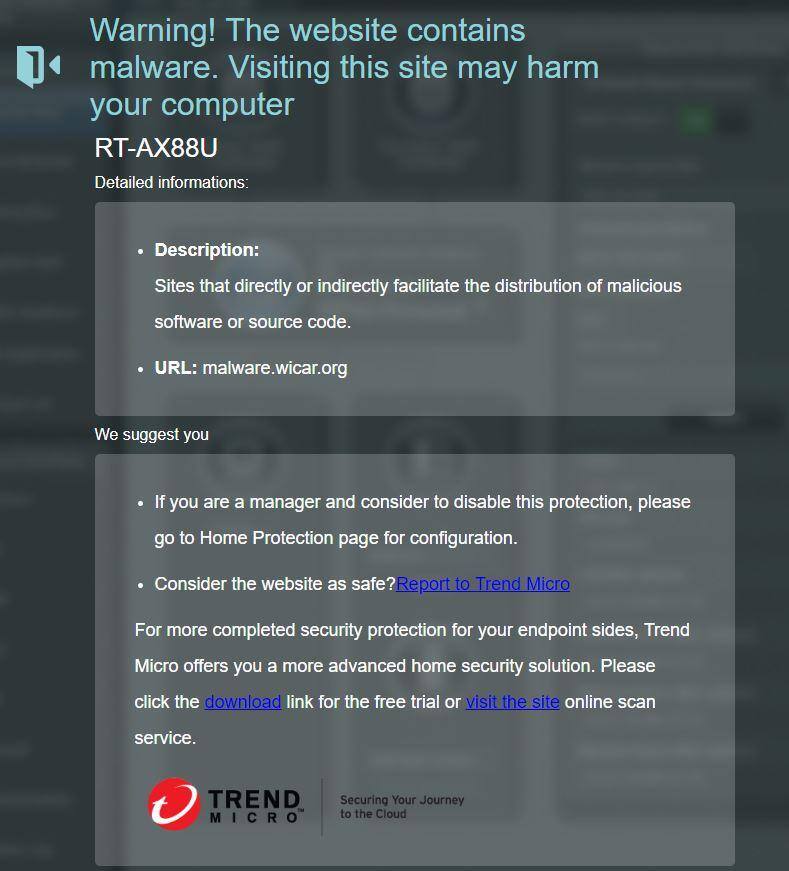

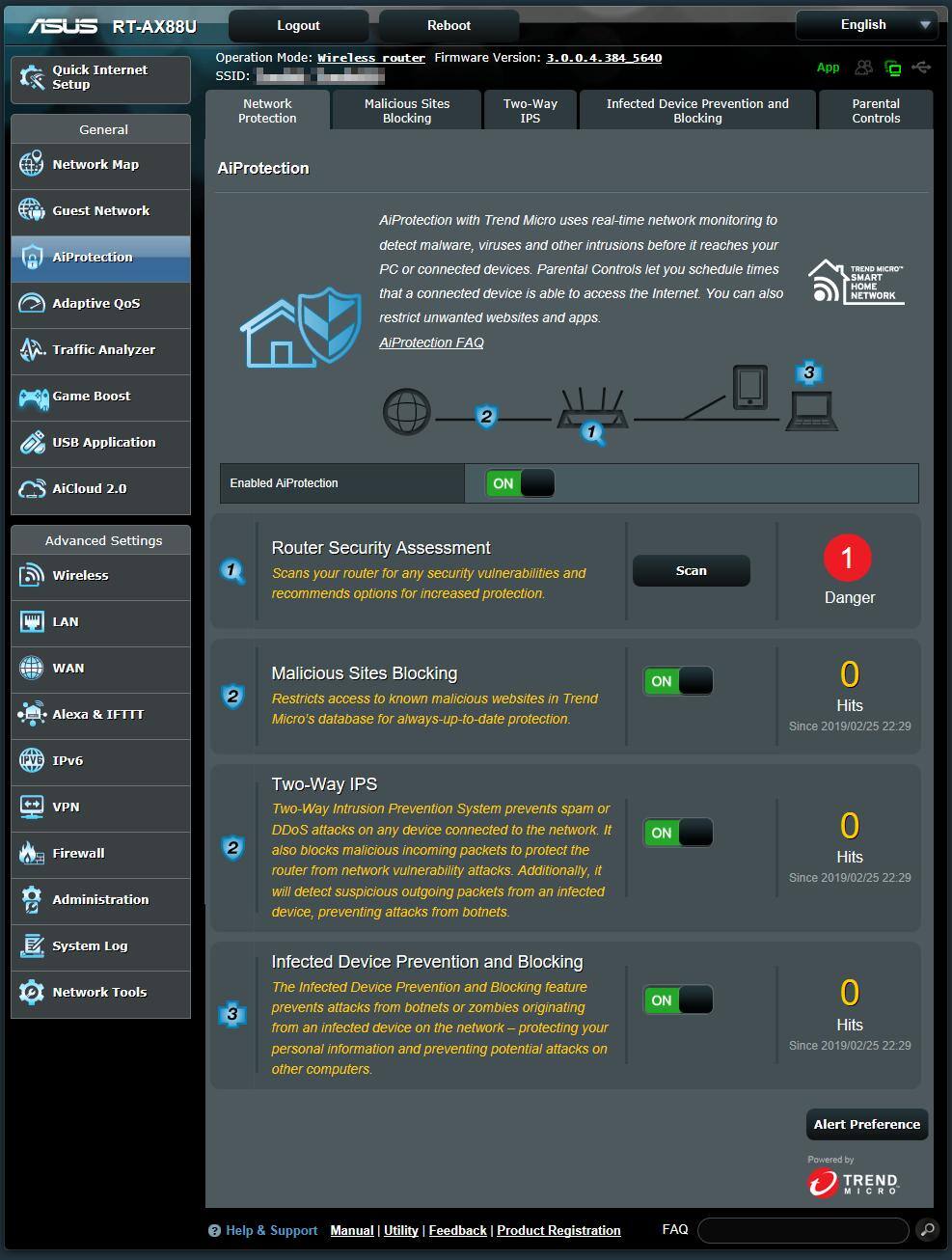

- AiProtection Pro network security: Protects your devices and personal data from Internet threats. It also offers advanced parental controls, including the ability to block specific websites and mobile app types.
- Parental control: Lets you automatically block specific content on connected devices.
- Wi-Fi protected access: Comes with WPA2-PSK, WPA-PSK, WPA-Enterprise, and WPA2-Enterprise encryption to keep your information secure.

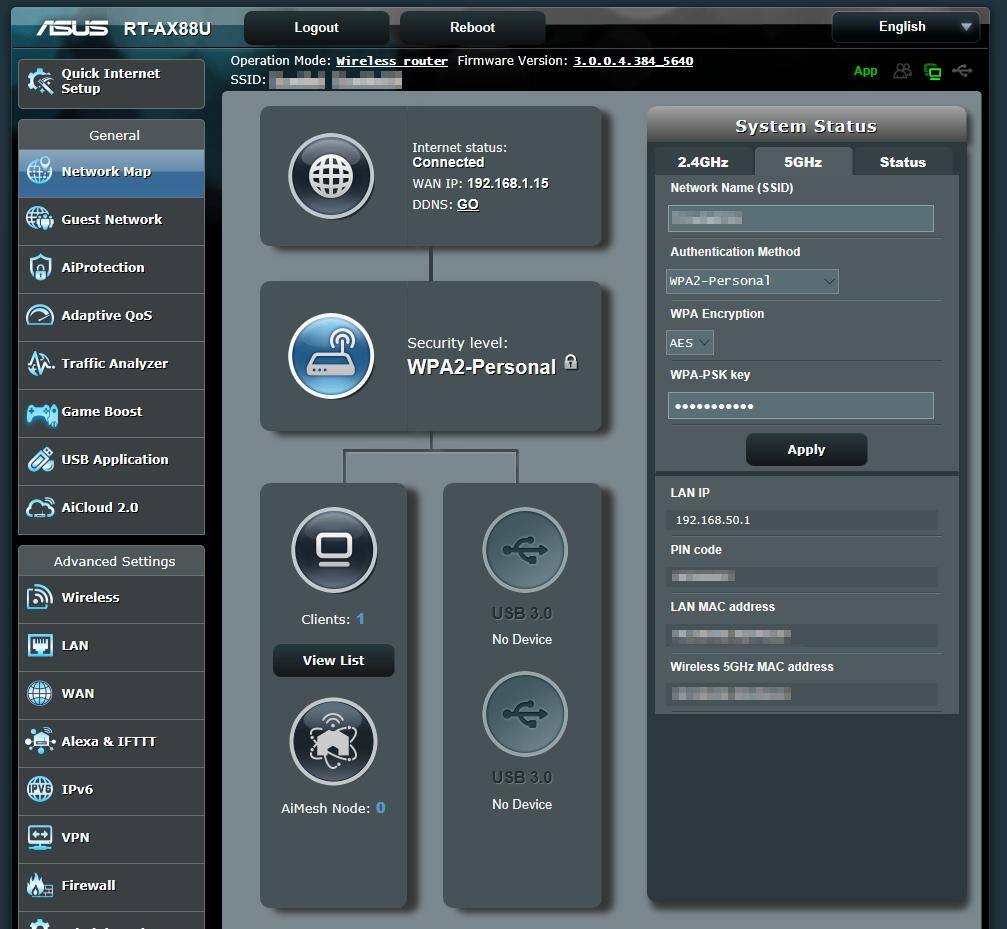

- Router setup wizard: Quickly and easily guides you through the step-by-step installation process.

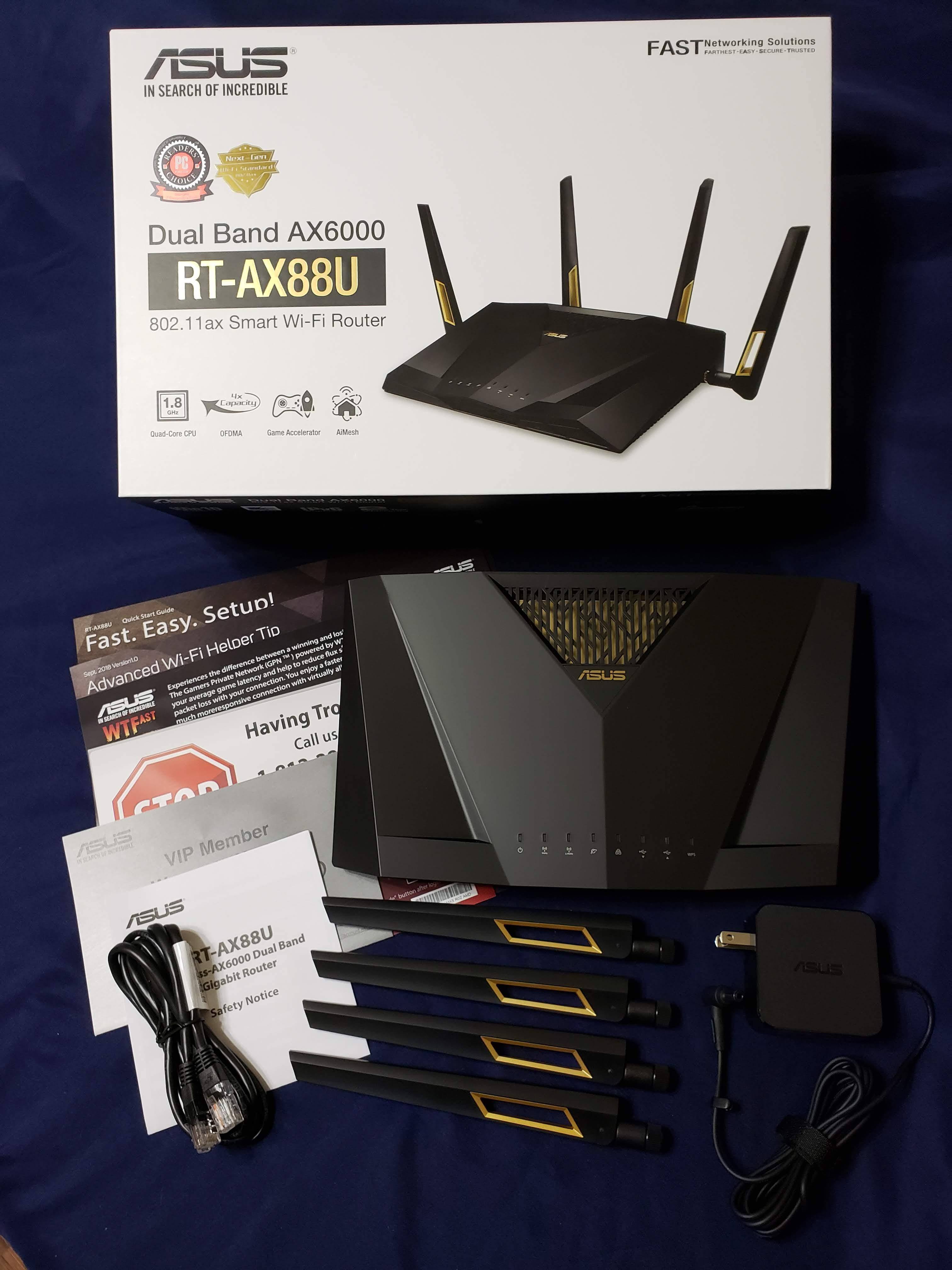

Whats Included
- ASUS AX6000 Dual Band Mesh Wi-Fi 6 Router
- Network cable
- Power adapter
- Owner's manual
Product Manuals
Q: How many wireless connections can this router handle at a time?
A: Currently I have ten smart plugs three tablets two laptops a PS4 and Xbox, 3 TVs, a security system of about 6 cameras and window/door senora as well. If you doa combined WiFi you can run into some devices dropping switching from 2.4 to 5 GHz. I would recommend keeping them split and segregating network based on speed need. Right now roughly 60 devices connect to my WiFi network not counting the 6 wired ports
Q: How much mbps can I get if this is not plugged into my modem and is next to my pc.
A: If it's not plugged into your modem you will get ZERO.
A: Yes it is. Asus website and support knowledge base for this model gives details on WPA3 as well as other WPA3 capable devices.
A: To official site is here. https://www.asus.com/us/Networking-IoT-Servers/WiFi-6/All-series/RT-AX88U/
A: If you need it to reach farther on one side of the house to outside, I would recommend placing it near a window on that side of the house. The typical range on them is about a 2 stall garage plus 2 1500 sq ft house all side by side. Not sure how far away your barn is from the house. You may need to get one for the garage and run an ethernet cord underground from the house to the barn. A way to find out how far your internet wifi reaches is to use an app on your phone called Netspot from the Play Store. It will show the signal strength of your wifi and drop in strength the further you go out. Hope this helps!
A: Any Wifi-Extender that supports DUAL Band will work.
Q: What is doa combined WiFi? Thanks
A: doa = do a The way he was describing was if you run dual-band smart connect, it could cause problems by constantly shifting them from 2.4 GHz to 5 GHz connection. To minimize that problem is to run each channel separately and connect each device accordingly. For example, you have too many on the 2.4 GHz line, it could slow down your wifi connection speed. It would be better to keep each wifi channel with around the same amount of devices like 4 connected on 2.4 GHz and 4 connected on 5 GHz. Hope this helps.
Q: Does this device have powered Ethernet ports?
A: No, this router doesn't support Power on Ethernet.
