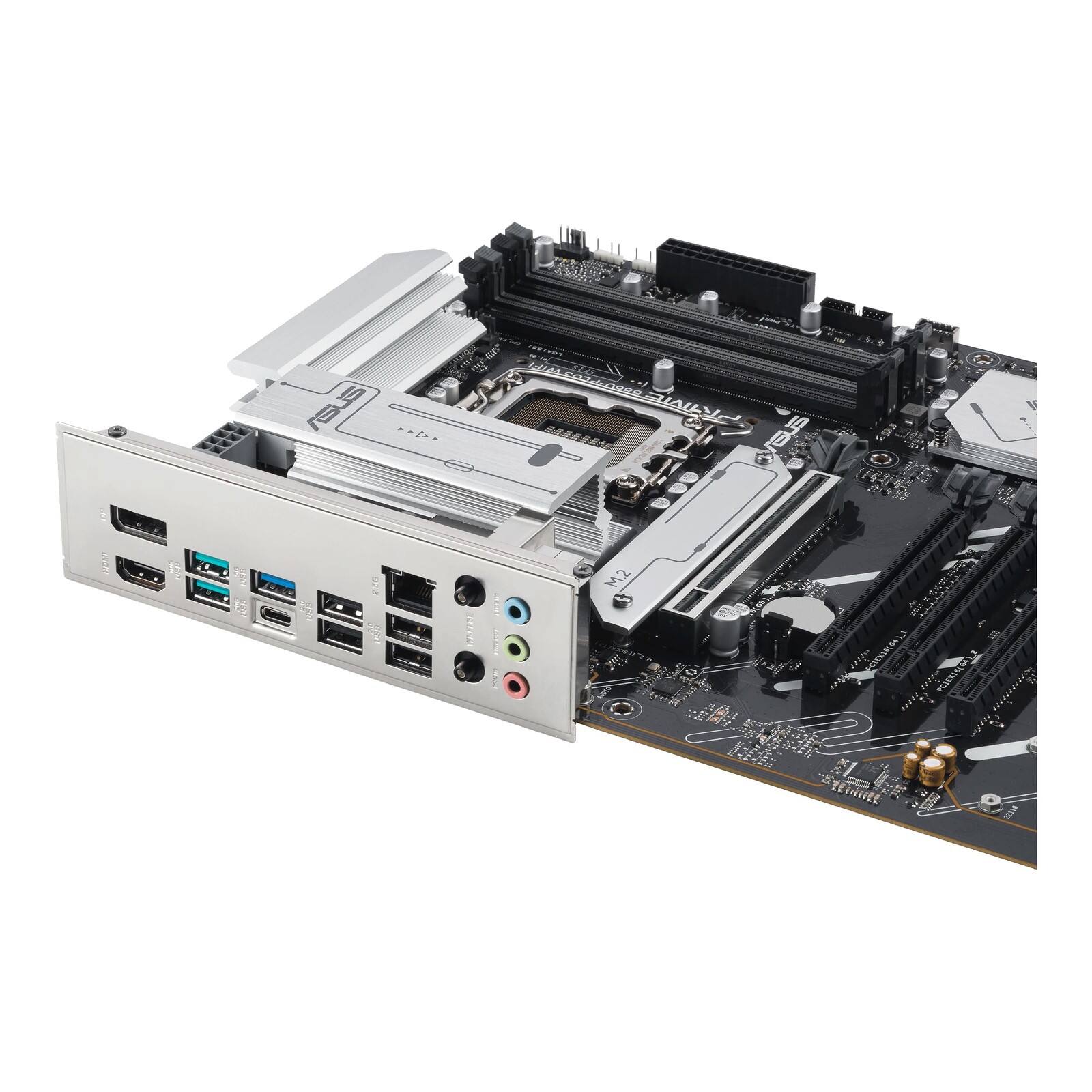

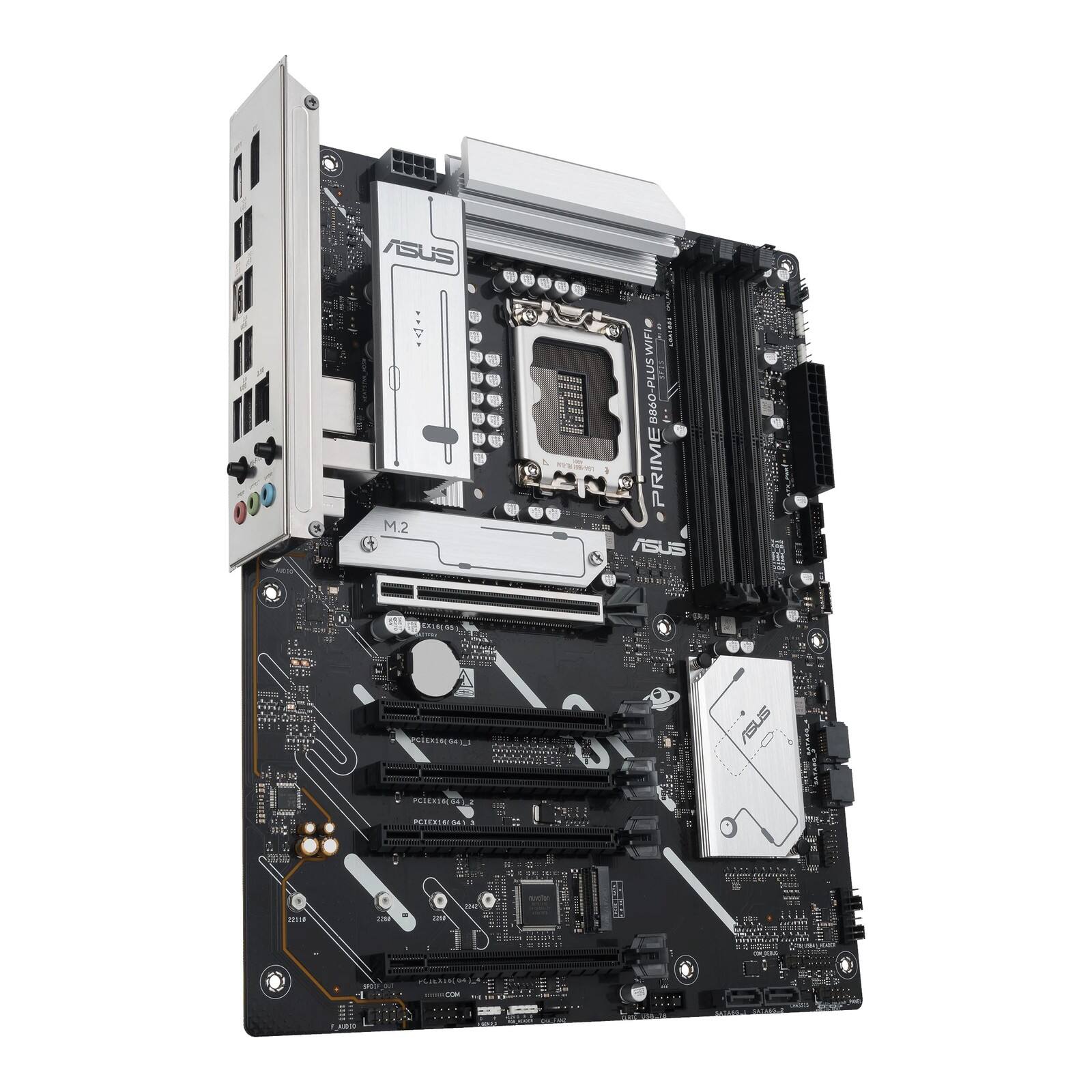

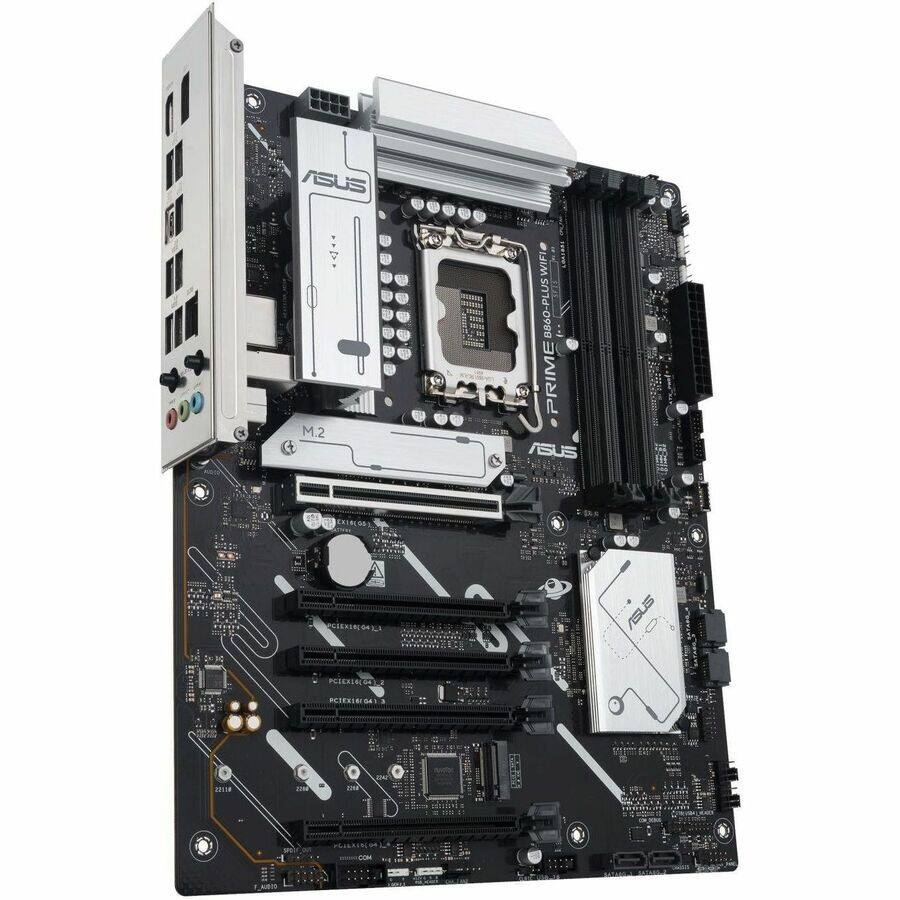

ASUS - Prime B860-PLUS WIFI-CSM Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - ATX (298663)
More Buying Options from Marketplace sellers
Specifications
- ChipsetIntel B860Form FactorATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: Intel B860
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5 SDRAM
- General
- Brand: ASUS
- Model Number: 90MB1K50-MVAAYC
- Product Name: Asus Prime B860-PLUS WIFI-CSM Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - ATX (298663)
- Compatibility
- Chipset: Intel B860
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 5 Series 2
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 5
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 3 x USB-A 3.2, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 98 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 7 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 38.72 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5 SDRAM
- Memory Format Supported: SODIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8666 MHz (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: Limited Warranty period (labor): 3 years
- Other
- UPC: 197105814738
The Asus Prime B860-PLUS WIFI-CSM Desktop Motherboard is engineered to maximize the performance of Intel Core Ultra Processors (Series 2). It features a robust power design, comprehensive cooling solutions, and intelligent tuning options, making it ideal for both users and PC DIY builders seeking performance optimizations. Designed to be Advanced AI PC-ready, it offers the power and connectivity needed for demanding AI applications.
- Processor Compatibility: Supports Intel Core Ultra Processors (Series 2) with Socket LGA-1851.
- Memory Support: Equipped with 4 DIMM slots, supporting up to 256 GB of DDR5 SDRAM at speeds up to 8666 MHz (OC).
- Expansion Slots: Features 5 PCI Express x16 slots, including one PCIe 5.0 x16 slot and four PCIe 4.0 x16 slots.
- Storage Options: Offers 2 M.2 slots and 4 SATA 6Gb/s ports for versatile storage configurations.
- Connectivity: Includes Wi-Fi 6E, Bluetooth 5.3, and a Realtek 2.5Gb Ethernet port for high-speed networking.
Whats Included
- ASUS PRIME B860-PLUS WIFI-CSM, Intel Core Ultra 2 Ready, DDR5, PCIe 5.0, HDMI, USB 20Gbps, WiFi 6E, ACCE Remote
