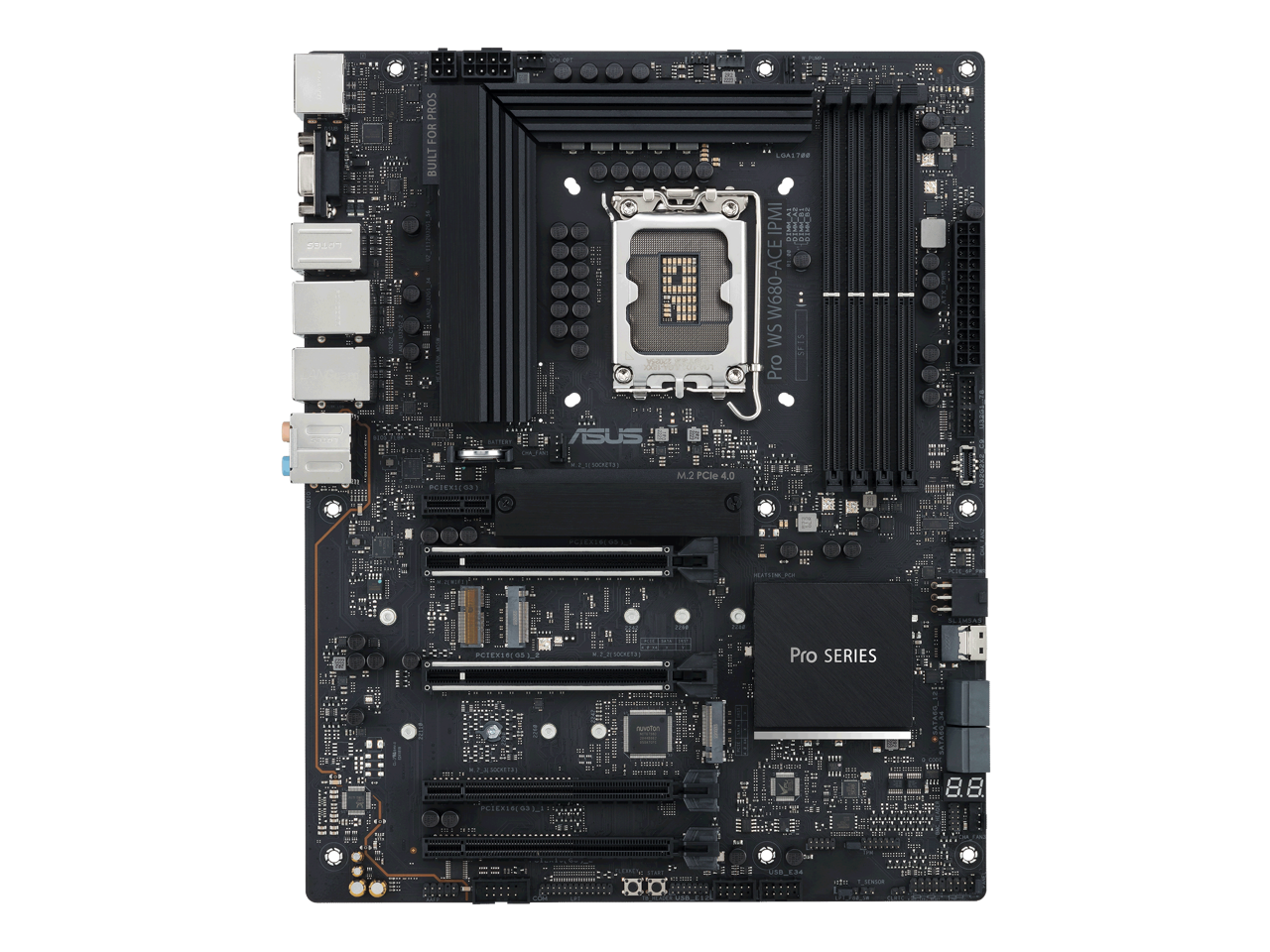

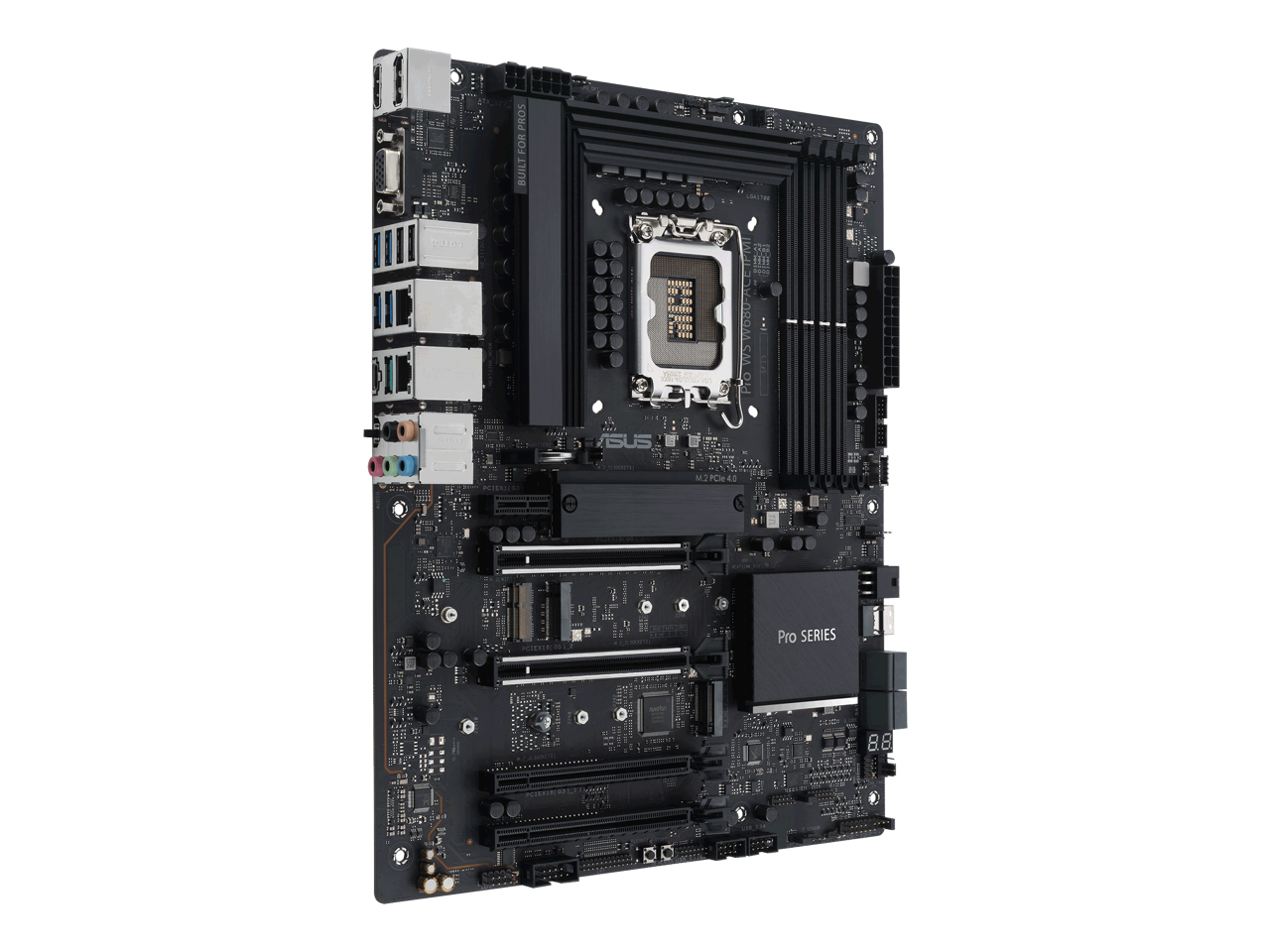

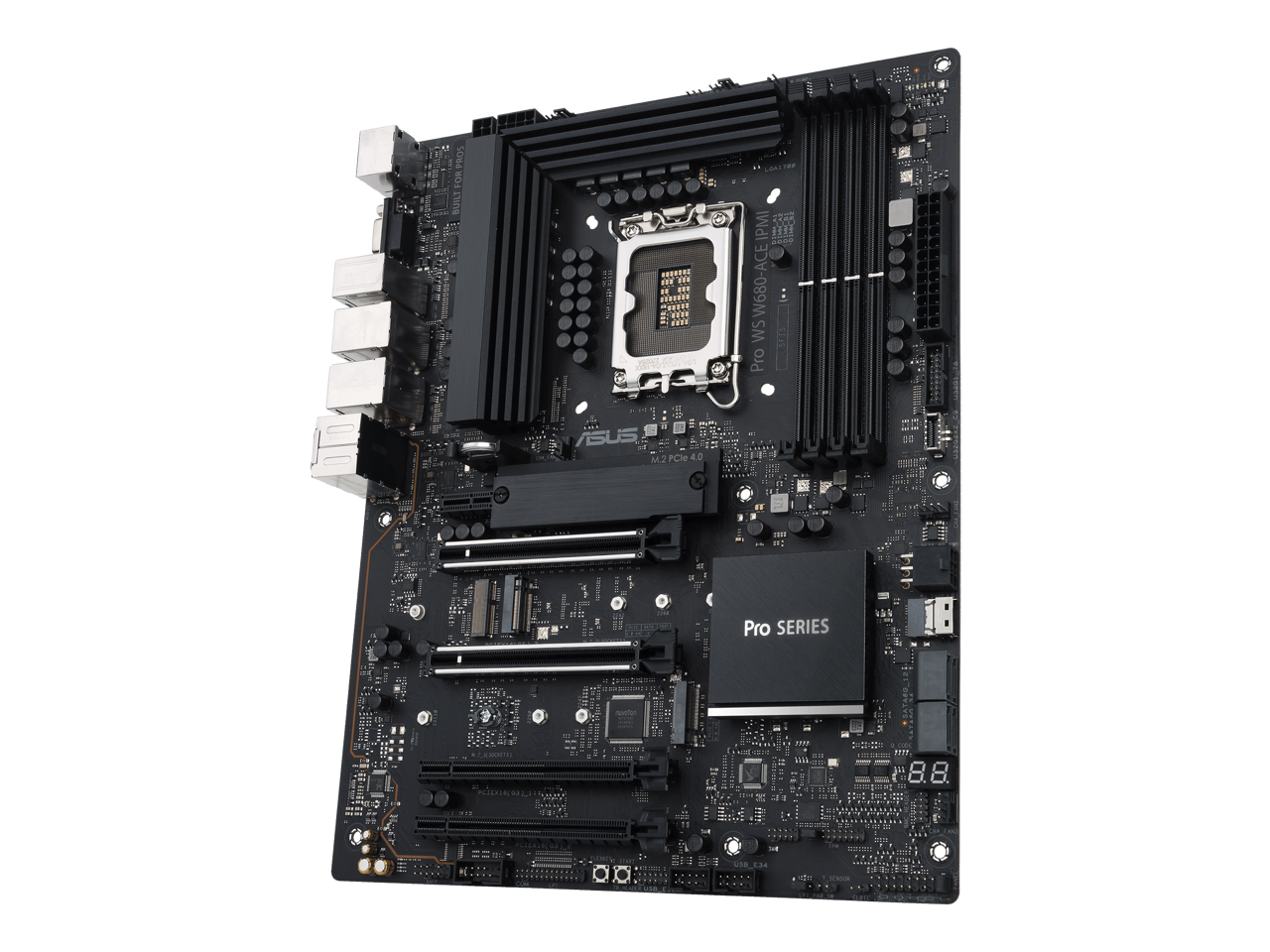

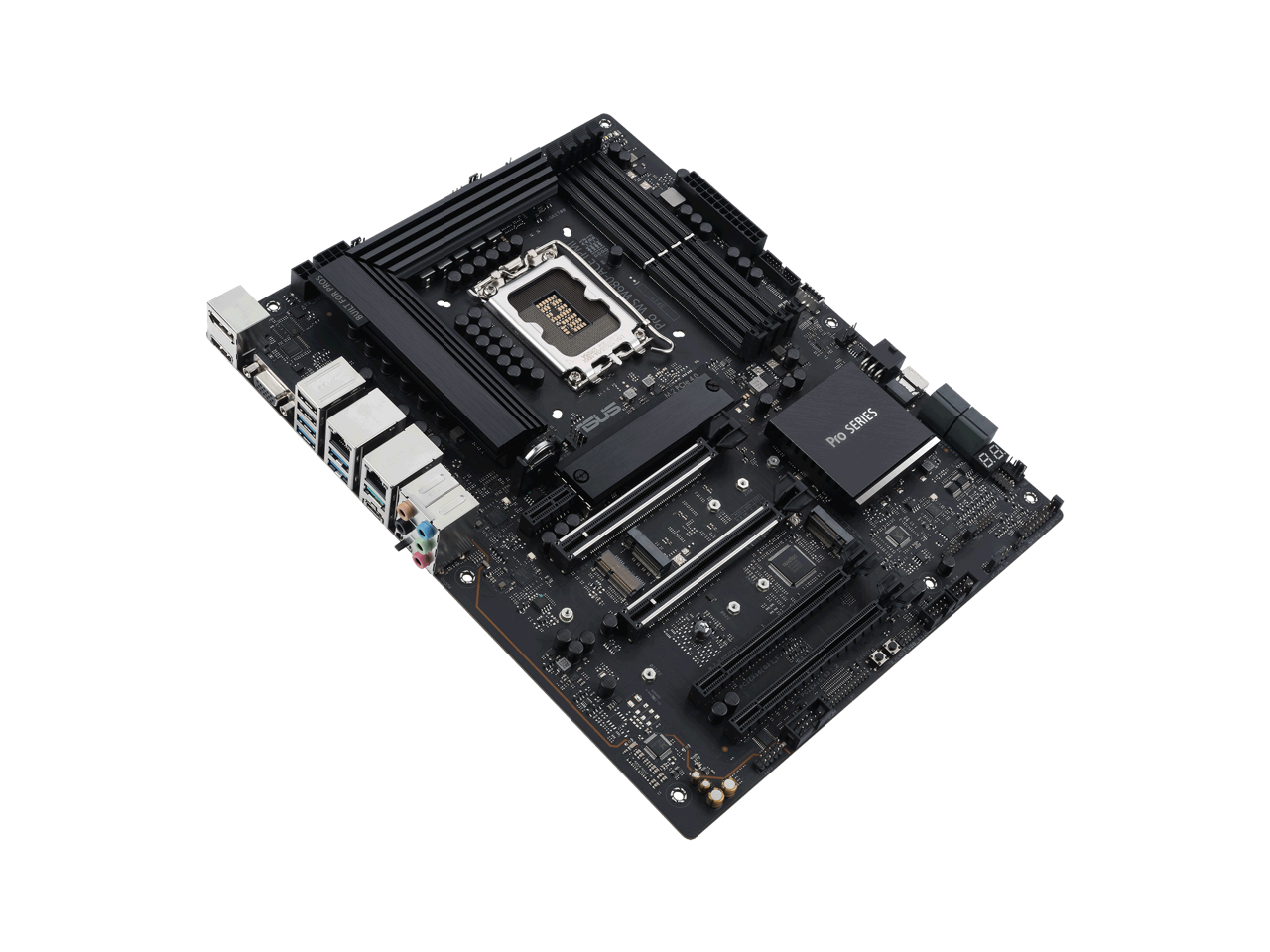

ASUS - Pro WS W680-ACE IPMI Workstation Motherboard - Intel W680 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold

Name: ASUS - Pro WS W680-ACE IPMI Workstation Motherboard - Intel W680 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold
Brand: ASUS
SKU: 12352412
Price: 435.14 USD
Availability: InStock
Rating: 0 (0 reviews)

Model: PRO WS W680-ACE IPMI

SKU: 12352412

(1 review from https://www.asus.com)

$435.14

Save $21.00

$456.90

$36.27/mo.

suggested payments with 12-Month Financing

Show me how

Finance OptionsView your offers

Sold & shipped by

antonline

(540)

Return & Exchange Policy

Specifications

Chipset
Intel H610
Form Factor
ATX
Processor Socket
Socket LGA 1700
Wireless Networking Standard
No Wi-Fi standard
Number Of Memory Slots
4
Maximum Memory Supported
128 gigabytes

Key Specs
- Chipset: Intel H610
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
General
- Brand: ASUS
- Model Number: PRO WS W680-ACE IPMI
- Product Name: Asus Pro WS W680-ACE IPMI Workstation Motherboard - Intel W680 Chipset - Socket LGA-1700 - ATX - Core, Pentium Gold
Compatibility
- Chipset: Intel H610
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel 13th Generation Core i9
Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
Ports

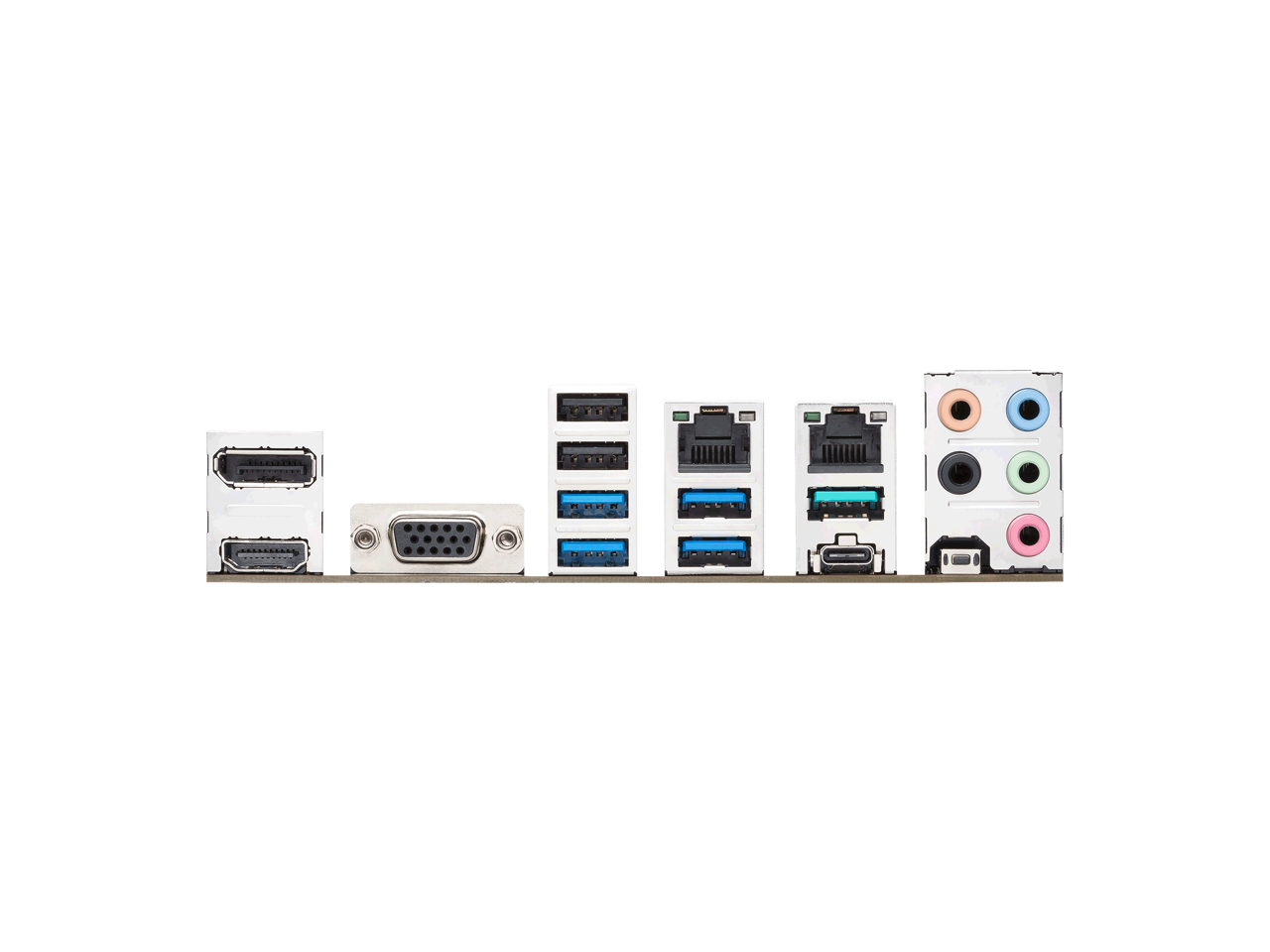

- USB Ports: 4 x USB-A 2.0, 7 x USB-A 3.1 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
Dimensions
- Product Length: 330.20 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 292.10 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 40.8 ounces (The out of box weight of the item.)
Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: DDR5 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0), RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
Warranty
- Warranty - Parts: Limited Warranty period (parts): 3 years
- Warranty - Labor: Limited Warranty period (labor): 3 years
Other
- UPC: 197105005938

ASUS Pro WS W680-ACE IPMI Intel W680 LGA 1700 ATX workstation motherboard, dual PCIe 5.0x16 slot, DDR5, ECC memory and XMP support, dual Intel 2.5 Gb Lan, 3xPCIe 4.0 M.2 slots, USB 3.2 Gen 2x2 front panel connector, SlimSAS.

Advanced connectivity options for high-speed performance: Next-gen connectivity: Dual PCIe 5.0 Safeslots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, Thunderbolt 4 header support, TPM header, LPT header.
Ultra Powerful Back IO: Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium® Gold and Celeron® Processors
ECC Memory Support: Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery

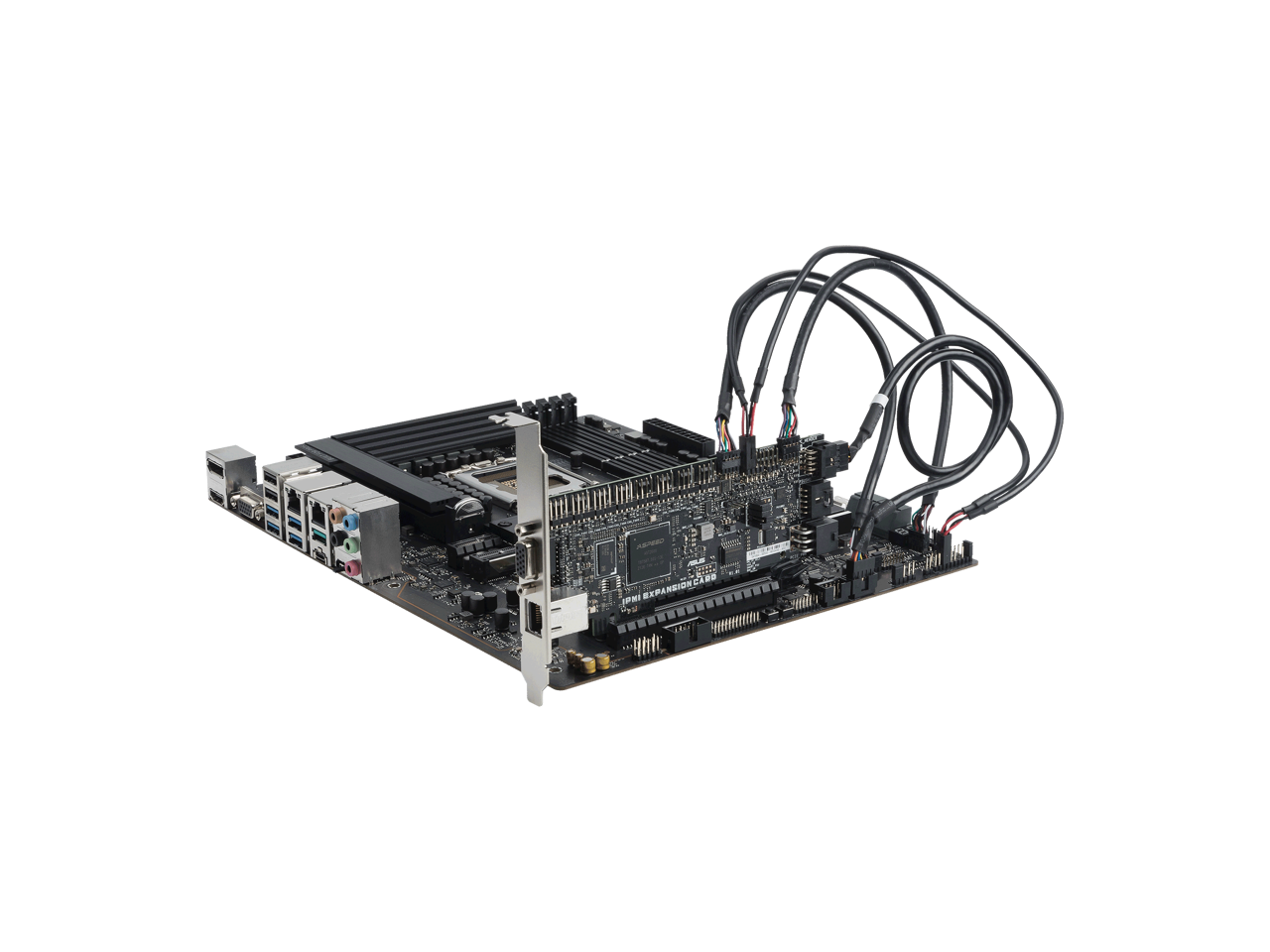

BMC Remote Management: Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
Dual 2.5G Ethernet: Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
Advanced connectivity options for high-speed performance: Next-gen connectivity: Dual PCIe 5.0 Safeslots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, Thunderbolt 4 header support, TPM header, LPT header.
Ultra Powerful Back IO: Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium® Gold and Celeron® Processors
ECC Memory Support: Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
BMC Remote Management: Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
Dual 2.5G Ethernet: Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
