ASUS - ROG Strix X570-I Gaming (Socket AM4) USB-C Gen2 AMD Motherboard with LED Lighting - Multi
- Key Specs
- Chipset: AMD X570
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: ASUS
- Model Number: ROG STRIX X570-I GAMING
- Product Name: ROG Strix X570-I Gaming (Socket AM4) USB-C Gen2 AMD Motherboard with LED Lighting
- Color: Multi
- Compatibility
- Chipset: AMD X570
- Chipset Compatibility: AMD
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (PGA 1331) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 2000 Series, AMD Ryzen 3 3000 Series, AMD Ryzen 3 4000 Series, AMD Ryzen 5 3000 Series, AMD Ryzen 5 4000 Series, AMD Ryzen 5 5000 Series, AMD Ryzen 7 3000 Series, AMD Ryzen 7 4000 Series, AMD Ryzen 7 5000 Series
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 3
- Number Of Memory Slots: 2
- Connectivity
- Power Connector: 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 7 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 170.18 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 170.18 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.52 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 192876487594
Create a custom build with this mini-ITX ASUS ROG Strix gaming motherboard. The AM4 socket accepts AMD Ryzen processors for fast performance, and the two M.2 SSD slots support a multi-drive setup. This ASUS ROG Strix gaming motherboard features a PCIe 4.0 slot to hold a graphics card, and the two memory sockets take up to 64GB of DDR4 RAM.
- Supports AMD Ryzen processors: In an AM4 socket.
- Up to 4800MHz (OC) system speed: With an AMD X570 chipset for efficient operation.
- Two 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports 8-channel SupremeFX (S1220A) audio: For high-definition sound.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 1 audio line-in, 1 audio line-out, 1 microphone, 3 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 1 USB-C Gen2, 1 DisplayPort and 1 HDMI.
- Expansion capabilities: Include 1 PCI Express 4.0 x16.
- Supports AMD Ryzen processors: In an AM4 socket.
- Up to 4800MHz (OC) system speed: With an AMD X570 chipset for efficient operation.
- Two 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports 8-channel SupremeFX (S1220A) audio: For high-definition sound.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 1 audio line-in, 1 audio line-out, 1 microphone, 3 USB 3.2 Gen 2, 4 USB 3.2 Gen 1, 1 USB-C Gen2, 1 DisplayPort and 1 HDMI.
- Expansion capabilities: Include 1 PCI Express 4.0 x16.
Whats Included
- ASUS ROG Strix X570-I Gaming
- 4 x Serial ATA cable
- External antenna, cable ties, 2 x M.2 screws, M.2 bracket, STRIX stickers, ROG thank you card, RGB Addressable LED extension cable
- Software
- ASUS ROG Strix X570-I Gaming
- 4 x Serial ATA cable
- External antenna, cable ties, 2 x M.2 screws, M.2 bracket, STRIX stickers, ROG thank you card, RGB Addressable LED extension cable
- Software
Product Manuals
A: It does not have the ability to upgrade the BIOS without the CPU. Looking on the back you'll notice there's no USB dedicated to BIOS flashing which is unfortunate considering the number of USBs available on this board. Also, there's no way to knowing which BIOS will be installed when you receive the item. Some have reported having the latest installed with stickers on the box stating "Ready for Ryzen 5000 series" while others are not. Truly a great ITX board with a crippling flaw given recent CPU release from AMD. Hope this helps.
Q: Will this board work with the Cooler Master NR200P case and Ryzen 5700G APU?

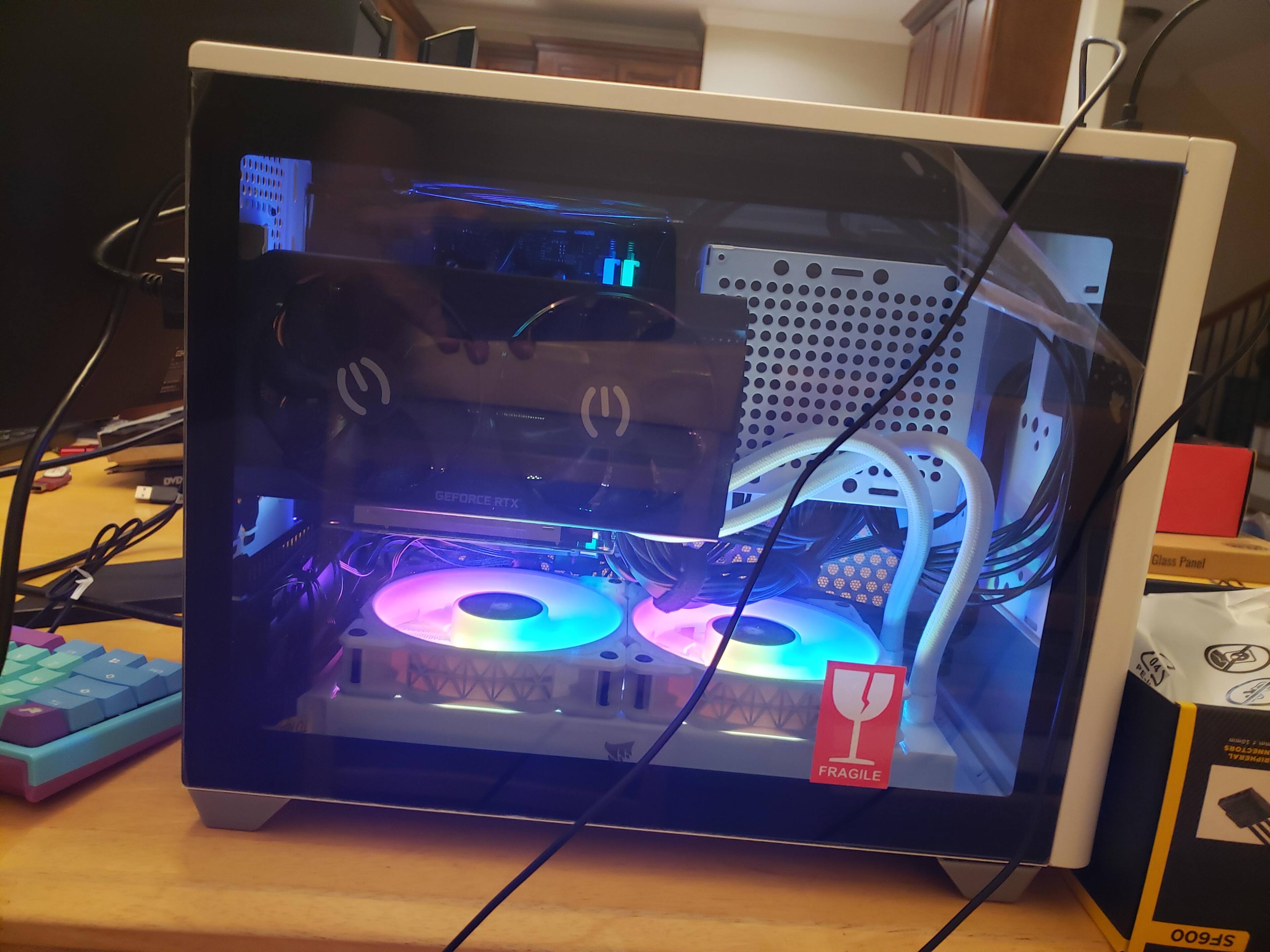

A: Yes, it should. I have this board in a standard NR200 with a 5900X
Q: Hello, wondering if this has a PCIe firewire expansion card?
A: No, an additional expansion card is not included. Please note that this model has a single PCIe 4.0 x16 expansion slot, you may want to select another motherboard with more expansion options. https://rog.asus.com/us/motherboards/rog-strix/rog-strix-x570-i-gaming-model/spec
Q: Will the motherboard boot from the onboard M.2 drives, or are they only for storage?
A: The M.2 drives can be used either as storage or boot drives. You can configure this within the BIOS.
A: Yes it will work, actually that is the exact cpu i have on my system with 32gb gskill ram.
A: The motherboard should be Ryzen 5000 ready, if it was built after the release date of the CPU. You may need to confirm with Best Buy on the manufacture date of the motherboards.
Q: What does this motherboard have for rgb setup? I'm thinking about adding a lot of rgb components.
A: This model comes with 1 x Aura RGB Strip Header(s) and 1 x Addressable Gen 2 header(s). You can review further specs here: https://rog.asus.com/motherboards/rog-strix/rog-strix-x570-i-gaming-model/spec
A: This component is just a motherboard, you will also need a CPU, graphics card, memory, a power supply, etc. If you need recommendation help with the other system components, please feel free to email me at [email protected] and include case #N2104029566-0002 in your email for reference.
