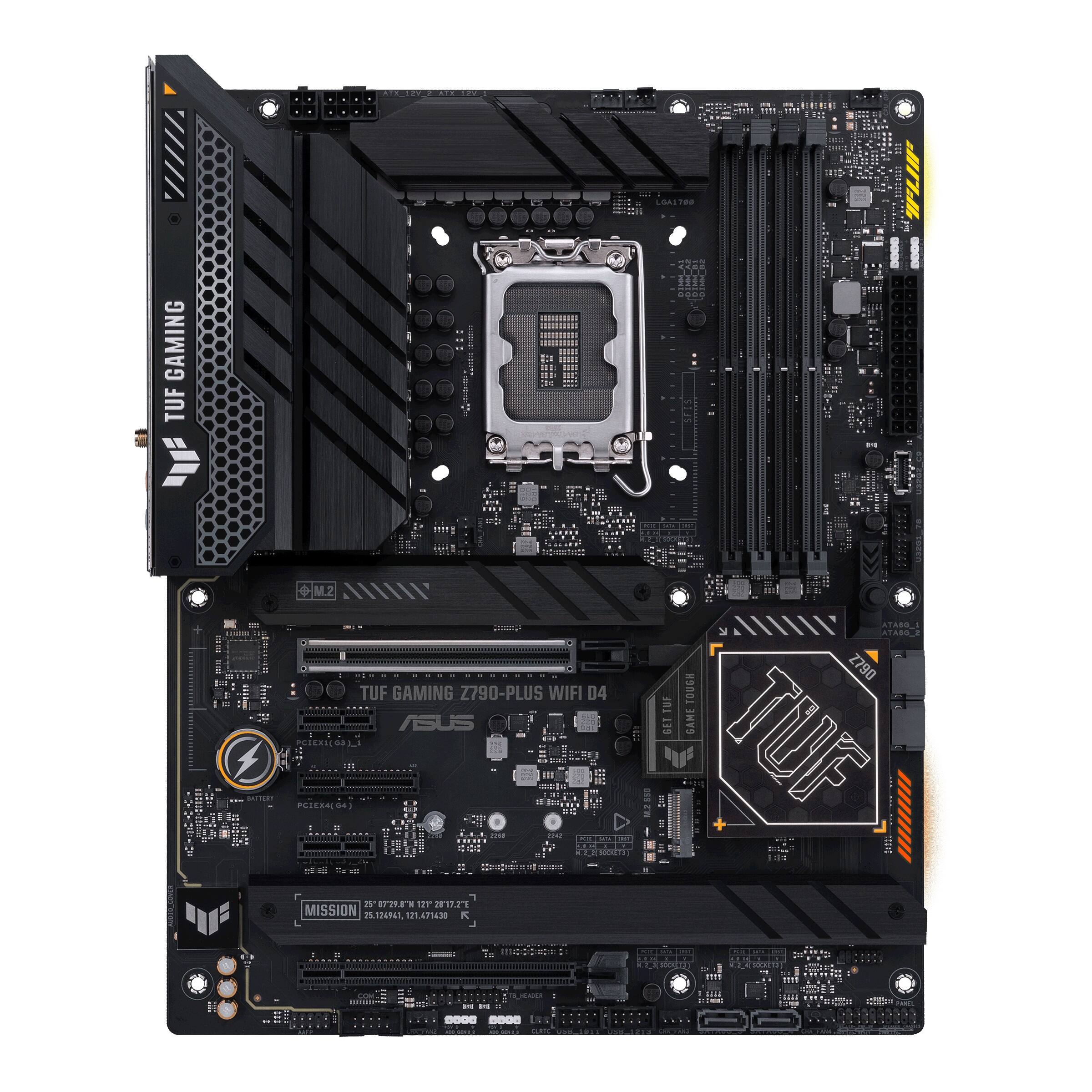

ASUS - TUF GAMING Z790-PLUS WIFI D4 (Socket LGA 1700) USB 3.2 Intel ATX Gaming Motherboard - Black
Model: TUF GAMING Z790-PLUS WIFI D4
SKU: 6523720
This item is no longer available in new condition. See similar items below
- Key Specs
- Chipset: Z790
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: ASUS
- Model Number: TUF GAMING Z790-PLUS WIFI D4
- Product Name: TUF GAMING Z790-PLUS WIFI D4 (Socket LGA 1700) USB 3.2 Intel ATX Gaming Motherboard
- Color: Black
- Year of Release: 2022
- Compatibility
- Chipset: Z790
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core i9, Intel Core i7, Intel Core i5, Intel Core i3, Intel Pentium, Intel Celeron
- Operating System Compatibility: Windows 10, Windows 11 Home
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x4 Slots: 1
- Number Of PCI-E x1 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: SATA 6 Gbps (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 4-pin CPU Fan header/4-pin CPU OPT Fan header/4-pin AIO Pump header/4-pin CPU Fan header/4-pin CPU OPT Fan header/4-pin AIO Pump header (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 3 x USB-C 3.2, 7 x USB-A 3.2, 2 x USB-A 2.0 (The number and type of USB ports the product has.)
- Thunderbolt Ports: 1 x Thunderbolt 4 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 5
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305.05 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244.09 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 75.36 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: DIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) Un-buffered Memory (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 195553941082
ASUS TUF GAMING Z790-PLUS WIFI D4 takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability.
- Processor Compatibility: Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Speed (memory speed supported): 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC) Un-buffered Memory
- Graphics: 1 x DisplayPort / 1 x HDMI port
- Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- Expansion slots: Intel 13th & 12th Gen Processors - 1 x PCIe 5.0 x16 slot / Intel Z790 Chipset - 1 x PCIe 4.0 x16 slot (supports x4 mode) / 1 x PCIe 4.0 x4 slot / 2 x PCIe 3.0 x1 slots
- Special Features: ASUS 5X PROTECTION III / ASUS Thermal Solution / ASUS EZ DIY / Aura Sync / Aura RGB header / Addressable Gen 2 headers
- Operating System: Windows 11, Windows 10 64-bit
Q: Does this model have bluetooth?
A: Yes, this model supports Bluetooth.
A: It uses DDR4 memory.
Q: Does this motherboard come with a operating system or do i have to buy one?
A: The motherboard comes pre-installed with Windows 10 or 11.
Q: Does this support a intel core i9 14900k 14th gen?
A: According to the spec of the i9 chip, it is a socket FCLGA1700, the Z90 motherboard has a LGA1700. So I would have to say no.
Q: Will Rtx 4070 work with this card? And will this motherboard work with i7 12700k?
A: The RTX 4070 will work with this motherboard at full speed (PCIe 4.0 x 16). So will the i7 12700k, since it fits in an LGA1700 socket.
Q: Will this work with an intel I5-11600k LGA 1200?
A: Unfortunately no, the TUF GAMING Z790-PLUS WIFI D4 motherboard has the Intel socket LGA1700 for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron processors.
