ASUS - X870 AYW GAMING (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 6 AX Motherboard - White
- Intel - Core i9-12900K Desktop Processor 16 (8P+8E) Cores up to 5.2 GHz Unlocked LGA1700 600 Series Chipset 125W - Grey/Black/Gold$379.99
More Buying Options
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots5Wireless Networking StandardWi-Fi 6Number Of Memory Slots4
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 5 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: X870 AYW GAMING WIFI W
- Product Name: X870 AYW GAMING (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 6 AX Motherboard
- Color: White
- Year of Release: 2025
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 11 Home, Windows 11 Pro, Linux
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 5 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 5
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x1 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 7 (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

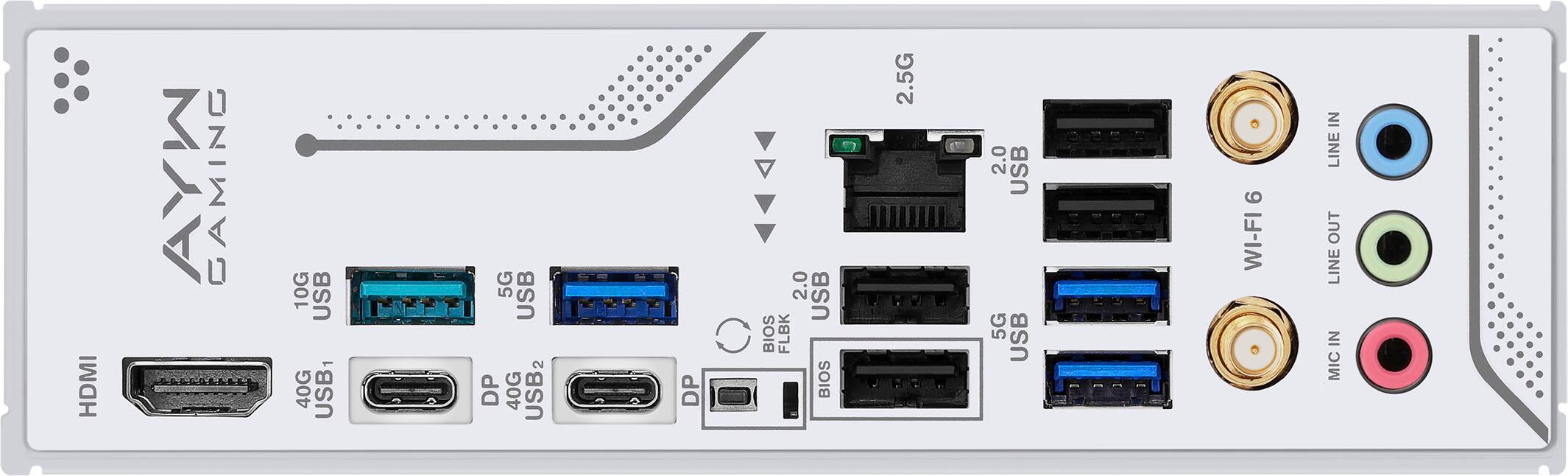

- USB Ports: 2 x USB-C 4, 1 x USB-C 3.2, 5 x USB-A 3.2, 6 x USB-A 2.0 (The number and type of USB ports the product has.)
- Audio Ports: 3
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 50.72 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: Up to 8000+MT/s (OC) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: None
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 197105974708

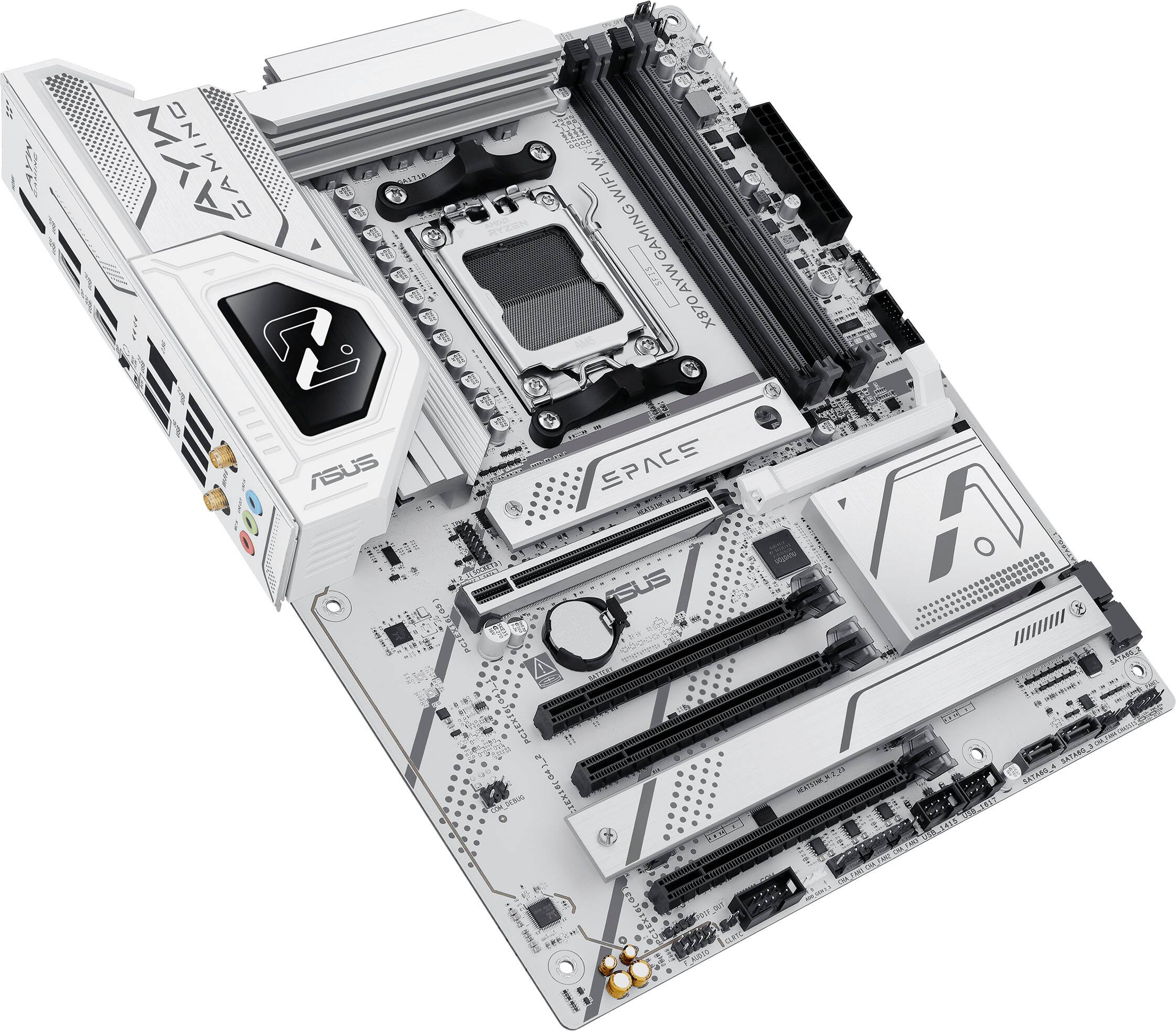

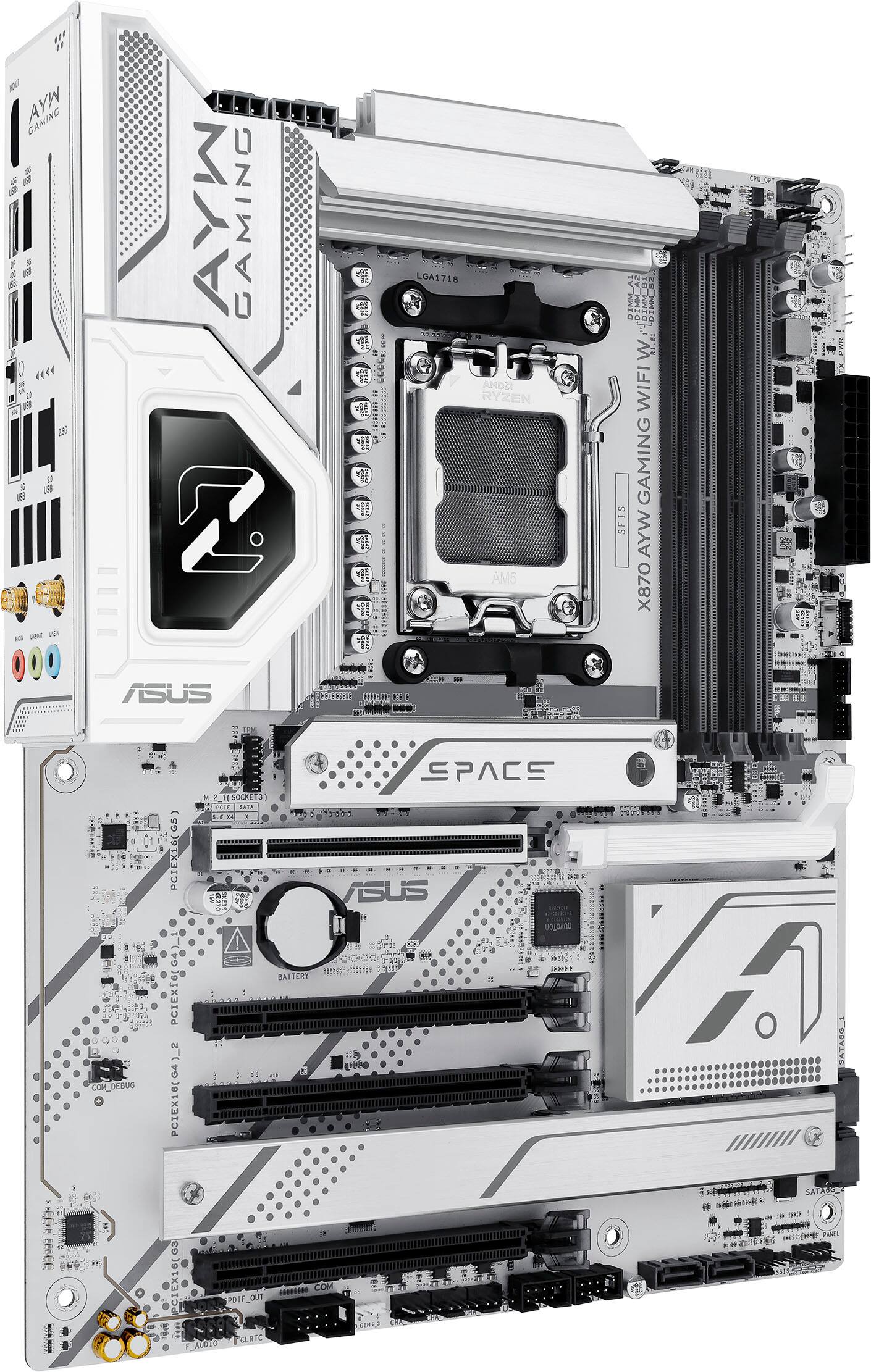

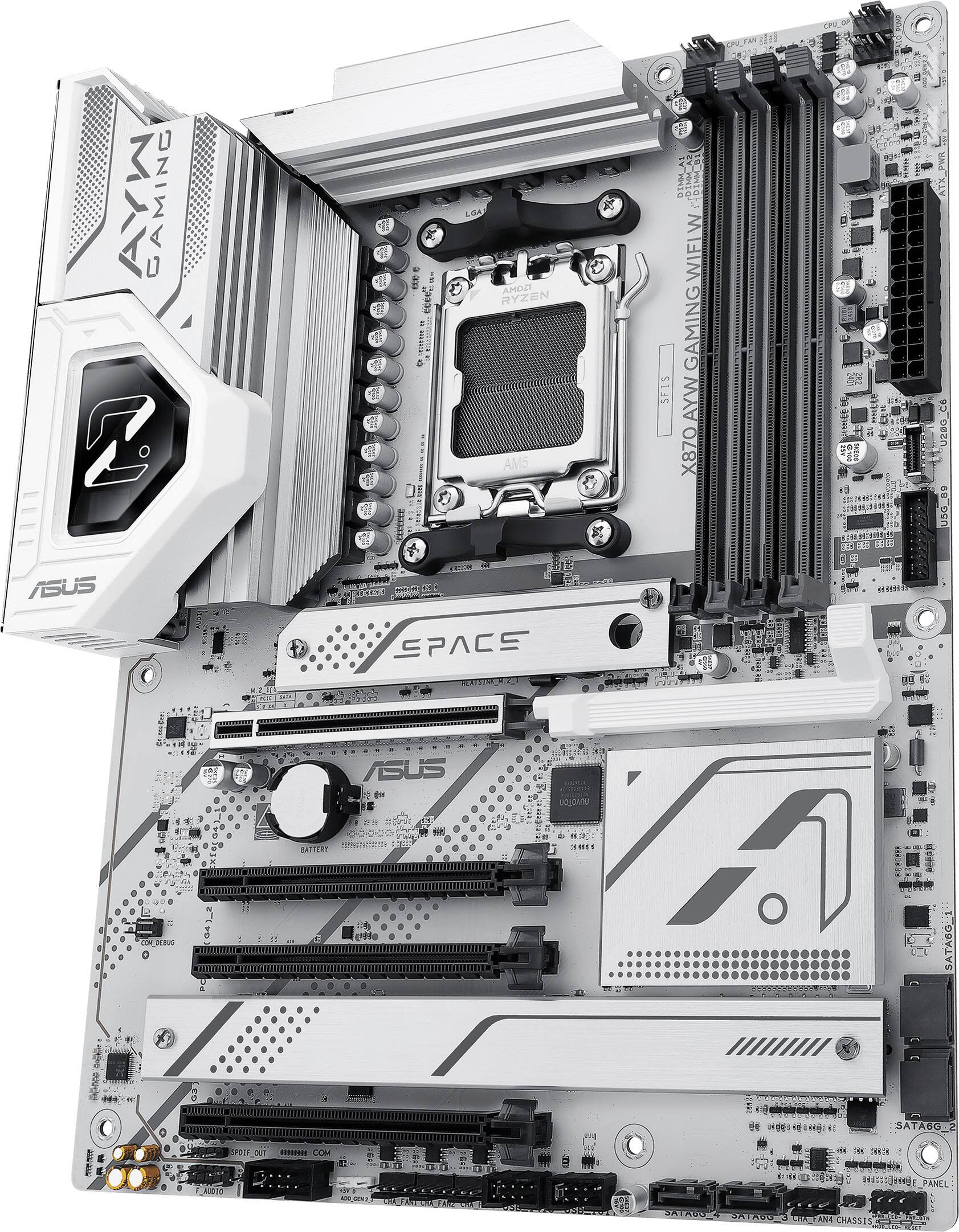

ASUS X870 AYW GAMING WIFI W is equipped with outstanding features, including 8-layer PCB, 12+2+1 80A DrMOS power stages, DDR5, PCIe 5.0 x16, three M.2 slots, Wi-Fi 6, Realtek 2.5Gb Ethernet, HDMI™, 2 x USB4® Type-C®, USB 20Gbps Type-C®, M.2 Q-Latch, which will bring users maximizing performance, stability and compatibility.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 12+2+1 80A DrMOS power stages, 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, USB4® (40Gbps) Type-C® ports, front USB 20Gbps Type-C® with PD Fast Charge Support
- Comprehensive Cooling: Large VRM heatsink, Dual M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
- DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, BIOSFlashBack™, Q-Dashboard, Q-LED
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 12+2+1 80A DrMOS power stages, 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, USB4® (40Gbps) Type-C® ports, front USB 20Gbps Type-C® with PD Fast Charge Support
- Comprehensive Cooling: Large VRM heatsink, Dual M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
- DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, BIOSFlashBack™, Q-Dashboard, Q-LED
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 12+2+1 80A DrMOS power stages, 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
- Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, USB4® (40Gbps) Type-C® ports, front USB 20Gbps Type-C® with PD Fast Charge Support
- Comprehensive Cooling: Large VRM heatsink, Dual M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
- DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, BIOSFlashBack™, Q-Dashboard, Q-LED
Whats Included

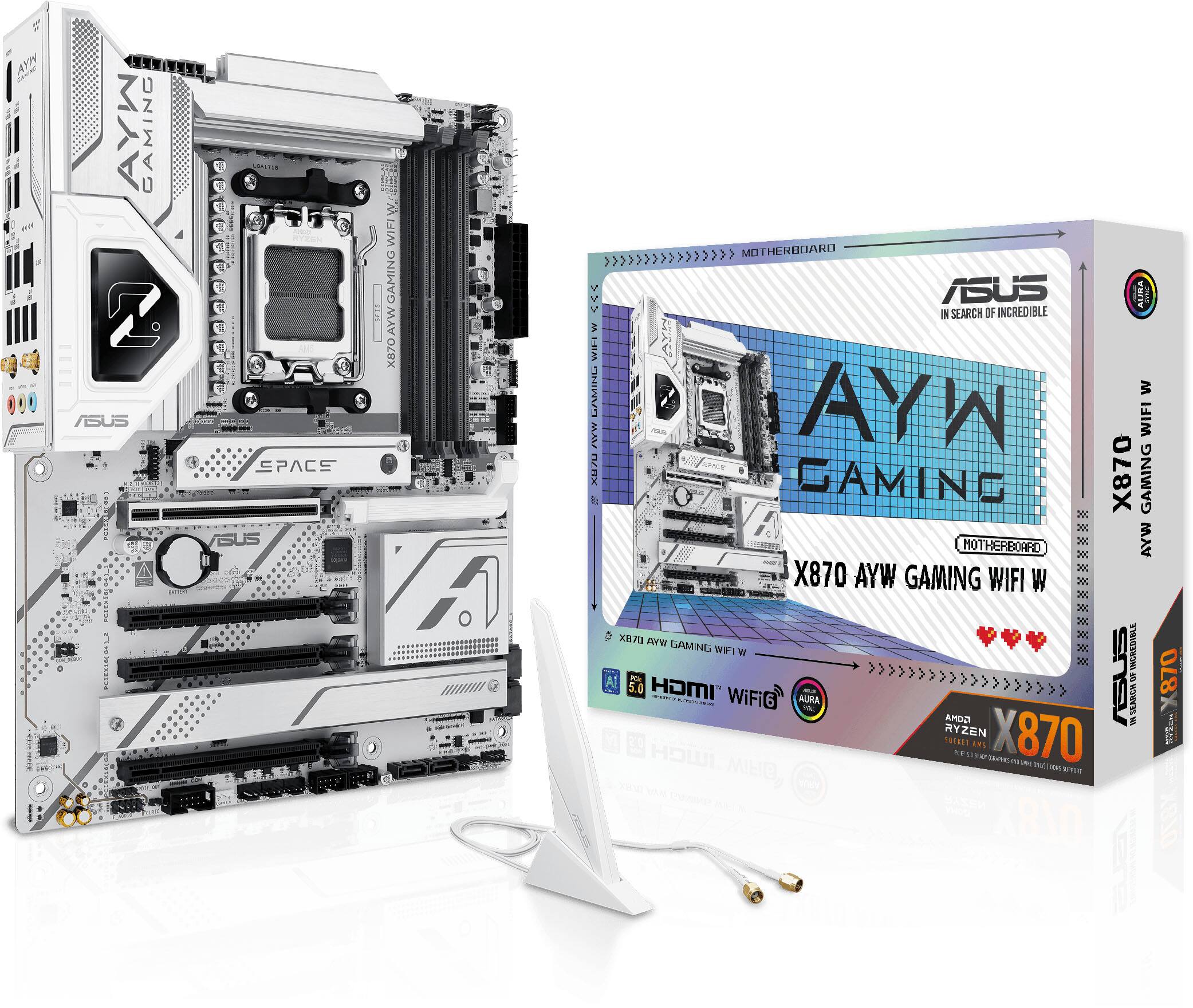

- X870 AYW GAMING WIFI W Motherboard
- 2x SATA 6Gb/s Cables

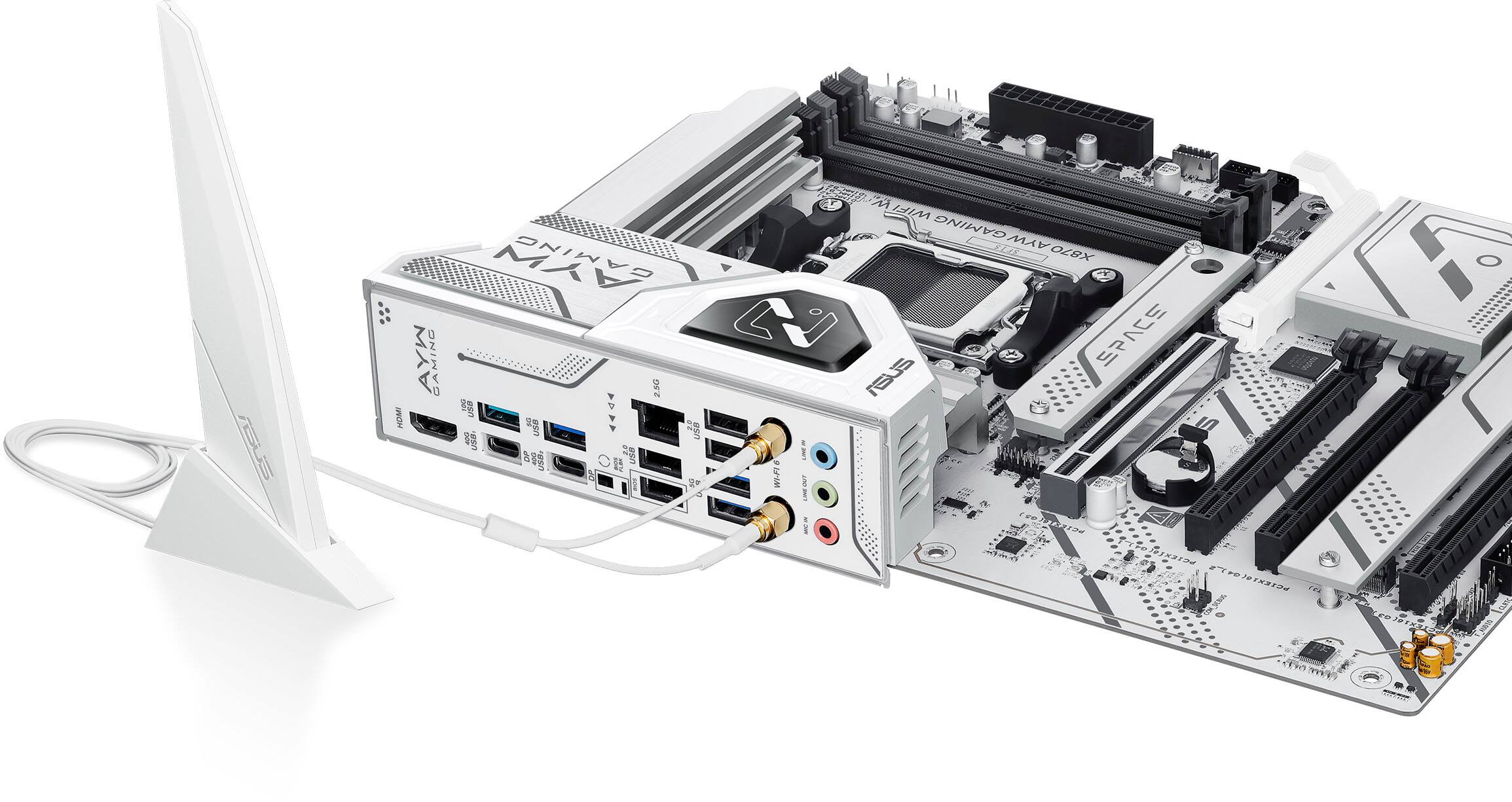

- 1x ASUS Wi-Fi Moving Antenna
- 2x M.2 Rubber Packages
- 1x Screw Package for M.2 SSD
- 1x Quick Start Guide
- X870 AYW GAMING WIFI W Motherboard
- 2x SATA 6Gb/s Cables
- 1x ASUS Wi-Fi Moving Antenna
- 2x M.2 Rubber Packages
- 1x Screw Package for M.2 SSD
- 1x Quick Start Guide
- X870 AYW GAMING WIFI W Motherboard
- 2x SATA 6Gb/s Cables
- 1x ASUS Wi-Fi Moving Antenna
- 2x M.2 Rubber Packages
- 1x Screw Package for M.2 SSD
- 1x Quick Start Guide
Q: Does this motherboard support Wi-Fi connectivity?
A: Yes, this motherboard supports Wi-Fi connectivity.
Q: What socket is compatible with this motherboard?
A: This motherboard is compatible with AMD Socket AM5.
Q: Does this motherboard have a Realtek Ethernet port?
A: Yes, this motherboard has a Realtek 2.5Gb Ethernet port.
Q: Are there USB4 ports available on this motherboard?
A: Yes, there are two USB4 Type-C ports available.
Q: What is the maximum memory supported on this motherboard?
A: The maximum memory supported is 256 gigabytes.
Q: How many M.2 slots does this motherboard have?
A: This motherboard has three M.2 slots.
Q: What type of memory is supported by this motherboard?
A: This motherboard supports DDR5 memory.
Compare similar products
ASUS X870 AYW GAMING WIFI W is equipped with outstanding features, including 8-layer PCB, 12+2+1 80A DrMOS power stages, DDR5, PCIe 5.0 x16, three M.2 slots, Wi-Fi 6, Realtek 2.5Gb Ethernet, HDMI™, 2 x USB4® Type-C®, USB 20Gbps Type-C®, M.2 Q-Latch, which will bring users maximizing performance, stability and compatibility.
MPG X870E EDGE TI WIFI takes all the essential elements of the AMD Ryzen 9000/7000 series processors and combines them with game-ready features and proven durability.
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.
The X870 AORUS ELITE WIFI7 ICE supports AM5 Processors and features unparalleled performance. GIGABYTE X870 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
| Pros for ASUS - X870 AYW GAMING (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 6 AX Motherboard - White | |||
|---|---|---|---|
| There were no pros for this product— | Overall Performance, Ease of Use, Installation, BIOS, Expansion Slots | Overall Performance, Installation Ease, BIOS Usability, Features, Compatibility | Overall Performance, Connectivity, Color, M.2 Slots, Heat Dissipation |
| Cons for ASUS - X870 AYW GAMING (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 6 AX Motherboard - White | |||
| There were no cons for this product— | There were no cons for this product— | Driver Support | Fan Header Placement |
Specs
Reviews

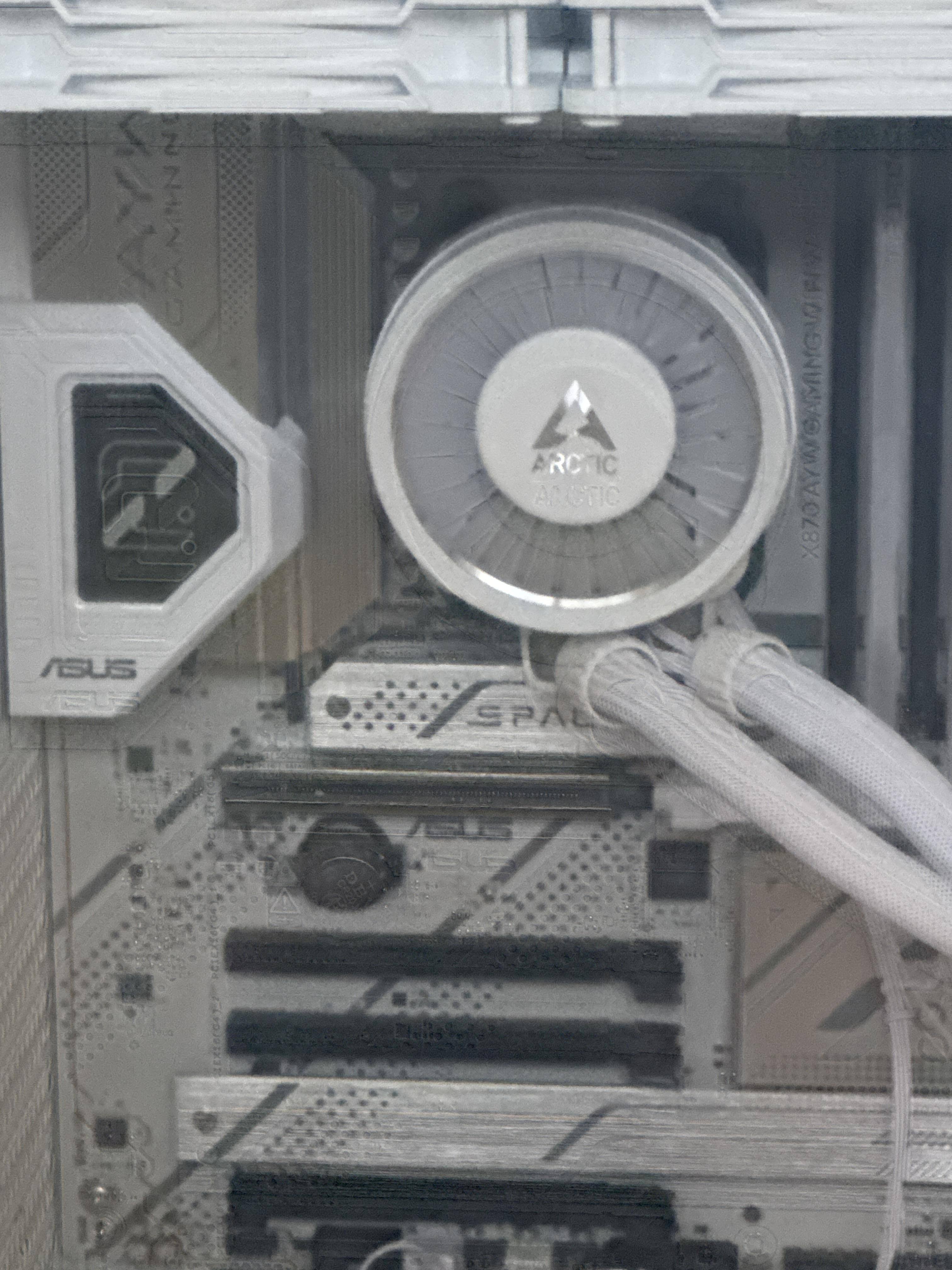

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Solid Motherboard

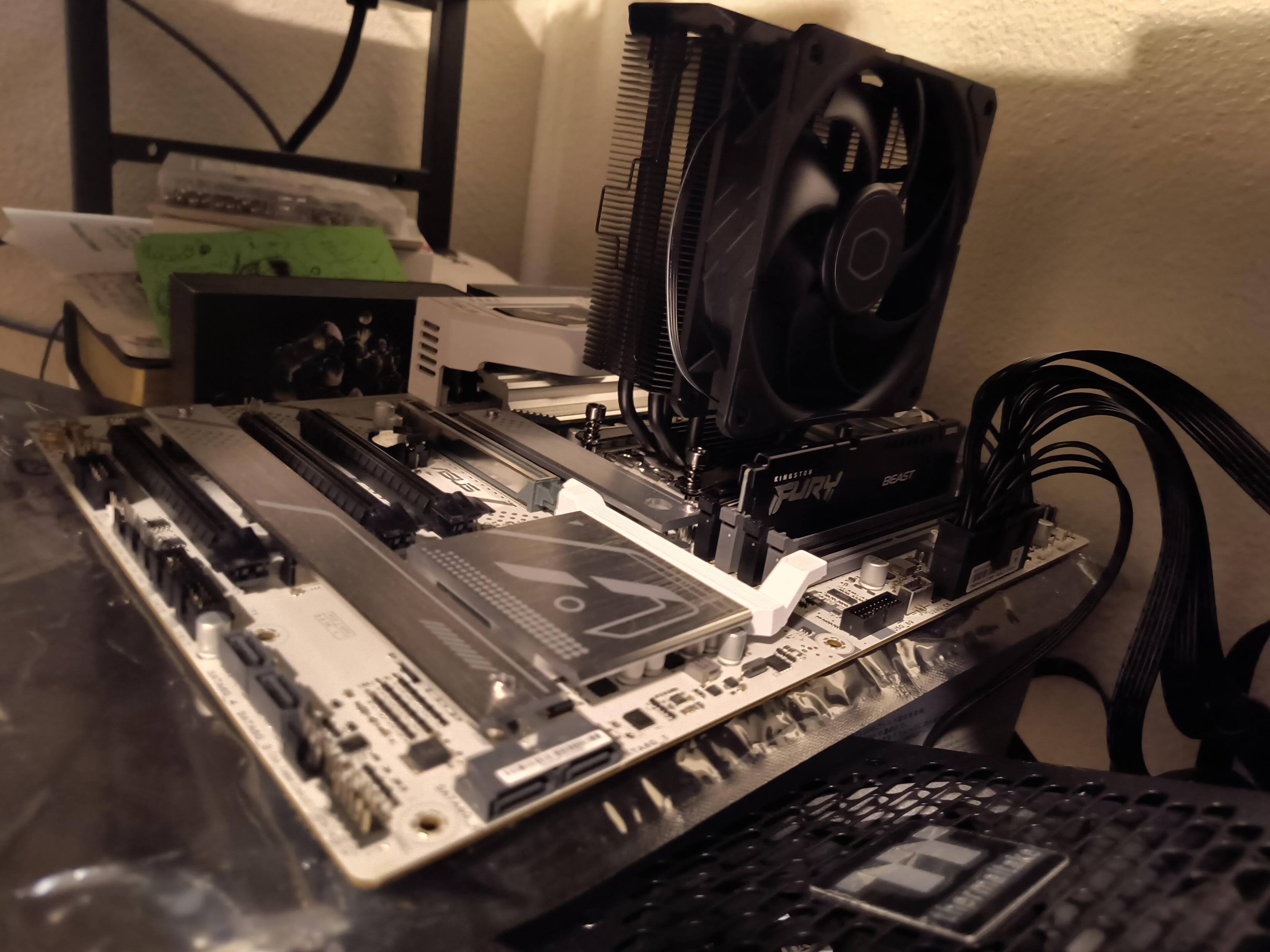

This is a solid beast purchased this open box and was worried it wouldn't work then I noticed a little green light barely flashing and it was the BIOS button whoo I press it it flashed green then stayed solid green then boom it started and kept power solid as a rock I watched the temps for a long while and honestly been a really great motherboard thank you ASUS
