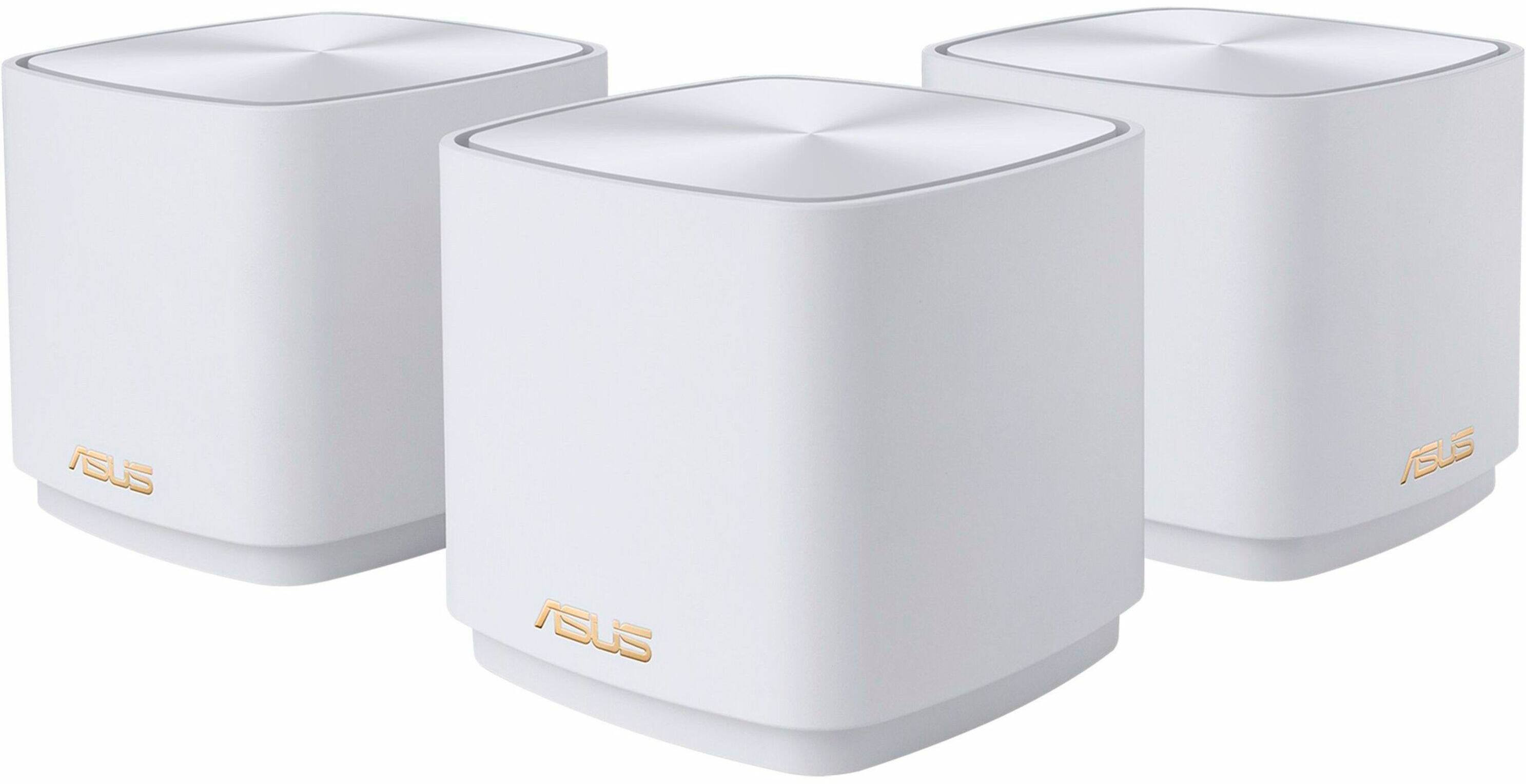

ASUS - ZenWiFi AX Wireless-AX 225 MB/s Whole Home Wi-Fi System (3-pack) - White
- Key Specs
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 0 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number Of LAN Ports: 1 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: ASUS
- Model Number: ZENWIFIAXMINIXD43PKWHITE
- Product Name: ZenWiFi AX Wireless-AX 225 MB/s Whole Home Wi-Fi System (3-pack)
- Color: White
- Security
- Data Encryption: true
- Encryption Type: Other (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Network
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 2
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 0 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number of Wi-Fi Satellites Supported: 3 (Maximum quantity of Wi-Fi satellite modules/nodes that are able to be connected to the main router in a Wi-Fi Mesh System.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 1 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- Works With: Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Amazon Alexa (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Dimensions
- Product Height: 9 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 11 2/5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 4 2/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.5 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: 2 year limited
- Other
- UPC: 192876629550
The ZenWiFi AX Mini system consists of one ASUS AX1800 WiFi 6 router and two extending node, featuring unique technologies that give you superfast, reliable and secure WiFi connections - inside or outside your home!
- Wireless Router: Provides Wi-Fi so you can enjoy wireless internet connectivity on your Wi-Fi-supported devices.
- Gigabit Ethernet: With Gigabit Ethernet, retrieve up to 10x faster than standard Ethernet connectivity and provides high-performance
- 2.4GHz and 5GHz frequency with (IEEE 802.11ax compliant): Enjoy smooth and uninterrupted wireless transmission with dual-band frequency support
- Number of ports: It features 1 Network (RJ-45) port for wired connection of a single computer
- 225 MB/s Wireless Transmission Speed: It Offers upto 225 MB/s data transfer rates for fast and efficient operations
- Desktop: Can be placed on desktop surfaces for standalone installation
- Warranty: Comes with a 2 year limited warranty that proves that this wireless router has passed high-quality standards in design, material, and workmanship
Whats Included
- Asus ZenWiFi AX Mini (XD4) Wireless Router
- RJ45 Ethernet cable
- Power adapter
- Quick start guide
- Warranty Card
- Owner's manual
Product Manuals
Q: Is there a way to add an additional AX Mini node (XD4N)?
A: My understanding is that you can add a compatible Asus brand Aimesh node or router. Asus is not selling individual AX Mini nodes yet (this is a new product), but I hope they will in the future. I think the system will be easier to install if I stick to the AX Mini nodes rather than buy a different Ai mesh router, so I would wait until they offer individual nodes.
Q: Does it support Ethernet backhaul? Does it work in bridge mode if I want to use a different router?
A: Yes, I can confirm this too. I have one of the nodes in my office (with the router node downstairs), I have the node plugged into a little poe 4 port switch and my IP Phone for work connected to that. Everything connects just fine and I'm able to make calls from my office with no issues.
A: Get a switch! This switch accepts a single Cat-5 cable input, and has 4 out ports. I bought mine from Best Buy, it's this model NETGEAR - 5-Port 10/100/1000 Mbps (Mega Bits Per Second) Gigabit Unmanaged Switch, and it works perfectly. Kind of misleading, 5 port really means 1 port in and 4 ports out. Nothing to do but power it up and plug in your cables. Voila' ! Here's the link: https://www.bestbuy.com/site/netgear-5-port-10-100-1000-mbps-gigabit-unmanaged-switch-white/6840341.p?skuId=6840341
A: Not at this time. Asus has part numbers for single and twin pack satellites, but these items are not yet available for sale at Asus or any retailers.
A: Yes, the ZenWIFI AX mini can be added to your ASUS router in order to extend your WIFI coverage, without problem.
A: They do not have a seperate band for backhaul, meaning it's using the same 5Ghz channels for backhaul as it uses for client traffic. I am using Cat5 for backhaul with this setup, you may want to consider a triband setup that has a dedicated backhaul wifi separate from client channels if you can't run Cat5 for backhaul.
A: This router will work with Netgear CM1200, keep in mind you would need to check whether or not the modem will work with your ISP.
