product image

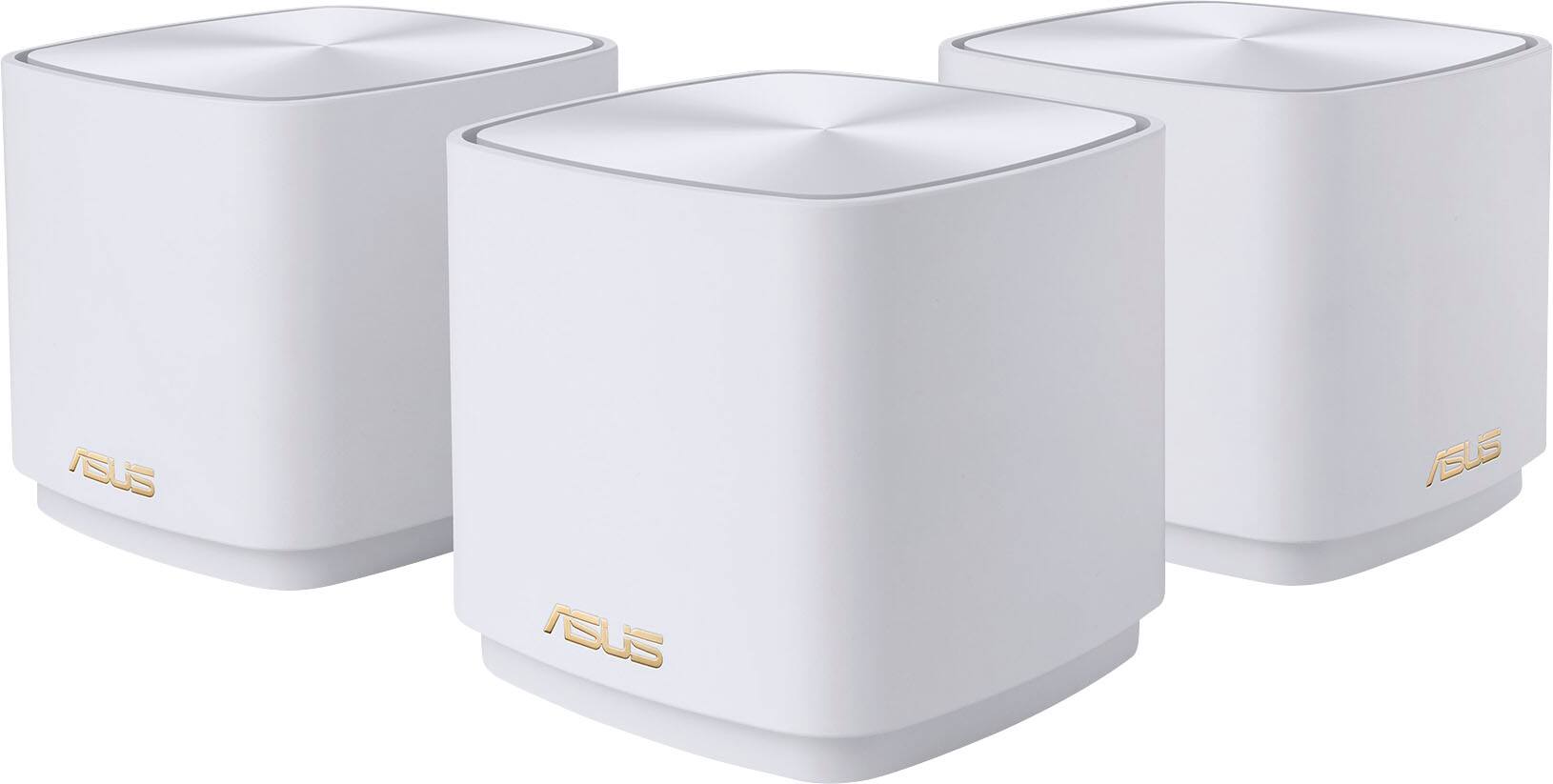

ASUS - ZenWifi AX3000 Dual-Band Mesh Wi-Fi System (3-pack) - White

Model: XD5
SKU: 6520853
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Wi-Fi Range: 5000 square feet (The device will provide a Wi-Fi connection to this approximate area.)
    • Number Of LAN Ports: 1 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
    • Wi-Fi Speed: 2.5 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
    • Downstream Data Speed: 1800 megabits per second (The maximum speed at which data is downloaded from the internet.)
    • Works With: Apple Home (Compatible with or able to be connected to other smart devices or applications.)
  • General
    • Brand: ASUS
    • Model Number: XD5
    • Product Name: ZenWifi AX3000 Dual-Band Mesh Wi-Fi System (3-pack)
    • Color: White
  • Security
    • Data Encryption: true
    • Encryption Type: WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise (The security protocols or certification programs that protect the Wi-Fi network.)
    • Firewall Type: None (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
    • Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
  • Network
    • Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
    • Number Of Connected Devices: 64
    • Number of Antennas: 2
    • Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
    • Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
    • Wireless Standard: AC, N, AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
    • Wi-Fi Range: 5000 square feet (The device will provide a Wi-Fi connection to this approximate area.)
    • Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
    • Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
    • Routing Protocol: IGMPv2, IGMP, IGMPv3 (The protocol used for communicating and distributing information in a computer network.)
    • Transport Protocol: PPTP, L2TP, IPSec, PPPoE, DHCP, DDNS (The protocol used for connection-oriented transmissions, flow control, etc. within the transport layer of the network.)
  • Certifications Listings & Approvals
    • ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
  • Features
    • App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
    • App Name: ASUS Router App
    • Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
    • Integrated Modem: true
    • Wireless: true
  • Ports
    • Port Type(s): RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
    • Number Of LAN Ports: 1 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
  • Speed
    • Wi-Fi Speed: 2.5 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
    • Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
    • Downstream Data Speed: 1800 megabits per second (The maximum speed at which data is downloaded from the internet.)
  • Compatibility
    • Works With: Apple Home (Compatible with or able to be connected to other smart devices or applications.)
  • Dimensions
    • Product Height: 3.35 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Length: 3.54 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Width: 3.54 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Weight: 0.66 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 2 years
    • Warranty - Labor: 2 years
  • Other
    • UPC: 195553281102

Create a strong whole-home network with this ASUS ZenWifi AX Mini Wi-Fi 6 system. The three dual-band mesh routers support speeds of up to 3000 Mbps for smooth high-bandwidth streaming on multiple devices. This ASUS ZenWifi AX Mini Wi-Fi 6 system features Trend Micro cloud-based security for up-to-date lifetime network protection.

  • Compatible with 802.11ac: Backward compatible with 802.11a/b/g/n networks, so you can easily upgrade.
  • Dual-band 2.4GHz/5.0GHz frequency: Delivers a fast response when transferring files.
  • Lifetime internet security with auto update: It gives you total peace of mind by protecting personal data, block access to malicious sites, without subscription fee, ever
  • MU-MIMO technology: MU-MIMO gives every compatible device its own dedicated full-speed Wi-Fi connection, so that multiple devices can connect at the same time without slowing down the network.
  • Beamforming technology: Get clearer coverage. Targeted Wi-Fi signals will stream directly to each device.
  • Smart Connect: Assign each device its own channel. Browse the Internet on one device, run your favorite game on another, and watch 4K video on a third without interference.
  • Encryption: Includes MPPE, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPS and WPA3-Personal to keep your network secure.
  • Parental control: Lets you automatically block specific content on connected devices.
Whats Included
  • 2 nodes
  • ASUS ZenWiFi AX Mini (XD5)

Q: This says it has an integrated modem and outer but i saw an earlier questions saying a separate modem is required to connect to the internet. Which is true?

A: Yes, this is only a router, it doesn't have a modem function. It needs to be connected to an ISP's modem to access internet services.

Q: Does this require a modem to connect to the internet or is it integrated?

A: Yes, it does require a modem to connect to the internet.

Q: How do you do a standard reset of the internet with this product? Not a hard factory reset. Just a standard reset of this where you wait and plug everything back in to refresh the internet.

A: When adding the units as nodes to the router needs to be in close proximity as each is added. Once done can unplug and move to where needed and plug back into power and nothing else is needed to be done.
