Audio-Technica - AT-VM95C/H Headshell/Cartridge Kit - Blue
- Key Specs
- Accessory Type: Turntable Accessory
- Model Compatibility: Audio-Technica Turntables
- General
- Brand: Audio-Technica
- Model Number: AUD ATVM95CH
- Product Name: Audio-Technica AT-VM95C/H Headshell/Cartridge Kit
- Color: Blue
- Features
- Accessory Type: Turntable Accessory
- Quantity: 1
- Compatibility
- Model Compatibility: Audio-Technica Turntables
- Dimensions
- Product Width: 3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Warranty - Labor: U.S. ONE-YEAR LIMITED END-USER WARRANTY
- Other
- UPC: 4961310158101

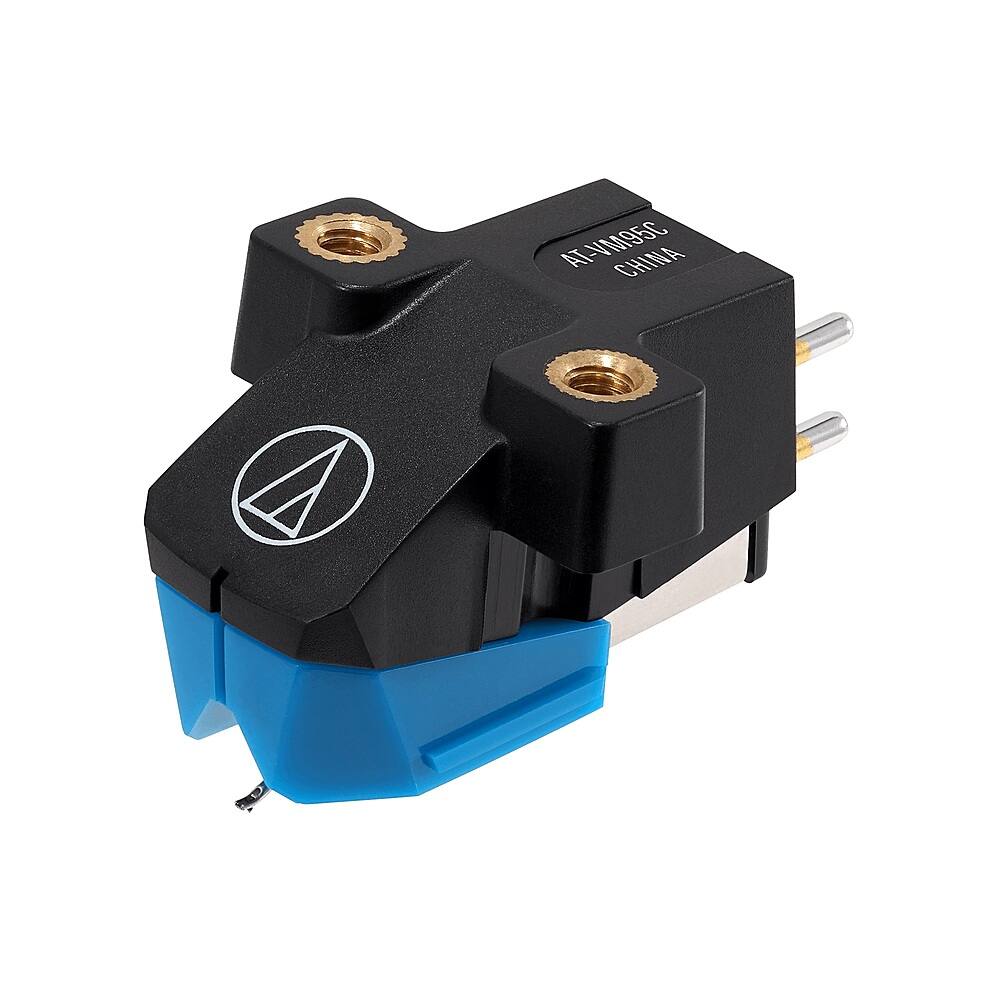

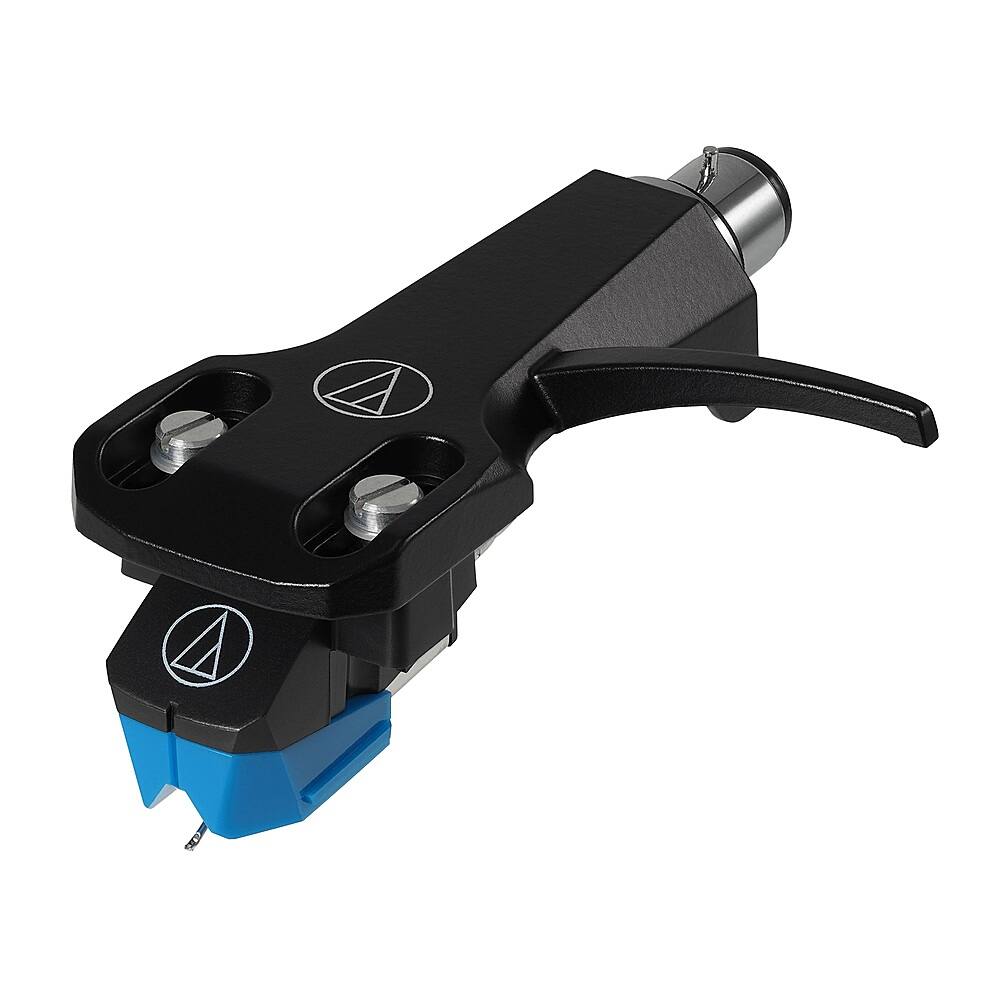

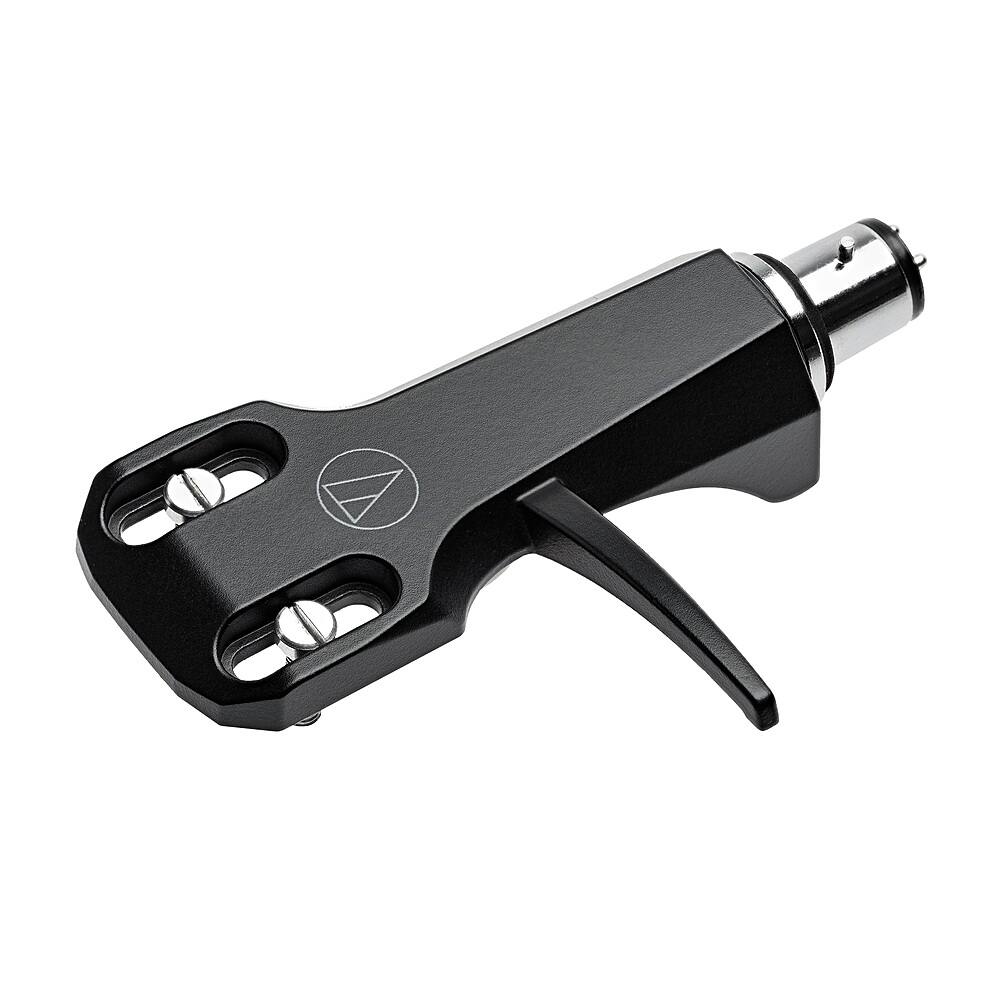

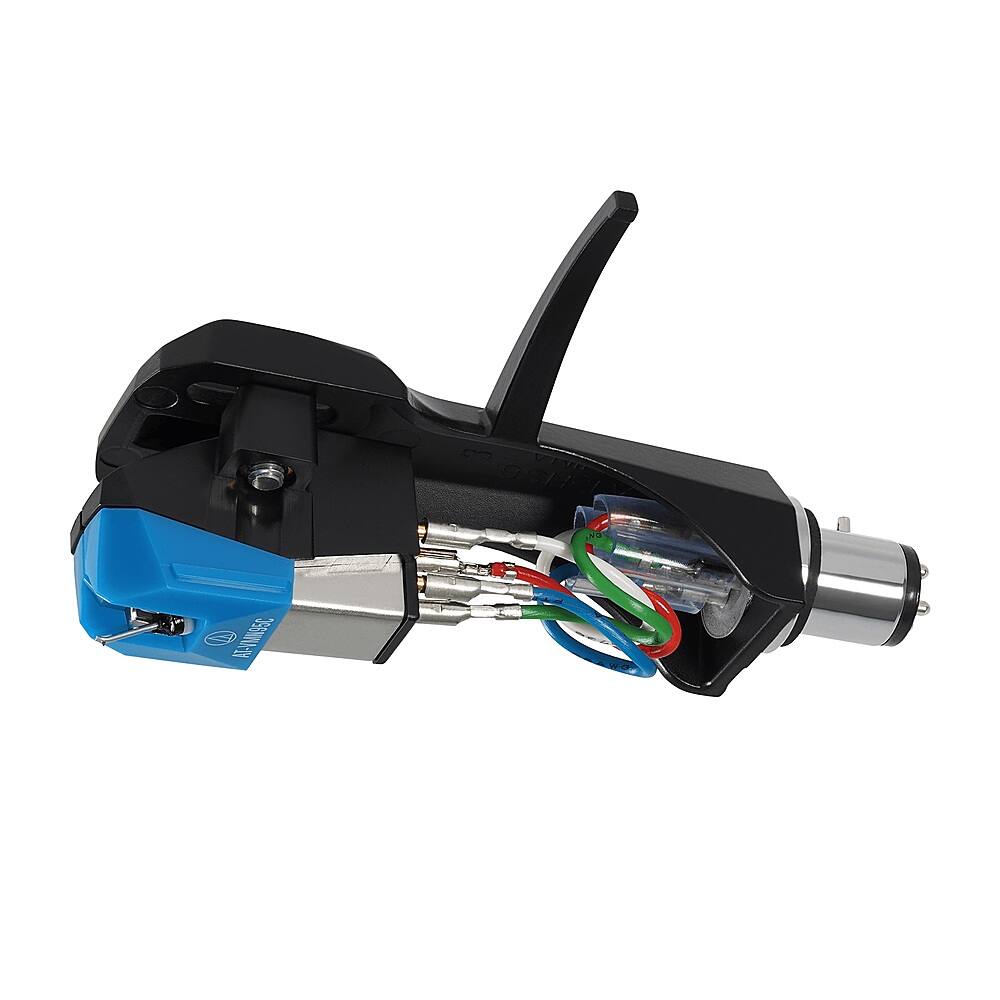

The AT-VM95C/H combo kit includes the AT-VM95C dual moving magnet cartridge premounted on the AT-HS6BK headshell. VM dual magnet cartridge with 0.6 mil conical stylus. Aluminum cantilever. Specially wound coils increase output voltage. Durable low-resonance polymer housing. Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts or washers required. Compatible with any AT-VMN95 replacement stylus. Universal ½"-mount headshell for 4-pin turntable cartridges.
- Frequency Response: 20-20,000 Hz
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Stylus Shape: 0.6 mil conical
- Cantilever: Aluminum pipe
- Mount: Half-inch
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
- Frequency Response: 20-20,000 Hz
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Stylus Shape: 0.6 mil conical
- Cantilever: Aluminum pipe
- Mount: Half-inch
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
Whats Included
- Audio-Technica AT-VM95C/H Headshell/Cartridge Kit
- Audio-Technica AT-VM95C/H Headshell/Cartridge Kit
Product Manuals
A: Yes, it will fit and the cartridge comes pre-mounted and pre-wired to to the headshell. Stylus overhang is set at 15.5mm.
Q: Will this work with a Technics SL-23A?
A: It will but note that the stylus overhang for the AT-VM95C/H comes set at 15.5mm and the overhang specified in Technics SL23 documentation is 14mm so you may want to back the cartridge up 1.5mm.
Q: Will this work with a Pioneer PL-100 turntable?
A: Yes, it will.
A: No, it will not. You must use the ANGLED headshell that was provided with your AT-LP3 Turntable. Get the AT-VM95E Cartridge (cartridge only) instead.
Q: Will this work with a Technics SL-D2?
A: Yes it will.
Q: Will this fit a Denon DP DJ 100? Thank you
A: It will fit, the only thing you will need to check on is the stylus overhang distance. Our Headshell/Cartridge Combo Kits come with the overhang set at 15.5mm. We have not been able to determine what the stylus overhang distance for the Denon turntable is, we advise being within .5mm of the turntable manufactures specified stylus overhang distance.
Q: Will this fit my Sony PS-LX3 turntable?
A: It will not. You can use the cartridge itself, the AT-VM95E, but not the headshell. Your turntable has a straight tonearm and an angled headshell, you must use the Sony angled headshell.
Q: Will the AT-VM95ML/H work on a Fisher MT-6224 turntable?
A: Yes, it will.
