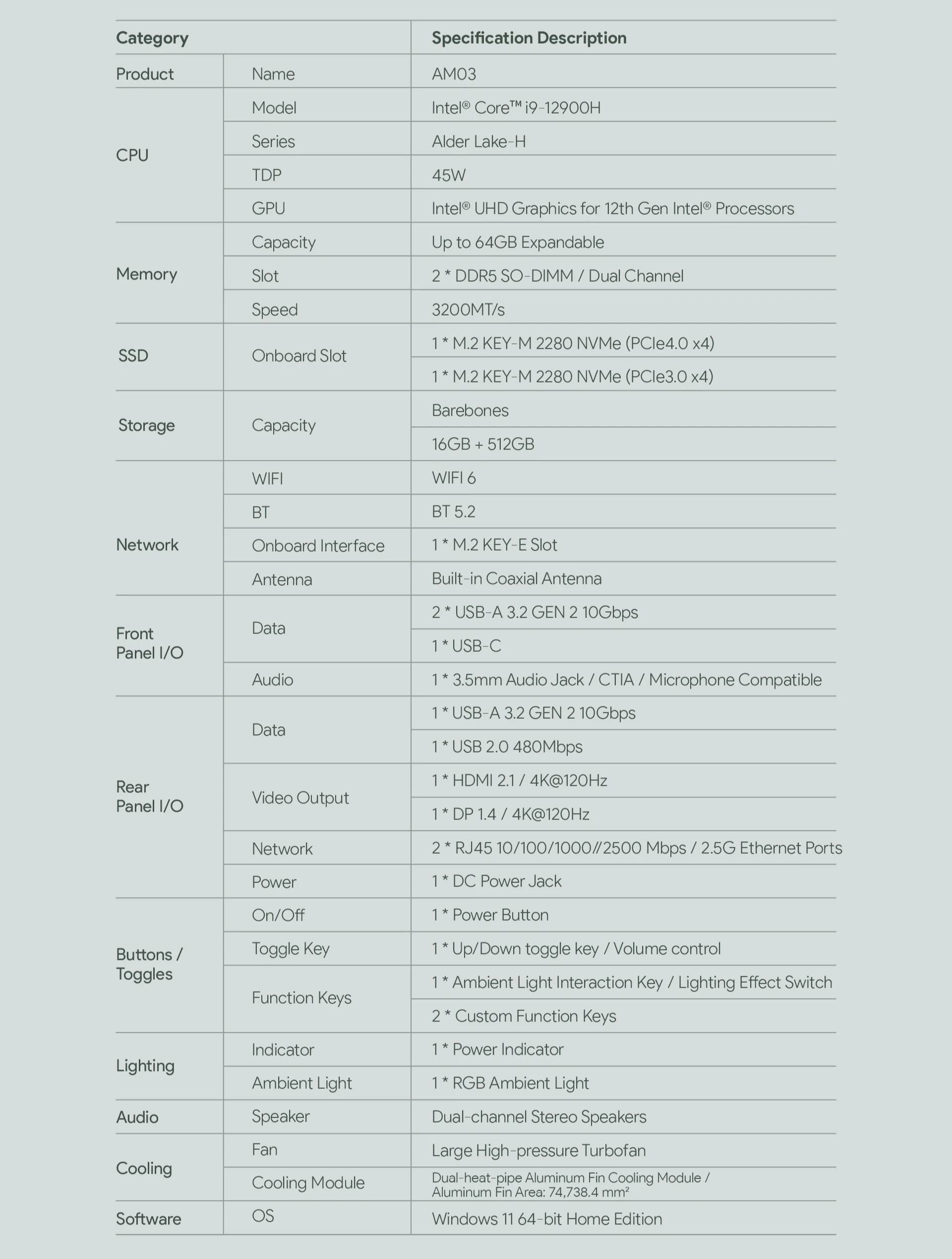

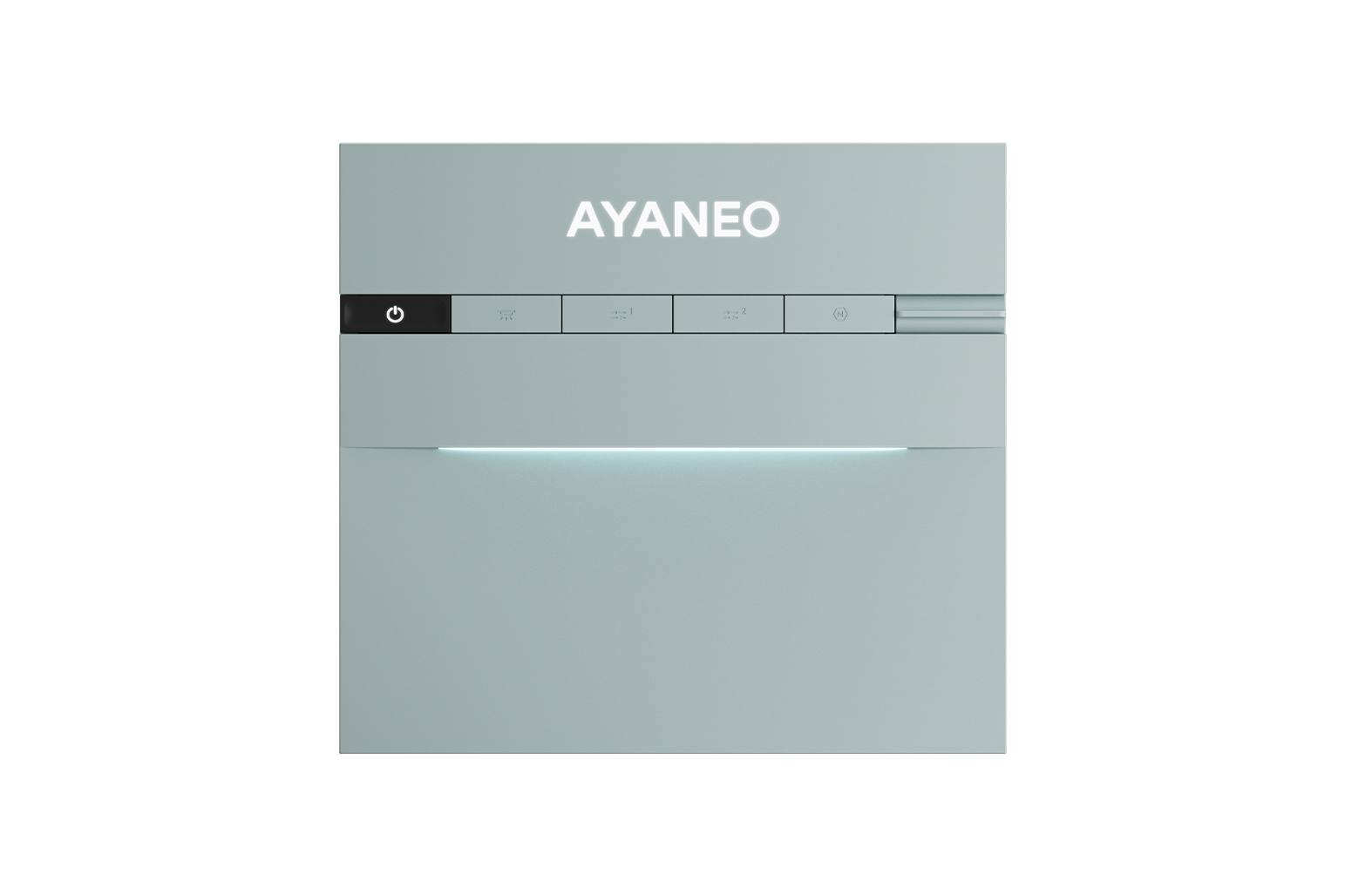

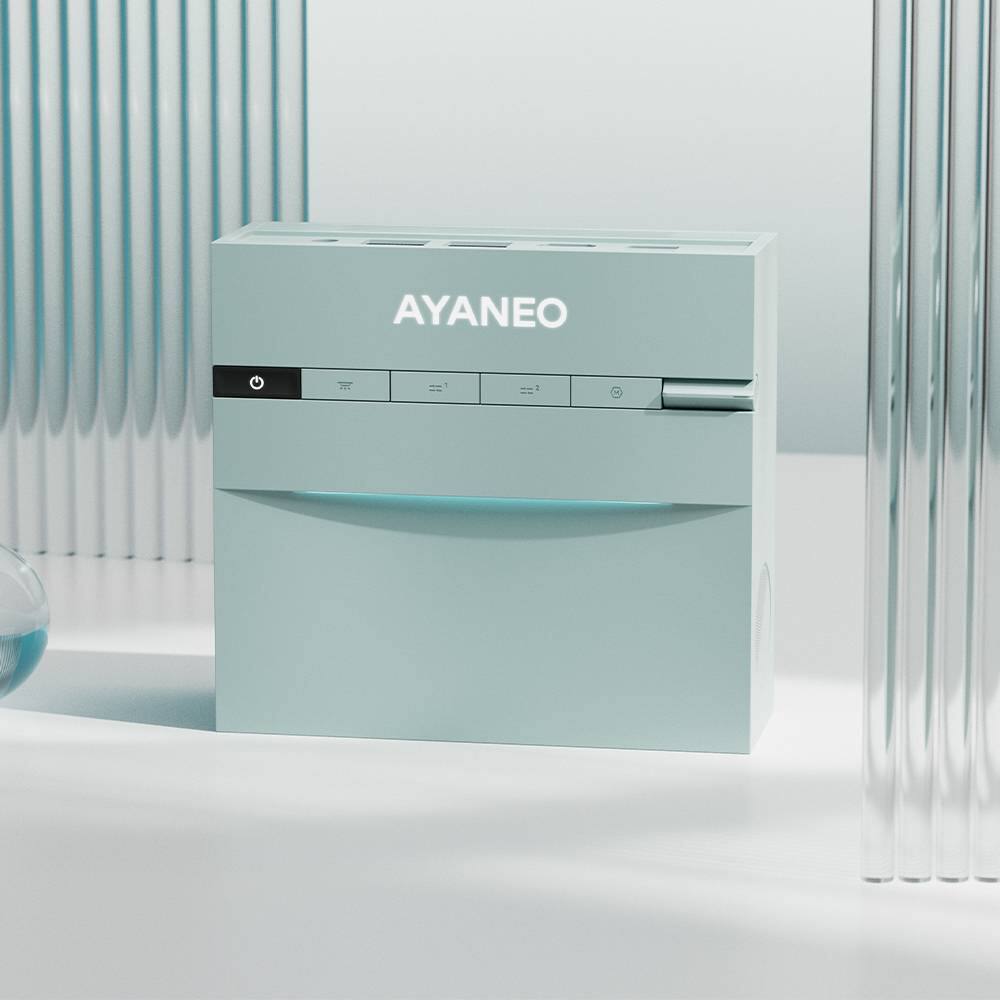

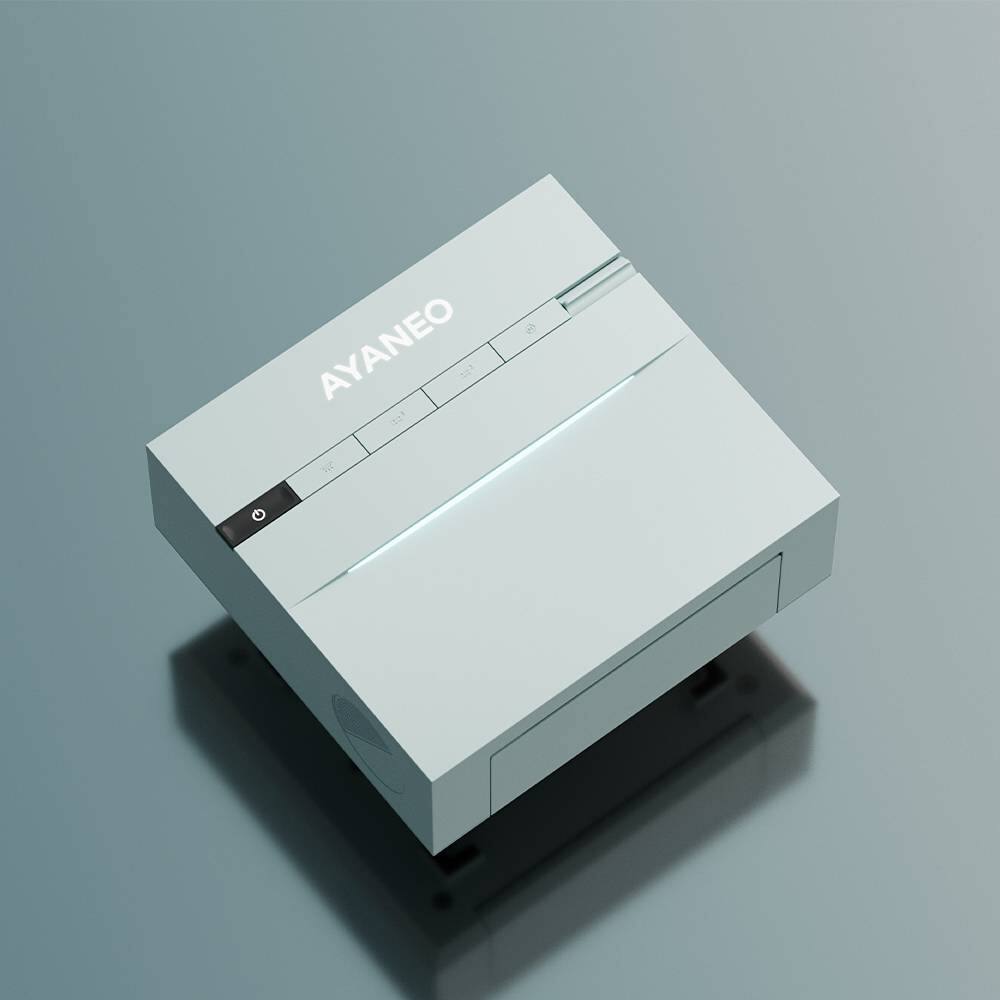

Ayaneo - AM03 Mini PC desktop – Intel Core i9-12900H, 16GB RAM, 512GB SSD - Cyan Sky
Highlights
- Key Specs
- Processor Model: Intel 12th Generation Core i9 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Storage Type: SSD
- Total Storage Capacity: 512 gigabytes
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- Graphics: Intel Iris Xe Graphics (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- General
- Brand: Ayaneo
- Model Number: AM0316G
- Product Name: AM03 Mini PC desktop – Intel Core i9-12900H, 16GB RAM, 512GB SSD
- Color: Cyan Sky
- Year of Release: 2026
- Processor
- Processor Brand: Intel
- Processor Model: Intel 12th Generation Core i9 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Processor Model Number: 12900H
- Processor Model Year of Release: 2022 (The year the processor model was initially available for sale or built into a computer.)
- CPU Boost Clock Frequency: 5 gigahertz (Actual central processing unit (CPU) speed may vary by device configuration and design. The maximum rate at which the processor is able to execute tasks, typically only used for a short period of time as needed. This rate may temporarily boost the processor's performance, but may result in overheating, shutdown, or damage to equipment if sustained.)
- Number of CPU Cores: 14-core (A core, or "brain" of a CPU, allows it to receive and execute instructions. Each core can work independently or together to perform parallel operations.)
- Number of CPU Threads: 20 (Generally, the more threads, the faster and more responsive the operating system.)
- Storage
- Storage Type: SSD
- Total Storage Capacity: 512 gigabytes
- Solid State Drive Capacity: 0 gigabytes (The amount of data that can be stored on the device's solid state drive (SSD). SSD is a flash-based storage with faster speeds than a hard disk drive (HDD).)
- Memory
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR5 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- System Memory RAM Speed: 3200 megahertz (How fast the information-storing hardware operates. The faster the RAM, the faster memory can be transferred to other system components. Ultimately, faster RAM improves operational efficiency.)
- Number Of Memory Slots: 2
- System Memory RAM Expandable To: 64 gigabytes (Adding more random-access memory (RAM) to a computer speeds up performance and improves efficiency. Upgrades to memory are limited by the number of expansion slots for additional RAM and existing RAM installed on the device.)
- Graphics
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- GPU Brand: Intel
- Graphics: Intel Iris Xe Graphics (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- Compatibility
- Operating System: Windows 11 Home (The operating system manages all software and hardware, including files, memory and connected devices. Most importantly, it lets you interact with your device and your programs in a visual way; otherwise, you'd be typing computer code to get anything done.)
- Operating System Architecture: 64-bit (An operating system (OS) manages computer hardware, software resources, and programs in conjunction with the system's processor. 64-bit operating systems can handle more data at once than 32-bit systems, resulting in faster speeds, more effiency, and overall improved performance.)
- Connectivity
- Number of HDMI Outputs (Total): 1
- Number of DisplayPort Outputs (Total): 1
- USB Ports: 3 x USB-A 3.2, 1 x USB-C, 1 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of USB Ports (Total): 5
- Number of USB-A Charging Ports: 4
- Number of USB-C Charging Ports: 1
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ethernet Card: 10/100/1000/2500 (Also known as an Ethernet adapter, this card plugs into a computer's motherboard and enables it to access an Ethernet network. Ethernet data transmission speeds are measured in Mbps (megabits per second) and Gbps (gigabits per second). For example, a 10/100 Ethernet port transmits 10 and 100 Mbps, while a 10/100/1000 Ethernet port transmits 10 and 100 Mbps and has a maximum speed of 1000 Mbps (1 Gbps).)
- Number Of Ethernet Ports: 2

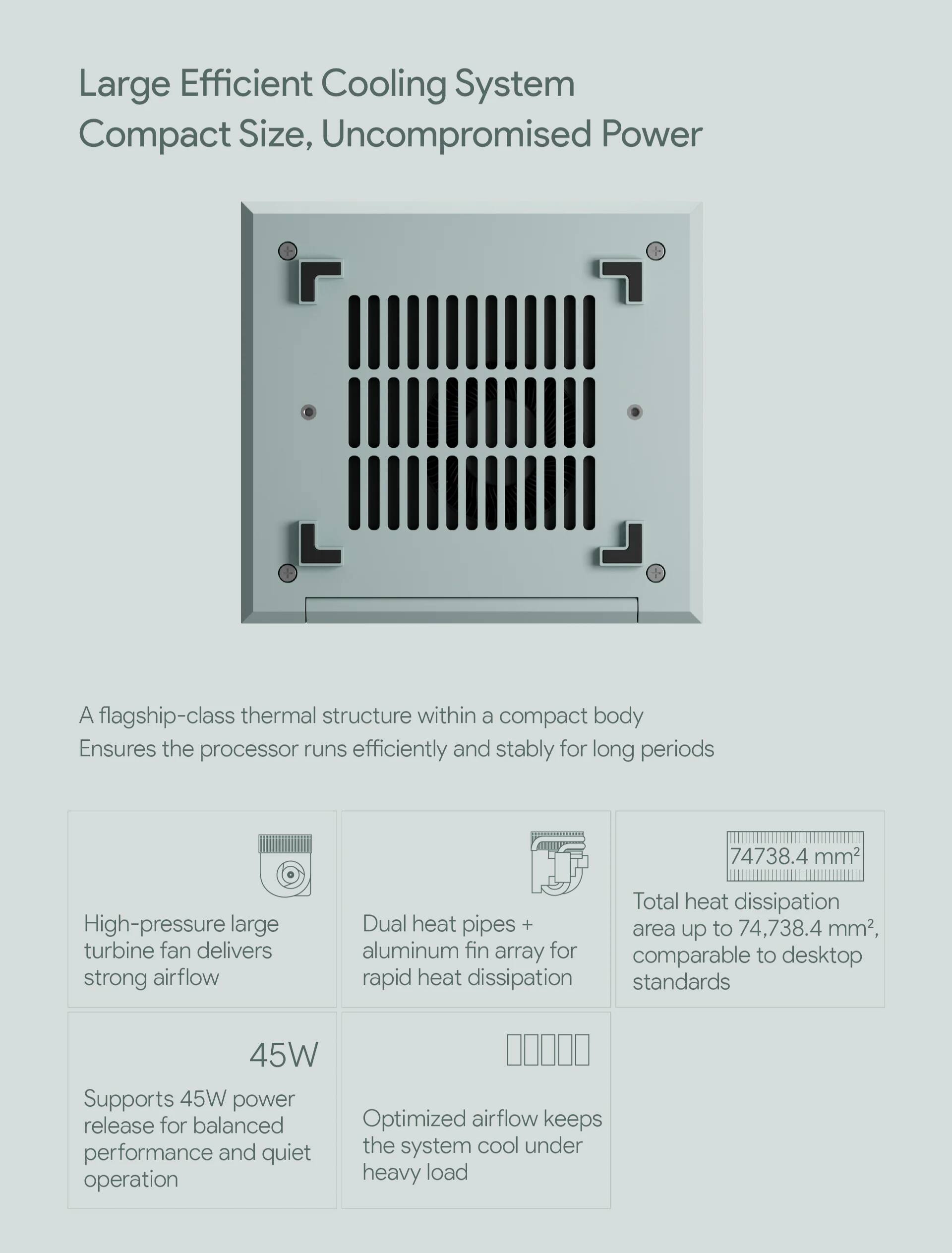

- Cooling
- CPU Cooling System: Air
- Number of CPU Cooling Fans: 1 (The quantity of fans contained within the device designed to cool the Central Processing Unit (CPU).)
- Power
- Power Supply Maximum Wattage: 45 watts
- Expansion
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x4 Slots: 1
- Features
- Customizable Case Lighting: true
- Audio Technology: Dual-channel stereo speakers
- Size: Mini
- Dimensions
- Product Height: 2.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.08 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.51 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.38 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Keyboard Included: false
- Mouse Included: false
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 6974817424097
The AYANEO AM03 packs powerful performance into a compact, beautifully designed desktop that looks great in any space. Powered by the Intel Core i9‑12900H processor, it handles everyday tasks, creative work, and entertainment with smooth, responsive speed. The 16GB of DDR5 memory and fast 512GB NVMe SSD keep everything feeling quick, and there’s plenty of room to upgrade later. A large, efficient cooling system keeps the AM03 running quietly and reliably, even during heavier workloads. With dual 2.5G Ethernet ports, Wi‑Fi 6, Bluetooth 5.2, and support for 4K displays, it’s ready for modern setups. Thoughtful touches like built‑in stereo speakers, customizable function keys, curved RGB lighting, and a magnetic front flip panel for easy‑access ports make the AM03 both stylish and practical for everyday use.
- Powerful Intel Core i9 Performance: Smooth, fast everyday computing with a 14‑core processor built for multitasking and creative work
- Fast Memory & Storage: Comes with 16GB DDR5 RAM and a 512GB NVMe SSD, with easy upgrades up to 64GB RAM and 8TB storage
- Modern Connectivity & Display Support: Dual 2.5G Ethernet, Wi‑Fi 6, Bluetooth 5.2, plus HDMI and DisplayPort for crisp 4K output

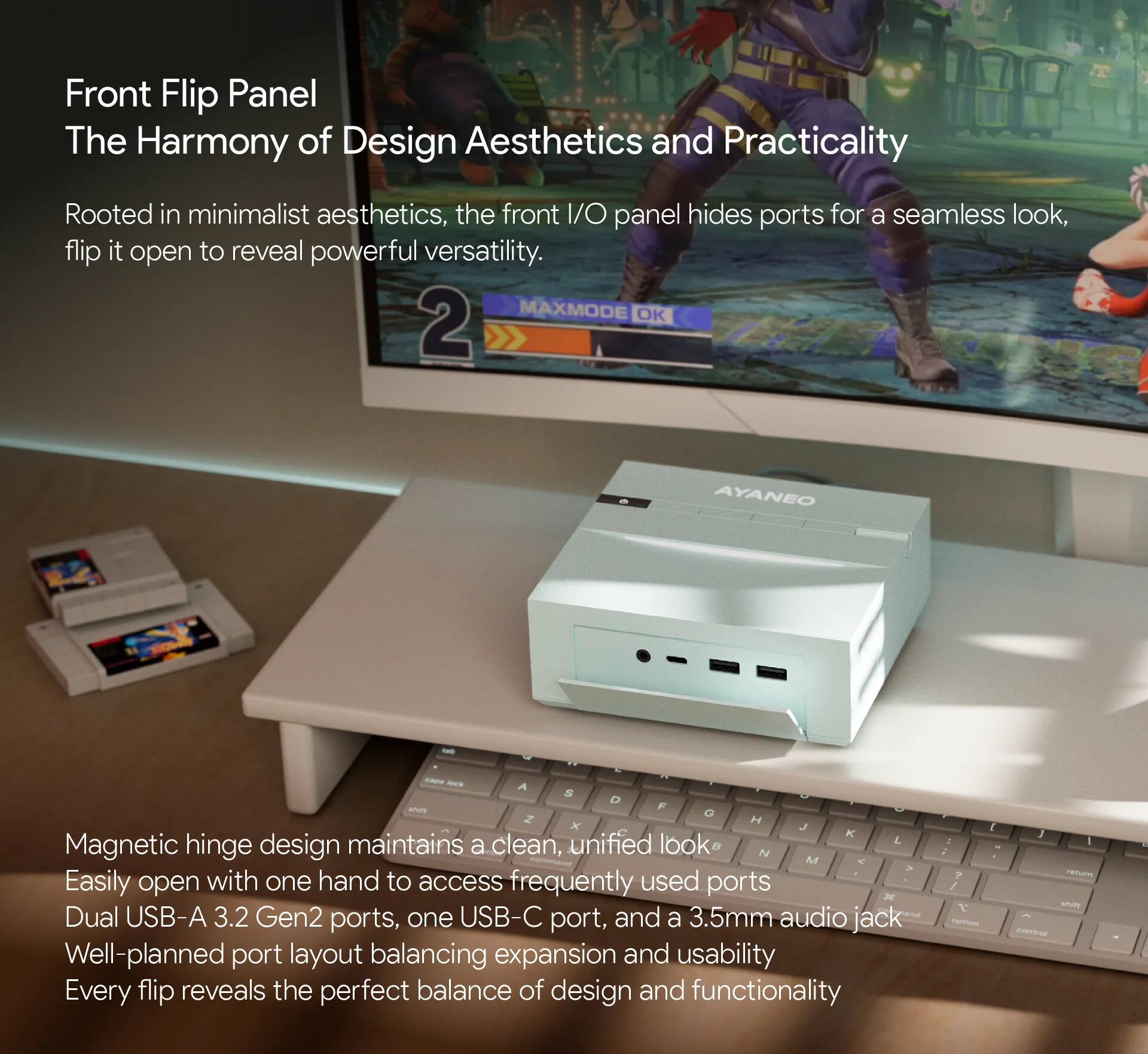

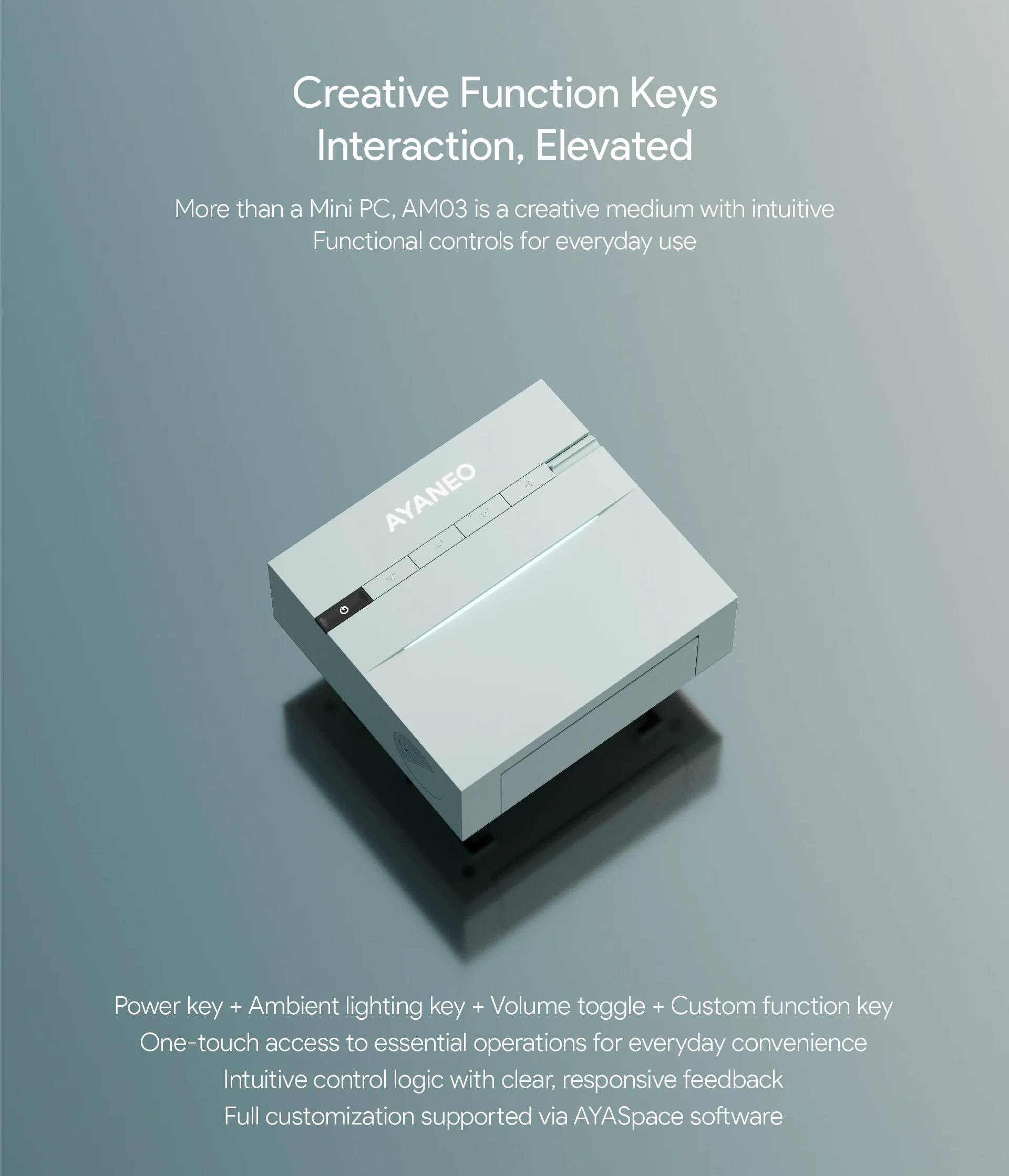

- Designed for Everyday Convenience: Built‑in stereo speakers, customizable function keys, and a magnetic flip panel with easy‑access ports

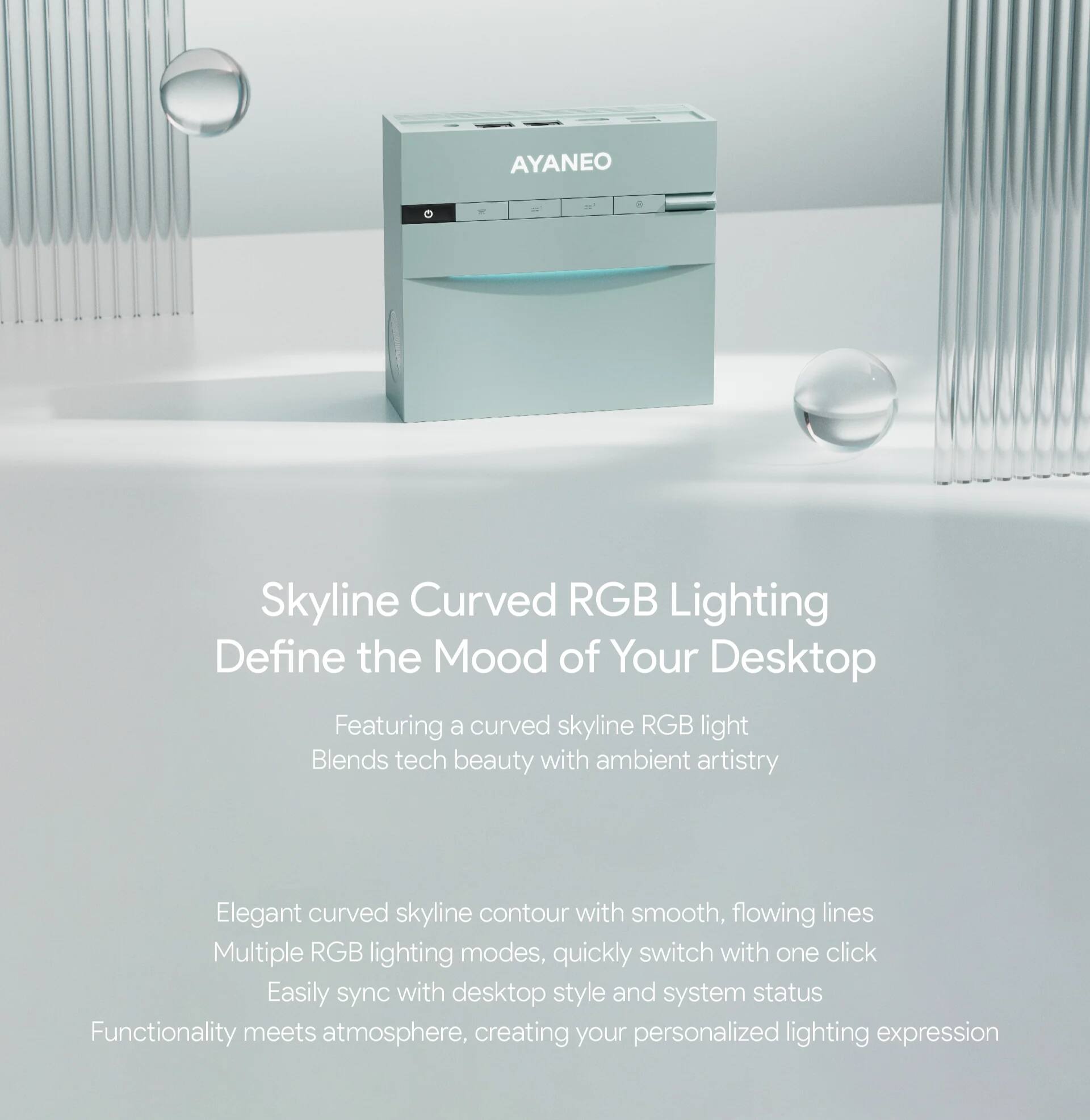

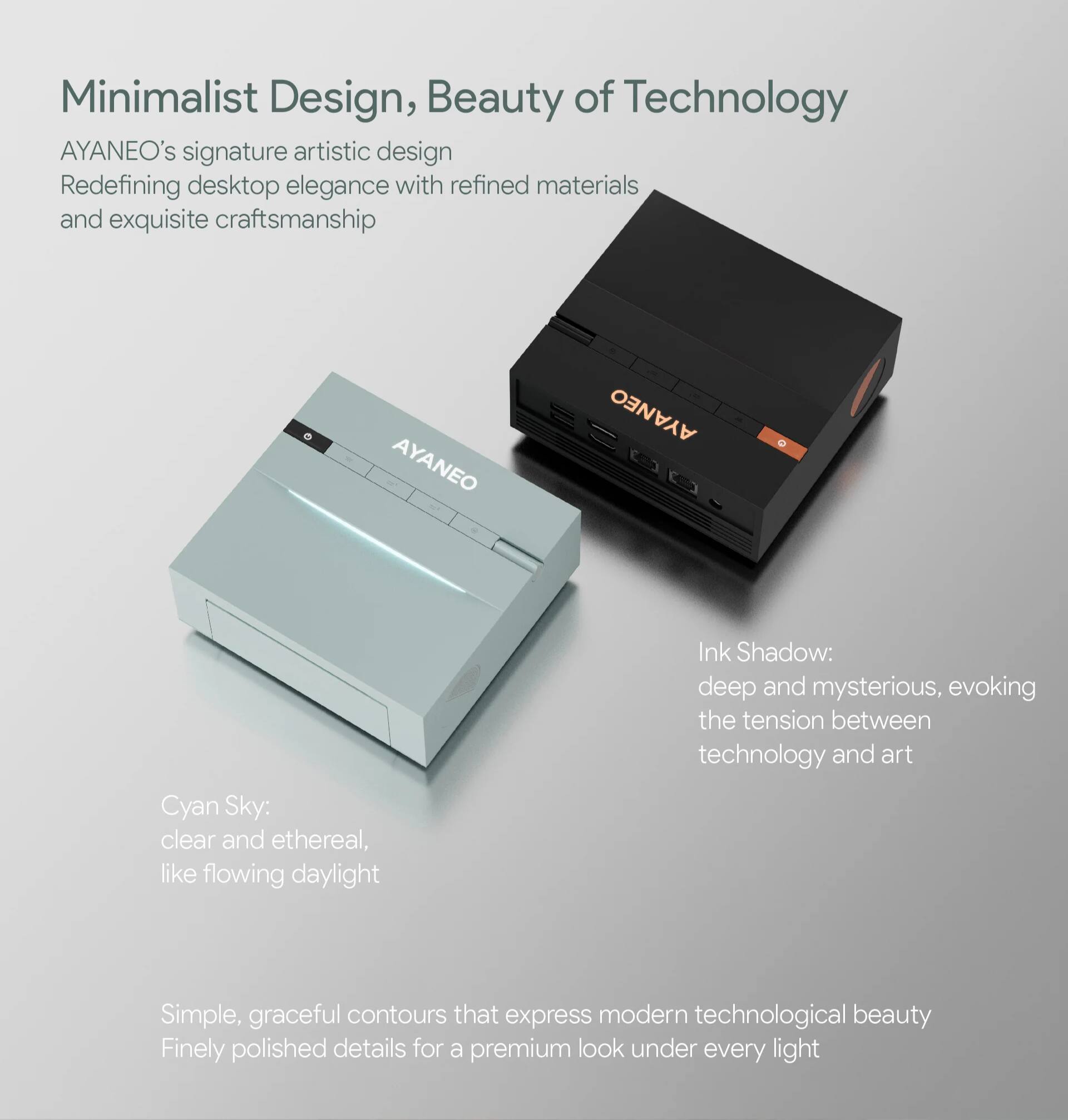

- Compact, Clean Design with RGB Lighting: A minimalist, space‑saving desktop accented with soft skyline‑style RGB lighting for a personalized touch
Whats Included
- Mini PC, Power Cable, User Manual
