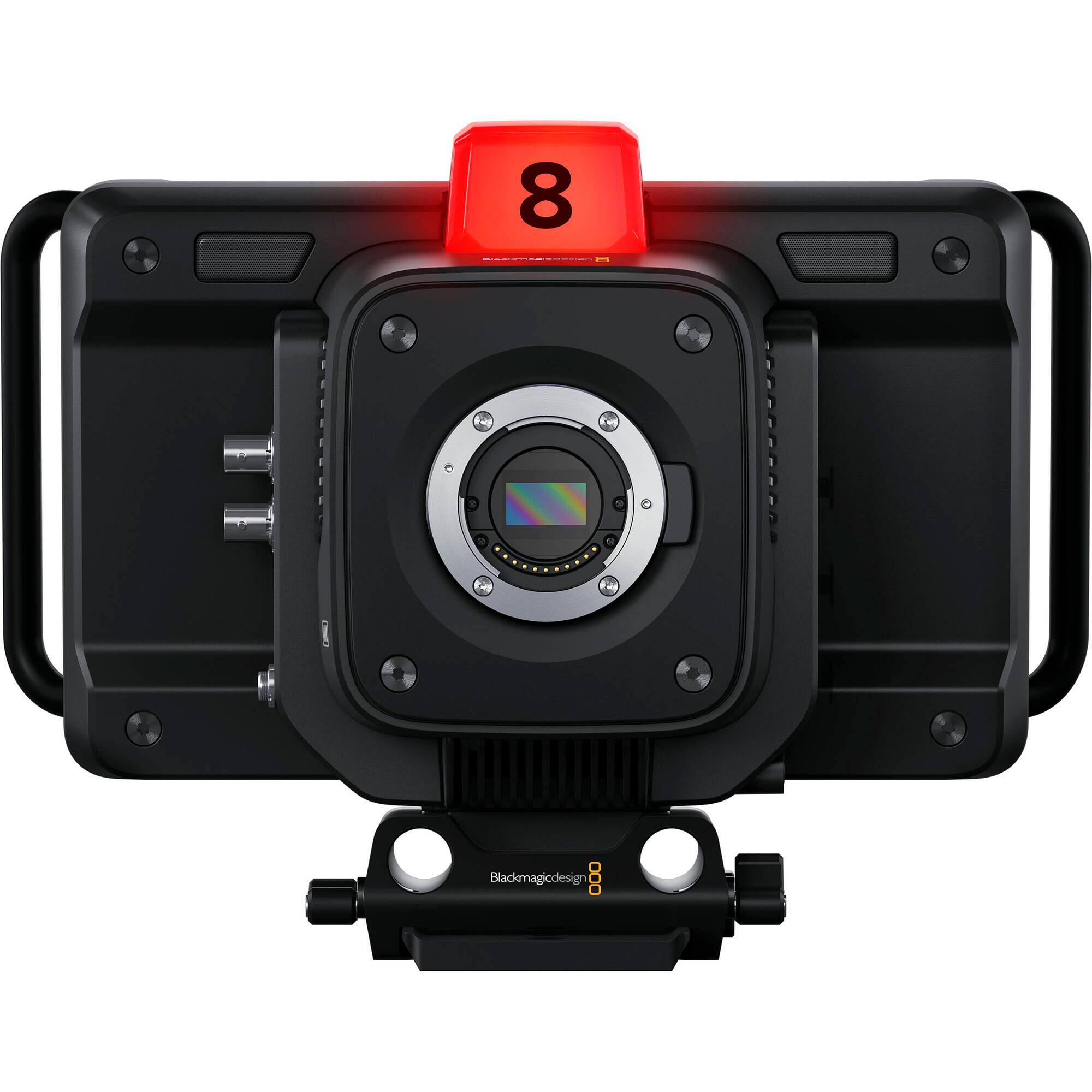

Blackmagic Design - Studio Camera 4K Plus G2 Live Production Camera
Reviews coming soon
Related Item
Specifications
- Effective Pixels8.3 megapixelsStandardized Video Resolution4K (2160p)
- Key Specs
- Effective Pixels: 8.3 megapixels (The actual number of pixels which make up the viewable image.)
- Standardized Video Resolution: 4K (2160p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- General
- Brand: Blackmagic Design
- Model Number: BMD-CINSTUDMFT-G24PDDG2
- Product Name: Studio Camera 4K Plus G2 Live Production Camera
- Digital Camera Type: Mirrorless Camera Body Only
- Imaging
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Digital Zoom: None (A digital zoom is accomplished electronically, with no adjustment of the camera's optics, and no optical resolution gained in the process. The existing data is not enhanced or added to, merely displayed at a lower resolution, thereby giving an illusion of an enlarged image.)
- Focus
- Autofocus: false (Allows the camera to automatically focus through the lens, rather than by adjusting the lens manually.)
- Exposure Control
- Shutter Speeds: 1/5000 to 1/24 Sec (The length of time the shutter remains open when the shutter release is activated, expressed in fractions of seconds. The longer the shutter is open, the more light that is able to be captured by the camera sensor.)
- Effective Pixels: 8.3 megapixels (The actual number of pixels which make up the viewable image.)
- Lens
- Lens Mount Compatibility: Micro Four Thirds
- Flash
- Integrated Flash: false
- Video
- Standardized Video Resolution: 4K (2160p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- Video Resolution(s) and Frame Rate(s): 23.98/24/ 25/ 29.97/30/50/59.94/60 (Refers to the number of pixels, both horizontally and vertically, and the frame rate used to capture the video. The higher the resolution the finer the video detail that can be seen. The faster the frame rate the smoother the playback for higher motion activities like sports.)
- Maximum Video Frame Rate: Up to 60 fps (The maximum frequency at which consecutive images can be captured by a video recording device.)
- Compatibility
- Memory Card Compatibility: None (The type of memory card(s) recommended for use with the product.)
- Features
- Integrated GPS: No
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Power
- Rechargeable Battery: false
- Dimensions

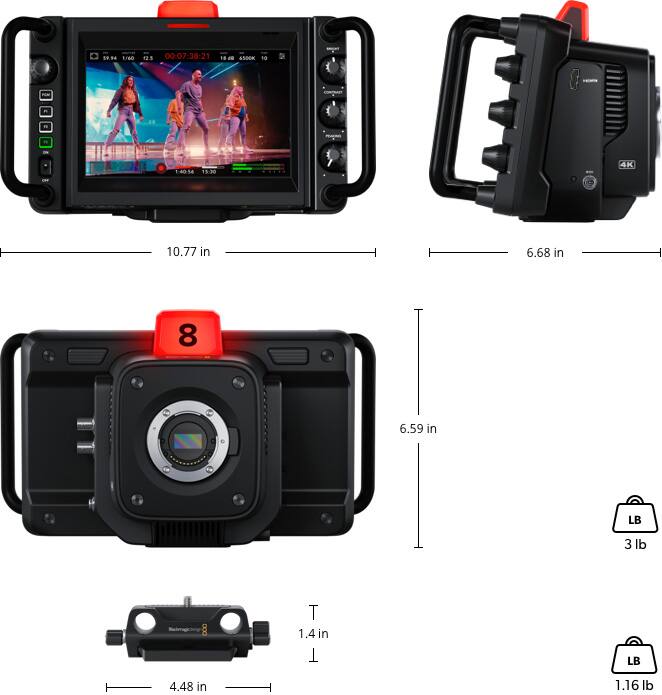

- Product Height: 6.59 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.77 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.68 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 Year Manufacturer's Wrranty
- Warranty - Labor: 1 Year Manufacturer's Wrranty
- Other
- UPC: 9338716008517
The new Blackmagic Studio Camera 4K Plus G2 is an updated studio camera model which adds 12G-SDI, allowing you to connect it to SDI based switchers such as ATEM Constellation and ATEM Television Studio. The older model only had HDMI video out, but now that the new model has 12G-SDI out and in, it means you get talkback using 3.5mm headsets, plus you can push a PGM button to see the return video on the camera’s LCD. Plus the 12G-SDI program return supports tally and camera control from the switcher. It retains the same amazing 4K digital film sensor with 13 stops of dynamic range and the built in hardware YRGB DaVinci Resolve primary color corrector so you can grade in camera for some really cinematic looking live video!

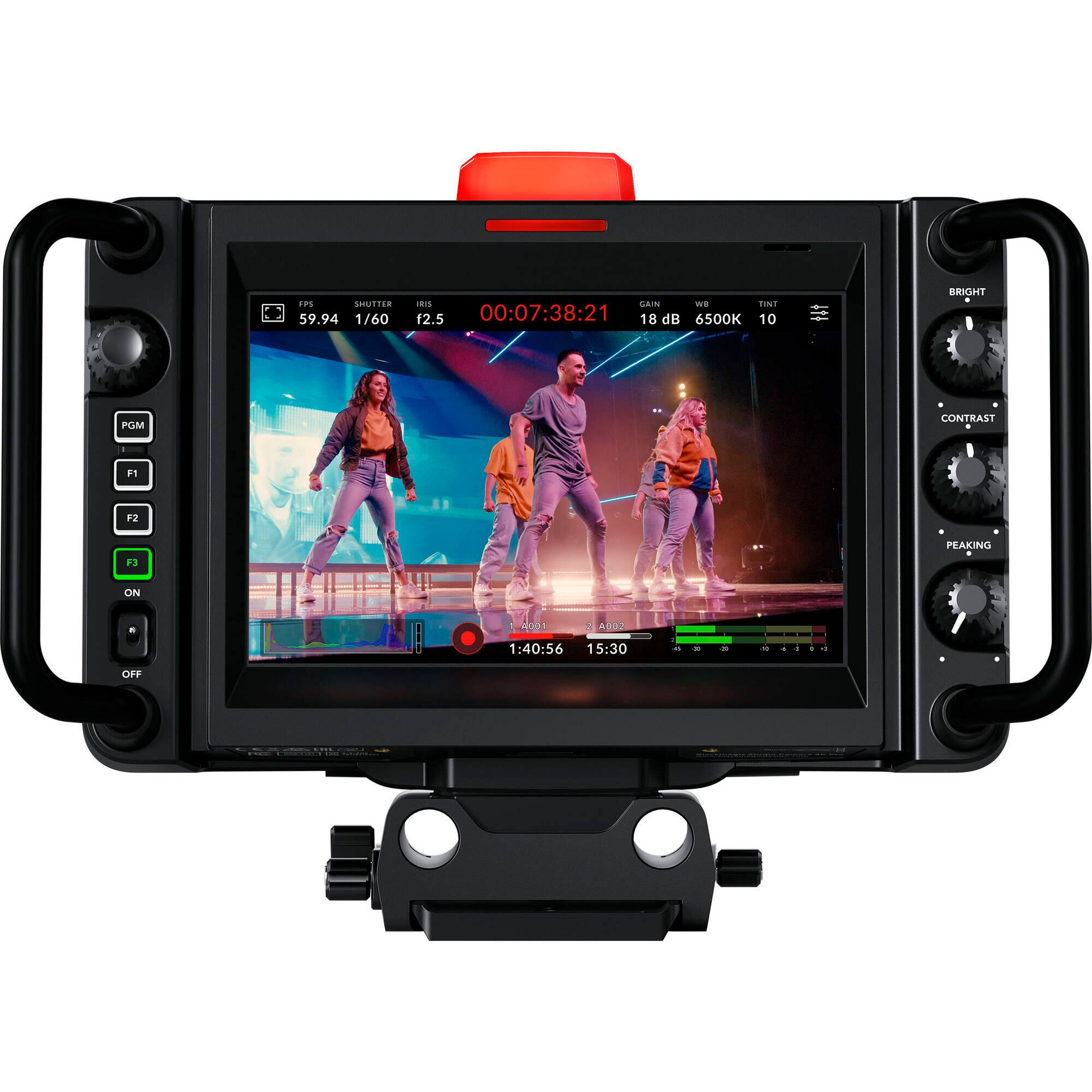

- PERFECT FOR BROADCAST: The perfect mini studio camera features a cinematic 4K sensor up to 25,600 ISO, Active MFT lens mount, 12G-SDI and HDMI, 3.5mm talkback, 7" LCD with sunshade, color corrector and recording to USB disks.
- ADVANCED FEATURES: Light, miniaturized carbon composite body; Dual native ISO of 400 and 3200; 13 stops of dynamic range; Blackmagic RAW recording; Tally; Remote camera control; LWS tripod mount (included) and more!
- DESIGNED FOR LIVE PRODUCTION: The 4K Studio Plus G2 Camera is perfect for chat shows, television production, broadcast news, sports, education, conference presentations, concerts, and even weddings!

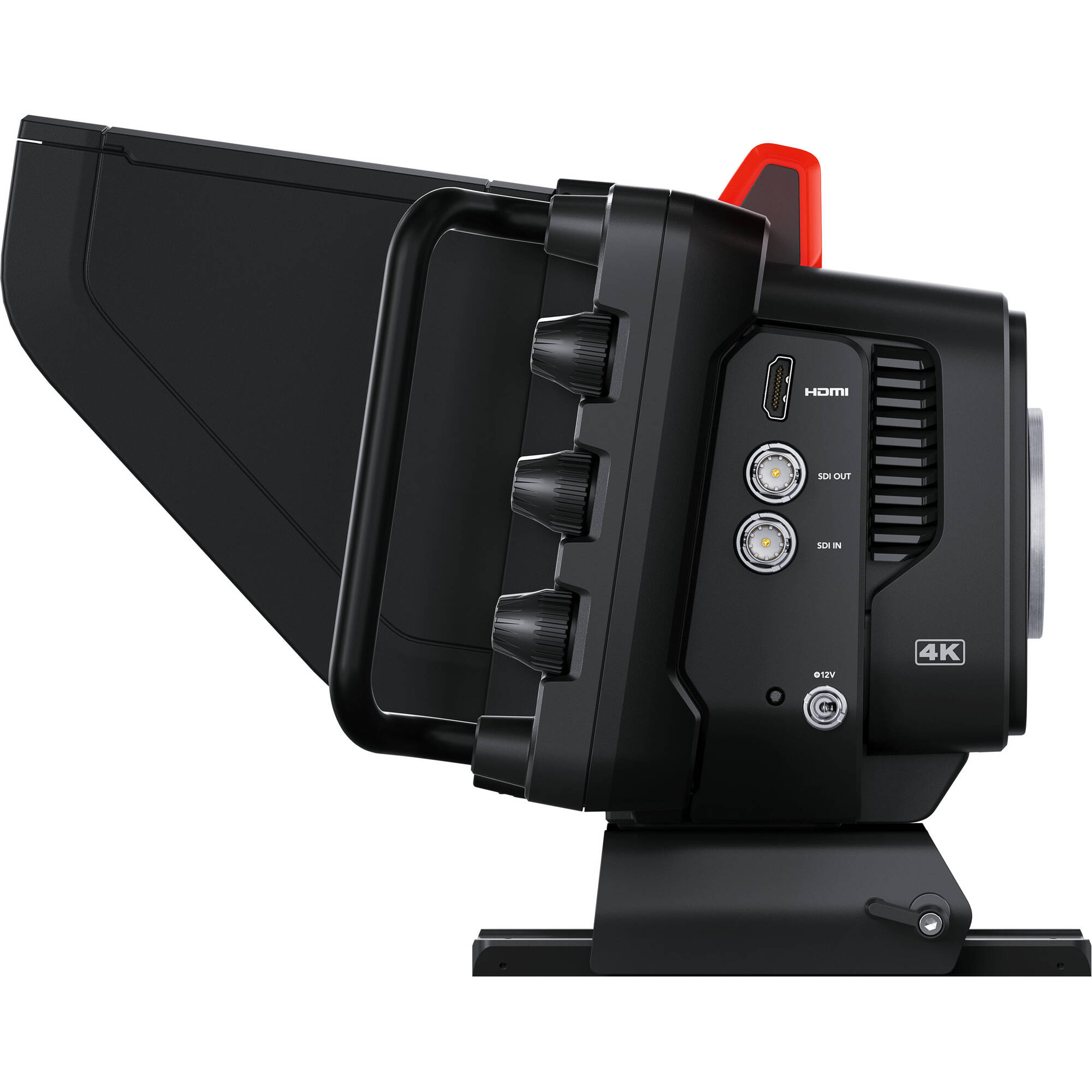

- POWERFUL BROADCAST CONNECTIONS: 1 x HDMI 2.0 Output; 1 x 12G-SDI Output; 1 x 12G-SDI Input; 1 x 3.5mm Audio Input; 1 x 3.5mm Audio Output; 2 x USB 3.1 ports for recording or Blackmagic accessories (Zoom Demand and/or Focus Demand – not included).
- INCLUDES: Studio Camera 4K Plus Body, Sun Shade, 15mm LWS Tripod Mount, Tripod Mount Plate, Turret Dust Cap, Power Supply w/international adapters, DaVinci Resolve Studio Activation Card.
Whats Included
- Studio Camera 4K Plus G2 (Body), Sun Shade, Tripod Mount & Plate, Dust Cap, Power Supply
