Blackmagic Design - UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit
Blackmagic Design - UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit
FREE shipping to
Related Item
Specifications
- Maximum Supported Resolution2160p (4K)Operating System CompatibilityMac, Windows, Linux
- Key Specs
- Maximum Supported Resolution: 2160p (4K)
- Operating System Compatibility: Mac, Windows, Linux
- General
- Brand: Blackmagic Design
- Model Number: BMD-BDLKULSDMINI4K
- Product Name: UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit
- Warranty
- Warranty - Parts: 1-Year Manufacturer's Warranty
- Other
- UPC: 9338716006087

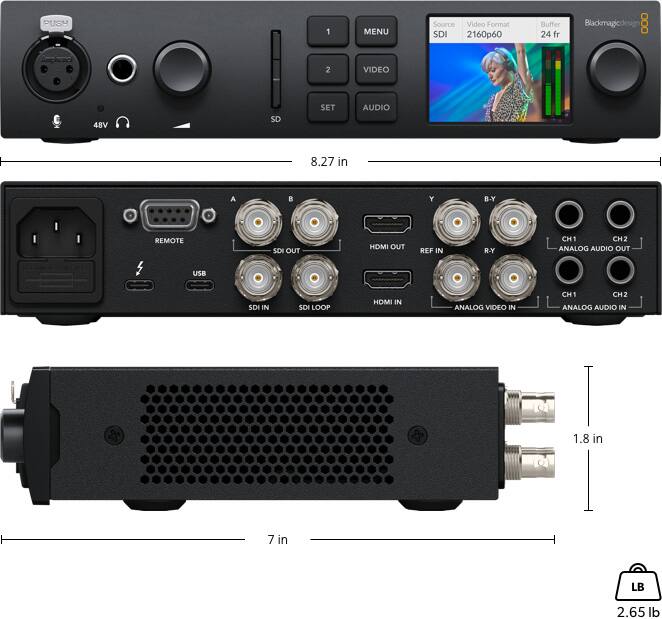

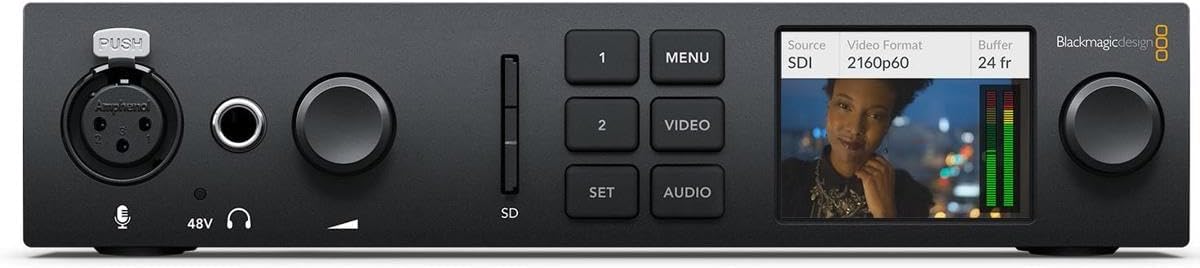

The UltraStudio 4K Mini Thunderbolt 3 from Blackmagic Design links your Thunderbolt 3 computer to any of a variety of video components for capture, playback, or streaming. This portable unit captures up to DCI 4K60 4:2:2 via single-link 12G-SDI or up to DCI 4K30 4:2:2 video via HDMI. Record 12-bit High Dynamic Range (HDR) footage at rates up to DCI 4K30 and 8-/10-bit video at rates up to DCI 4K60. A built-in LCD screen enables you to monitor your signal, and an SD card reader provides instant access to your SD media. The compact UltraStudio 4K Mini's Thunderbolt 3 interface offers lightning-fast connections and will trickle-charge a connected computer. Audio features include 16-channel SDI and 8-channel HDMI embedded input and output, a 3-pin XLR audio input, and a headphone output.
- Thunderbolt 3 Interface: High-speed connection for real-time video capture and playback up to 4K resolution.
- Multi-format Support: Handles SD, HD, Ultra HD, and 4K DCI video formats for versatile workflows.

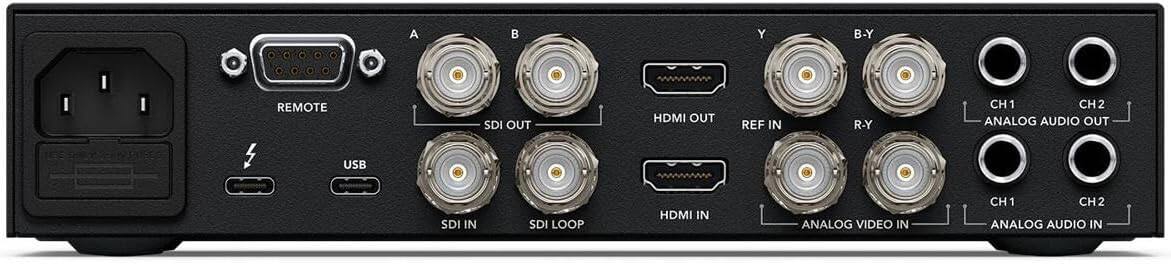

- Professional Connections: Includes 12G-SDI, HDMI, analog audio/video, and reference inputs for broadcast-quality integration.
- HDR and High Frame Rate Support: Compatible with HDR workflows and frame rates up to 60 fps for advanced production needs.
- Compact Desktop Design: Portable, space-saving unit ideal for post-production, live streaming, and broadcast environments.
- Thunderbolt 3 Interface: High-speed connection for real-time video capture and playback up to 4K resolution.
- Multi-format Support: Handles SD, HD, Ultra HD, and 4K DCI video formats for versatile workflows.
- Professional Connections: Includes 12G-SDI, HDMI, analog audio/video, and reference inputs for broadcast-quality integration.
- HDR and High Frame Rate Support: Compatible with HDR workflows and frame rates up to 60 fps for advanced production needs.
- Compact Desktop Design: Portable, space-saving unit ideal for post-production, live streaming, and broadcast environments.
Whats Included
- Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit, QR Code for Software Download
- Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit, QR Code for Software Download
