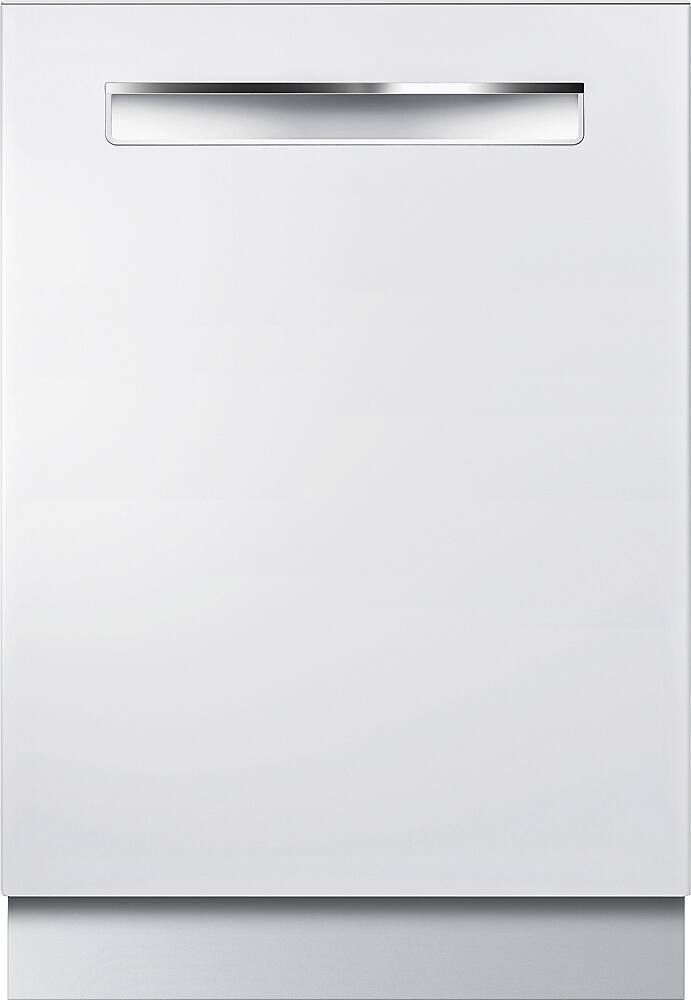

Bosch - 800 Series 24" Pocket Handle Dishwasher with Stainless Steel Tub - White
Model: SHPM78W52N
SKU: 5710321
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: White
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bosch
- Model Number: SHPM78W52N
- Product Name: 800 Series 24" Pocket Handle Dishwasher with Stainless Steel Tub
- Color: White
- Color Finish: White
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 92 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Condenser drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 42 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Options and Programs: 5
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 2.9 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable tines, Ball-tipped tines, Rack handle, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable tines, Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Handle Type: Pocket handle
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 269 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 25 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 825225923022
Wash more, work less. This Bosch dishwasher has enough space for 16 place settings, and the racks can be positioned in up to 9 different ways. Fit more dishes into each load, even bulky cookware or fragile stemware, for a faster clean up.
- 24” width: There’s room for up to 16 place settings. Plus, choose from 6 wash cycles including five-level wash, 5 options like Extra Dry, and more.
- Flexible 3rd rack: Accommodate the odd one out. Adding the 3rd rack with its adjustable tines can create the right fit for deep, tall, or uniquely-shaped items.
- EasyGlide rack: Load and unload smoothly. It’s easy to adjust and move the racks, even while they’re full of dishes.
- RackMatic: Fit it all, every time. With 3 different height levels and up to 9 possible rack positions, you can customize each load for your needs.
- 24/7 Aquastop: Protect your floors. This 4-part leak prevention system uses sensors to detect and stop leaks, and can even turn on by itself.
- 42-dBA noise level rating: Wash dishes in peace. Bosch dishwashers are so quiet, you have to check the exterior Infolight to know they’re on.
- Touch Control: Program a cycle quickly. The integrated controls make it easy with simple touch technology.
- 24” width: There’s room for up to 16 place settings. Plus, choose from 6 wash cycles including five-level wash, 5 options like Extra Dry, and more.
- Flexible 3rd rack: Accommodate the odd one out. Adding the 3rd rack with its adjustable tines can create the right fit for deep, tall, or uniquely-shaped items.
- EasyGlide rack: Load and unload smoothly. It’s easy to adjust and move the racks, even while they’re full of dishes.
- RackMatic: Fit it all, every time. With 3 different height levels and up to 9 possible rack positions, you can customize each load for your needs.
- 24/7 Aquastop: Protect your floors. This 4-part leak prevention system uses sensors to detect and stop leaks, and can even turn on by itself.
- 42-dBA noise level rating: Wash dishes in peace. Bosch dishwashers are so quiet, you have to check the exterior Infolight to know they’re on.
- Touch Control: Program a cycle quickly. The integrated controls make it easy with simple touch technology.
Whats Included
- 24" Pocket Handle Dishwasher with Stainless Steel Tub
- Owner's Manual
- 24" Pocket Handle Dishwasher with Stainless Steel Tub
- Owner's Manual
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: 100% bottom rack is terrible. It is a nightmare to load. Worst design of a bottom dish rack....perhaps in the history of humanity. What were the engineers thinking????
A: The Bosch dishwasher does have drying cycle, but it doesn't have a heating element in the bottom. Bosch uses hot air distributed from a vent in the lower back side of the left side panel. This prevents spilled food or small plastic ware from falling on the element and burning. Dishes are dry when the dishwasher completes its cycle.
Q: Does the black stainless finish on the Bosch dishwasher match black stainless on Samsung appliances?
A: I have the black stainless Bosch on one wall by the sink. It is a matte finish. I have the Samsung range and microwave on another wall. The finish is semi gloss. It suits me fine as I like both my products. No one ever notices that they are slightly different finishes. The gray is the same just the finish a little different.
A: No it does not. You need to buy a dishwasher install kit or buy the parts individually. It needs a water line, right angle hose bibb connector to whatever size your water line is (mine was 3/8 compression) and you will need a power cord. Even if replacing an older unit I recommend changing these parts just to be on the safe side since the kit is only about $30 and an old water line can cause much more in damage if it leaks.
A: 800 has more folding tines. Touch controls verses buttons. More energy efficient. It is larger. It has more settings. Has eco cycle
A: Hi there, thank you for your question. During the washing and drying cycle there will be a red dot that illuminates on the floor, letting you know your dishwasher is in-use. Once the cycle has completed the light will disappear and the dishwasher will chime.
A: First thing I'd check is that the rinse aid dispenser is full. If so, go to pages 12 & 13 of the manual to check the rinse aid setting. It should be set to at least r:04 for good drying results. 5 is the factory default. It may have been accidentally changed. The only other thing I can think of is to make sure the water outlet hose has the required loop in it going to the drain. It may not be emptying all the way & making it harder or impossible for the machine to dry the dishes because of excess water staying in the machine. I added pics of both scenarios for you to compare.
Q: can you interrupt the wash cycle to add a forgotten item?
A: This is my 3rd Bosch 800. (We move a lot and replace the existing DW with a Bosch). I add forgotten items all the time. I think you have to press “start” again. I also use the speed wash exclusively.
