Bosch 800 Series - 36 inches - Recirculating & Convertible - Downdraft Range Hood - Stainless Steel
Need-haul away?
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height44 3/8 inchesProduct Width36 inchesProduct Depth2 3/4 inchesVent TypeDuctedVent StyleRecirculating, Convertible
- Key Specs
- Color Finish: Stainless steel
- Product Height: 44 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: Recirculating, Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Bosch
- Model Number: HDD86052UC
- Product Name: 800 Series 36" Convertible Telescopic Downdraft System
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 44 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 39 pounds (The out of box weight of the item.)
- Features
- Vent Type: Ducted
- Vent Style: Recirculating, Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Downdraft
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 3
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: LCD
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): false
- Filter Info
- Filter Material: charcoal
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): cULus (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 825225980759
Bosch's inventive downdraft ventilation systems keep mealtime fresh by quietly purifying the air while you cook. They’re sleek, built-in, retract out of sight when not in use, and are beautifully designed to seamlessly integrate into any kitchen. Maintain an odor-free kitchen and breathe easier knowing that smoke, steam, grease and odors are quietly and effectively taken care of. And the dishwasher-safe mesh filters are easy to clean.
- Design: Beautifully designed to preserve clean sight lines when not in use.

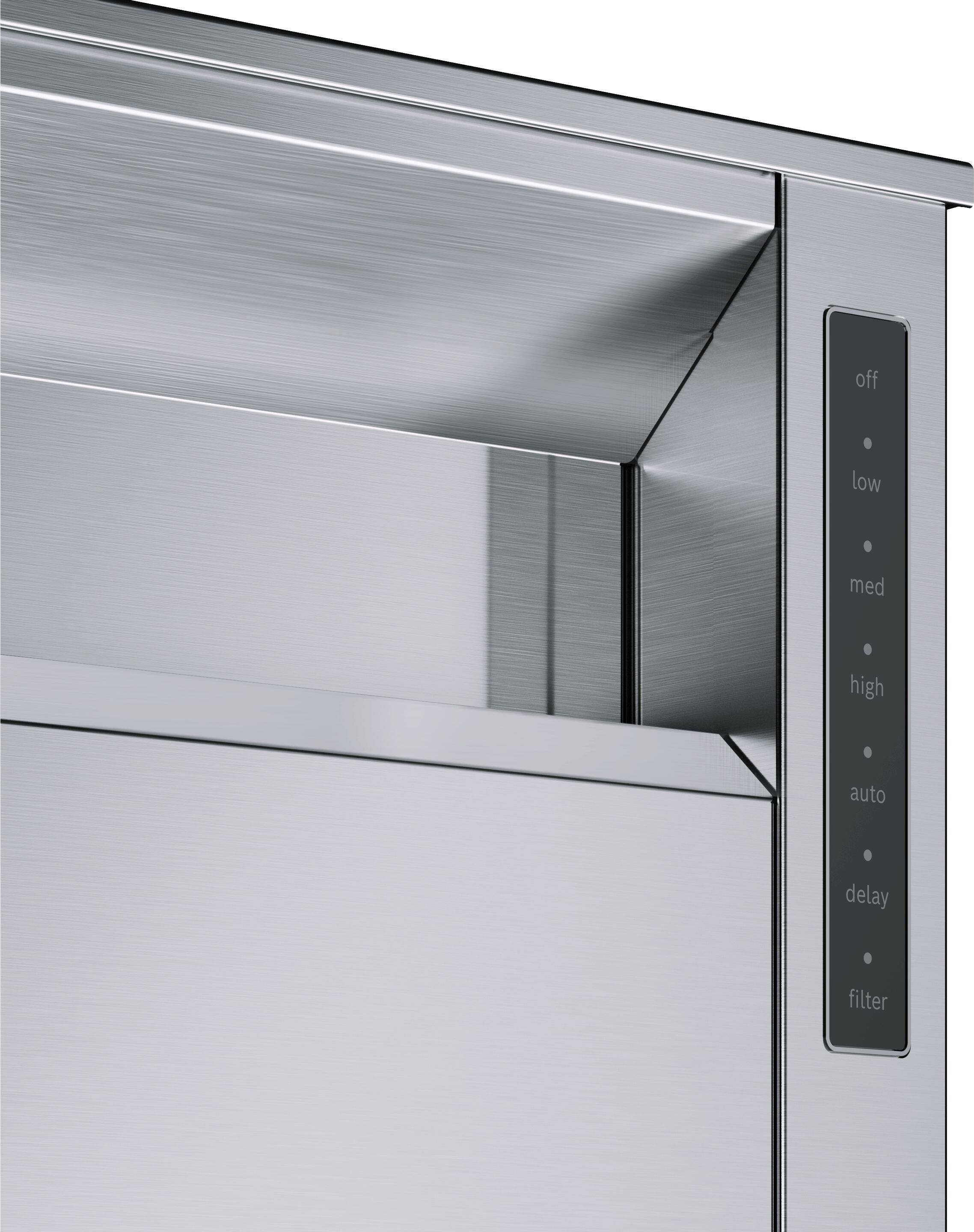

- Touch Controls: Touch controls offer simple and intuitive operation.
- Adjustable Fan Speeds: 3 variable fan speeds accommodate all your cooking needs.
- Effective Blower: 600 CFM blower quickly and effectively removes smoke and odors from the air.
- Exhaust Options: 6 exhaust connections possible (transition sold separately).
- Dishwasher-Safe Filter: The dishwasher-safe aluminum mesh filter makes cleanup simple and convenient.
- Ducting: Designed to fit 6" round ductwork for easy installation.
- Timeless Design: The stainless steel downdraft blends with all cabinet styles for a modern, timeless kitchen.
- Warranty: One year limited manufacturer's warranty.
- Quiet Operation: 2 sones working noise level (on lowest fan speed) is quiet and peaceful, without sacrificing extraction power.
Whats Included
- 800 Series 36" Convertible Telescopic Downdraft System
- Owner's manual
Product Manuals
Disclaimers
- Blower sold separately
Q: Are the filters dishwasher safe for this system?
A: Yes, the aluminum mesh filter is dishwasher-safe.
Q: What is the voltage required for this downdraft system?
A: The voltage required for this system is 120 volts.
Q: Does this downdraft system operate quietly?
A: Yes, this downdraft system operates quietly at 2 sones on the lowest fan speed.
Q: Does this system have touch controls?
A: Yes, this system has touch controls for simple operation.
Q: How many fan speeds does this downdraft system have?
A: This downdraft system has three variable fan speeds.
Q: Does this system work with smart devices?
A: Yes, this system works with Amazon Alexa.
Q: What is the maximum blower capacity for this system?
A: The maximum blower capacity is 600 CFM.
Q: What sone rating does this fan emit.
A: Hi Fahl, thanks for your question. Model HDD86052UC has 3 speeds operating at 1.5 sones, 3 sones, and 6 sones respectively.
