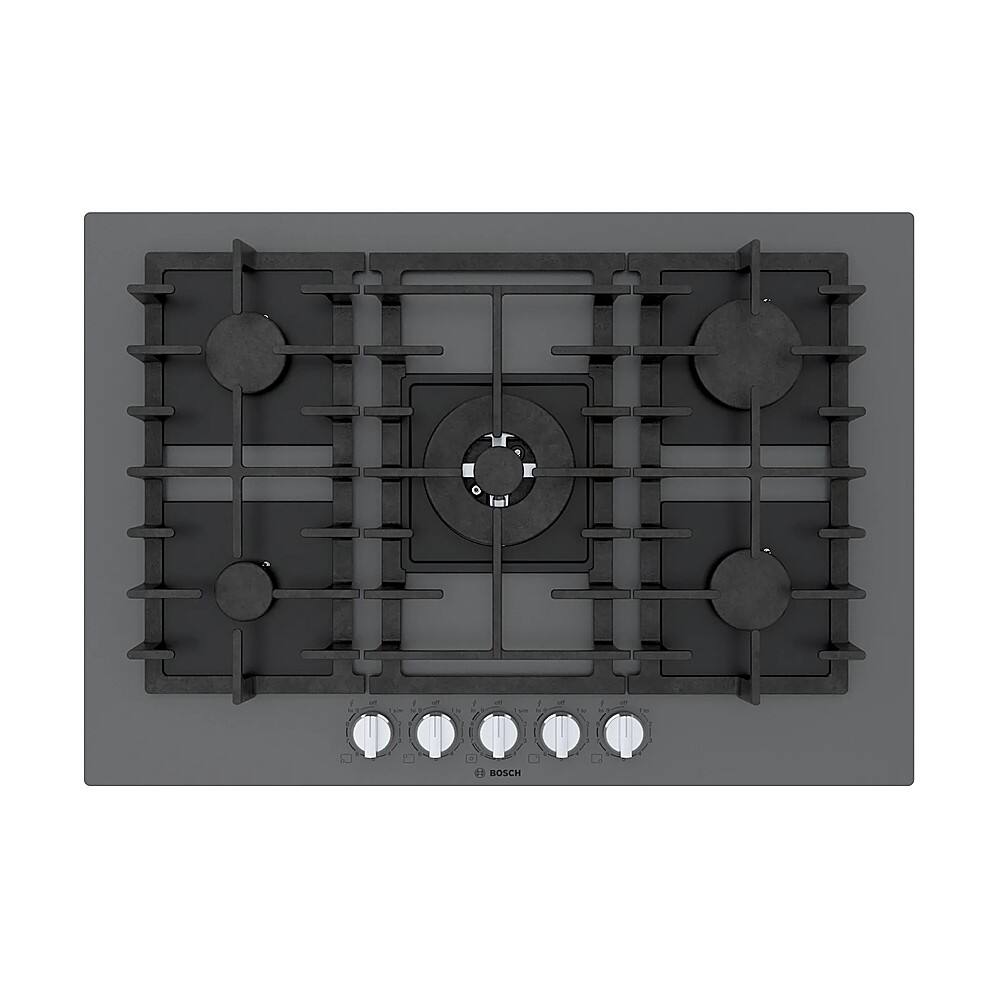

Bosch - Benchmark Series 30" Built-In Gas Cooktop with 5 burners - Gray
Model: NGMP077UC
SKU: 6362546
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Gray
- Product Height: 2 9/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 5
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Bosch
- Model Number: NGMP077UC
- Product Name: Benchmark Series 30" Built-In Gas Cooktop with 5 burners
- Color: Gray
- Color Finish: Gray
- Vendor Collection: Bosch Benchmark (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 2 9/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 46.96 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 1 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 15/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 1/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 5
- Number of Burners: 5
- Sealed Burners: false (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): OptiSim burner (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Dishwasher-Safe Grates: true (Cooktop grates are safe to be washed in a dishwasher if they are treated with a special coating that withstands the high heat, water pressure, and detergent used in a standard wash cycle.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 3400 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 6000 british thermal units
- Burner 3 Rating: 6000 british thermal units
- Burner 4 Rating: 10300 british thermal units
- Burner 5 Rating: 14300 british thermal units
- Total Maximum BTU Rating: 40000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: true
- Propane Kit Model Compatibility: 12028831
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. For more information about PFAS chemicals, visit https://bshpersona.com/productdisclosures/. Libre de PFAS, PFOA, plomo, y cadmio. Para obtener más información sobre las sustancias químicas PFAS, visite https://bshpersona.com/productdisclosures/. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225959335
Cook a variety of meals with consistent results using this Bosch Benchmark sealed gas burner cooktop. The five burners have defined power levels for precise flame adjustment, while the heavy-duty grates are dishwasher-safe for easier maintenance. This Bosch Benchmark sealed gas burner cooktop features a flame failure safety device to prevent gas leakage.
- Safely and easily move pans from burner to burner: Continuous grates create a flat and sturdy cooking surface.
- Tempered glass cooktop: Provides a smooth surface that makes cleaning fast and simple.
- 5 burners: Deliver 996-4191 watts of power for versatile heating options.
- Safely and easily move pans from burner to burner: Continuous grates create a flat and sturdy cooking surface.
- Tempered glass cooktop: Provides a smooth surface that makes cleaning fast and simple.
- 5 burners: Deliver 996-4191 watts of power for versatile heating options.
Whats Included
- Bosch Benchmark Series 30" Gas Cooktop
- LP conversion kit
- OptiSim cap
- Simmer cap
- Bosch Benchmark Series 30" Gas Cooktop
- LP conversion kit
- OptiSim cap
- Simmer cap
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
A: Hi JKS, thank you for your question and interest in Model:NGMP056UC. Burner #1 is the left front, burner #2 is the left rear, burner #3 is the center, burner #4 is the right rear and burner #5 is the right front.
Q: will it fit to replace my current Frigidaire 30" cooktop?
A: Hi Boosmum, thank you for your question and interest in Model:NGMP056UC. Here are the dimensions for the Benchmark Gas Cooktop: Overall appliance dimensions: (HxWxD) 3 13/16" x 31" x 21 1/4". Required cutout size: (HxWxD) 3 13/16" x 28 15/16" x 19 1/8". Without knowing the exact dimensions of your Frigidaire cooktop, it would be difficult to determine. Please reach out to our Customer Support Team at 1-800-944-2904 for further help with this.
Q: Is the gas on glass model scratch resistant?
A: Hi cindyturn, thanks for your question and interest in model # NGMP077UC.This model is not scratch resistant.
A: Hi Linda. Thank you for your question. The Benchmark Gas Cooktop, Model:NGMP077UC that you see pictured is the entire cooktop.
Q: is it painted grey or stainless?
A: It is grey stainless steel.
