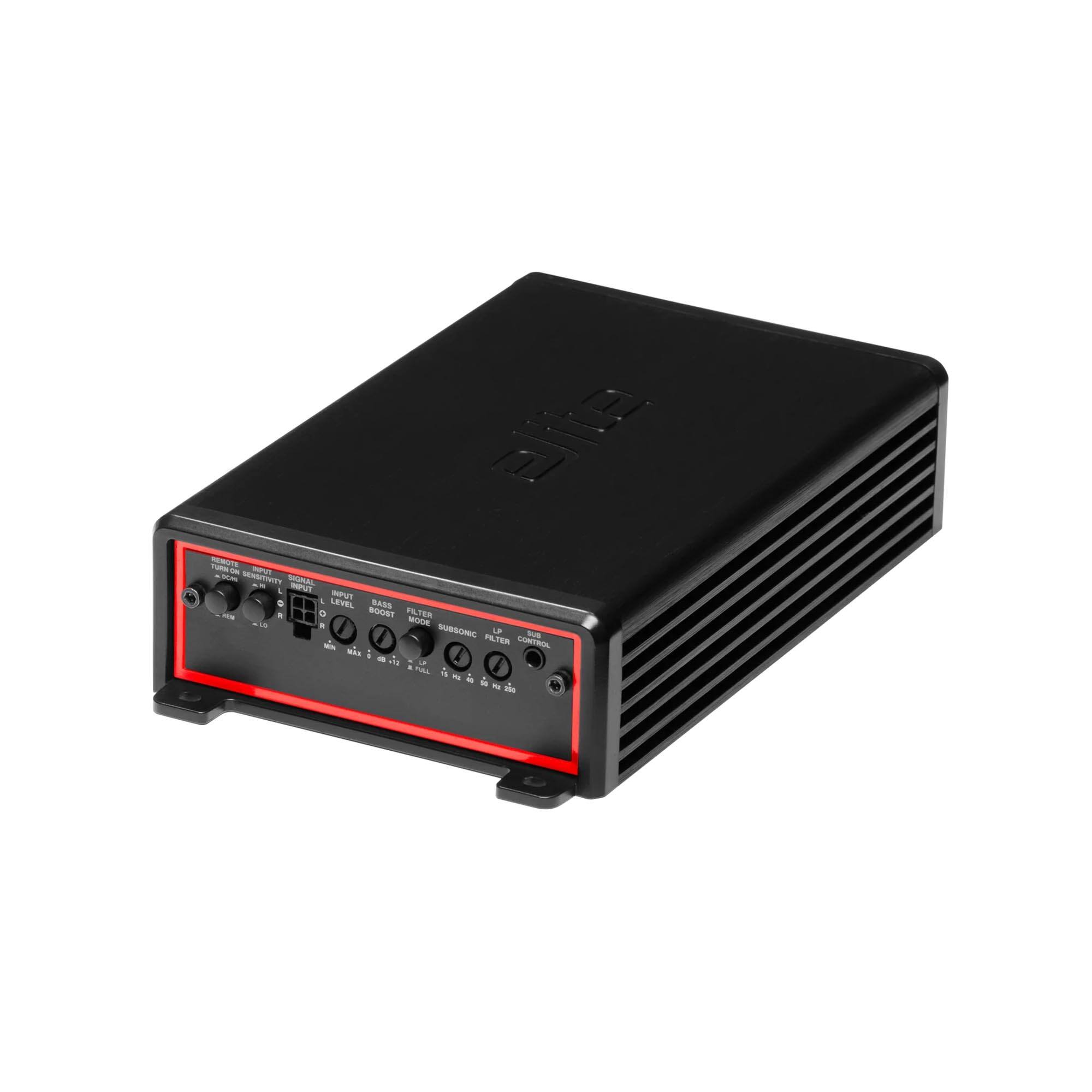

Boss - Elite BE400.1D 400W RMS Mono Class D Amplifier with Remote Subwoofer Level Control and LED Illuminated End Panels - Black/Gray
Specifications
- Amplifier ClassDNumber Of Channels1Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Boss
- Model Number: BE400.1D
- Product Name: Boss Elite BE400.1D 400W RMS Mono Class D Amplifier with Remote Subwoofer Level Control and LED Illuminated End Panels
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 400 watts
- Total Power Handling Maximum: 800 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 18.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.000 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.000 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.0 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 791489134330

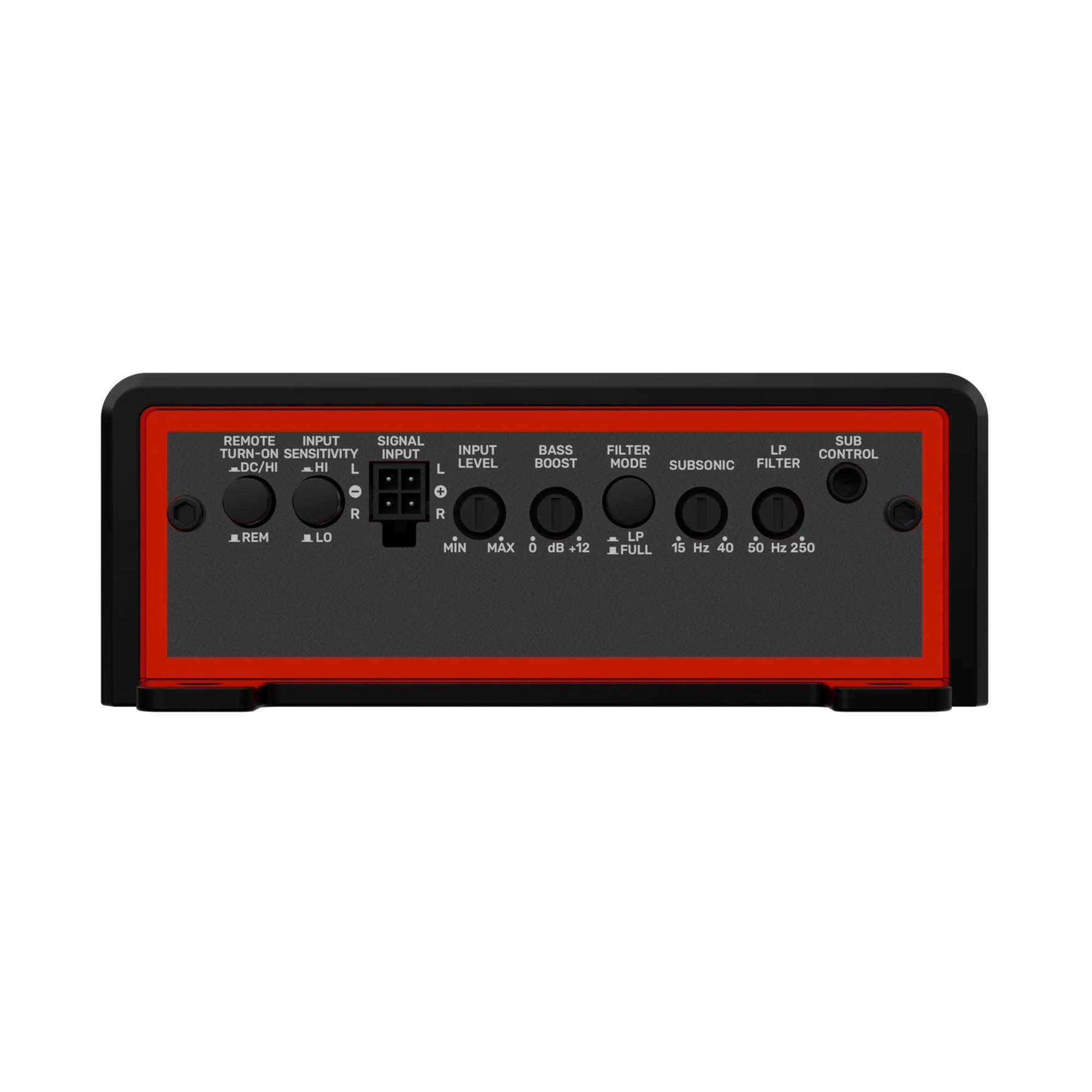

• Full Range Mono Class D Amplifier • PWM MOSFET Power Supply • Thermal, Short and Overload Protection Circuits • Full Range Mono Class D Amplifier • Low Pass Filter 50Hz-250Hz • Infrasonic Filter 15Hz-40Hz • Bass Boost 0dB- +12dB • PWM MOSFET Power Supply • Remote Subwoofer Level Control • Thermal, Short and Overload Protection Circuits • RCA or Speaker Level Inputs • Low Level Input Voltage 400mV-4V • High Level Input Voltage 4V-40V • 130W RMS x 1CH @ 4Ω • 280W RMS x 1CH @ 2Ω • 400W RMS x 1CH @ 1Ω Key Features General Specs Amp Topology: Monoblock, Class D Power Supply Type: MOSFET Power Supply Performance Specs Total Power Output: 400 Watts Peak Power @ 1 Ω: 400 Watts RMS Power @ 1 Ω: 300 Watts Speaker Impedance: 1 to 8 Ω T.H.D. (Total Harmonic Distortion): 0.01 % Frequency Response: 9 Hz to 50 kHz ±1 dB Connections, Controls, and Processing RCA Inputs: 2 Channel High Level Inputs: Yes Low Pass Filter: 50 Hz to 250 Hz Subsonic Filter: 15 Hz to Hz Bass Boost: Variable 0-12 dB Subwoofer Level Control: Yes Input Sensitivity Switch: Yes Thermal/Overload/Short Protection: Yes Measurement Length: 4.57" Width: 7.8"
- Key Feature: Full Range Mono Class D Amplifier
- Key Feature: PWM MOSFET Power Supply
- Key Feature: Thermal, Short and Overload Protection Circuits
- Key Feature: Full Range Mono Class D Amplifier
- Key Feature: Low Pass Filter 50Hz-250Hz
Whats Included
- Boss Elite BE400.1D 400W RMS Mono Class D Amplifier with Remote Subwoofer Level Control and LED Illuminated End Panels
