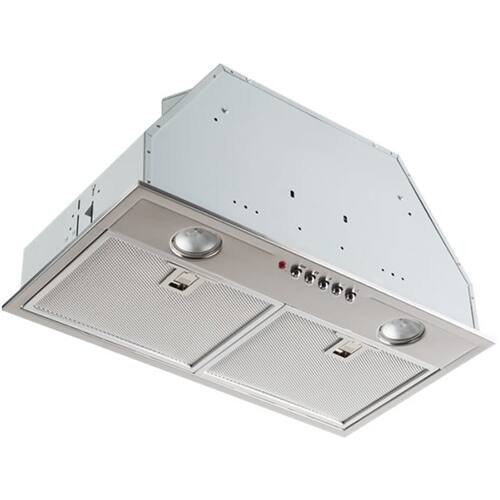

Broan - 21 inches - Externally Vented & Recirculating - Range Hood Insert - Stainless Steel
Model: PM500SS
SKU: 6283904
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 9 3/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 20 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Broan
- Model Number: PM500SS
- Product Name: 21" Convertible Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 9 3/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 22 inches
- Maximum Installation Height Above Cooktop: 30 inches
- Product Width: 20 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 21 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 8.4 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 19 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 10 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: External, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Number of Fan Speeds: 3
- Control Type: Button
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: false
- Integrated Light(s): true
- Number of Light Levels: 1
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 40 watts
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Removable Grease Filter: false
- Electrical Specification
- Amperage: 2.8 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 026715172290
High-performance ventilation solutions. These integrated units provide the ventilation and lighting you need for your custom application. Broan "T" and "B" liners provide an elegant way to finish a traditional wood hood and protect cabinetry. Smooth surfaces clean easily and quick-release filters can go in the dishwasher.
- 500 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 3 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Pushbutton controls: Offer simple operation.
- Dual halogen lights: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
- Stainless steel finish: Offers a sleek, stylish look.
- Designed to fit standard 6" round ductwork: For ease of installation.
- 500 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 3 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Pushbutton controls: Offer simple operation.
- Dual halogen lights: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
- Stainless steel finish: Offers a sleek, stylish look.
- Designed to fit standard 6" round ductwork: For ease of installation.
Whats Included
- Broan 21" Convertible Range Hood
- Broan 21" Convertible Range Hood
