Broan

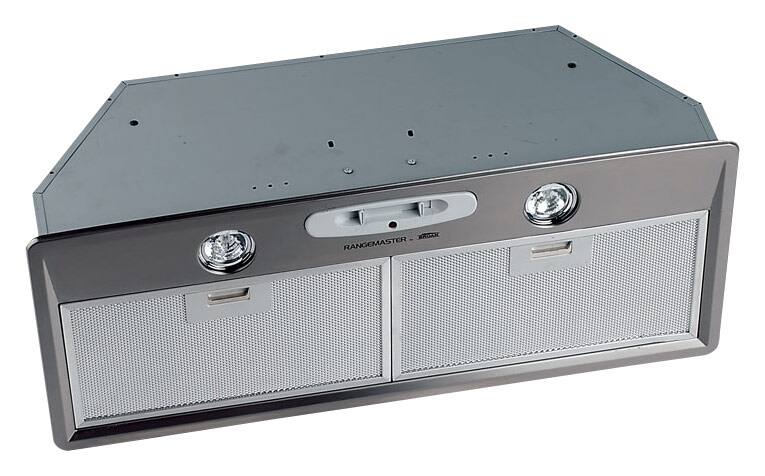

Broan - 28 inches - Convertible - Range Hood Insert - Stainless Steel

Model: RMP17004
SKU: 7056071
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Stainless steel
    • Product Height: 10 4/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 27 5/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 11 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Exhaust Vent Location: Rear/Bottom
    • Vent Type: Ducted, Ductless
    • Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
  • General
    • Brand: Broan
    • Model Number: RMP17004
    • Product Name: Convertible Interior Range Hood
    • Color: Stainless Steel
    • Color Finish: Stainless steel
  • Dimensions
    • Product Height: 10 4/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Minimum Installation Height Above Cooktop: 24 inches
    • Maximum Installation Height Above Cooktop: 30 inches
    • Product Width: 27 5/9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 11 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 28 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Product Weight: 38 pounds (The out of box weight of the item.)
    • Duct Length: 37 inches
  • Cut-Out Dimensions
    • Cut-Out Width: 26 11/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Depth: 10 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Features
    • Exhaust Vent Location: Rear/Bottom
    • Vent Type: Ducted, Ductless
    • Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
    • Range Hood Type: Insert
    • Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
    • Control Type: Switch
    • Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
    • Auto Fan Shut-Off: false
    • Remote Control: false
    • Damper Included: true
    • Integrated Light(s): true
    • Number of Lights: 2
    • Bulb Type Required: Halogen
    • Bulb(s) Included: true
  • Performance
    • Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
    • Minimum Operating Sound Level: 9 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
  • Filter Info
    • Filter Material: Aluminum
    • Dishwasher-Safe Filter: true
    • Removable Grease Filter: true
  • Electrical
    • Amperage: 3.53 amperes (Strength of electrical current.)
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
  • Certifications Listings & Approvals
    • Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
  • Warranty
    • Warranty - Parts: 1 year limited
    • Warranty - Labor: 1 year limited
  • Other
    • UPC: 026715152285

This Broan RMP17004 range hood fits flush with the bottom of a cabinet or custom hood, giving you style and function. Halogen lighting adds to your cooktop's illumination options.

    Whats Included
    • Convertible Interior Range Hood
    • Owner's manual
    • Convertible Interior Range Hood
    • Owner's manual
