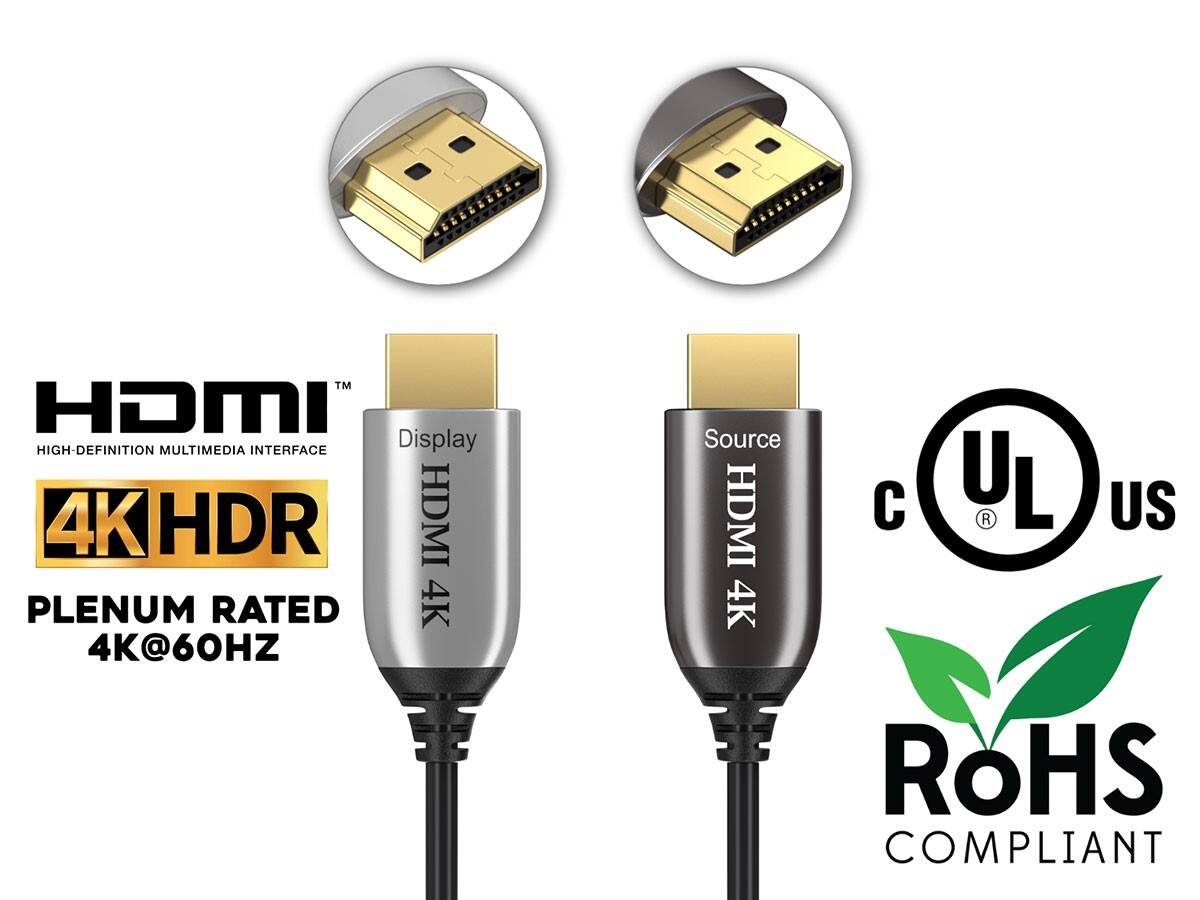

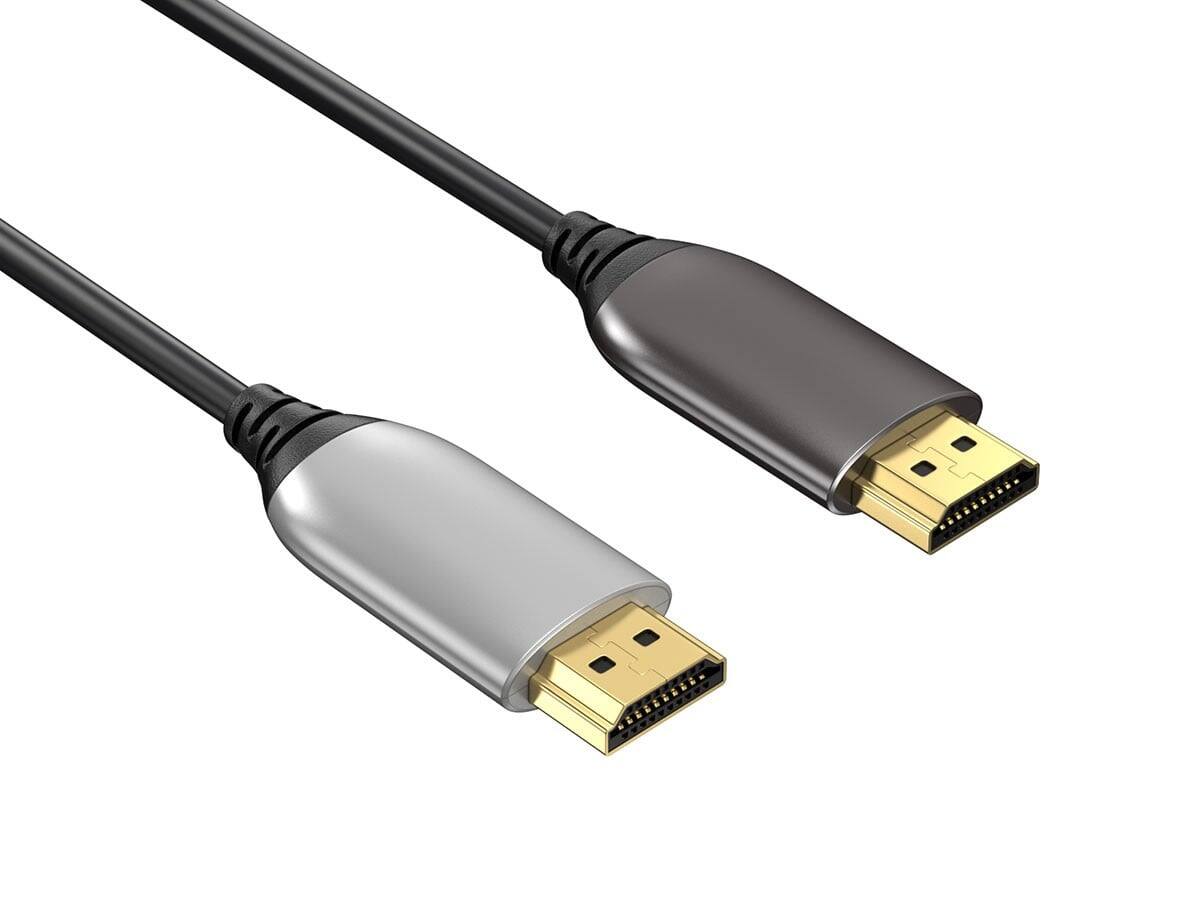

Cable Leader - High-Speed Hybrid Active HDMI Fiber Optic Cable AOC, HDMI 2.0 4K Plenum Rated UL for Long Commercial Runs - Black
Cable Length
100'Related Item
About This Item
- Key Specs
- Cable Length: 100 feet
- HDMI Cable Type: Ultra High Speed HDMI Cable
- Connector Type (End 1): HDMI Type A
- Gender (End 1): Male
- Connector Type (End 2): HDMI Type A
- Gender (End 2): Male
- In-Wall Rated: true
- Conductor Material: Copper
- Jacket Material: Plenum
- General
- Brand: Cable Leader
- Model Number: HM116-11HD
- Product Name: High-Speed Hybrid Active HDMI Fiber Optic Cable AOC, HDMI 2.0 4K Plenum Rated UL for Long Commercial Runs
- Color: Black
- Quantity: 1
- Connectivity
- Cable Type: HDMI
- Cable Length: 100 feet
- Product Type: Cable
- HDMI Cable Type: Ultra High Speed HDMI Cable
- Connector Type (End 1): HDMI Type A
- Generation/Version: HDMI 2.1
- Gender (End 1): Male
- Connector Type (End 2): HDMI Type A
- Gender (End 2): Male
- Environmental
- In-Wall Rated: true
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Material
- Conductor Material: Copper
- Connector Plating: Gold
- Jacket Material: Plenum
- Other
- UPC: 840529926678
Running HDMI 35, 50, or 100 feet through a commercial drop ceiling that's also a return-air plenum — and copper cables either fail at 4K or aren't fire-code compliant for plenum? This Hybrid Active HDMI Fiber Optic AOC carries the signal over four optical fibers (electrical for low-bandwidth control, optical for high-bandwidth video) so the cable behaves passively from the source side and the signal stays clean over runs that copper can't manage. UL Listed with a Plenum CMP-rated jacket for code-compliant installation above suspended ceilings. Built with hybrid copper + glass fiber construction, gold-plated HDMI connectors, and a CMP-rated jacket. Compatible with PS5, Xbox Series X/S, Apple TV 4K, AV receivers, ceiling-mounted projectors, conference room displays, classroom TVs, and digital signage media players — directional cable: the SOURCE end must connect to the source device. Supports 4K@60Hz, 4K@30Hz, 1080p, HDR10, ARC, CEC, and HDMI 2.0 features at up to 18 Gbps. Best for: long commercial above-ceiling runs and passive-source HDMI 2.0 4K@60Hz. Not for: 8K or 4K@120Hz (use HDMI 2.1 AOC). RoHS compliant.
- Long Commercial Plenum Runs — Hybrid Fiber + Copper, UL CMP: Pulling HDMI through a commercial drop ceiling that doubles as return-air plenum, with the run too long for passive copper? Hybrid Active AOC sends high-bandwidth video over glass fibers and low-bandwidth control over copper, holding 4K@60Hz over 100 ft. UL Listed with a Plenum CMP jacket meets NEC code for above-ceiling air-handling spaces.
- 4K@60Hz with HDR10, ARC — HDMI 2.0 Full 18 Gbps: Rated to HDMI 2.0 with 18 Gbps bandwidth. Carries 4K Ultra HD at 60Hz, 4K@30Hz, 1080p at 120Hz, HDR10, ARC for soundbars, CEC remote pass-through, and 4:4:4 chroma sub-sampling. Hybrid construction passes power and EDID negotiation over copper while fiber handles the high-bitrate video.

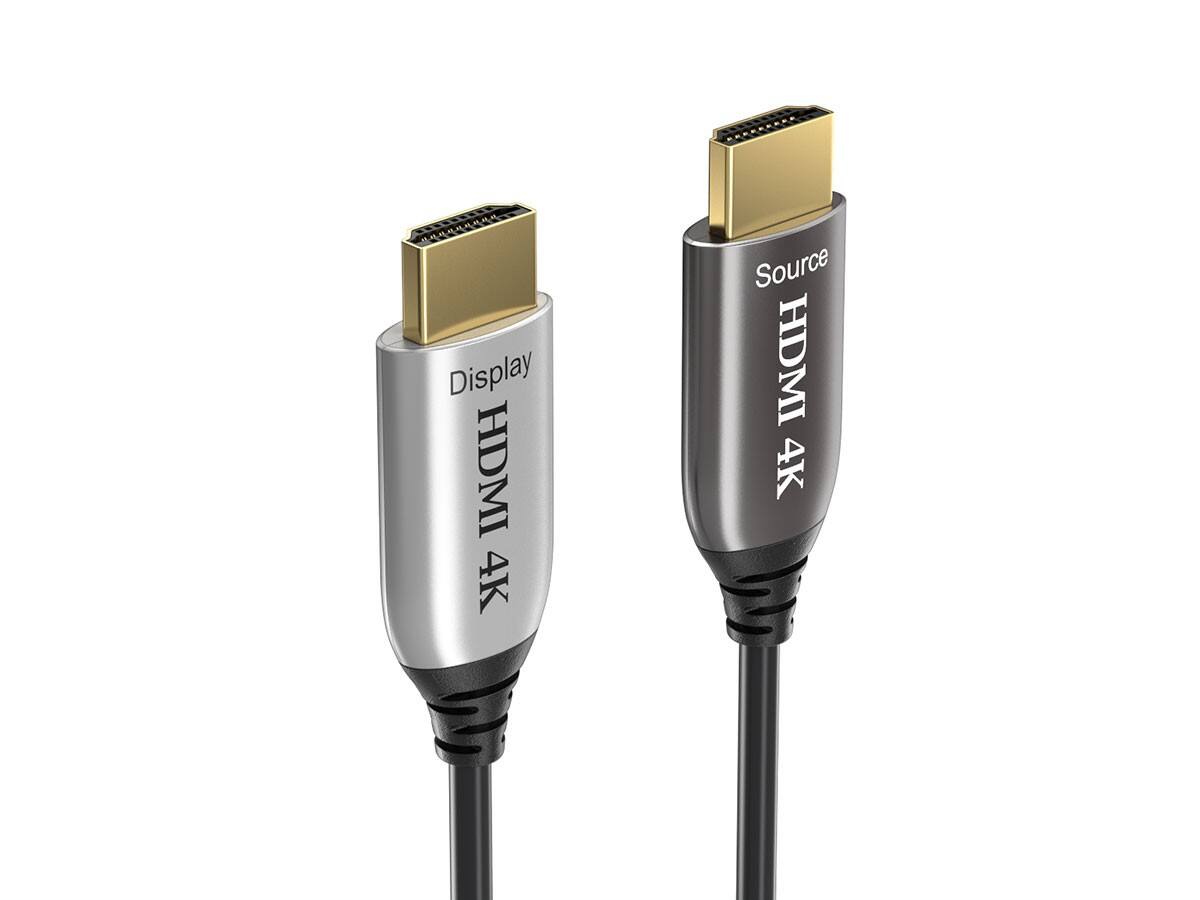

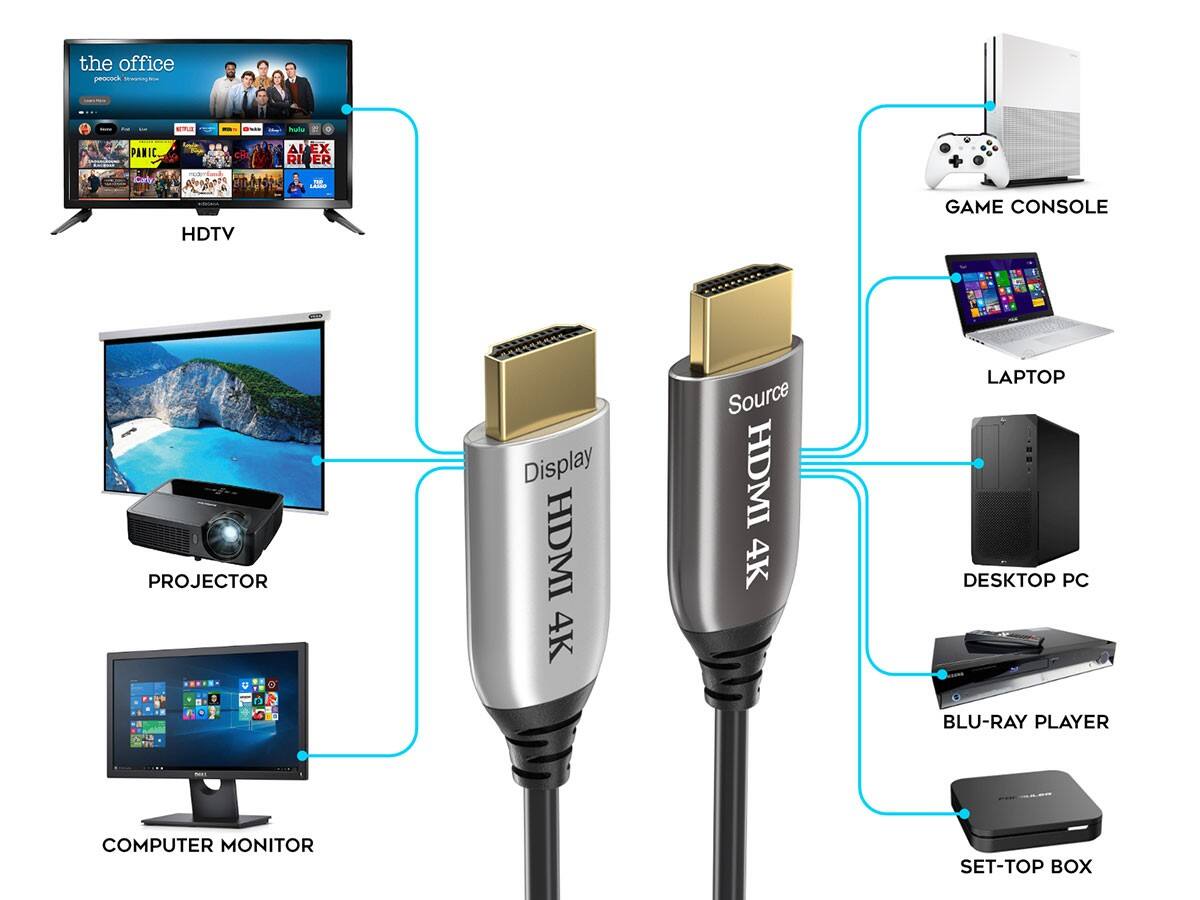

- Works with PS5, Xbox, Projectors, AV Receivers — Directional: Compatible with PS5, Xbox Series X/S, Apple TV 4K, AV receivers, ceiling-mounted projectors, conference room displays, classroom TVs, and digital signage. Quick check: 100 ft commercial plenum run — Yes; directional — Yes (SOURCE end goes to console/media player); 4K@120Hz / 8K — No, use HDMI 2.1 AOC; outdoor — No.

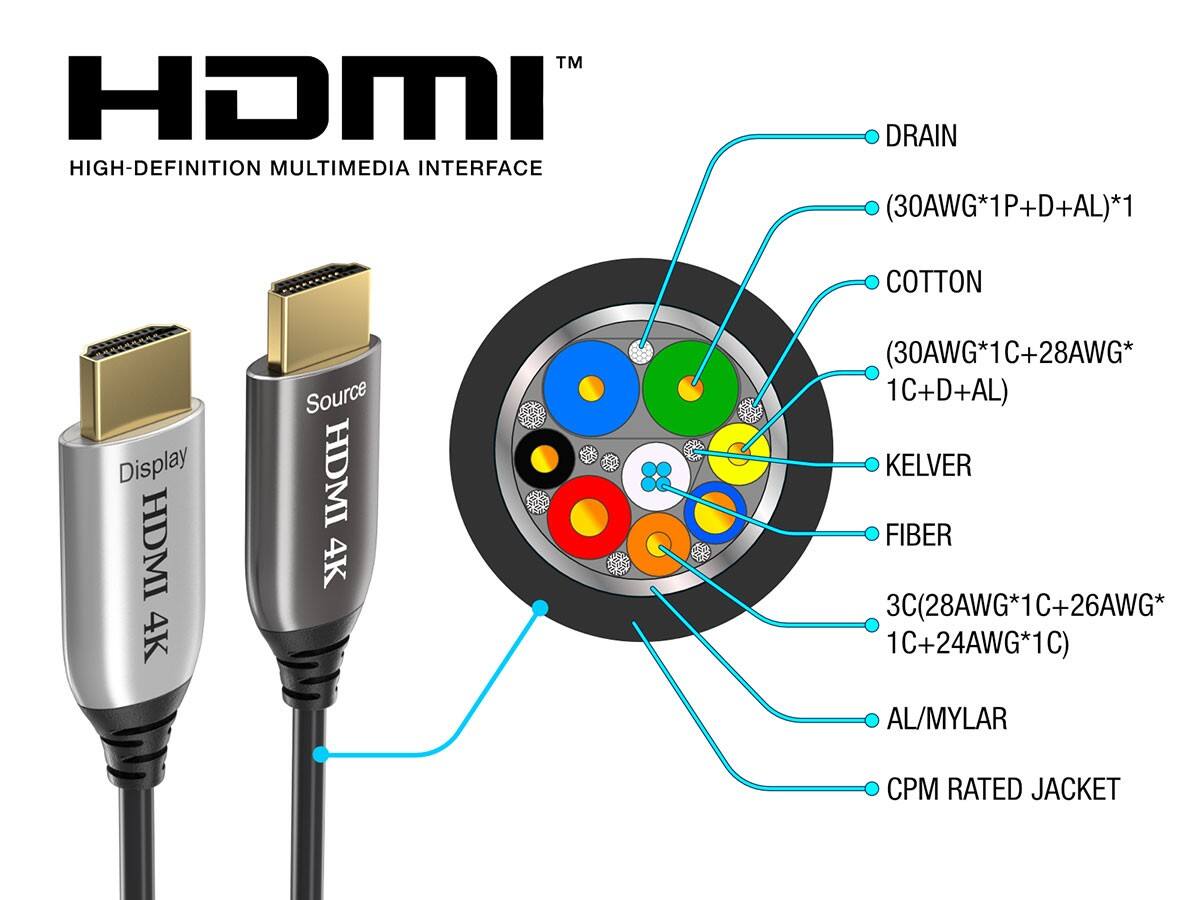

- Hybrid Copper + Glass Fiber, UL Plenum CMP-Rated Jacket: Glass fiber strands carry the high-bandwidth video signal without copper distance loss. Copper conductors carry power and EDID. UL Listed CMP plenum jacket meets fire safety code for above-ceiling air-handling spaces. Gold-plated 19-pin HDMI connectors with reinforced strain relief resist pull-through during installation.
- Sample-Tested Production — Cable Leader Direct Support: Each cable is sample-tested during production for fiber continuity, hybrid power negotiation, and connector retention. UL Listed and manufactured to RoHS environmental standards. If a cable arrives defective or stops working in normal use, Cable Leader handles replacement requests directly — no manufacturer redirects.
Whats Included
- 1x Cable Leader High-Speed Hybrid Active HDMI Fiber Optic Cable AOC, HDMI 2.0 4K Plenum Rated UL for Long Commercial Runs (100ft)
