Shop Cable Leader

Cable Leader - NEMA 6-20P to IEC C13 Power Cord, Heavy Duty 14 AWG 15A 250V for 208V/240V Server, UPS, PDU, Workstation - Black

Model: PW156-12XX
SKU: 13095560

Reviews coming soon

Sold & shipped by

About this product

Need to power a server, UPS, or high-wattage workstation from a 208V or 240V circuit with a 20 amp NEMA 6-20R outlet, but the equipment only shipped with a standard 120V cord? This Cable Leader NEMA 6-20P to IEC C13 power cord connects any device with a C14 inlet directly to a 6-20R receptacle. The plug matches the 20A outlet, while the C13 end sets the cord rating at 15A 250V, so the device must draw 15 amps or less. Built with 14 AWG three-conductor copper wire, a 105C SJT jacket, and fully molded plugs with strain relief at both ends. Compatible with any device using an IEC C14 inlet on a 208V, 220V, or 240V supply, including servers, UPS units, rack PDUs with C14 input, network switches, and 240V workstations; it does not fit 120V wall outlets, NEMA 6-15R outlets, C20 inlets, or twist-lock L6 receptacles. UL Listed, RoHS and REACH compliant. Best for: 208V/240V rack and workstation power from a NEMA 6-20R outlet. Not for: 120V household outlets, 6-15R outlets, C19/C20 equipment, or loads above 15A.

Cable Length

3'

Features

  • Power 208V/240V Equipment from a NEMA 6-20R Outlet

    Replace the 120V cord that came in the box with one made for the 240V circuit your equipment actually runs on. Plugs into a NEMA 6-20R receptacle at one end and any IEC C14 inlet at the other: rack servers on a 208V branch circuit, a UPS or PDU fed from a 20 amp, 240 volt drop, or a high-wattage workstation on a dedicated 240V outlet. Rated 15A 250V.

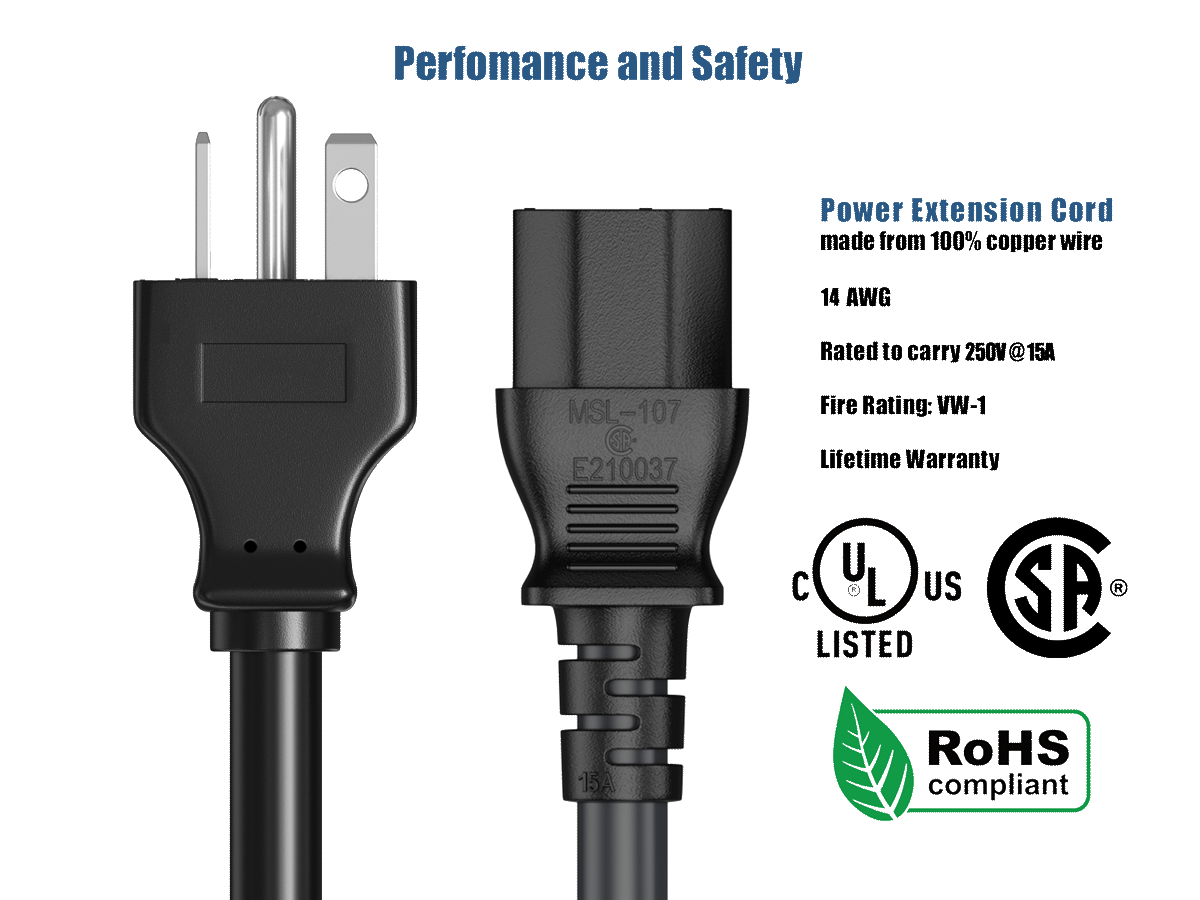

  • 15A 250V, 14 AWG Copper - Rated for Full-Load Rack Duty

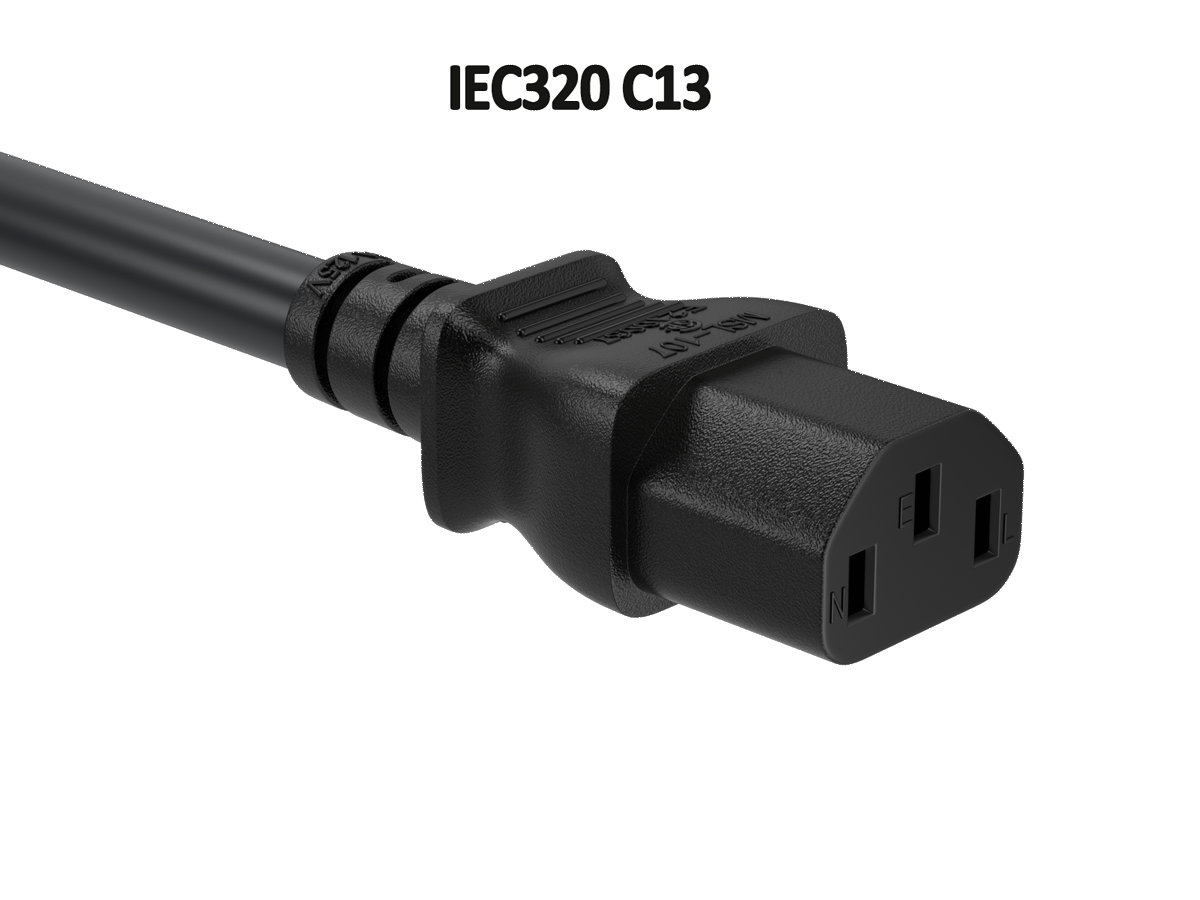

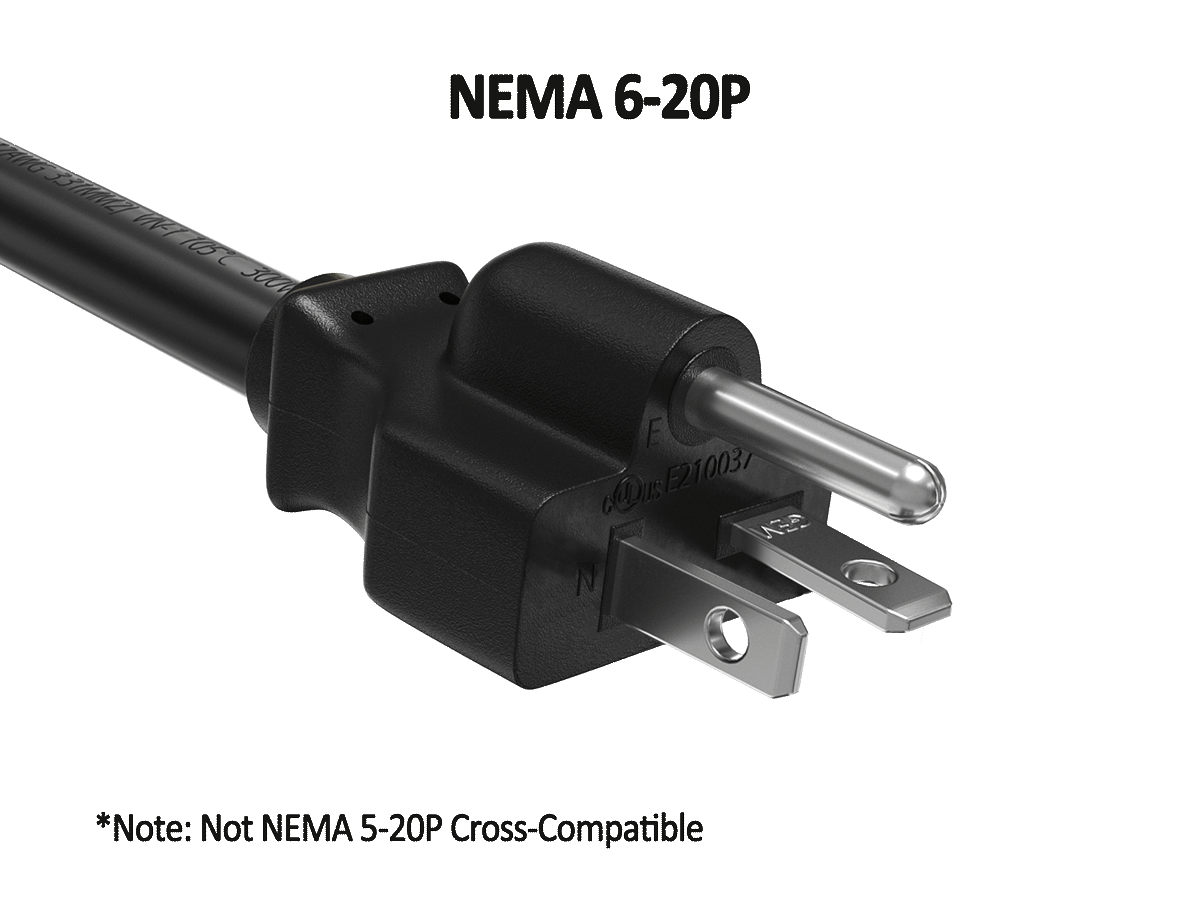

    The NEMA 6-20P plug (NEMA 6-20 series) is the standard 250V configuration for 20 amp branch circuits; the IEC C13 end meets the IEC 60320 spec for C14 inlets and sets the cord rating at 15A. Three 14 AWG copper conductors are sized for that full 15A load with margin to spare, so the cord stays cool under sustained draw. 105C SJT jacket, UL Listed, RoHS and REACH compliant.

  • Fits NEMA 6-20R Outlets and C14 Inlets - Not for 120V

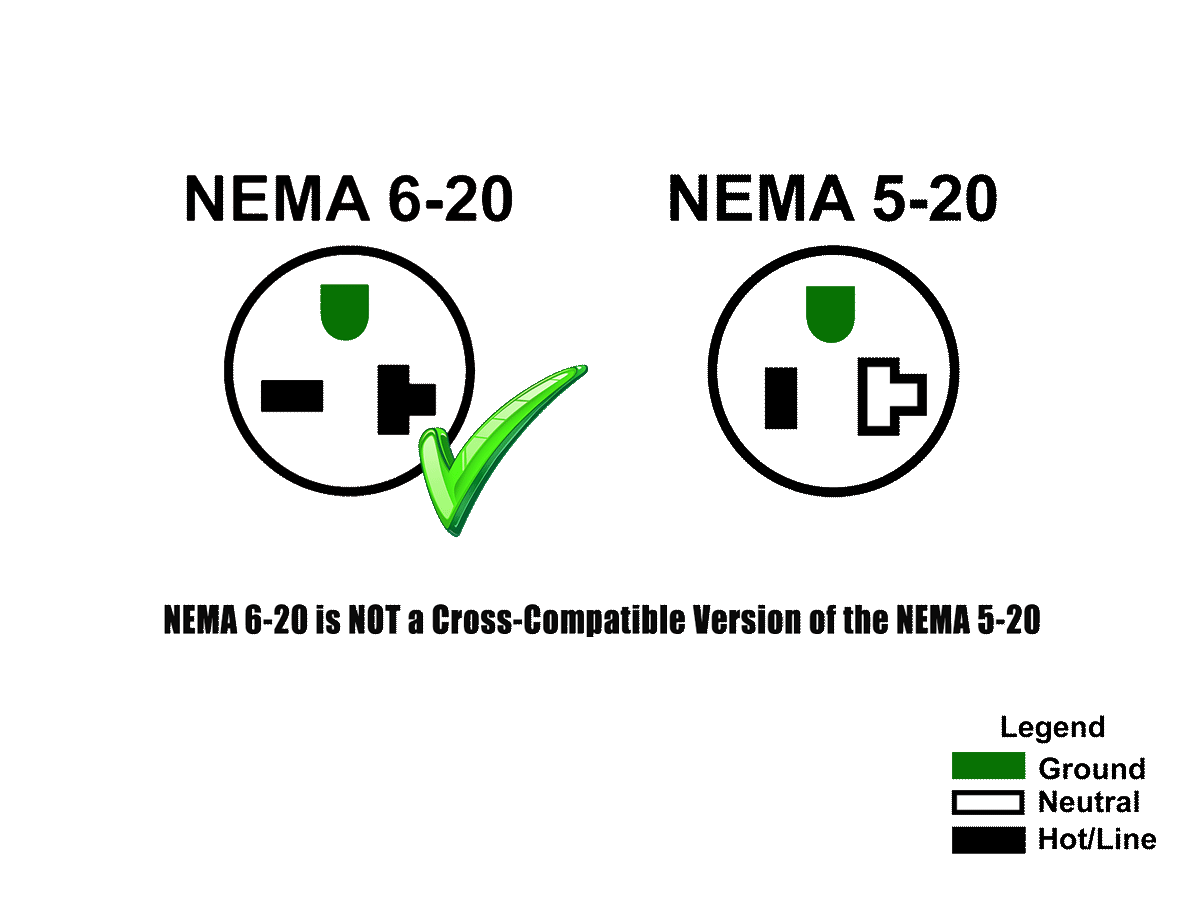

    Works with any device that has an IEC C14 power inlet, accepts 208V to 240V input, and draws 15A or less: servers, UPS units, rack PDUs, network switches, storage arrays, 240V workstations. Quick check: Outlet is NEMA 6-20R (one T-shaped slot) - Yes; Device inlet is C14 - Yes; Outlet is NEMA 6-15R (no T-shaped slot) - No; 120V wall outlet - No; C20 inlet or over 15A - No. For 6-15R outlets, use a NEMA 6-15P to C13 cord.

  • Heavy-Duty 14 Gauge SJT - Built for Racks and Workstations

    Three 14 gauge (14 AWG) copper conductors inside a 105C-rated SJT jacket that stays flexible enough to route through rack rails and cable managers without kinking. Both the 3 prong 6-20P plug and the C13 connector are fully molded with integrated strain relief, so the cord survives repeated seating in a C14 inlet and being pulled through under-desk runs. Black jacket blends into rack wiring.

  • Sample-Tested Production - Cable Leader Direct Support

    Each cord is sample-tested during production for electrical continuity. Manufactured to RoHS environmental standards (lead, mercury, and cadmium-free). If your cord arrives defective or stops working in normal use, Cable Leader handles replacement requests directly - no manufacturer redirects.

Specifications

  • Cable Length
    3 feet
    Connector Type (End 1)
    NEMA 6-20
    Gender (End 1)
    Male
    Connector Type (End 2)
    IEC/EN 60320 (IEC 320)
    Gender (End 2)
    Female
    In-Wall Rated
    No
