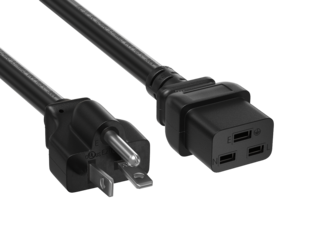

Cable Leader - NEMA 6-20P to IEC C19 Power Cord, Heavy Duty 12 AWG 20A 250V for 208V/240V Server, UPS, Rack PDU - Black

Model: PW158-12XX
SKU: 13126339

Reviews coming soon

Sold & shipped by

About this product

Need to run a server, UPS, or rack PDU with an IEC C20 inlet from a 208V or 240V circuit with a NEMA 6-20 outlet? This Cable Leader NEMA 6-20P to IEC C19 power cord plugs into a 20 amp 6-20R receptacle and carries the full 20A 250V rating end to end, because the 6-20P plug, the 12 AWG conductors, and the C19 connector are all rated for 20 amps. Built with 12 gauge three-conductor cable in a black SJT jacket, with fully molded plugs and strain relief at both ends. Compatible with any device using an IEC C20 inlet on a 208V, 220V, or 240V supply, including servers, UPS units, rack PDUs with C20 input, high-power network switches, and ASIC miners; for loads that run around the clock, keep continuous draw at 16A or less. UL Listed and RoHS compliant. Best for: 208V/240V data center, server rack, and equipment power from a NEMA 6-20R outlet. Not for: 120V household outlets, NEMA 6-15R outlets, twist-lock L6-20 receptacles, or devices with a C14 inlet.

Cable Length

15'
Features

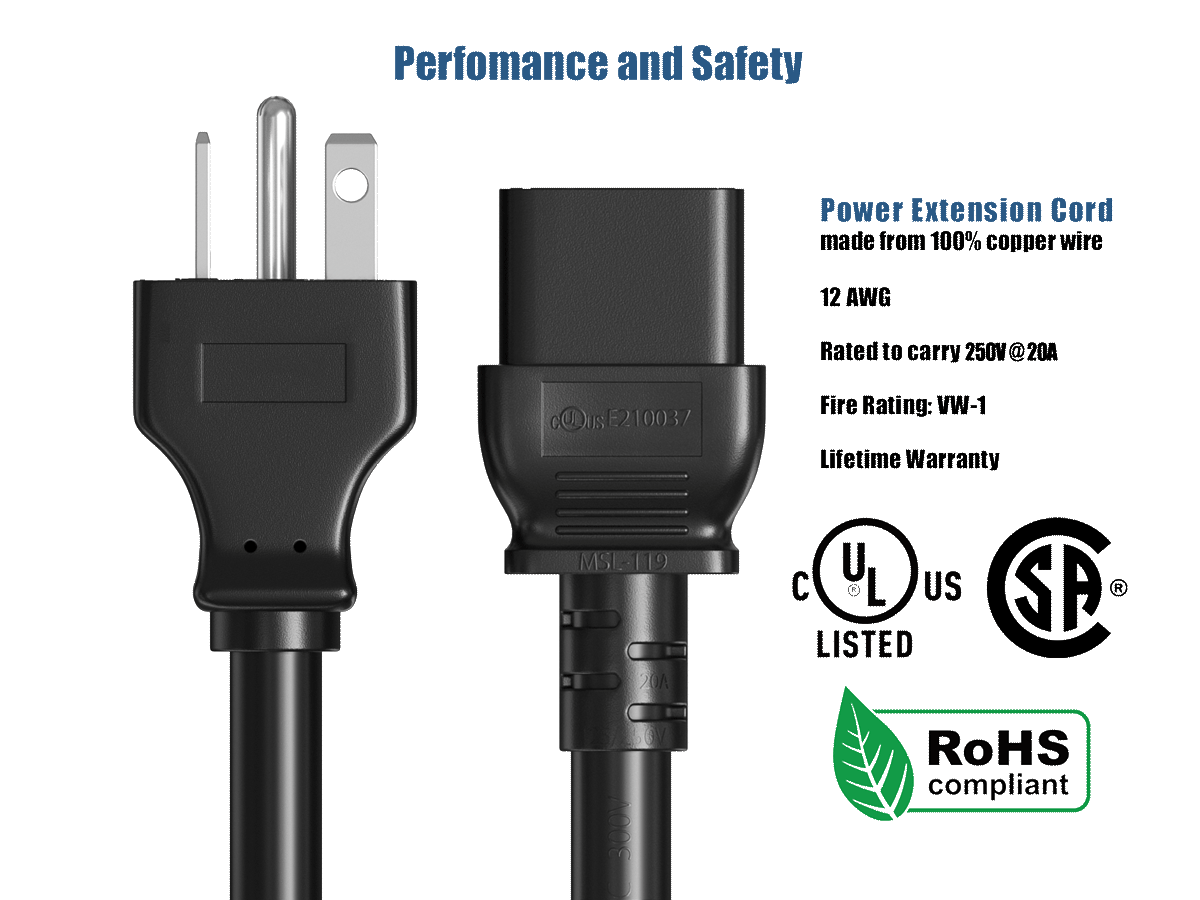

  • Full 20A 250V Rating from Plug to C19 Connector

    Every part of this heavy duty power cord is rated for 20 amps: the NEMA 6-20P plug, the 12 AWG conductors, and the IEC C19 connector. That supports up to 4,800 watts at 240V or 4,160 watts at 208V for high-wattage server power supplies, UPS units, and rack PDUs. For equipment that runs 24/7, size the continuous load at 16A or less, which is 80 percent of a 20A circuit.

  • 12 AWG SJT Cable with Molded Plug and C19 Connector

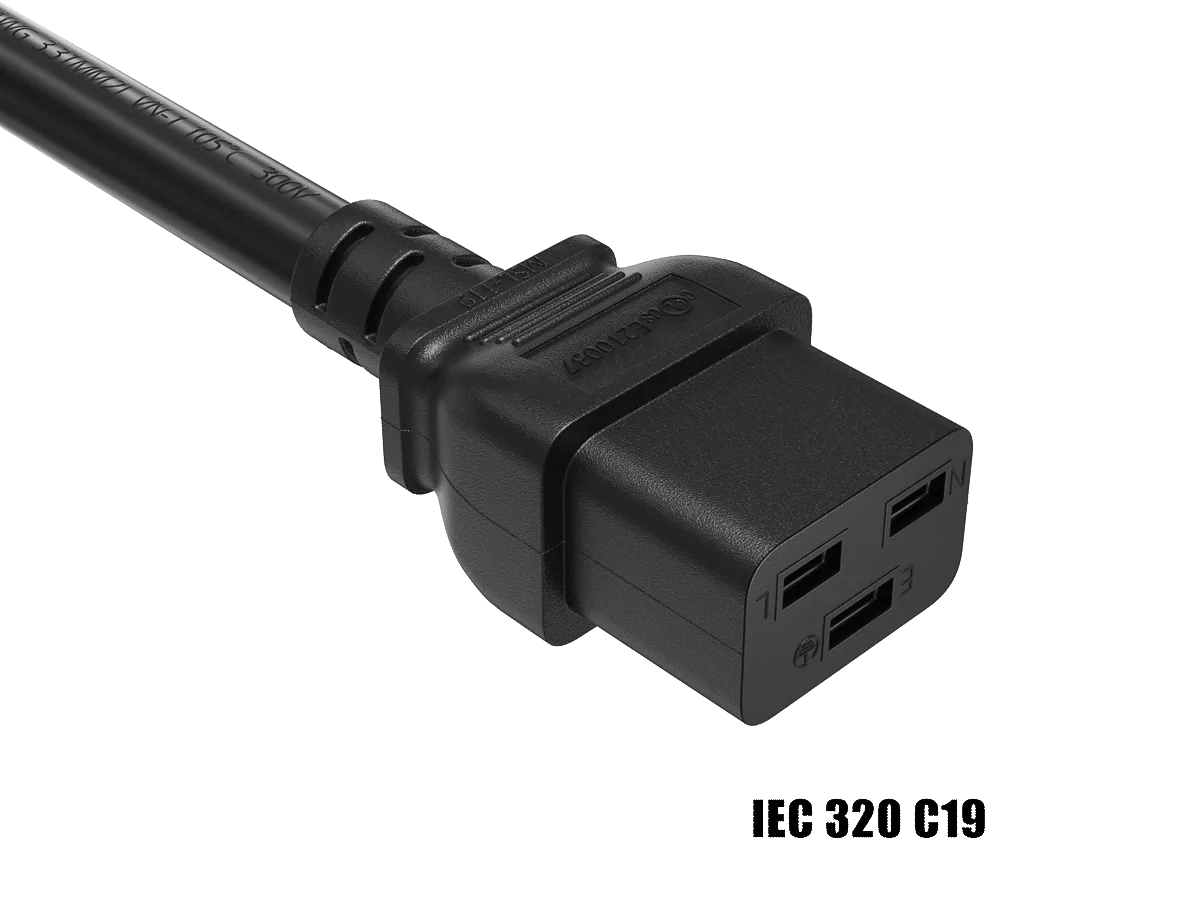

    Three 12 gauge conductors keep voltage drop low, even on the 15 ft length, inside a flexible black SJT jacket for indoor rack and equipment-room use. The 6-20P plug and the IEC 60320 C19 connector (IEC 320 C19) are fully molded with integrated strain relief, so the cord holds up to repeated seating in a C20 inlet and routing through cable managers. UL Listed and RoHS compliant.

  • Check Your Outlet First: NEMA 6-20R and C20 Inlet Only

    Not for 120V outlets, NEMA 6-15R, twist-lock L6-20R, or C14 inlets. Quick check: outlet marked 6-20R or 20A 250V, one horizontal slot plus one T-slot? Yes. Vertical slot plus T-slot (5-20R, 120V)? No. Two horizontal slots only (6-15R)? No. Device inlet a wide C20 with 3 horizontal pins? Yes. Smaller C14 inlet? No, choose our 6-20P to C13 cord. Compatible with any device using an IEC C20 inlet.

  • Five Lengths, from 3 ft Rack Jumper to 15 ft Floor Run

    Choose 3 ft or 6 ft to connect a rack PDU or UPS to a nearby 6-20R receptacle without coiling slack, 8 ft or 10 ft to reach a wall outlet from inside a server rack or equipment shelf, or 15 ft for longer runs across an equipment room. Every length uses the same 12 AWG, 20A 250V SJT construction, so you can standardize on one 20 amp power cord and one C19 cord style across the whole row.

  • Sample-Tested Production - Cable Leader Direct Support

    Each cord is sample-tested during production for electrical continuity and manufactured to RoHS environmental standards. If your cord arrives defective or stops working in normal use, Cable Leader handles replacement requests directly, with no manufacturer redirects. Safety note: plug only into a properly installed 208V to 240V NEMA 6-20R circuit, and never exceed the 20A rating of the cord, outlet, or breaker.

Specifications
  • Cable Length
    15 feet
    Connector Type (End 1)
    NEMA 6-20
    Gender (End 1)
    Male
    Connector Type (End 2)
    IEC/EN 60320 (IEC 320)
    Gender (End 2)
    Female
    In-Wall Rated
    No
