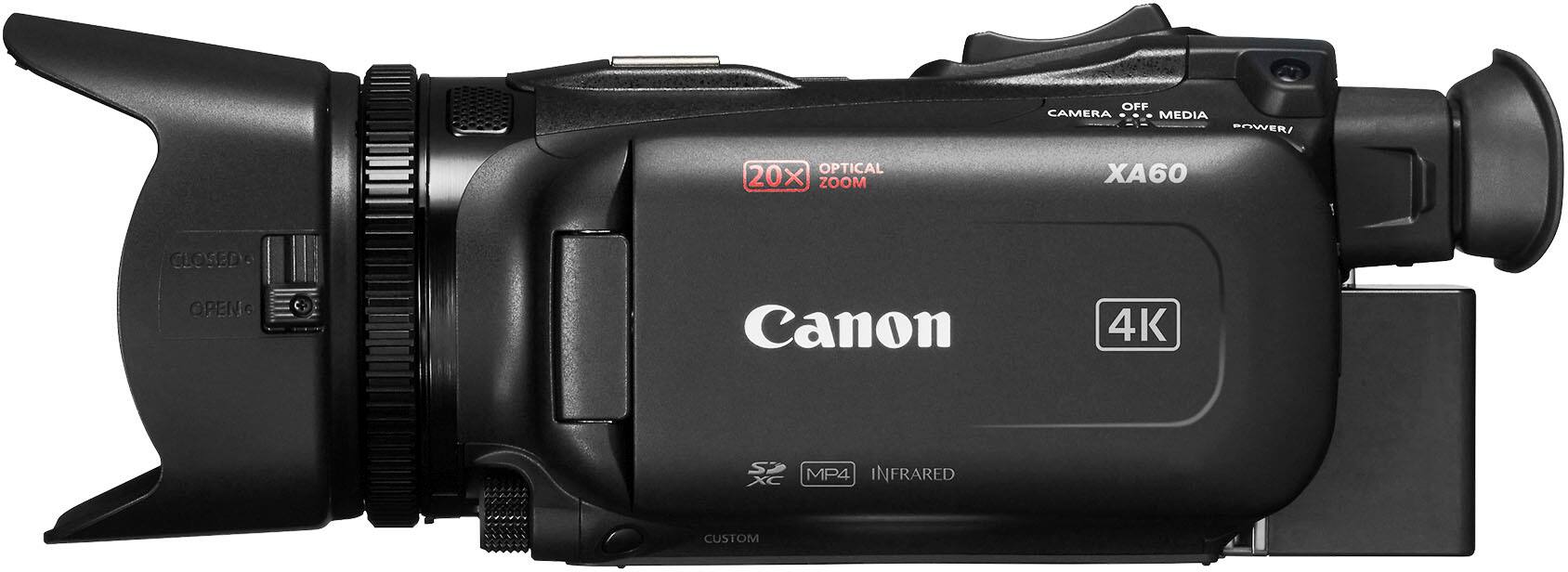

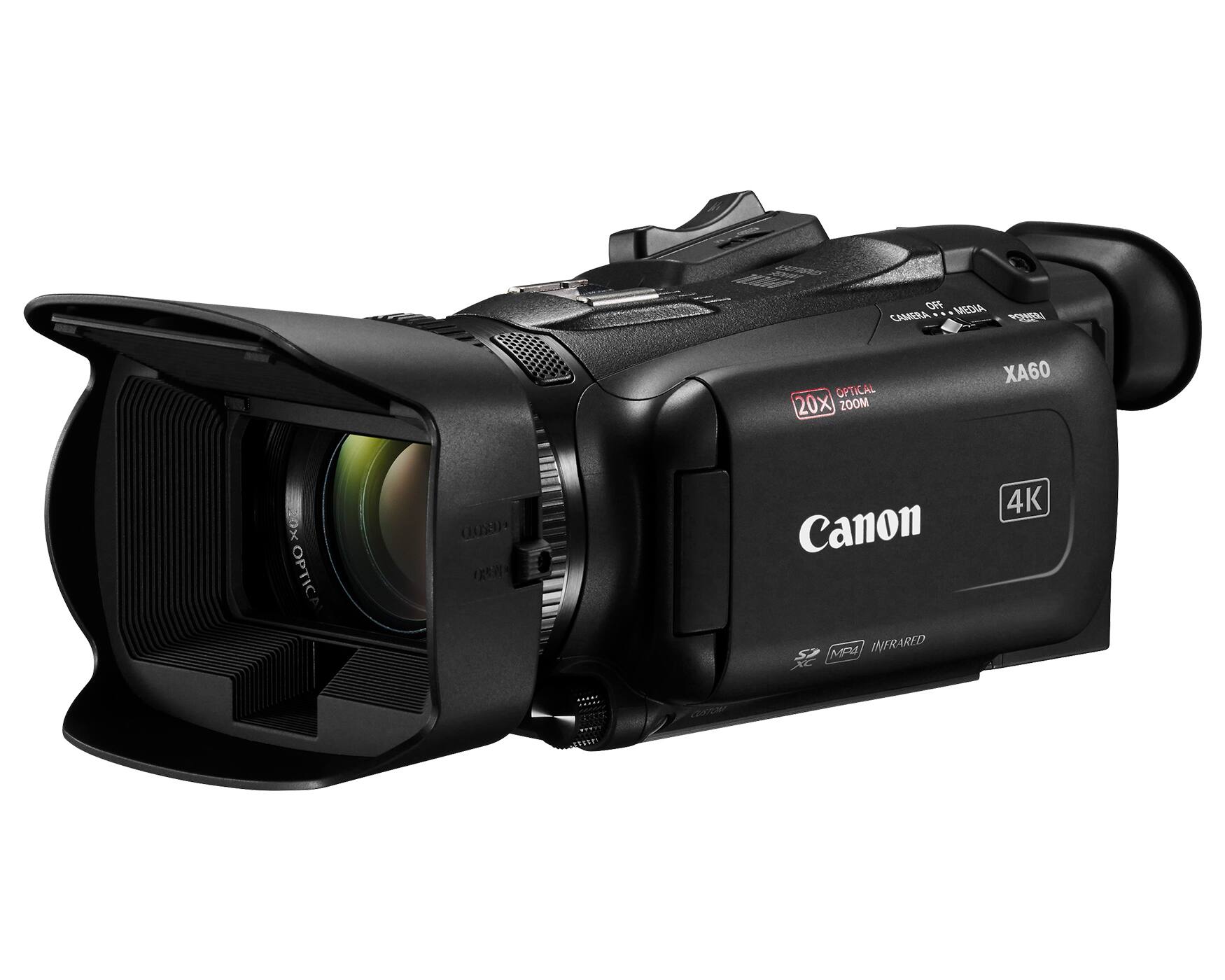

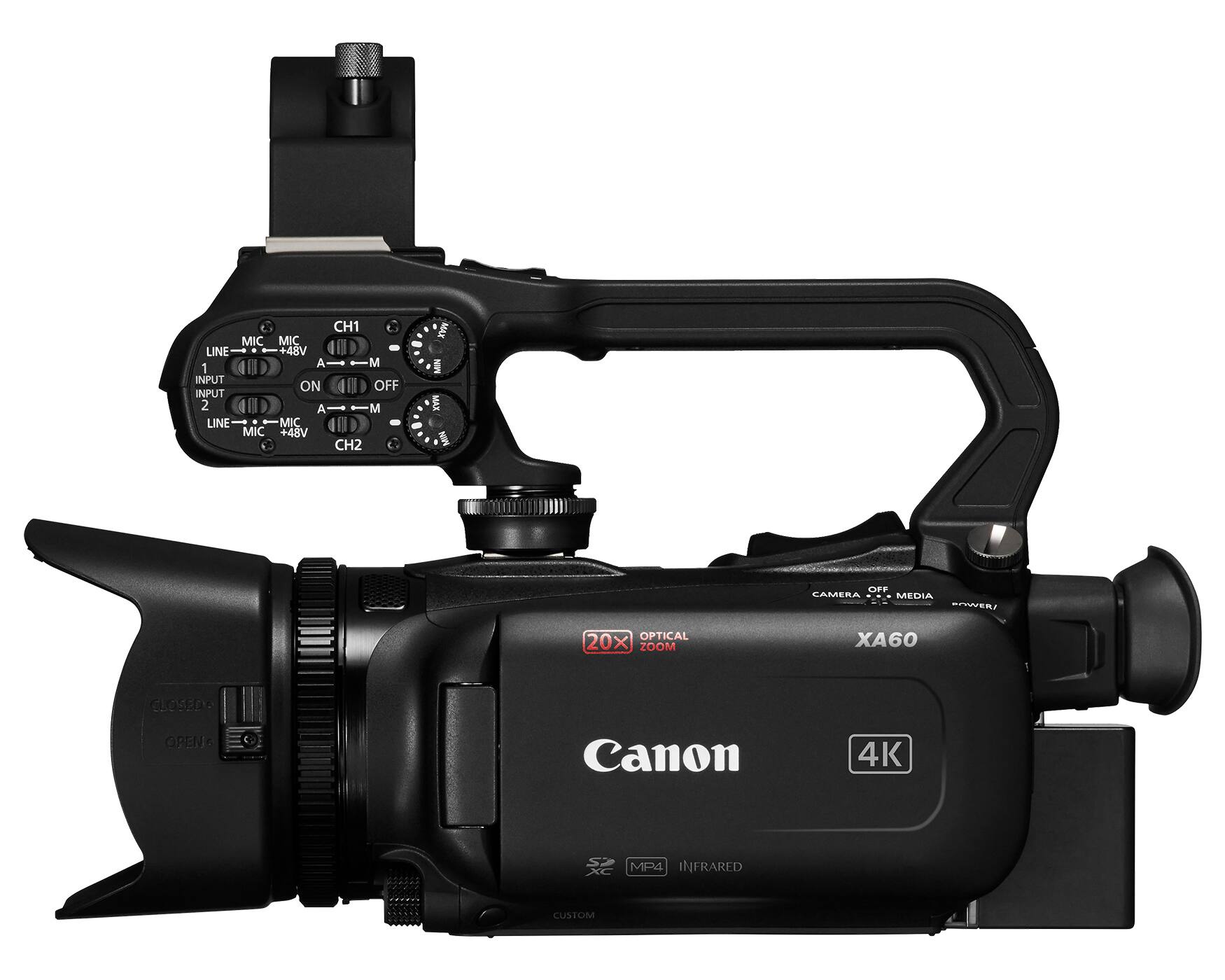

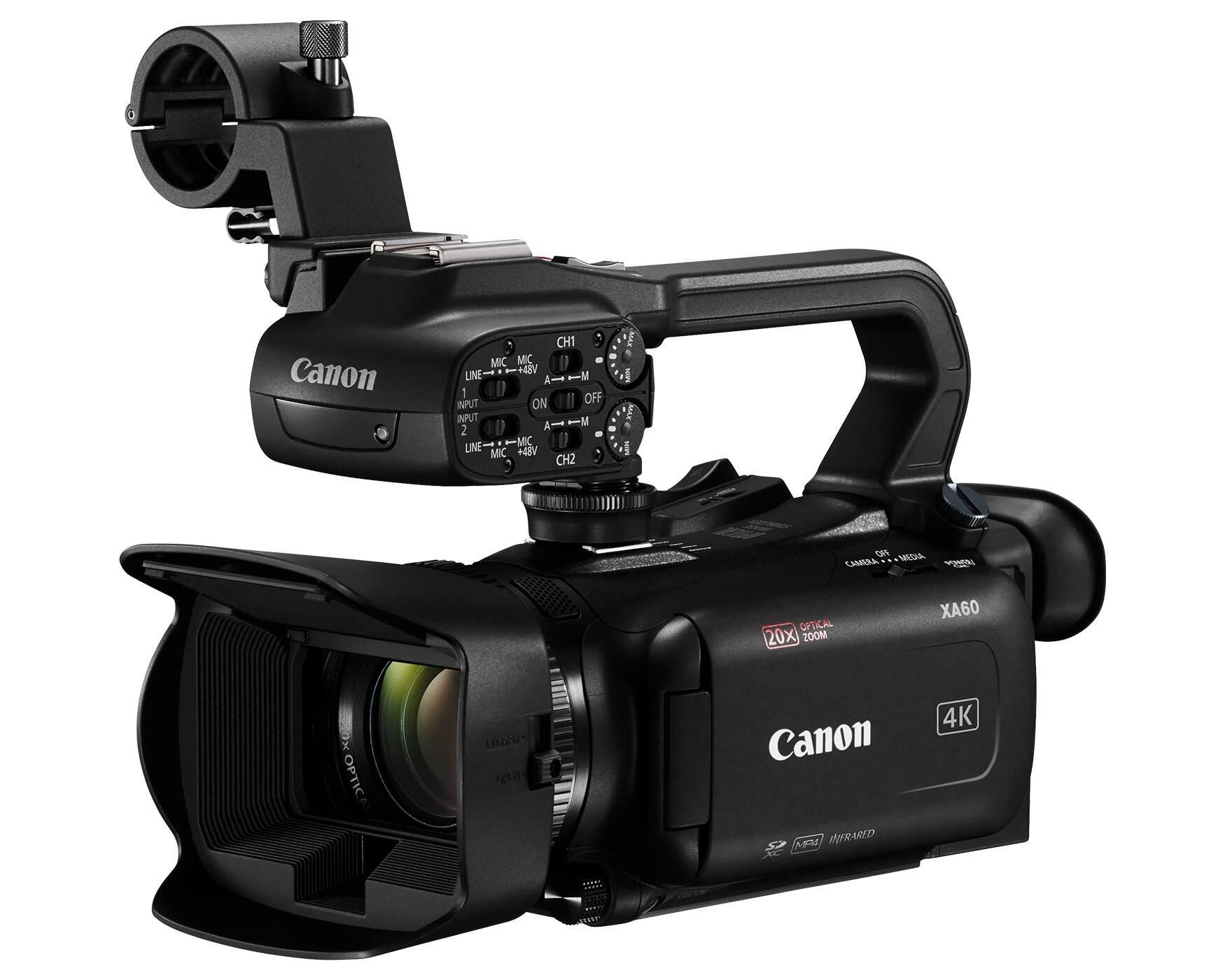

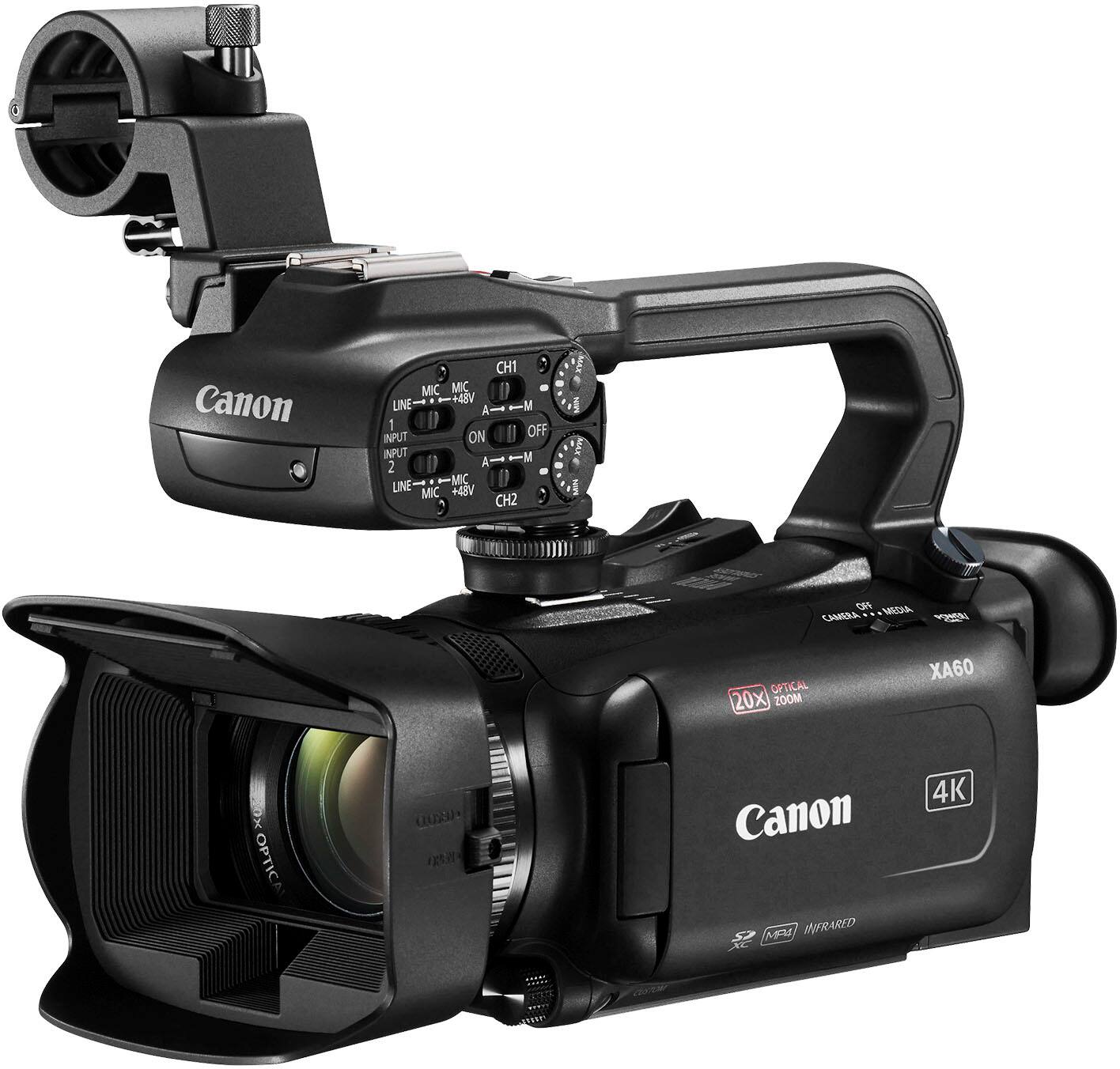

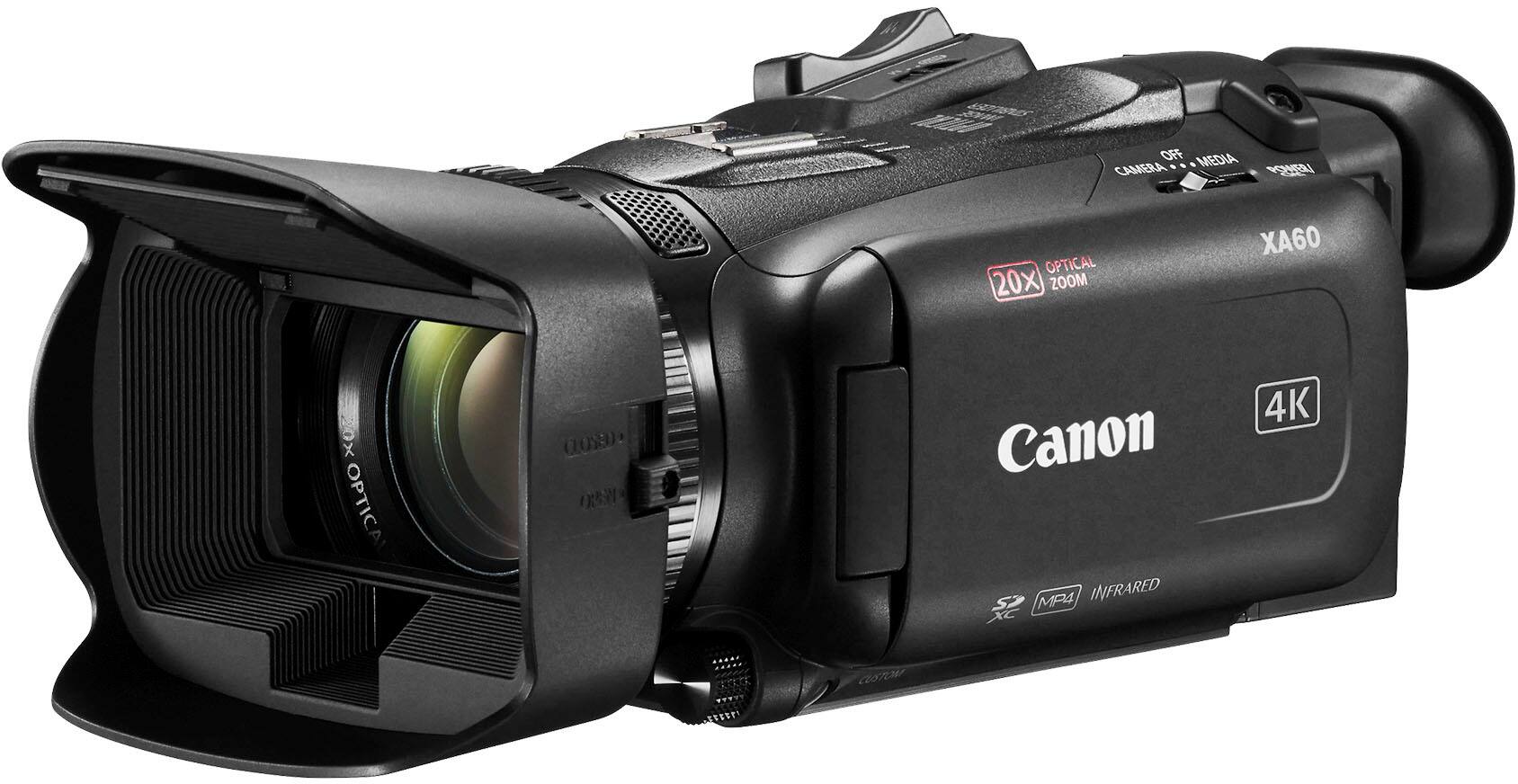

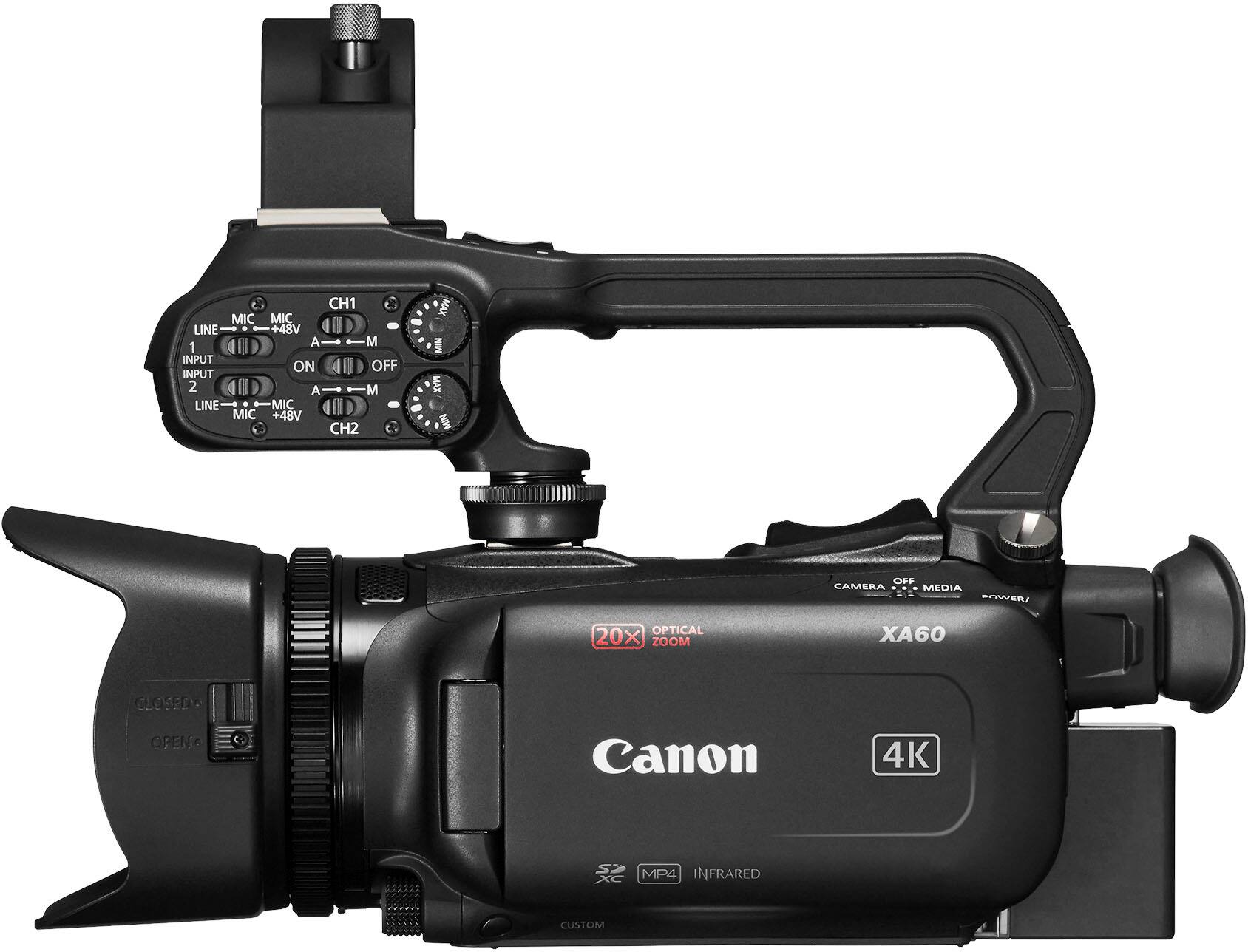

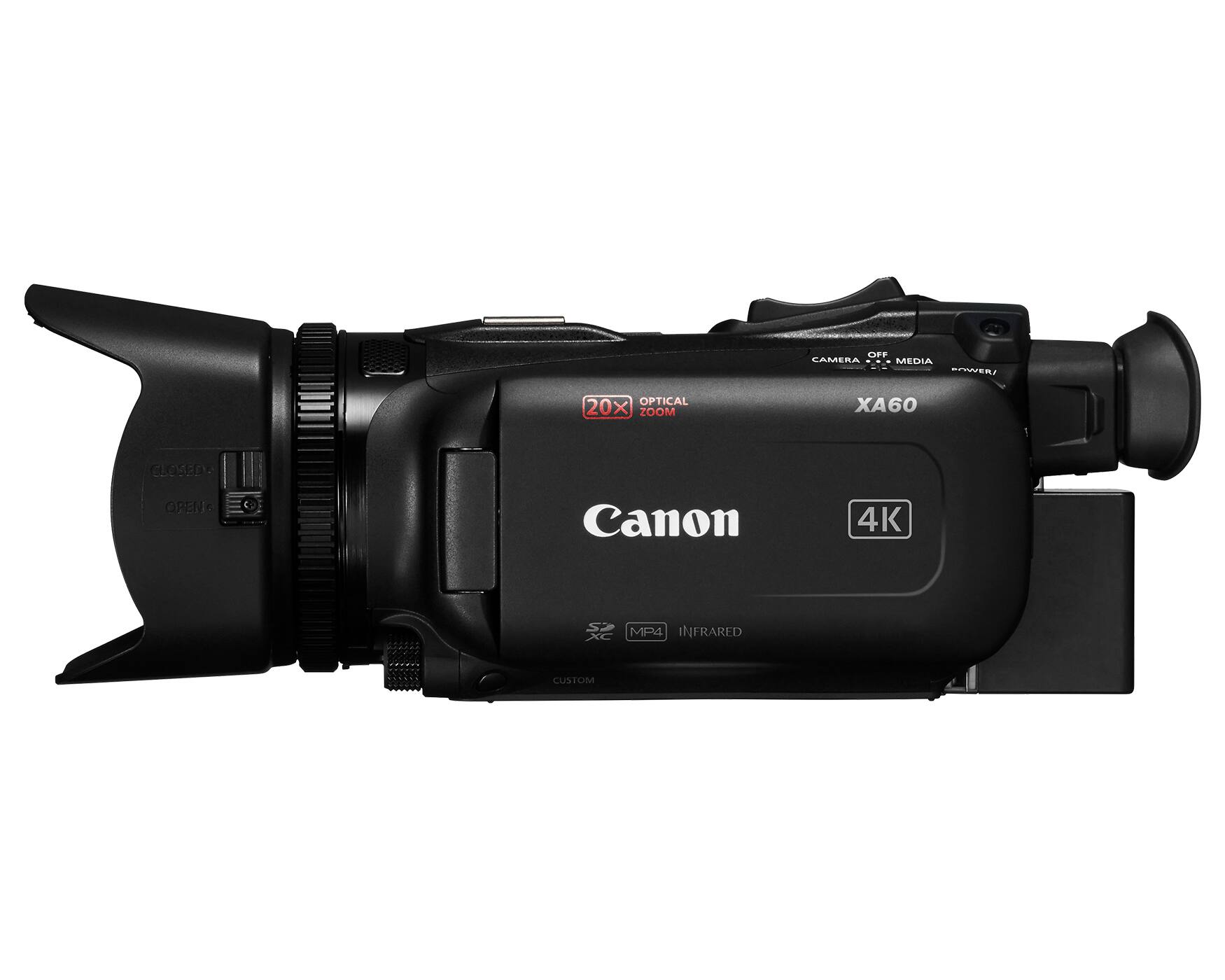

Canon - XA60 Professional Camcorder - Black
More Buying Options
Specifications
- Image Sensor Size1/2.3" (6.17 x 4.55mm)Effective Pixels8.29 megapixelsStandardized Video Resolution4K (2160p)
- Key Specs
- Image Sensor Size: 1/2.3" (6.17 x 4.55mm)
- Effective Pixels: 8.29 megapixels (The actual number of pixels which make up the viewable image.)
- Standardized Video Resolution: 4K (2160p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- General
- Brand: Canon
- Model Number: 5733C002
- Product Name: XA60 Professional Camcorder
- Color: Black
- Imaging
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Image Sensor Size: 1/2.3" (6.17 x 4.55mm)
- Image Resolution (Display): 3840 x 2160 (Refers to the number of pixels, both horizontally and vertically, used to either capture an image or display it. The higher the resolution the finer the image details.)
- Digital Zoom: 800x (A digital zoom is accomplished electronically, with no adjustment of the camera's optics, and no optical resolution gained in the process. The existing data is not enhanced or added to, merely displayed at a lower resolution, thereby giving an illusion of an enlarged image.)
- Optical Zoom: 20x (The optical zoom uses a combination of lenses that magnify the image prior to it being registered at high resolution by the imaging sensor.)
- Image Stabilization: Hybrid (This feature helps reduce image/video blur or distortion that may occur from unsteady motion.)
- Low Light/High Sensitivity: true (High sensitivity digital imaging devices are designed to work in low light conditions to produce a high dynamic range image.)
- Focus
- Auto/Manual Focus: Automatic, Manual
- Focus Modes: Automatic/manual
- Exposure Control
- Minimum Aperture: f/8 (The smallest opening of a lens, typically expressed in f-numbers. The larger the number, the smaller the aperture and the less light that can enter the lens. A smaller aperture creates a larger depth of field, which keeps both foreground and background in focus.)
- Maximum Aperture: f/1.8 (The limit to how wide a lens can be open, typically expressed in f-numbers. The smaller the number, the larger the aperture and the more light that can enter the lens. A larger aperture creates a shallower depth of field, helpful for keeping subjects in focus and blurring background details.)
- Maximum Focal Length: 73.4 millimeters (The maximum distance between the lens and the image sensor that allows the subject to be in focus. The greater the focal length, the smaller the area of scene captured.)
- White Balance Modes: 2000 to 15,000K (Settings that calibrates how the color white is rendered in an image/video, reducing the appearance of unnatural contrasts caused by various light sources.)
- Effective Pixels: 8.29 megapixels (The actual number of pixels which make up the viewable image.)
- Lens
- Minimum Focal Length: 3.6 millimeters (The minimum distance between the lens and the image sensor that allows the subject to be in focus. The shorter the focal length, the greater the area of scene captured.)
- Display
- Display Type: LCD
- Screen Size: 3.5 inches (Size of the screen, measured diagonally from corner to corner.)
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Varying Angle Screen: true (The camera's screen can be flipped out and adjusted to rotate, tilt, and/or swivel.)
- Video
- Standardized Video Resolution: 4K (2160p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- Video Resolution(s) and Frame Rate(s): H.264/MP4/XF-AVC 3840 x 2160 at 23.98/24.00/29.97 fps [150 Mb/s]; 1920 x 1080p at 23.98/24.00/29.97/59.94 fps [17 to 35 Mb/s]; 1280 x 720 at 59.94 fps [8 Mb/s] (Refers to the number of pixels, both horizontally and vertically, and the frame rate used to capture the video. The higher the resolution the finer the video detail that can be seen. The faster the frame rate the smoother the playback for higher motion activities like sports.)
- Maximum Video Frame Rate: Up to 60 fps (The maximum frequency at which consecutive images can be captured by a video recording device.)
- Slow Motion Recording: true
- Video Encoding Formats: MP4, XF-AVC (The process of preparing the video for output, where the digital video is encoded to meet proper formats and specifications for recording and playback with the use of a compatible device.)
- Storage
- Number of Memory Card Slots: 2
- Compatibility
- Tripod/Monopod Mountable: true (A support function that allows the device to be mounted to monopods and tripods for leveling and stability.)
- Socket Size: 1/4 in.
- Memory Card Compatibility: Secure Digital Extended Capacity (SDXC), Secure Digital, Secure Digital High Capacity (SDHC) (The type of memory card(s) recommended for use with the product.)
- Features
- Face Detection: true (A function that automatically detects human faces and then sets focus and appropriate exposure to capture them.)
- Action Camera: false
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Output(s): Mini HDMI, USB-C, 3.5mm audio, XLR
- Microphone Type: Built-in (stereo)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Number of USB Port(s): 2
- Charging Interface(s): USB-C (The connection for transmitting power to charge the device.)
- Power
- Rechargeable Battery: true
- AC Adapter Compatible: true (The device is able to be charged using an external power adapter which meets input and output voltages specified by the manufacturer.)
- Removable Battery: true
- Battery Model: Battery Pack BP-820 (The model number of the battery necessary for operation of the device.)
- Battery Size: Battery pack (The battery size required for operation.)
- Performance
- Minimum Operating Temperature: 32 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 72 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Included
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- AC Adapter Included: true (An external power adapter is included for operation.)
- Memory Card Included: false (Indicates whether a memory card is included.)
- Remote Control Included: false
- Dimensions
- Product Height: 3.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.63 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 013803350104
Shoot, record, document, stream. Shoot high quality 4K UHD video with the compact XA60. The camera delivers outstanding oversampled HD, advanced autofocus, a Canon 20x optical zoom lens, HD livestreaming with UVC1 via a USB-C connection to a PC or Mac and can capture footage for recording or sharing later in either XF-AVC or MP4 formats.
- Compact professional 4K UHD camcorder: Capture stunning 4K UHD and Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.
- 4K 20x optical zoom lens: The Canon lens covers a 29.3mm wide angle (35mm equivalent) with a powerful 612mm reach. Digital zoom boosts the 20x optical zoom to 800x magnification. To minimize camera shake, the camera provides Canon’s Dynamic IS 5-axis image stabilization.
- On-Screen Display (OSD) “Time Stamp” Recording: New to XA-Series cameras, the OSD recording embeds date, time, timecode, and other data into your original camera files effectively “time stamping” the information into each frame of video, a requirement for legal and law enforcement videographers.
- UVC Livestreaming: Stream HD video directly from the camera via UVC 1 to a PC or Mac computer.
- Professional audio controls: Two XLR terminals on a detachable handle plus 4-channel linear PCM bring a suite of pro audio options.
- Fast, precise focusing with face detection: Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the ultra-bright 3.5-inch LCD display to set focus by touching the AF point required.
- XF-AVC and MP4 for flexible recording: Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P.
- Professional input and output: Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in Full 5x HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.
- Compact professional 4K UHD camcorder: Capture stunning 4K UHD and Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.
- 4K 20x optical zoom lens: The Canon lens covers a 29.3mm wide angle (35mm equivalent) with a powerful 612mm reach. Digital zoom boosts the 20x optical zoom to 800x magnification. To minimize camera shake, the camera provides Canon’s Dynamic IS 5-axis image stabilization.
- On-Screen Display (OSD) “Time Stamp” Recording: New to XA-Series cameras, the OSD recording embeds date, time, timecode, and other data into your original camera files effectively “time stamping” the information into each frame of video, a requirement for legal and law enforcement videographers.
- UVC Livestreaming: Stream HD video directly from the camera via UVC 1 to a PC or Mac computer.
- Professional audio controls: Two XLR terminals on a detachable handle plus 4-channel linear PCM bring a suite of pro audio options.
- Fast, precise focusing with face detection: Adjustable focusing speeds and advanced Dual Pixel CMOS AF give fast and precise focusing. Use the ultra-bright 3.5-inch LCD display to set focus by touching the AF point required.
- XF-AVC and MP4 for flexible recording: Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P.
- Professional input and output: Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in Full 5x HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.
Whats Included
- XA60 Body
- Lens Cap
- Lens Hood with Lens Barrier
- Microphone Holder Unit
- Handle Unit
- USB Power Adapter PD-E1
- AC Cable
- Battery Pack BP-820
- XA60 Body
- Lens Cap
- Lens Hood with Lens Barrier
- Microphone Holder Unit
- Handle Unit
- USB Power Adapter PD-E1
- AC Cable
- Battery Pack BP-820
Product Manuals
A: I hope someone answered you by now, but the setting is in the camera. You have to extend the display to HDMI it is a setting/configuration. Canon has it defaulted to off.
A: no it is only the camera. the microphone on the camera is just behind the lens. on the best buy photo you can sort of see a white line on the top and a bunch of holes, that's the only microphone that comes with it.
