Cerwin Vega - B52 Stealth Bomber 2-Channel Class-D Full Range Amplifier Full PWM - Black
Specifications
- Amplifier ClassDNumber Of Channels2Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 2
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Cerwin Vega
- Model Number: B52
- Product Name: Cerwin Vega -B52 Stealth Bomber 2-Channel Class-D Full Range Amplifier Full PWM
- Color: Black
- Audio Power
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 2
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Dimensions
- Product Height: 1.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 847169024245
The Stealth Bomber Series Amplifiers embody the perfect fusion of sleek design and unmatched power, making them a cornerstone of the Cerwin-Vega Mobile lineup. Designed for seamless integration, these ultra-compact amplifiers are proof that big sound can come in small packages.The Stealth Bomber Series Amplifiers pack monstrous power into a compact design, making them the ideal choice for enthusiasts seeking an efficient, space-saving solution without compromising performance. Perfect for tight installations, these amps are engineered to deliver clean, distortion-free sound with explosive bass and dynamic clarity.With Cerwin-Vega Mobile’s legacy of innovation and expertise, the Stealth Bomber Series is your ultimate audio companion for maximum impact in any vehicle.Unleash the power.Command the clarity. Take your sound system to new heights with the Stealth Bomber Series.
- High-Tech Innovation Meets Raw Power: Updated High-Efficiency Full-Range Digital Topology: Delivers unparalleled sound clarity with maximum energy efficiency. Class D IR Chipset with Direct-FET Power MOSFET Output: Ensures precision and performance for every beat.
- Built for Durability and Precision: Ultra-Compact High-Density Aluminum Alloy Chassis: Offers robust protection and optimal heat dissipation in a sleek form factor. Advanced Rollback Power/Thermal Protection: Keeps your system running at peak performance, even under the most demanding conditions.
- Versatility at Your Fingertips: Switchable 12dB HP/FLAT/LP Crossovers: Tailor your audio experience with precise control over high-pass, low-pass, or flat outputs. VEGA Bass Boost: Elevate your low-end frequencies with a dynamic bass enhancement feature. Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with a variety of systems for effortless operation.
- POWER RATING: RMS Power (2Ω): 250W x 2 RMS Power (4Ω): 150W x 2 RMS Power Bridged 4Ω: 500W x 1 POWER SUPPLY Power Supply: Full PWM Power Supply Threshold: 10.0V-17.0V (DC) Idle Current: (0.7A) DISTORTION THD 4 (1KHz @4Ω): 0.05% S/N Ratio (A weighted @1W): -85 dBA S/N Ratio (A weighted @FP): -101.1 dBA

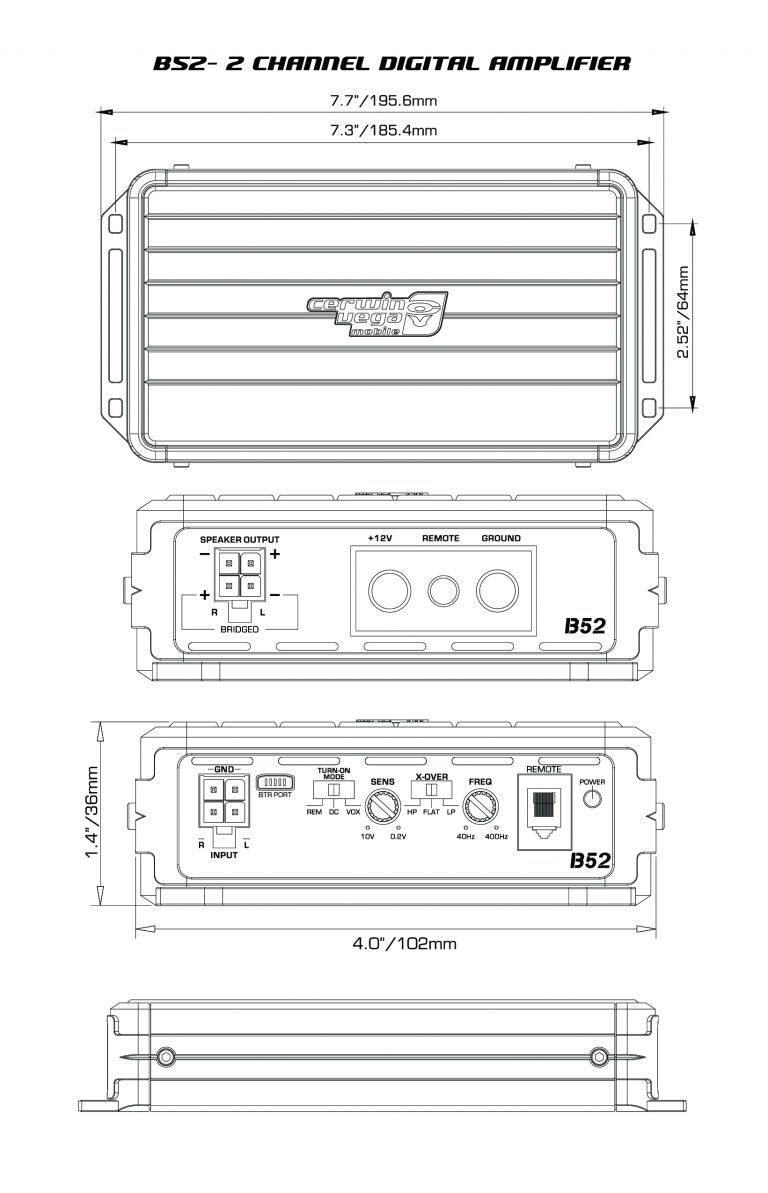

- INPUT SENSITIVITY: Low Input Level: 200mV-10.0V High Input Level: 200mV-10.0V INPUT IMPEDANCE Low Input Level: 20 KΩ High Input Level: 20 KΩ OUTPUT STAGE Output Impedance: 0.011Ω Damping Factor (50Hz @ 4Ω): >250 Bandwidth (-3dB): 10Hz-35KHz CROSSOVER (-12/-24 dB/Oct) Variable High-Pass: Variable Low-Pass: 40Hz-400Hz Variable Sub-Sonic: 10Hz-55Hz FUSE RATINGS ATC: 25A DIMENSIONS L x W x H: 7.7”x 4.02”x 1.4” (195.6mm x 102mm x 36mm)
Whats Included
- amp
Compare similar products
The Stealth Bomber Series Amplifiers embody the perfect fusion of sleek design and unmatched power, making them a cornerstone of the Cerwin-Vega Mobile lineup. Designed for seamless integration, these ultra-compact amplifiers are proof that big sound can come in small packages.The Stealth Bomber Series Amplifiers pack monstrous power into a compact design, making them the ideal choice for enthusiasts seeking an efficient, space-saving solution without compromising performance. Perfect for tight installations, these amps are engineered to deliver clean, distortion-free sound with explosive bass and dynamic clarity.With Cerwin-Vega Mobile’s legacy of innovation and expertise, the Stealth Bomber Series is your ultimate audio companion for maximum impact in any vehicle.Unleash the power.Command the clarity. Take your sound system to new heights with the Stealth Bomber Series.
Listen to your favorite Hi-Res music and podcasts with this Alpine four-channel amplifier. The Next-Generation R-Series Amplifiers are Hi-Res Audio Certified and able to reproduce up to 45kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy. The R2-A60F features a reduced footprint that’s 15% smaller than the previous model (R-A60F), making it easier than ever to install in most vehicle applications while still getting the same powerhouse performance.
The Pioneer GM-DX874 four-channel amplifier will deliver up to 150 watts RMS to each of your front and rear speakers for powerful music. Highly efficient Class D technology keeps this powerful amp running as cool as it looks, and allows for a compact chassis that fits in a lot of out of the way spaces. The frequency response of this amplifier stretches up to 50,000 Hz, for Hi-Res Audio Certified playback. Pioneer uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance. Speaker-level inputs allow you to install this amp in a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, whether you're driving speakers or subs.

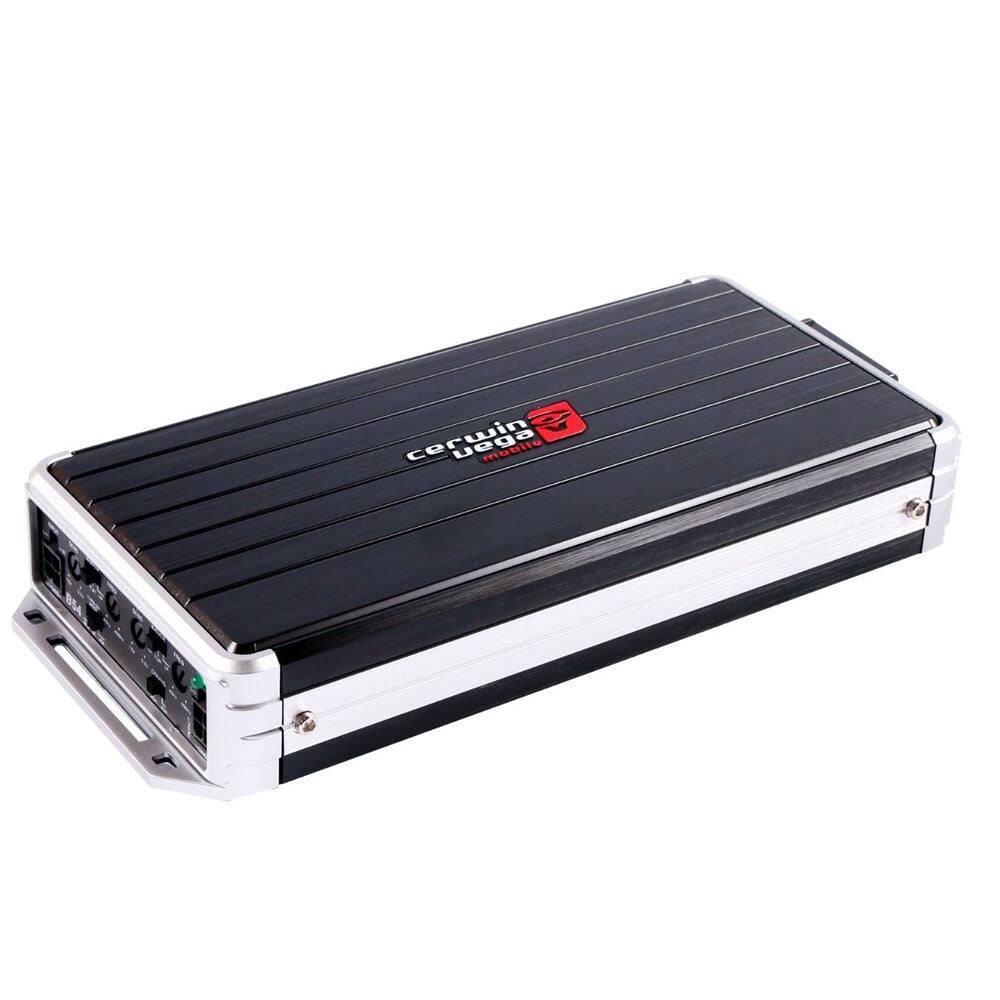

The Cerwin-Vega XED Series Amplifiers are your ticket to high-performance car audio with power, precision, and reliability. Designed with Xtreme Energy Design, these amplifiers are engineered to take your sound system to the next level, delivering exceptional power and efficiency for every beat.The XED Series Amplifiers are built for those who crave deep bass, crisp highs, and seamless mids. With their cutting-edge technology and meticulous craftsmanship, they deliver the power and clarity needed to make every drive an immersive audio experience.Unleash the full potential of your car audio system with Cerwin-Vega XED Series Amplifiers—where Xtreme Energy meets extreme performance.
