Cerwin Vega - Cerwin-Vega H6TE12SV HED Series 12" Powered Subwoofer Vented Enclosure - Black/Gray
More Buying Options
- General
- Brand: Cerwin Vega
- Model Number: H6TE12SV
- Product Name: Cerwin-Vega H6TE12SV HED Series 12" Powered Subwoofer Vented Enclosure
- Color: Black/Gray
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- Box Covering Material: Carpet
- Box Material: MDF
- Number Of Speakers Held: 1
- Product Width: 8.000 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 18.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Depth: 14.000 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.0 pounds (The out of box weight of the item.)
- Enclosure Type: Vented
- UPC: 847169030369

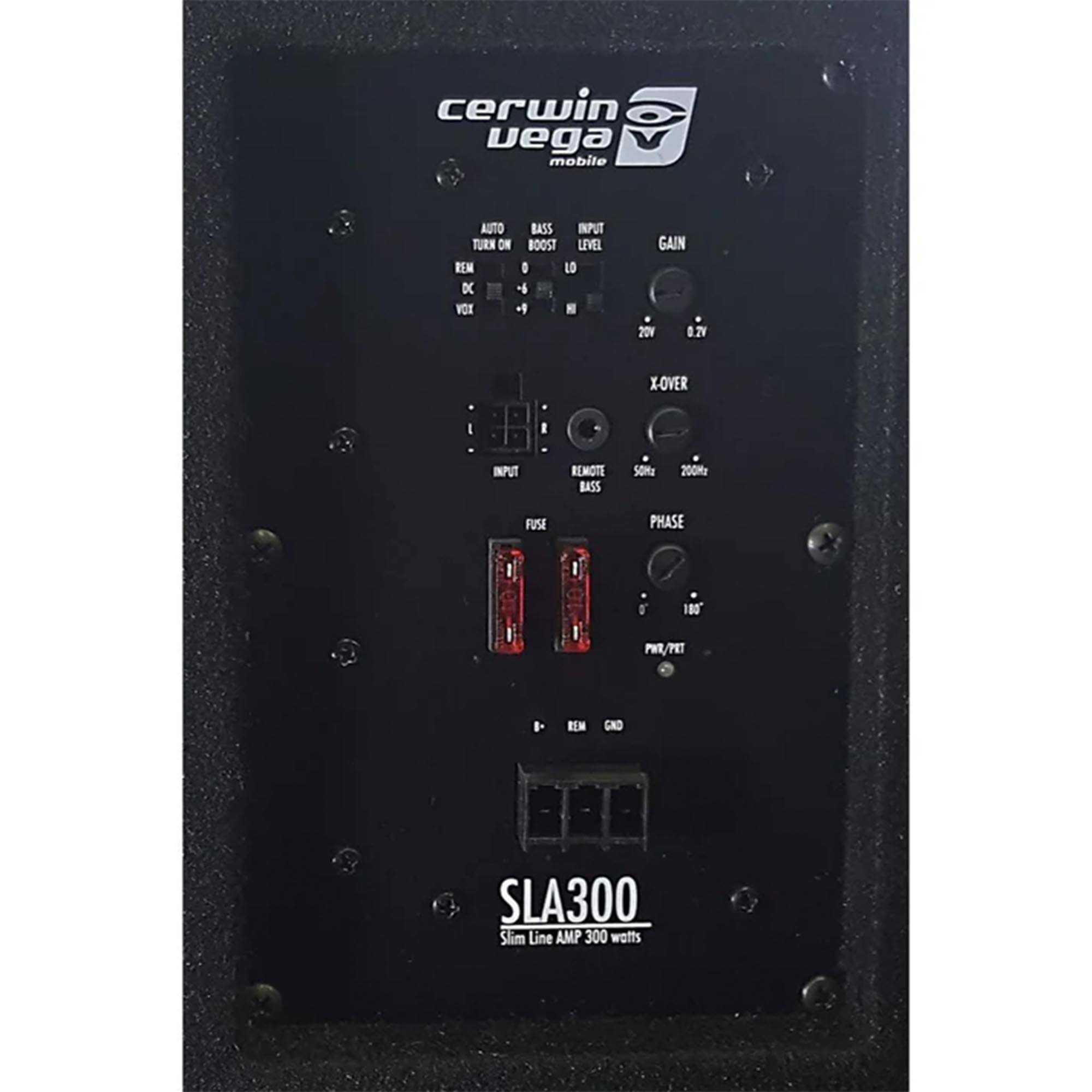

Description: The HED POWERED ACTIVE SLIM LINE ENCLOSURES blend modern aesthetics with optimal bass performance in a package suited for all vehicle applications. A favorite of the pick-up truck and sport utility vehicle crowd, these powered active slim line enclosures provide tremendous value for its performance. Specifications 12" Vented Subwoofer Enclosure with Built-In Amplifier Power Handling: 150W RMS/300W MAX THD: <0.4% Signal To Noise Ratio: >90dB Frequency Response: 30Hz-150Hz Input Sensitivity (Hi/Lo): 0.2V-20V Low Pass Filter: 85Hz-150HZ Bass Boost: 0dB-12bB Subsonic Filter: 30Hz Fuse Rating: 25A Impedance: 2Ω Dimensions (LxWxH): 30"x7.7"x16" (762mm x 195mm x 406.4mm) FEATURES POWER STATUS LED: This bi-color LED glows green when power is on and no problems are present. If one of the protection circuits comes on, it will change to red. AUTO TURN ON: The AUTO TURN ON circuit is for high level (speaker-level) connections. When the switch is in the “REM” position, you MUST use a solid 12 volts to switch on. If you have no hard switched 12 volts (like the ignition key or an aftermarket radio switch 12V output) then use either the VOX (signal sensing) or DC offset (looks at the difference between power and signal ground). VARIABLE PHASE: 0-180 degrees of adjustment to help compensate for time alignment problems in the system. Such problems usually result from having the subwoofer at a different distance from the listener than the other speakers in the system. This will effectively “move” the sound of the subwoofer forward in the vehicle. This takes 2 people to adjust.
- Key Feature: POWER STATUS LED: Bi-color LED glows green when power is on, and red if one of the protection circuits comes on
- Key Feature: AUTO TURN ON: For high level (speaker-level) connections.
- Key Feature: VARIABLE PHASE: 0-180 degrees of adjustment to help compensate for time alignment problems in the system.
- Key Feature: Power Handling: 150W RMS/300W MAX
- Key Feature: Frequency Response: 30Hz-150Hz
- Key Feature: POWER STATUS LED: Bi-color LED glows green when power is on, and red if one of the protection circuits comes on
- Key Feature: AUTO TURN ON: For high level (speaker-level) connections.
- Key Feature: VARIABLE PHASE: 0-180 degrees of adjustment to help compensate for time alignment problems in the system.
- Key Feature: Power Handling: 150W RMS/300W MAX
- Key Feature: Frequency Response: 30Hz-150Hz
Whats Included
- Cerwin-Vega H6TE12SV HED Series 12" Powered Subwoofer Vented Enclosure
- Cerwin-Vega H6TE12SV HED Series 12" Powered Subwoofer Vented Enclosure
Compare similar products
Description: The HED POWERED ACTIVE SLIM LINE ENCLOSURES blend modern aesthetics with optimal bass performance in a package suited for all vehicle applications. A favorite of the pick-up truck and sport utility vehicle crowd, these powered active slim line enclosures provide tremendous value for its performance. Specifications 12" Vented Subwoofer Enclosure with Built-In Amplifier Power Handling: 150W RMS/300W MAX THD: 90dB Frequency Response: 30Hz-150Hz Input Sensitivity (Hi/Lo): 0.2V-20V Low Pass Filter: 85Hz-150HZ Bass Boost: 0dB-12bB Subsonic Filter: 30Hz Fuse Rating: 25A Impedance: 2Ω Dimensions (LxWxH): 30"x7.7"x16" (762mm x 195mm x 406.4mm) FEATURES POWER STATUS LED: This bi-color LED glows green when power is on and no problems are present. If one of the protection circuits comes on, it will change to red. AUTO TURN ON: The AUTO TURN ON circuit is for high level (speaker-level) connections. When the switch is in the “REM” position, you MUST use a solid 12 volts to switch on. If you have no hard switched 12 volts (like the ignition key or an aftermarket radio switch 12V output) then use either the VOX (signal sensing) or DC offset (looks at the difference between power and signal ground). VARIABLE PHASE: 0-180 degrees of adjustment to help compensate for time alignment problems in the system. Such problems usually result from having the subwoofer at a different distance from the listener than the other speakers in the system. This will effectively “move” the sound of the subwoofer forward in the vehicle. This takes 2 people to adjust.
The CompRT Down-Firing Subwoofer Enclosures come loaded with a passive reFLEX subwoofer and KICKER CompRT active subwoofers. The patented design of the TRTP was created in-house by KICKER engineers. The new benchmark in ultra-thin, pre-loaded enclosures, the TRTP’s unique shape and beefy construction are the perfect combination of convenience and reliability. Place the TRTP under your truck seat or cargo area for great bass – no grille needed! Covered in stylish black carpeting and built with thick MDF, these tough enclosures take serious power without taking up needed space. Heat is the enemy of endurance. To make our subs even more reliable, KICKER engineers developed Forced-Air Cooling to help our CompRT subs run 25 percent cooler. RoHS Compliant.
When Kicker created the original Hideaway compact HS8 powered sub, they wanted to make a subwoofer that could fit almost anywhere and still deliver the performance that made Kicker famous. The HS10 sub adds the extra punch of a 10" speaker and a built-in 180-watt amplifier to give you really impressive bass response from a sub that will still fit almost anywhere. With a Kicker 10" woofer, you can expect serious low end, and you can install the HS10 under most seats to bring the bass right up close. The tough all-aluminum chassis and stylish metal grille protect the speaker and deliver great sound. High- and low-level inputs give you plenty of options for hooking up your sub, and the HS10 can accept input signals from 0.25 to 40 volts so it works with almost any vehicle without adding a line output converter.The Hideaway includes an adjustable low-pass crossover, a subsonic filter to improve efficiency, a phase switch, and a variable +6 dB bass boost adjustable with the included remote control bass knob. The HS10 also offers two auto turn-on options. The package includes a wiring harness for power, signal and remote turn-on connections with a quick-connect Molex plug to make installation simple.
The PTRTP 12 inch powered sub combines an active, award-winning CompRT subwoofer, a passive reFLEX sub, and a power-matched, built-in amplifier for an efficient, pounding bass solution for your ride.
| Pros for Cerwin Vega - Cerwin-Vega H6TE12SV HED Series 12" Powered Subwoofer Vented Enclosure - Black/Gray | |||
|---|---|---|---|
| There were no pros for this product— | Sound Quality, Bass, Size, Design, Price | Sound Quality, Bass, Size, Installation Ease | Sound Quality |
| Cons for Cerwin Vega - Cerwin-Vega H6TE12SV HED Series 12" Powered Subwoofer Vented Enclosure - Black/Gray | |||
| There were no cons for this product— | Durability, Power Handling | There were no cons for this product— | There were no cons for this product— |
