Cerwin Vega - -SRPM1100.5D SRPM Stroker 5-Channel Full Range Class-D Amplifier
FREE shipping to
Related Item
Specifications
- Amplifier ClassDNumber Of Channels5Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Cerwin Vega
- Model Number: SRPM1100.5D
- Product Name: Cerwin Vega -SRPM1100.5D SRPM Stroker 5-Channel Full Range Class-D Amplifier
- Audio Power
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Dimensions
- Product Height: 1.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.01 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 YEAR
- Other
- UPC: 847169029172
SRPM1100.5D - SRPM Stroker 5-Channel Full Range Class-D Amplifier Cerwin-Vega RPM Stroker Series Amplifiers – Power Unleashed For those who crave precision, power, and innovation, the RPM Stroker Series Amplifiers deliver on all fronts. Engineered for superior performance, these amplifiers feature HUGE dynamic headroom to ensure they always sound more powerful than their rated specs, offering an audio experience that’s as bold as it is breathtaking. State-of-the-Art Technology High Efficiency Full Range Digital Topology: Maximum output with minimal energy loss for unmatched performance. Advanced Surface Mount Components: Engineered with 4-layer PCB technology for reliability and precision. Versatile and Compact Design Common Compact Size: Sleek, space-saving design with single-sided connections for a clean installation. Top-Mounted Controls: Easy access for fine-tuning your sound. Handles Hi and Lo-Level Input (up to 12V): Seamlessly integrates with any system. Flexible Features for Every Setup Switched Speaker Level Turn-On Options: Choose between VOX, DC Offset, or REM for tailored installation. Input Configuration Switch (4 & 5-Channel Models): Versatility to meet your specific needs. Fully Variable Crossovers: Customize your sound with 35Hz - 350Hz, 12dB per octave filters. Precision Bass Control Bass Remote with In-Dash Install Option: Take control of your bass right from the driver’s seat. Variable Phase Adjustment (Monobloc Models): Achieve perfect alignment and balance in your system. Unrivaled Performance in Every Note The RPM Stroker Series Amplifiers are the ultimate choice for enthusiasts who demand both innovation and intensity. Whether you’re pushing subwoofers to their limits or tuning for clarity and precision, these amplifiers deliver dynamic, distortion-free sound every time. Why Choose RPM Stroker? Unmatched Power and Dynamic Range: Feel every beat and note with commanding presence. Cutting-Edge Technology: Designed for efficiency, flexibility, and superior sound quality. Cerwin-Vega Legacy: Over 65 years of expertise delivering audio excellence. Amp Up Your Sound Transform your audio system with the power and precision of the Cerwin-Vega RPM Stroker Series Amplifiers. Built for performance, designed for flexibility, and engineered for greatness—these amps are ready to take your sound to the next level. Feel the power. Experience the clarity. Choose RPM Stroker.
- POWER RATING: Power @ 2Ω: 120W X 4/500W X 1. Power @ 4Ω: 100W X 4/300W X 1. Power Bridged @ 4Ω: 200W X 2/300W X 1. Power Supply – Full WPM. Power Supply Threshold: 10.0V-17.0V (DC). Idle Current: (0.7A)
- INPUT SENSITIVITY: THD 4 (1KHZ @4Ω): 0.03% S/N Ratio (A weighted @1W): 76.7dBA S/N Ratio (A weighted @FP): 96.7 dBA Input Sensitivity Low Level Input: 0.2mV-10.0V High Level Input: Up to 25W RMS.

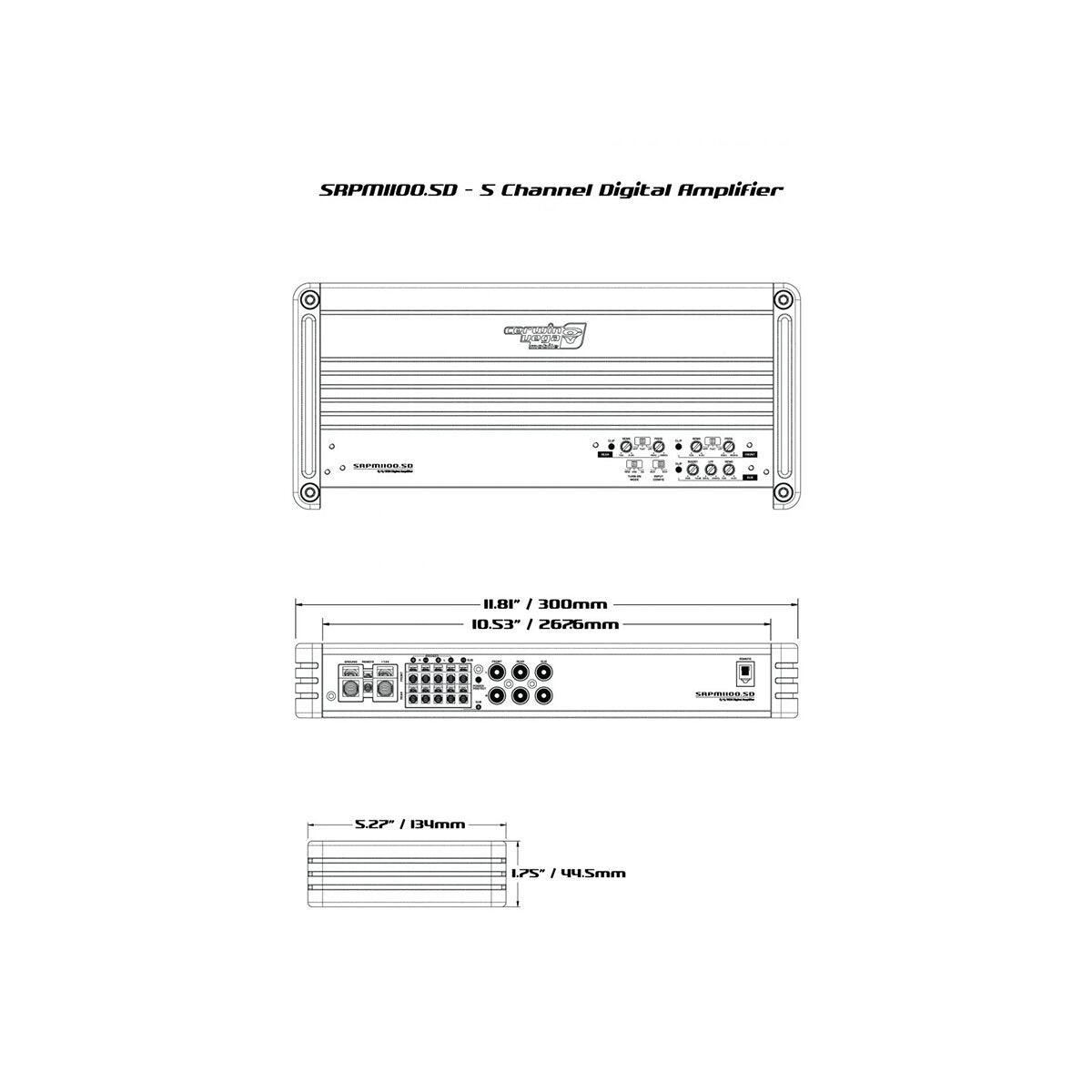

- CROSSOVERS: Output Impedance: 0.047Ω Damping Factor (50Hz@4Ω): >250 Bandwidth (-3db): 10Hz-350Hz Crossover (1-12dB/Oct) Variable High-Pass: Variable Low-Pass: 30Hz-300Hz Variable Sub-Sonic: 10Hz-55Hz Dimensions Length x Width x Height: 8.66”x5.28”x1.75” (220mm x 134mm x 44.5mm)
- FEATURES: Low Level Input: 22KΩ Output Stage Output Impedance: 0.051Ω Damping Factor (50Hz@4Ω): >70 Bandwidth (-3db): 10Hz-35Hz Crossover (1-12dB/Oct) Variable High-Pass: 40Hz-400Hz Variable Low-Pass: 30Hz-300Hz Dimensions: 10.25”x5.25”x1.75” Features: Selectable X-over Low Pass/Flat/High Pass, Turn On Mode REM/VOX/DC, 4CH/5CH Input, LED Power/Protect, Output Clipping Indicator, MFR #: SRPM1100.5D
- POWER RATING: Power @ 2Ω: 120W X 4/500W X 1. Power @ 4Ω: 100W X 4/300W X 1. Power Bridged @ 4Ω: 200W X 2/300W X 1. Power Supply – Full WPM. Power Supply Threshold: 10.0V-17.0V (DC). Idle Current: (0.7A)
- INPUT SENSITIVITY: THD 4 (1KHZ @4Ω): 0.03% S/N Ratio (A weighted @1W): 76.7dBA S/N Ratio (A weighted @FP): 96.7 dBA Input Sensitivity Low Level Input: 0.2mV-10.0V High Level Input: Up to 25W RMS.
- CROSSOVERS: Output Impedance: 0.047Ω Damping Factor (50Hz@4Ω): >250 Bandwidth (-3db): 10Hz-350Hz Crossover (1-12dB/Oct) Variable High-Pass: Variable Low-Pass: 30Hz-300Hz Variable Sub-Sonic: 10Hz-55Hz Dimensions Length x Width x Height: 8.66”x5.28”x1.75” (220mm x 134mm x 44.5mm)
- FEATURES: Low Level Input: 22KΩ Output Stage Output Impedance: 0.051Ω Damping Factor (50Hz@4Ω): >70 Bandwidth (-3db): 10Hz-35Hz Crossover (1-12dB/Oct) Variable High-Pass: 40Hz-400Hz Variable Low-Pass: 30Hz-300Hz Dimensions: 10.25”x5.25”x1.75” Features: Selectable X-over Low Pass/Flat/High Pass, Turn On Mode REM/VOX/DC, 4CH/5CH Input, LED Power/Protect, Output Clipping Indicator, MFR #: SRPM1100.5D
Whats Included
- AMP
- AMP
