NVX - XCA2004 1400W RMS XC-Series Competition Class-D 4-Channel (Made in Korea)
NVX - XCA2004 1400W RMS XC-Series Competition Class-D 4-Channel (Made in Korea)
Specifications
- Amplifier ClassDNumber Of Channels4Bass BoostNone
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: NVX
- Model Number: xca2004
- Product Name: XCA2004 1400W RMS XC-Series Competition Class-D 4-Channel (Made in Korea)
- Audio Power
- Total Power Handling RMS: 1400 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Total Harmonic Distortion: 0.1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 95 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Remote Control Included: No
- Marine: false
- Dimensions
- Product Height: 2.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.69 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.38 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 15 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 810021846767
NVX XCA2004 – 1400W RMS XC-Series Competition-Class 4-Channel Amplifier. Take full control of your mids and highs with the NVX XCA2004 — a Korean-engineered, competition-class Class-D amplifier delivering a total of 1400 watts RMS across four channels. Designed in the USA and built for maximum performance, this amp is ideal for audiophiles and competitors looking to achieve loud, clean, and precise sound. At 4 ohms, the XCA2004 produces 200W RMS x 4, while 2-ohm setups unlock 350W x 4. For even more power, bridge it to deliver 700W x 2 at 4 ohms—perfect for a pair of powerful components or dedicated subwoofers. The Class-D topology ensures cool and efficient operation even under heavy load. This amplifier features independent high-pass and low-pass crossovers with x1/x10 multipliers, allowing for incredible versatility. Whether you're tuning for tweeters, mid-bass drivers, or full-range speakers, the bandpass capability ensures precise frequency targeting across all applications.Engineered with Tiffany-style RCA inputs and outputs, a MOSFET power supply, and 4-way protection circuitry, the XCA2004 delivers both high-end sound quality and bulletproof reliability. With an impressive >95 dB signal-to-noise ratio, this amp ensures clean, distortion-free playback at all volumes.If you’re upgrading to a true competition-class amplifier that offers exceptional control, clarity, and power in a compact design, the NVX XCA2004 is your ultimate solution.
- Elite Power & Efficiency: 1400W RMS 4-Channel Power – Delivers 200W x 4 @ 4 ohms, 350W x 4 @ 2 ohms, or 700W x 2 bridged at 4 ohms—ideal for mids, highs, or full-range setups
- Competition-Grade Class-D Efficiency: Designed in the USA and made in Korea for reliable high-output performance with minimal heat generation

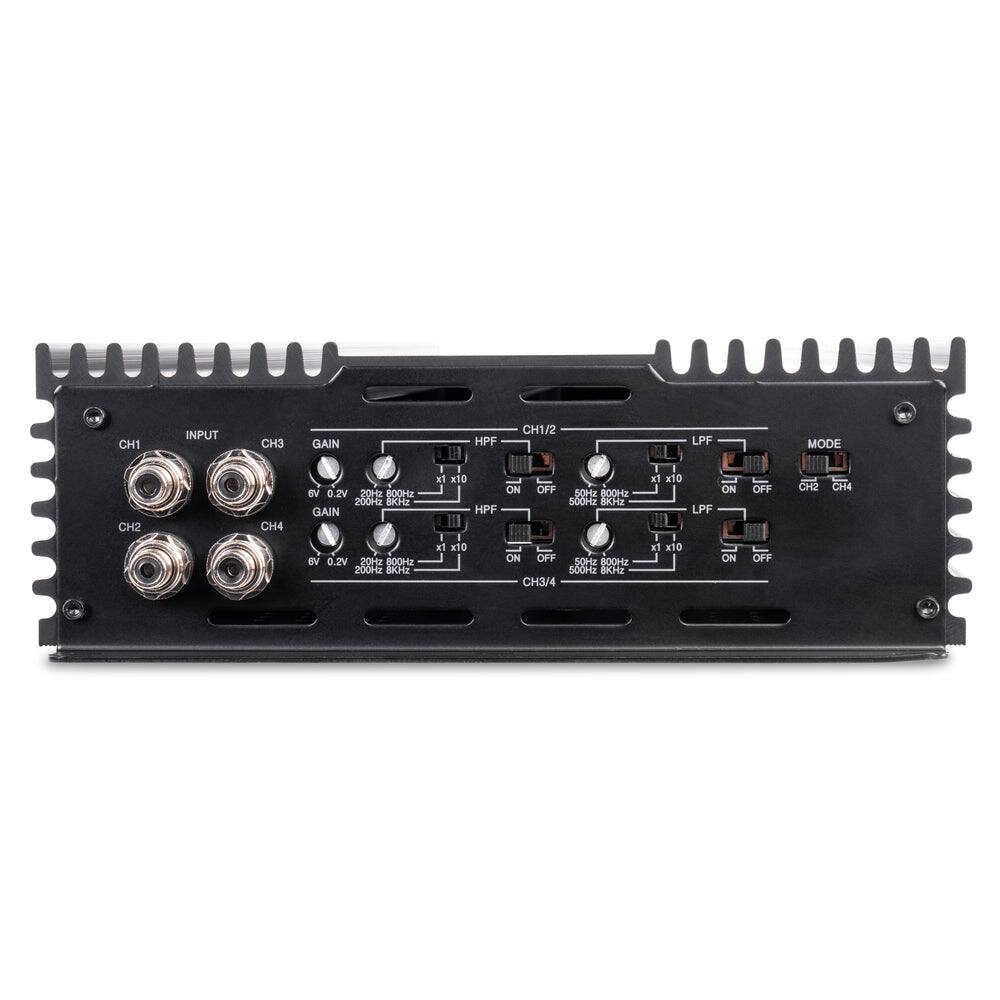

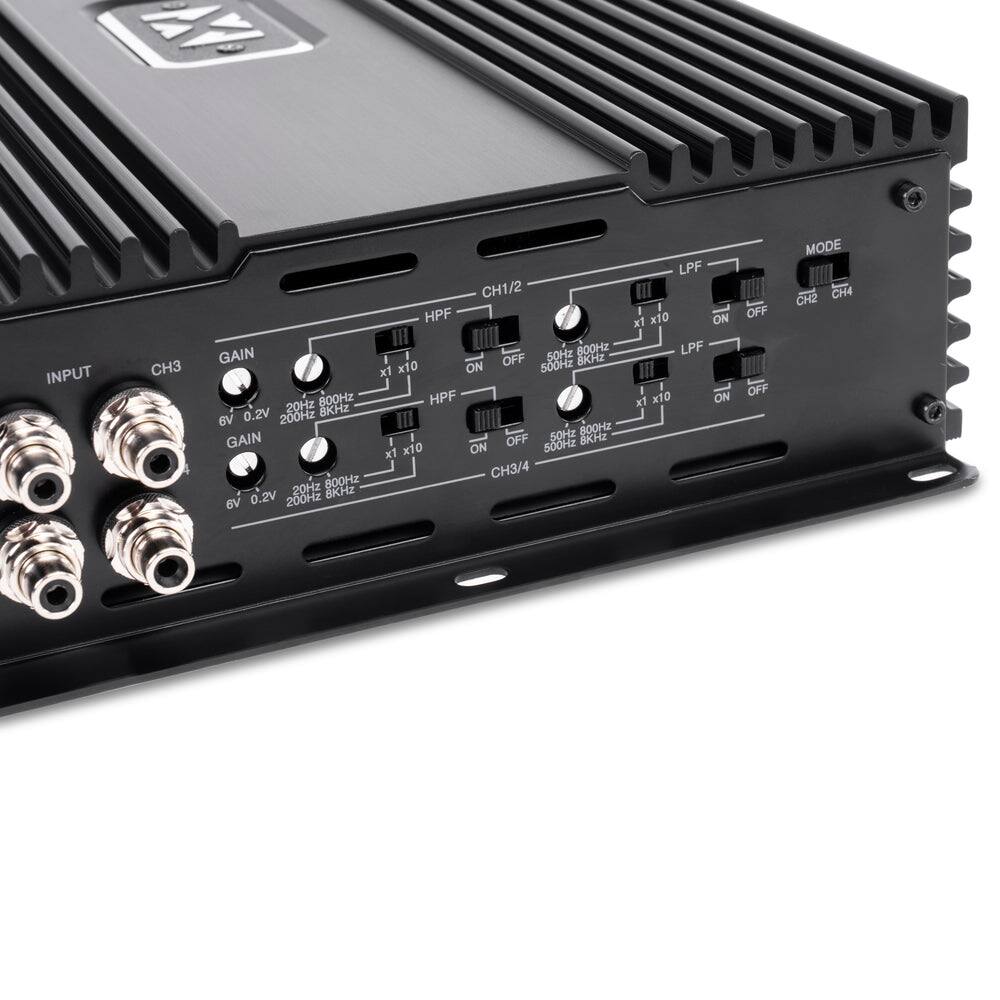

- Advanced Audio Tuning: Features adjustable high-pass (20–800Hz / 200–8000Hz) and low-pass (50–800Hz / 500–8000Hz) filters with x1/x10 multipliers
- Bandpass Capable & Bridgeable: Perfect for powering tweeters, mid-bass drivers, or subwoofers in high-end competition or SQ builds
Whats Included
- 1
Compare similar products
NVX XCA2004 – 1400W RMS XC-Series Competition-Class 4-Channel Amplifier. Take full control of your mids and highs with the NVX XCA2004 — a Korean-engineered, competition-class Class-D amplifier delivering a total of 1400 watts RMS across four channels. Designed in the USA and built for maximum performance, this amp is ideal for audiophiles and competitors looking to achieve loud, clean, and precise sound. At 4 ohms, the XCA2004 produces 200W RMS x 4, while 2-ohm setups unlock 350W x 4. For even more power, bridge it to deliver 700W x 2 at 4 ohms—perfect for a pair of powerful components or dedicated subwoofers. The Class-D topology ensures cool and efficient operation even under heavy load. This amplifier features independent high-pass and low-pass crossovers with x1/x10 multipliers, allowing for incredible versatility. Whether you're tuning for tweeters, mid-bass drivers, or full-range speakers, the bandpass capability ensures precise frequency targeting across all applications.Engineered with Tiffany-style RCA inputs and outputs, a MOSFET power supply, and 4-way protection circuitry, the XCA2004 delivers both high-end sound quality and bulletproof reliability. With an impressive >95 dB signal-to-noise ratio, this amp ensures clean, distortion-free playback at all volumes.If you’re upgrading to a true competition-class amplifier that offers exceptional control, clarity, and power in a compact design, the NVX XCA2004 is your ultimate solution.
Boost the sound of vehicle door speakers with this KICKER four-channel amplifier. The variable bass boost lets you easily tune the system as desired, and Fail-safe Integration Technology-PLUS provides clear sounds with its noise rejection. This KICKER four-channel amplifier features high-efficiency heat sinks, preventing overheating during long periods of use.
Complete your car's sound system setup with the Hifonics Brutus Gamma 4-Channel Super A/B Class Amplifier. This subwoofer amp delivers power efficiently and effectively to your subwoofers, speakers, and other output devices for crisp sound with minimal distortion and heat.Control your sound with this car audio amp. This 1,600-watt amplifier sports a 4 channel operation that lets you choose between stereo and mono bridged operation. You also can customize your sound with this car audio amp's variable electronic crossover and electronic equalizer capabilities.Made for efficient power performance, this car audio amplifier is rated at 2 ohms - 4 channels x 400 watts; at 4 ohms - 4 channels x 200 watts; mono bridged at 4 ohms - 2 channels x 800 watts. This 4-channel amp uses Ultra-Fi MOSET output device technology and classic Hifonics aluminum construction for powerful sound, efficient cooling, and minimal distortion.All connections are secure with this car subwoofer ampflier. This amp features nickel-plated connectors and a molded connection terminal that's angled for easy access to all power, ground, and speaker connections.Pump up the sound with the Hifonics Brutus Gamma 4-Channel Amplifier.
Introducing the NVX VAD10004, a high-performance 1000W RMS Full Range Class D 4-Channel Amplifier designed to elevate your car, marine, and powersports audio experiences. With a commanding peak power of 2000 watts, this amplifier delivers a robust and immersive sound that transforms your audio system. The RMS power ratings cater to a variety of setups, offering 150W x 4 chan. at 4 ohms, 250W x 4 chan. at 2 ohms, and an impressive 500W x 2 chan. when bridged at 4 ohms. What sets the VAD10004 apart is its Marine Certification, featuring a conformally coated, marine-grade circuit board that ensures durability and resilience in challenging conditions. This innovative design allows for installation in nearly any application, making it a versatile choice for marine environments. The NVX VAD10004 is not just an amplifier; it's a testament to power, precision, and reliability. Upgrade your audio setup and immerse yourself in a superior sound experience with this high-performance amplifier, whether you're cruising in your car or enjoying your favorite tunes on the water. Elevate your audio game with the NVX VAD10004 – where power meets versatility.
| Pros for NVX - XCA2004 1400W RMS XC-Series Competition Class-D 4-Channel (Made in Korea) | |||
|---|---|---|---|
| There were no pros for this product— | Sound Quality, Power, Ease of use, Size, Price | There were no pros for this product— | There were no pros for this product— |
| Cons for NVX - XCA2004 1400W RMS XC-Series Competition Class-D 4-Channel (Made in Korea) | |||
| There were no cons for this product— | Heat | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
This product doesn't have any reviews yet.
