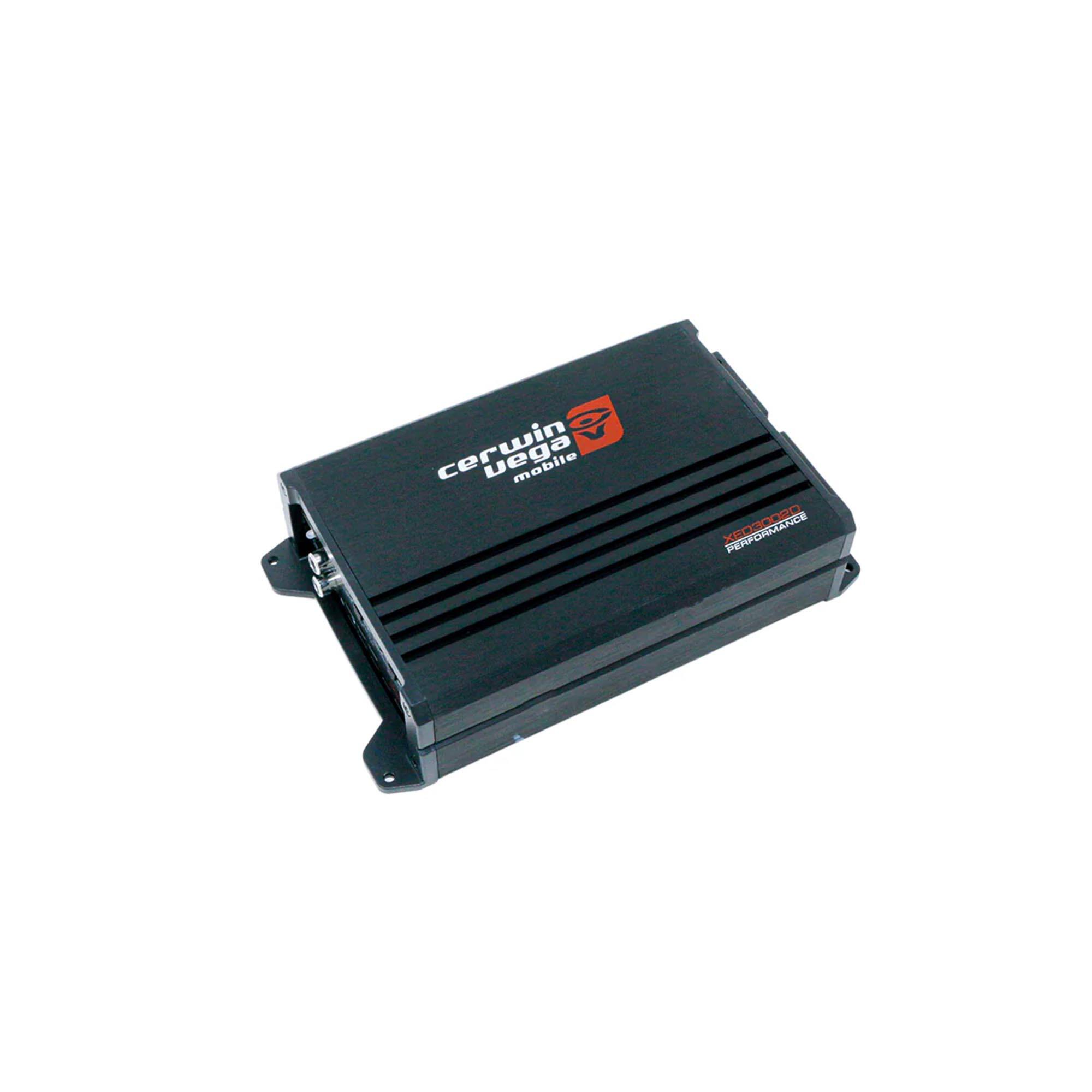

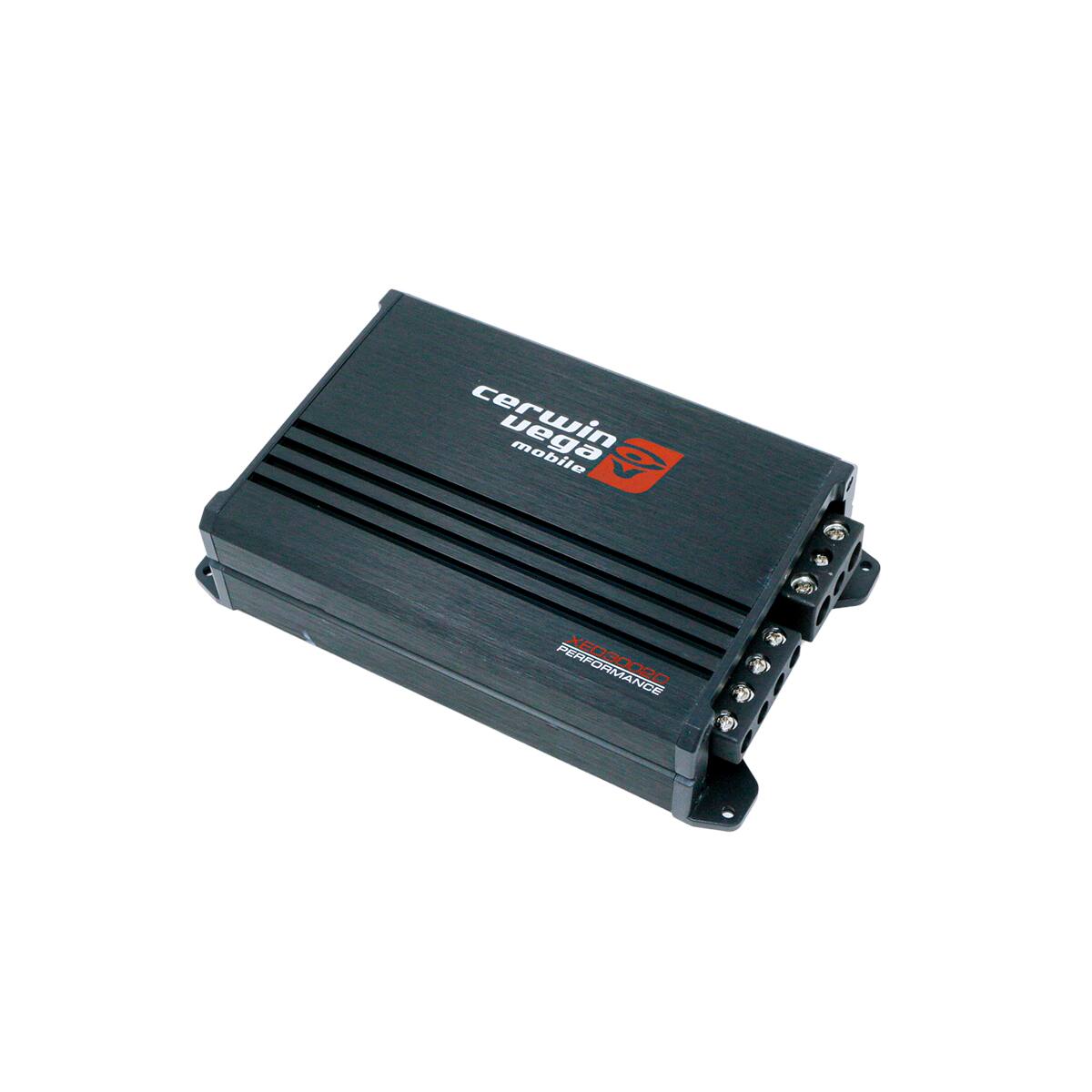

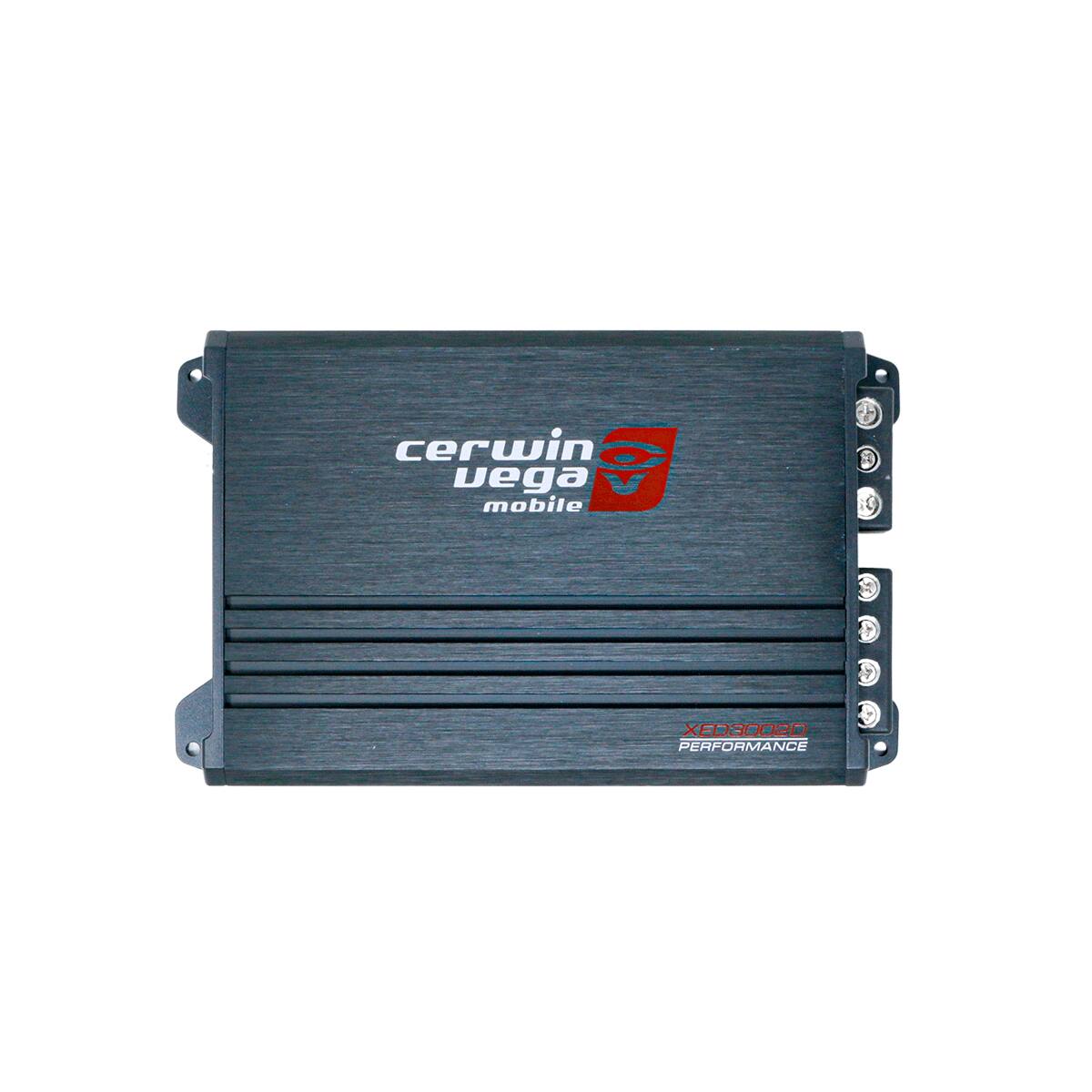

Cerwin Vega - - XED3002D XED Series 2-Channel Full Range Class-D Amplifier - 250W Max - Black/Gray

Model: XED3002D
SKU: 12176936

Reviews coming soon

Sold & shipped by

About this product

XED3002D - 2 Channel Class-D Amplifier. Cerwin-Vega XED Series Amplifiers – Xtreme Energy, Unleashed. The Cerwin-Vega XED Series Amplifiers are your ticket to high-performance car audio with power, precision, and reliability. Designed with Xtreme Energy Design, these amplifiers are engineered to take your sound system to the next level, delivering exceptional power and efficiency for every beat. Precision Engineering for Superior Performance – Class D Amplifier Technology: High-efficiency design ensures massive power output with minimal heat generation. Lightweight Aluminum Chassis: Enhances heat dissipation while reducing weight for efficient, long-lasting performance. Durability Meets Power – Robust Construction: Crafted with premium components for consistent, reliable operation. Built for Demanding Setups: Ideal for high-power audio systems, effortlessly driving subwoofers and speakers with clean, distortion-free sound. Performance that Thrills – The XED Series Amplifiers are built for those who crave deep bass, crisp highs, and seamless mids. With their cutting-edge technology and meticulous craftsmanship, they deliver the power and clarity needed to make every drive an immersive audio experience. Why Choose the XED Series? Unrivaled Efficiency: Advanced Class D technology provides unmatched power-to-heat performance. Durable & Lightweight: Aluminum construction ensures cool operation and lasting reliability. High-Energy Output: Perfect for audiophiles seeking powerful and dynamic sound reproduction. Unleash the full potential of your car audio system with Cerwin-Vega XED Series Amplifiers—where Xtreme Energy meets extreme performance.

Features

  • POWER RATING

    Frequency Response (Hz): 35Hz-350Hz. RMS Power per Channel 4Ω: 80W x 2. RMS Power per Channel 2Ω: 120W x 2. Power Supply – Full PWM. Power Supply Threshold: 10.0V-16.0V (DC). Idle Current: 0.5A. Distortion – THD 4 (100Hz @4Ω): <0.1%. S/N Ratio (A weighted @1W): -85dBA. S/N Ratio (A weighted @FP): -101.1dB.

  • INPUT SENSITIVITY

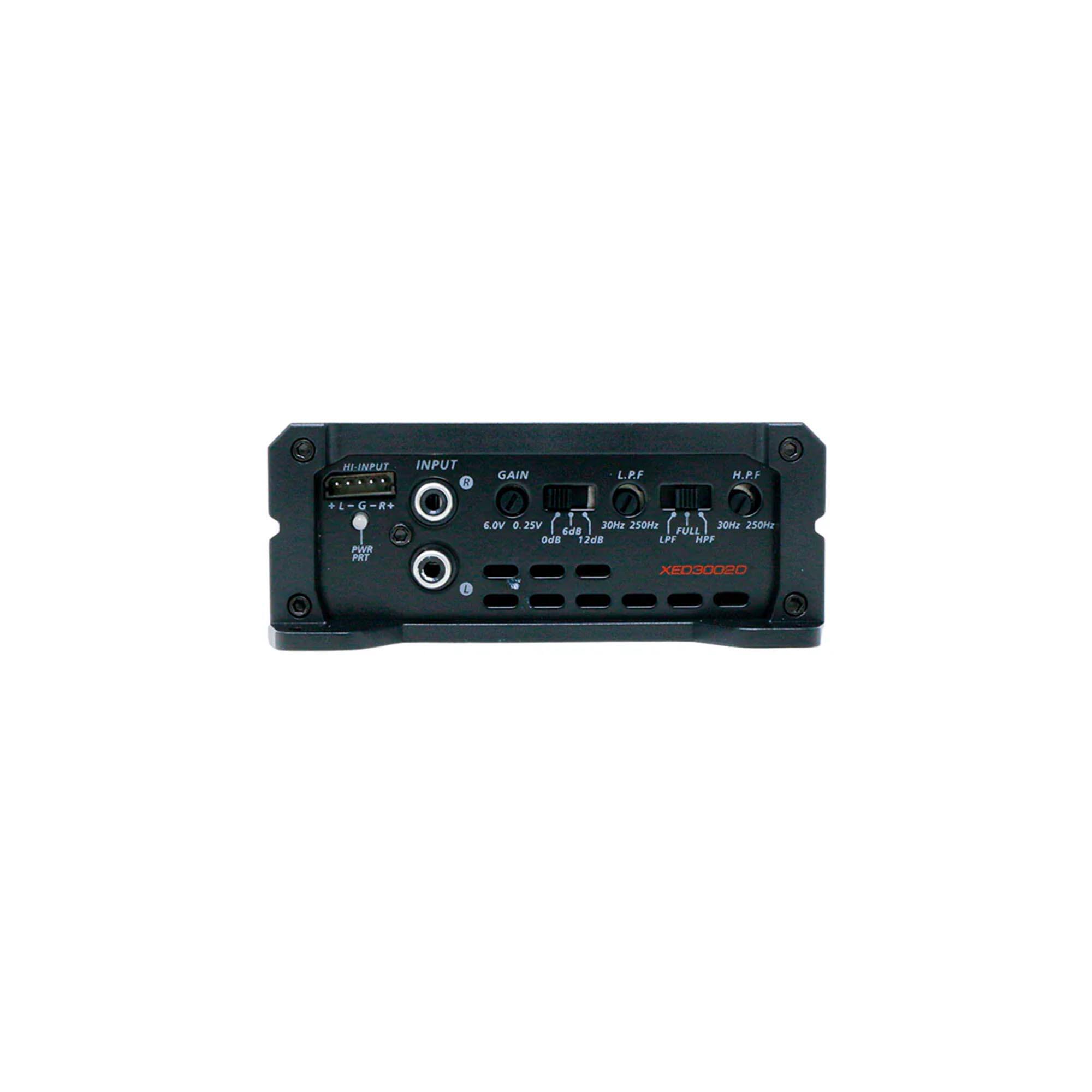

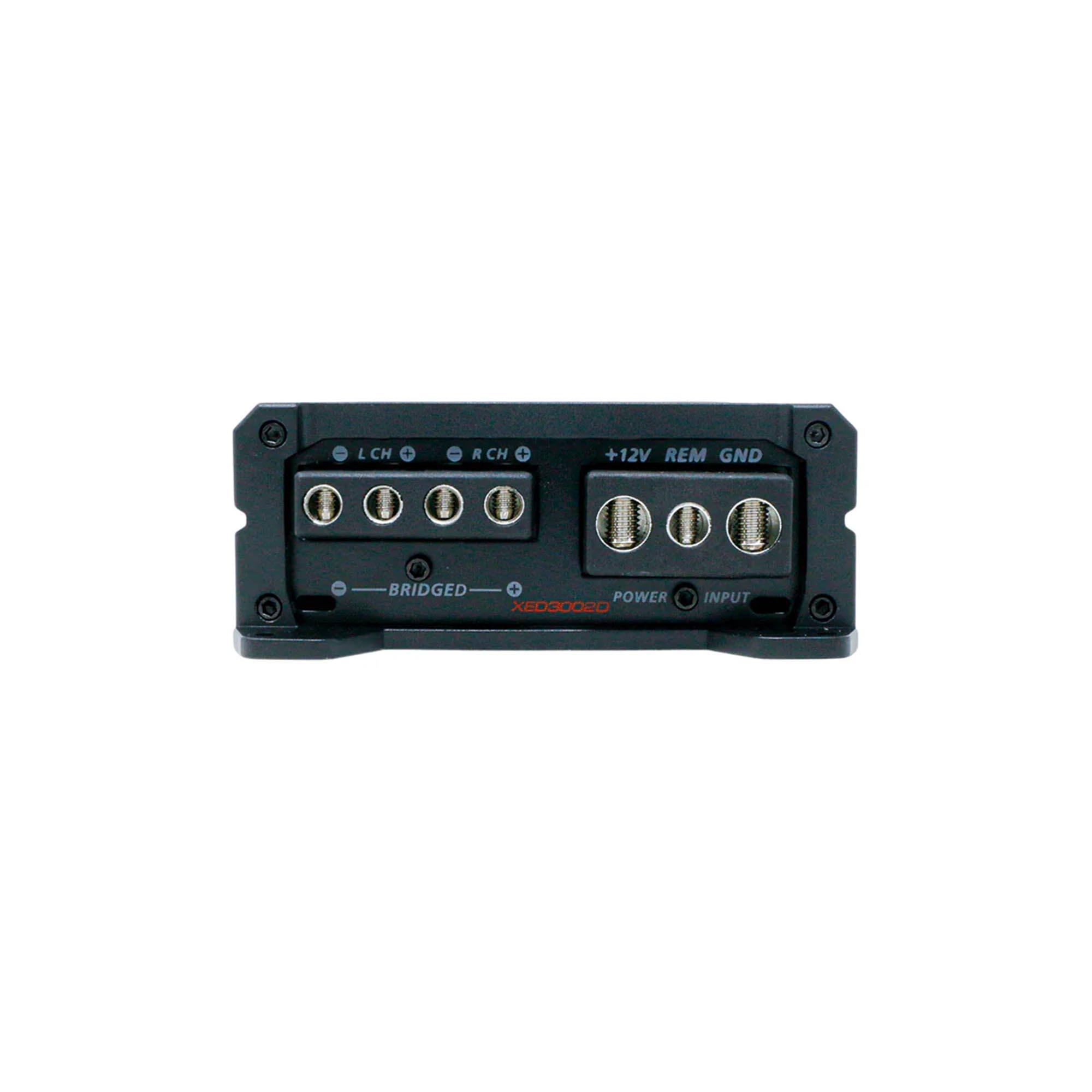

    Low Input Level: 250mV-12V. High Input Level: 1.3V~>20.0V. Input Impedance – Low Input Level: 20KΩ, High Input Level: 100Ω. Output Stage – Output Impedance: 2Ω. Damping Factor (50Hz @ 4Ω): >70. Bandwidth (-3dB): 10Hz-30KHz

  • CROSSOVER

    Variable High-Pass: 35Hz–250Hz. Variable Low-Pass: 35Hz–250Hz. Variable Sub-Sonic. Fuse Rating: ATC (Inside) 20A. Dimensions: 6.3” x 4.7” x 1.8” (160mm x 120mm x 46.5mm). Features: LED Power/Protect Light Indicator, Selectable X-Over (High Pass/Flat/Low Pass), Selectable Bass Boost (0dB/6dB/12dB). MFR #: XED3002D.

  • FEATURES

    Compact Aluminum Chassis - Lightweight aluminum housing improves heat dissipation and allows installation in tight or factory mounting locations.

  • Key Feature

    Flexible Input Compatibility - Accepts both RCA low-level and speaker-level inputs, making it suitable for factory or aftermarket head units.

Specifications

  • Amplifier Class
    D
    Number Of Channels
    1
    Bass Boost
    Variable
