Culligan - Sediment Valve-in-Head Filter Housing with P5 Cartridge Water Filtration System - Clear
- General
- Brand: Culligan
- Model Number: WH-S200-C-CON
- Product Name: Sediment Valve-in-Head Filter Housing with P5 Cartridge Water Filtration System
- Color: Clear
- Dimensions
- Product Height: 15.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 5.4 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 7.5 pounds (The out of box weight of the item.)
- Material
- Material: Plastic
- Features
- Filter Type: Particle
- Filter Life: 2 months
- Number of Filters Included: 1
- Other
- UPC: 033663007291

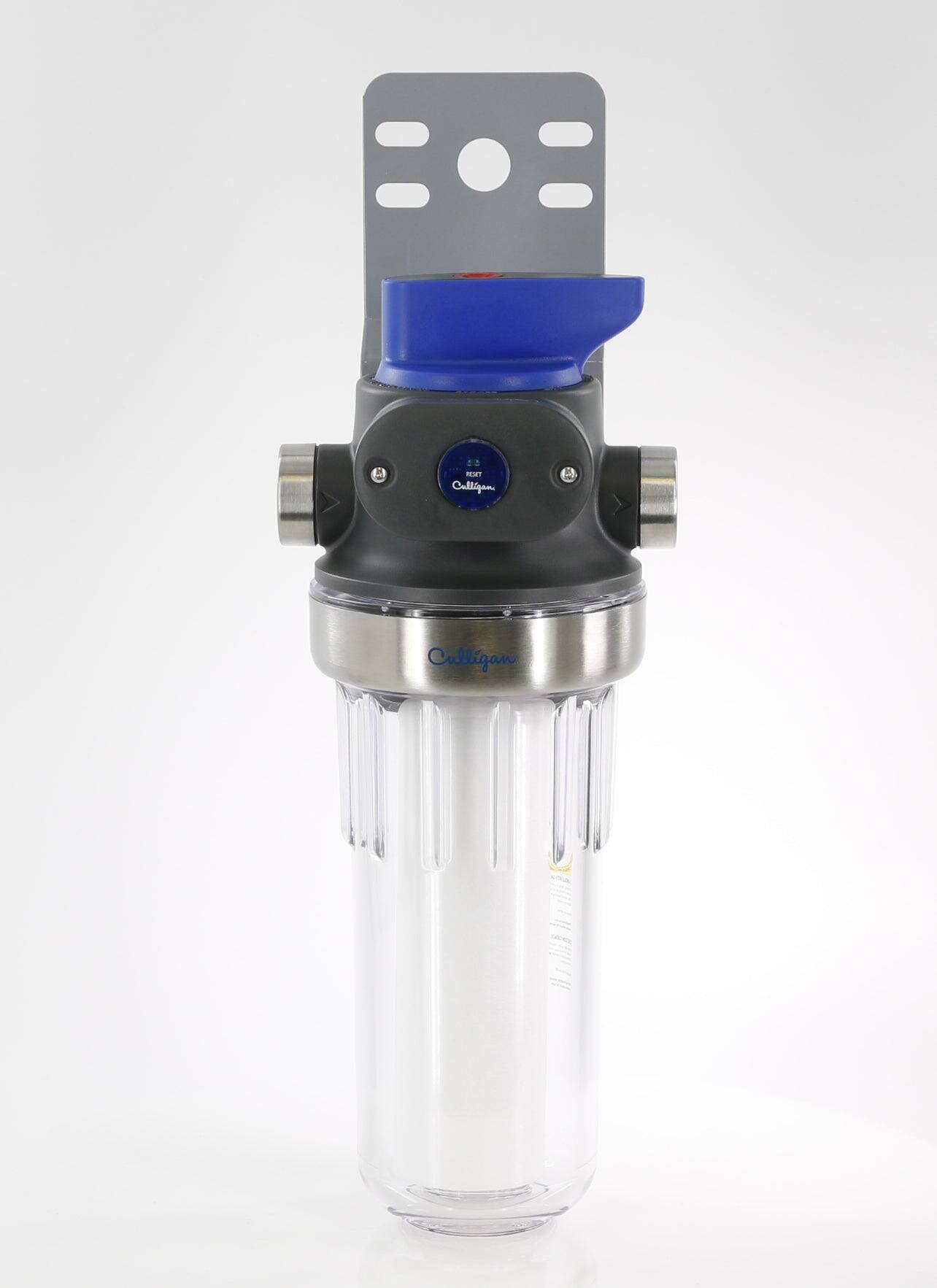

Preserve and protect household plumbing and water-using appliances with the Culligan® WH-S200-C Whole House Standard Duty Valve-in-Head Water Filter System with P5 cartridge. Installs on the 3/4-inch main water line at the point of entry. This filter housing features stainless steel reinforced inlet/outlet and cap for added durability and is designed with a convenient built-in bypass valve to stop the water flow at cartridge change time. A filter life indicator is built into the filter head which alerts you when you need to change your filter cartridge. For ease of cartridge change, a housing wrench is included.
- Filtration: Reduces Silt, Sediment, Scale, Sand, Rust, Fine Sand, Extra Fine Sand, Coarse Sand with a 5 micron rating for extra fine sediment particles.
- Certification: WQA/IAMPO Tested and Certified for structural integrity.
- Longevity: Filter lasts up to 2 months or 8,000 gallons with P5 filter cartridge, depending on usage and water conditions. Flow rate of 4 pgm.
- Design Feature: Filter housing is designed with a convenient valve-in-head bypass lever for easy cartridge change, filter life timer, and stainless steel re-inforced 3/4" inlet/out and housing rim. Clear filter housing allows easy monitoring of cartridge life.
- Design Feature: Filter extends life of washing machines, water heaters, water softeners, fixtures, faucets, and other water-using household appliances
- Filtration: Reduces Silt, Sediment, Scale, Sand, Rust, Fine Sand, Extra Fine Sand, Coarse Sand with a 5 micron rating for extra fine sediment particles.
- Certification: WQA/IAMPO Tested and Certified for structural integrity.
- Longevity: Filter lasts up to 2 months or 8,000 gallons with P5 filter cartridge, depending on usage and water conditions. Flow rate of 4 pgm.
- Design Feature: Filter housing is designed with a convenient valve-in-head bypass lever for easy cartridge change, filter life timer, and stainless steel re-inforced 3/4" inlet/out and housing rim. Clear filter housing allows easy monitoring of cartridge life.
- Design Feature: Filter extends life of washing machines, water heaters, water softeners, fixtures, faucets, and other water-using household appliances
Whats Included
- Package includes: Housing with P5 filter cartridge, OR-150 o-ring, WR-S housing wrench, BR-C mounting bracket and installation instructions
- Package includes: Housing with P5 filter cartridge, OR-150 o-ring, WR-S housing wrench, BR-C mounting bracket and installation instructions
Q: What is the flow rate of this Culligan water filter system?
A: The flow rate of this system is 4 gallons per minute.
Q: What is the diameter of the inlet and outlet on this filter housing?
A: The inlet and outlet on this filter housing are 3/4 inch in diameter.
Q: Is there a way to tell when the filter cartridge needs to be changed?
A: Yes, a filter life indicator is built into the filter head which alerts you when you need to change your filter cartridge.
Q: How long does the filter cartridge typically last?
A: The filter cartridge lasts up to 2 months or 8,000 gallons, depending on usage and water conditions.
Q: Does this filter system have a bypass valve?
A: Yes, this filter housing is designed with a convenient built-in bypass valve to stop the water flow at cartridge change time.
Q: What does the Culligan water filter system reduce?
A: This filter reduces Silt, Sediment, Scale, Sand, Rust, Fine Sand, Extra Fine Sand, and Coarse Sand with a 5 micron rating for extra fine sediment particles.
A: Need to be able to work with plumbing and have the tools for the installation
