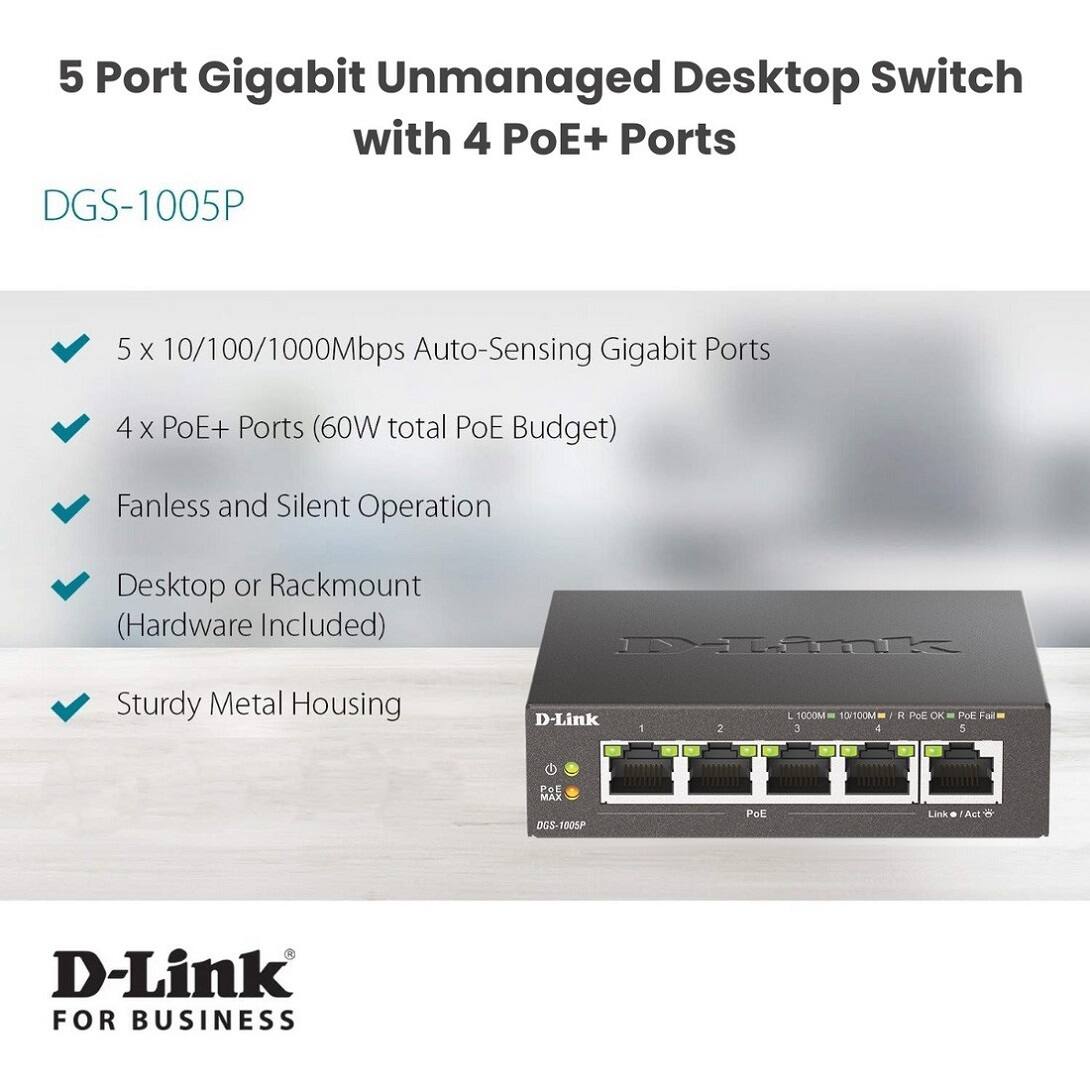

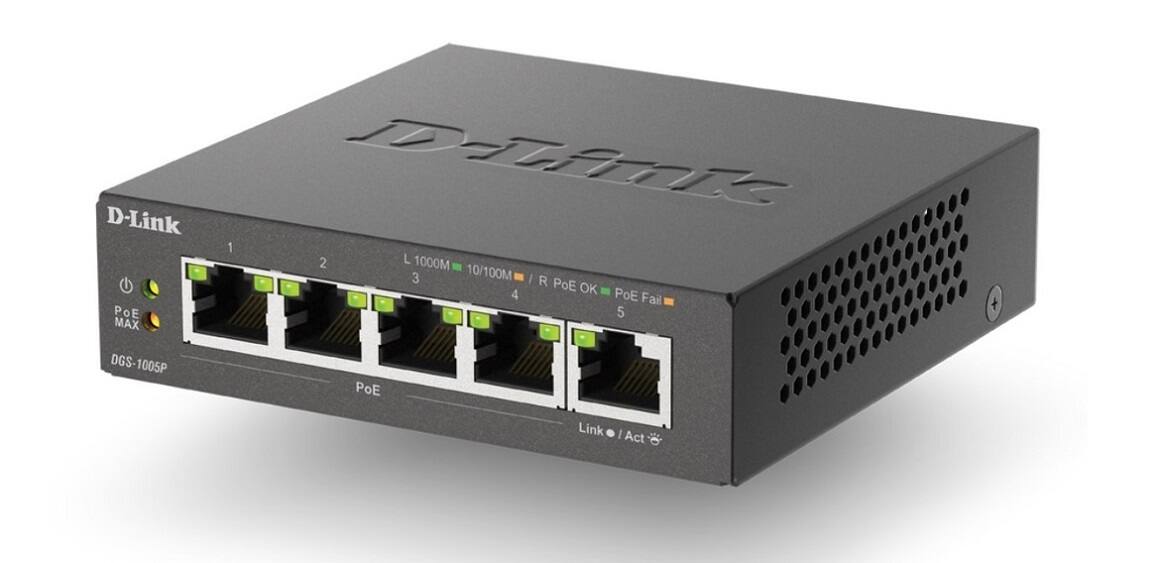

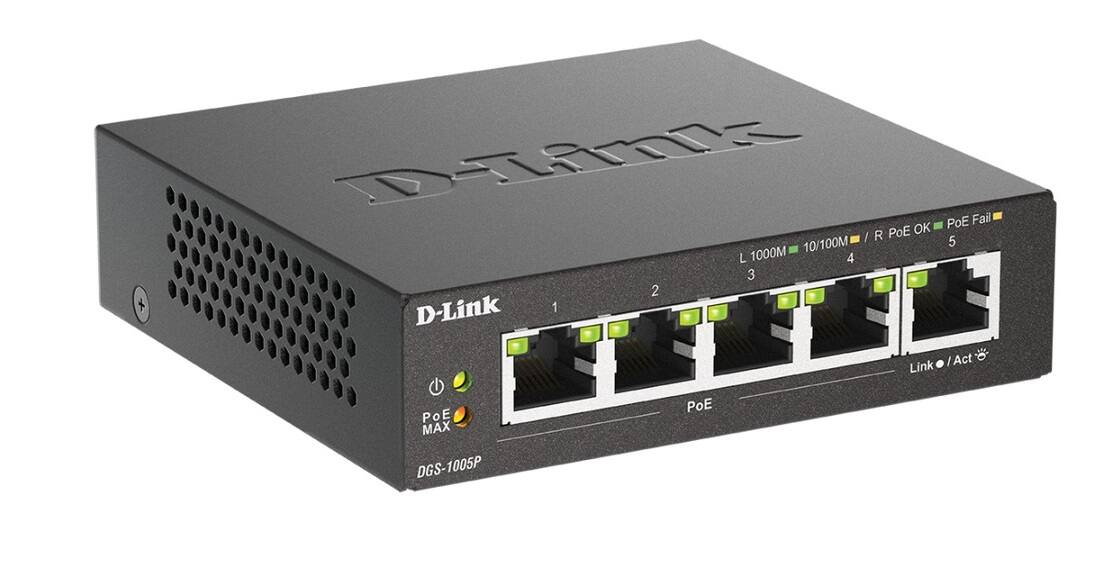

D-Link - DGS-1005P 5-Port Gigabit Unmanaged 4 PoE+ Ports (60W Total PoE Budget) | Fanless | Metal Compact Desktop - Black
FREE shipping to
More Buying Options
Specifications
- Number of PoE (Power over Ethernet) Ports4Maximum Data Speed1000 megabits per secondSwitch Management TypeUnmanagedNumber of LAN Ports5
- Key Specs
- Number of PoE (Power over Ethernet) Ports: 4 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Maximum Data Speed: 1000 megabits per second
- Switch Management Type: Unmanaged (Unmanaged switches don't require user configuration and are typically used for basic connectivity. Managed switches have more features and can be configured by the user for custom network use.)
- Number of LAN Ports: 5 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: D-Link
- Model Number: DGS-1005P
- Product Name: D-Link DGS-1005P 5-Port Gigabit Unmanaged 4 PoE+ Ports (60W Total PoE Budget) | Fanless | Metal Compact Desktop
- Color: Black
- Network
- Quality Of Service (QoS) Traffic Prioritization: false (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Features
- Auto Detecting: true
- Auto Speed Sensing: true
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 1.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.14 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.86 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.61 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Limited lifetime
- Warranty - Labor: None
- Other
- UPC: 790069440939

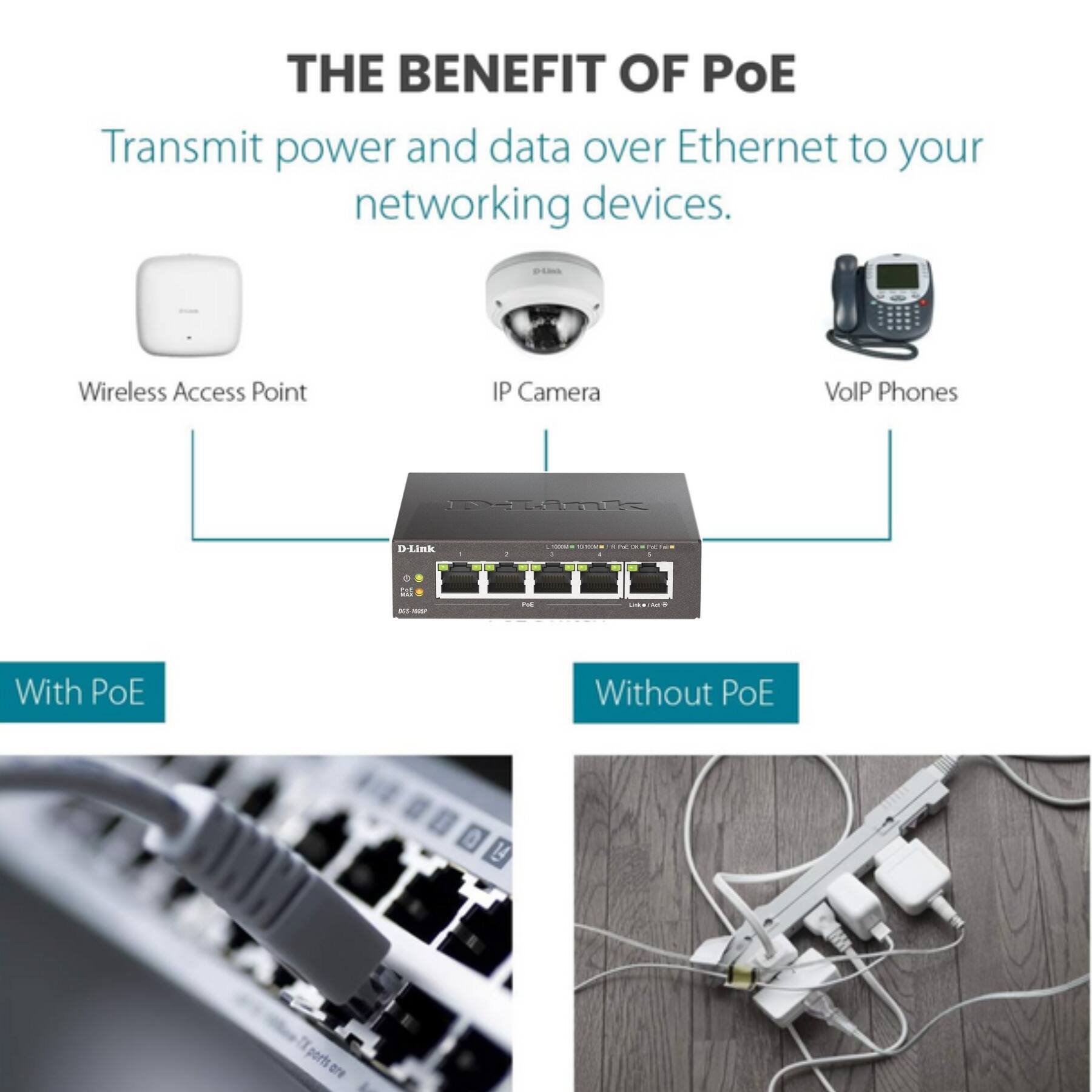

The D-Link DGS-1005P 5-Port Gigabit switch with 4 PoE ports enables you to connect power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. Built with home and small business users in mind, the DGS-1005P is compact and operates silently, making it ideal for most rooms and offices. The DGS-1005P features four 10/100/1000 Base-T ports that support the IEEE 802.3af and IEEE 802.3 at PoE protocols, supplying a total power budget of 60W among 4 ports. You can connect compatible devices to the DGS-1005P without using an additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets.
- COST-EFFECTIVE AND DURABLE PoE:: The DGS-1005P is a durable metal 5-port Gigabit PoE switch with support for IEEE 802.3at Power over Ethernet (PoE) on ports 1 to 4. Perfect for remote installations where you need Gigabit PoE connectivity.
- POWERFUL PoE BUDGET:: With up to 30W per port and a total PoE budget of 60W, the DGS-1005P is ideal for simultaneously powering multiple PoE-compatible devices (IP Phones, IP Surveillance Cameras, Wireless Access Points).
- PLUG-AND-PLAY:: Plug-and-play installation means the DGS-1005P PoE Gigabit Switch can be quickly and easily installed without the need for any additional configuration.
- ENERGY-EFFICIENT DESIGN:: With its silent fanless design, compliance with IEEE802.3az Energy Efficient Ethernet, and D-Link Green features that detect link status and cable length to adjust power, the DGS-1005P reduces heat, power consumption and TCO.
- QUALITY OF SERVICE:: QoS enhances network efficiency, prioritizing network traffic so that time-sensitive data, like VoIP or surveillance footage, are unaffected during bursts of high-volume traffic for a smoother, uninterrupted network experience.
- COST-EFFECTIVE AND DURABLE PoE:: The DGS-1005P is a durable metal 5-port Gigabit PoE switch with support for IEEE 802.3at Power over Ethernet (PoE) on ports 1 to 4. Perfect for remote installations where you need Gigabit PoE connectivity.
- POWERFUL PoE BUDGET:: With up to 30W per port and a total PoE budget of 60W, the DGS-1005P is ideal for simultaneously powering multiple PoE-compatible devices (IP Phones, IP Surveillance Cameras, Wireless Access Points).
- PLUG-AND-PLAY:: Plug-and-play installation means the DGS-1005P PoE Gigabit Switch can be quickly and easily installed without the need for any additional configuration.
- ENERGY-EFFICIENT DESIGN:: With its silent fanless design, compliance with IEEE802.3az Energy Efficient Ethernet, and D-Link Green features that detect link status and cable length to adjust power, the DGS-1005P reduces heat, power consumption and TCO.
- QUALITY OF SERVICE:: QoS enhances network efficiency, prioritizing network traffic so that time-sensitive data, like VoIP or surveillance footage, are unaffected during bursts of high-volume traffic for a smoother, uninterrupted network experience.
Whats Included
- 5-Port Switch; Power Cord; Adapter; Rubber Feet; Anchors & Screws; QIG
- 5-Port Switch; Power Cord; Adapter; Rubber Feet; Anchors & Screws; QIG
