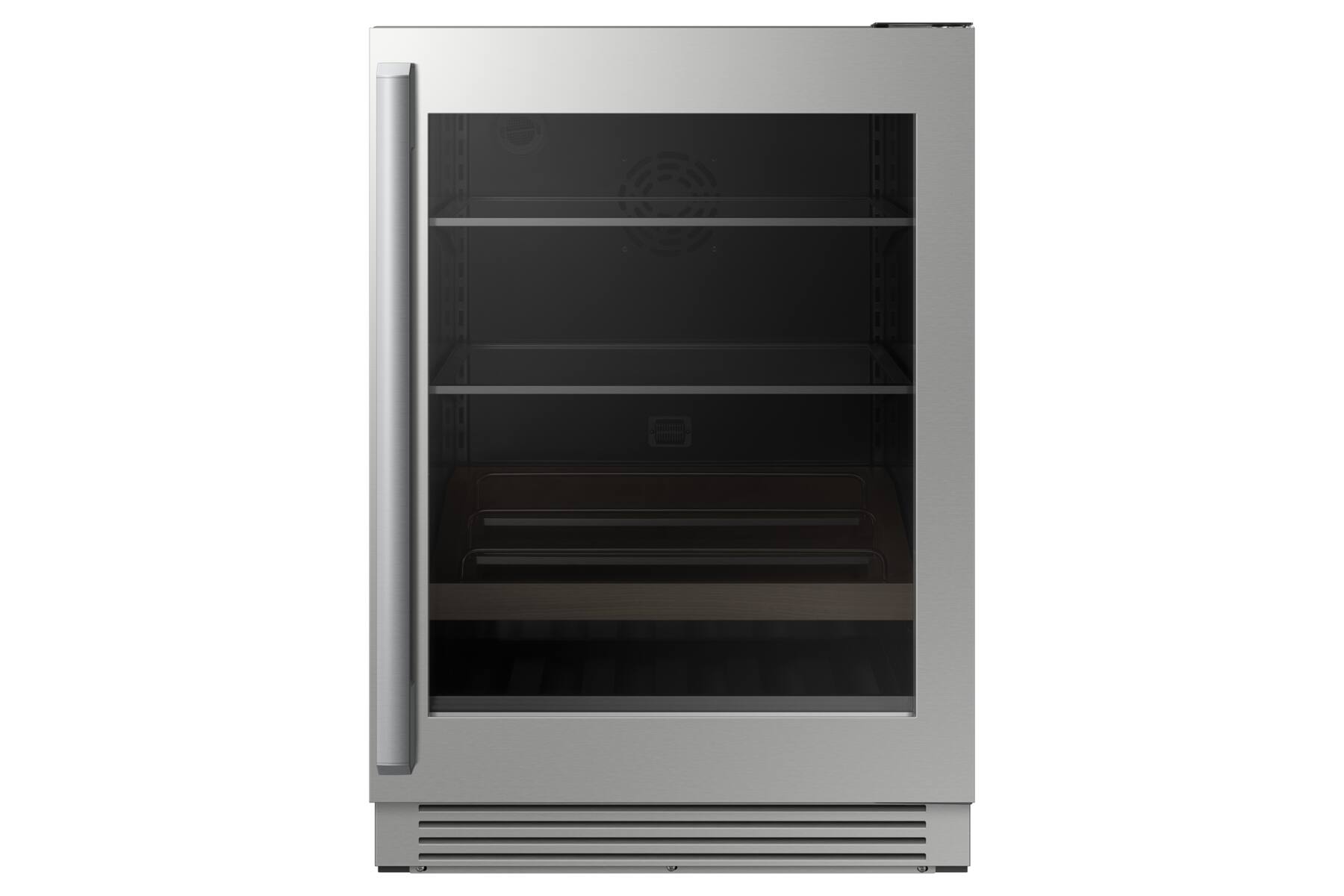

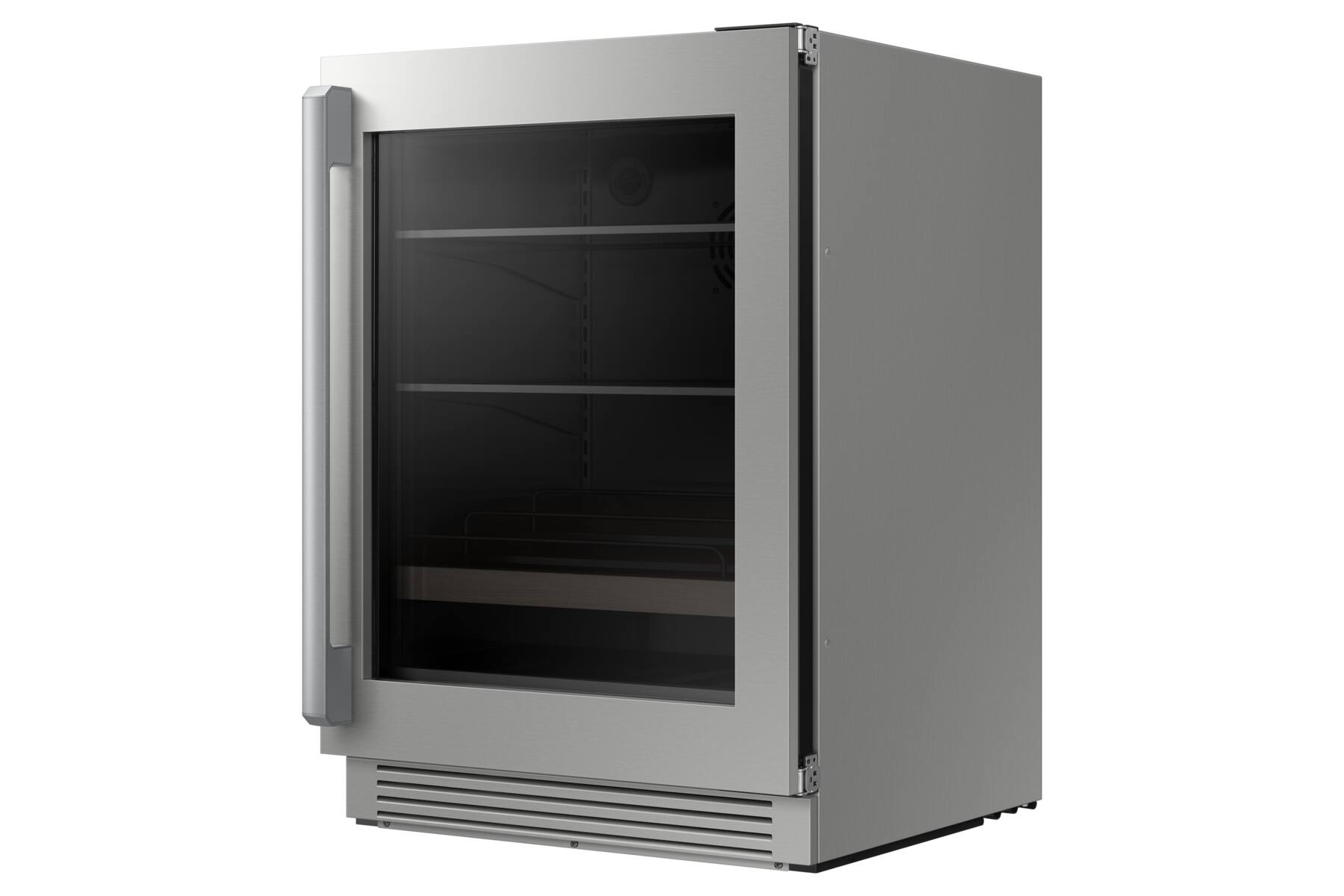

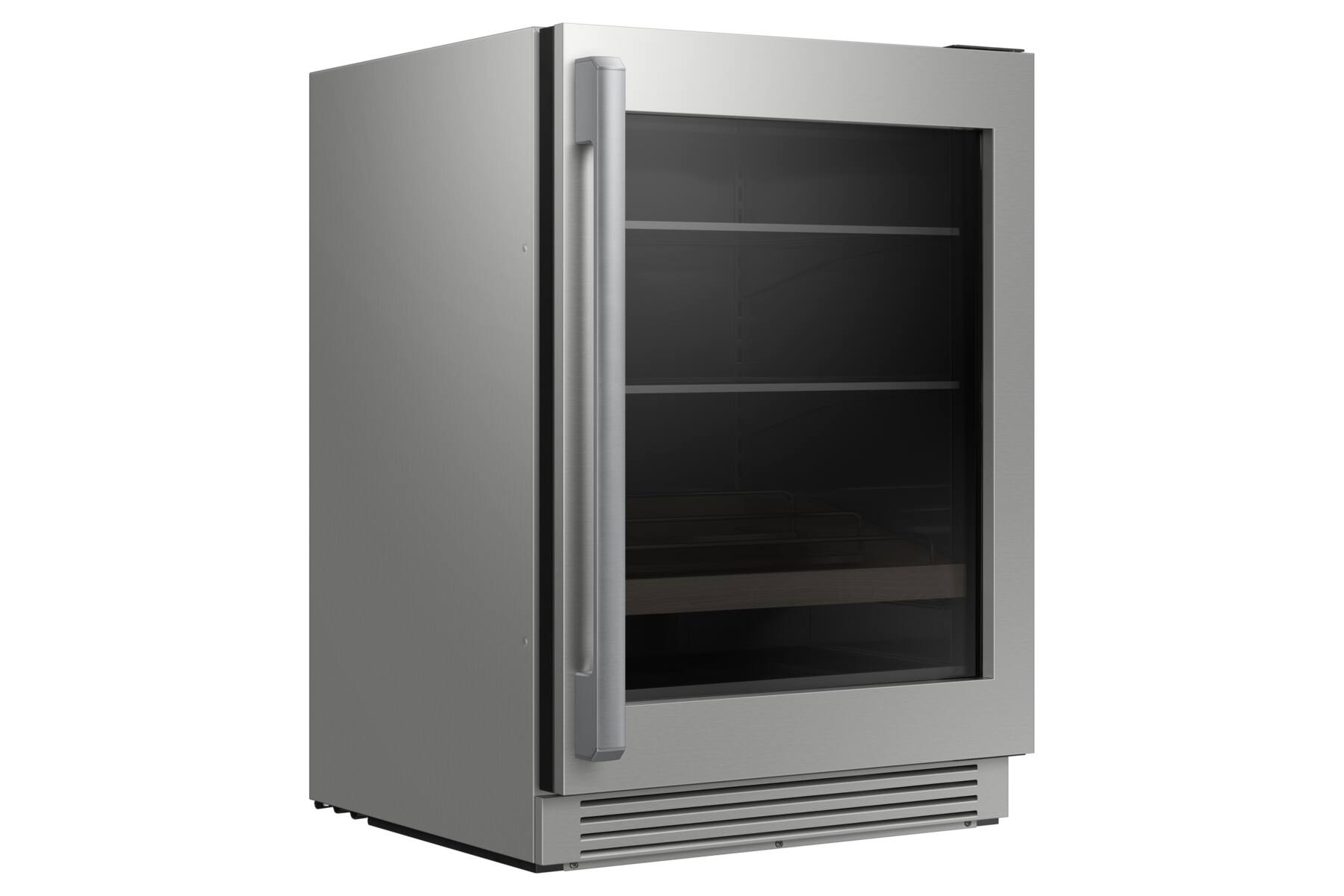

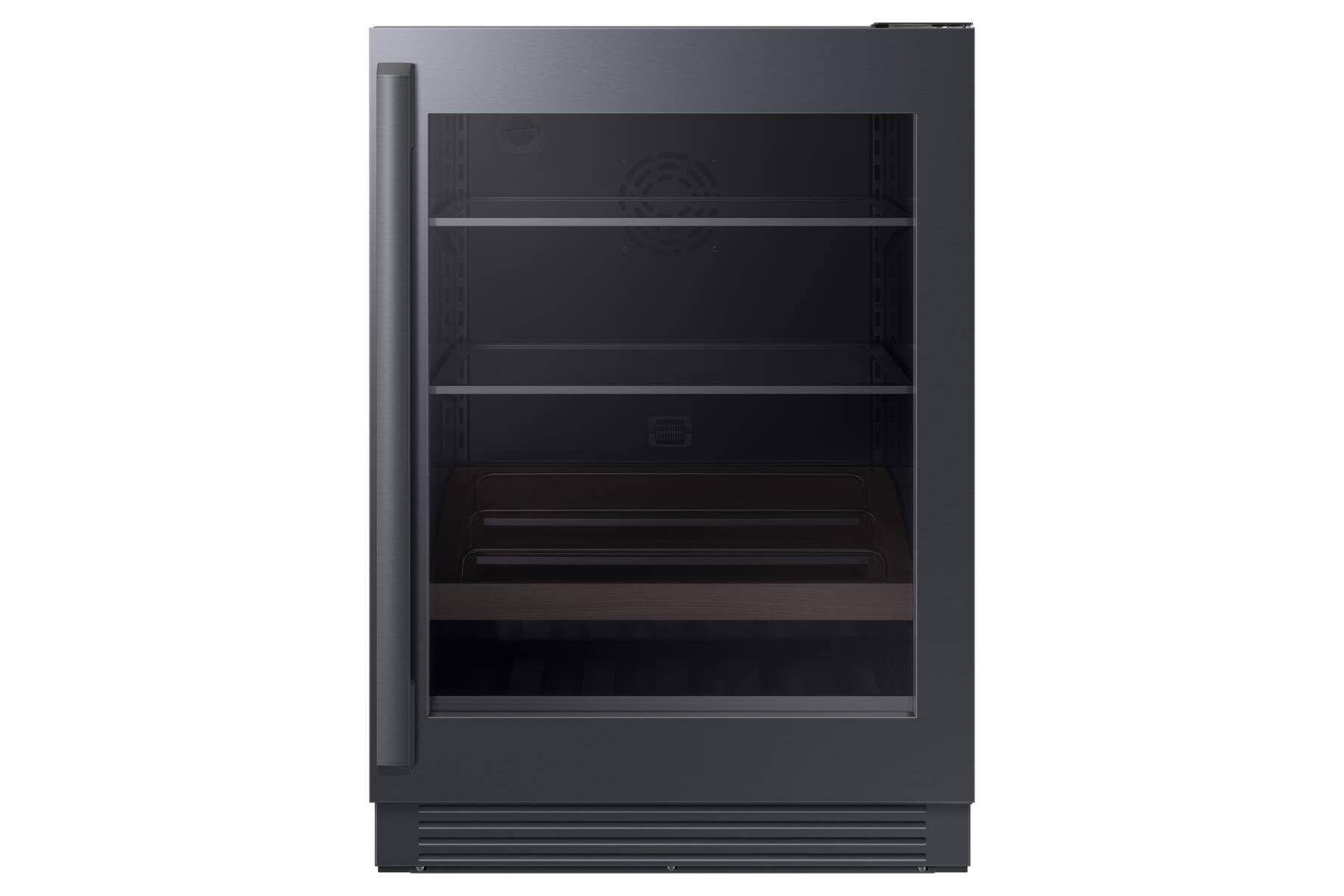

Dacor - 5.0 Cu. Ft. Built-In 24-Inch Undercounter Beverage Refrigerator with Presenter Shelf and LED 3D Lighting - Custom Panel Ready
FREE delivery to
Delivery of this item is restricted to drop-off onlyMore Buying Options
Related Item
Specifications
- Color FinishCustomProduct Height34 3/16 inchesProduct Width23 3/4 inchesHeight To Top Of Door Hinge34 3/16 inchesDepth Without Handle23 5/8 inchesTotal Capacity5 cubic feet
- Key Specs
- Color Finish: Custom
- Product Height: 34 3/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 34 3/16 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 23 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Total Capacity: 5 cubic feet
- Refrigerator Style: Compact, No Freezer
- Lighting Type: LED
- Ice Maker: No
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Dacor
- Model Number: DRR24G7400APDA
- Product Name: 5.0 Cu. Ft. Built-In 24-Inch Undercounter Beverage Refrigerator with Presenter Shelf and LED 3D Lighting
- Color: Custom Panel Ready
- Color Finish: Custom
- Dimensions
- Product Height: 34 3/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 5/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 34 3/16 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 23 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Door 90 Degrees Open: 28 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 136.4 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 5 cubic feet
- Refrigerator Capacity: 5 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Compact, No Freezer
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: LED
- Defrost Type: None (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: true
- Door Lock: false (Included lock temporarily prevents access.)
- Lighting Type: LED
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: No
- Storage
- Number of External Doors/Drawers: 1
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable
- Can Capacity: 128
- Gallon Door Storage: false (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: false
- Refrigerator Shelf Material: Glass, Wood, Plastic
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 245 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 887276873008
Experience showstopping design and unparalleled performance with the Dacor Undercounter Beverage Refrigerator. A Field-Reversible Flush-Capable Hinge opens to the left or right, maximizing flexibility and ensuring seamless integration with your design. Enhance your kitchen’s aesthetic with 3D Lighting and a full-extension Presenter Shelf that beautifully displays your beverages. A SteelCool interior and protective Triple-Pane Glass come together to create an exceptional preservation environment, while a discreet Touch Control Panel with customizable settings adds the perfect finishing touch.

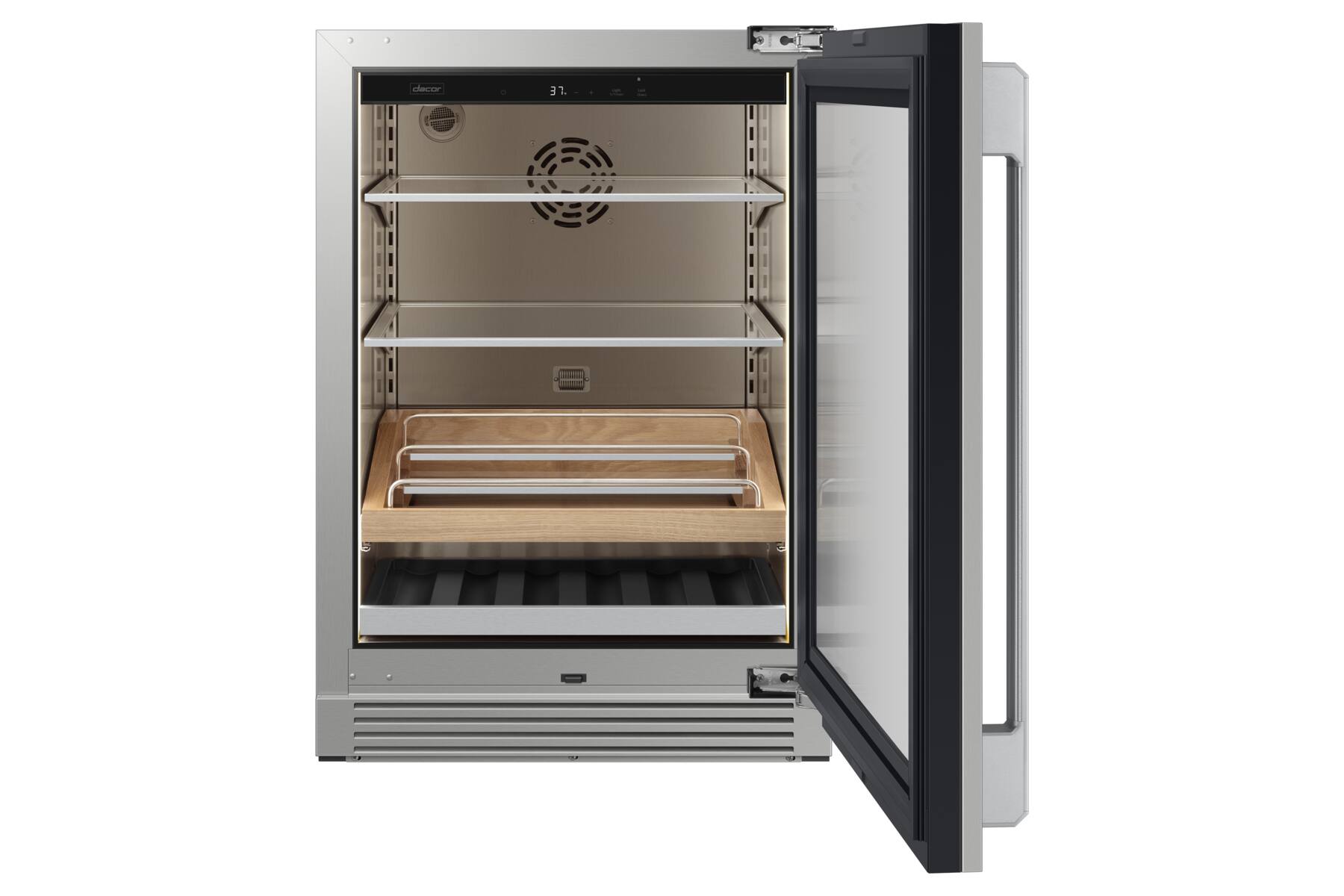

- Field-Reversible Flush-Capable Hinge: Thoughtfully engineered for flush installation, this hinge enables your beverage refrigerator door to swing open to the right or left, offering unparalleled adaptability.

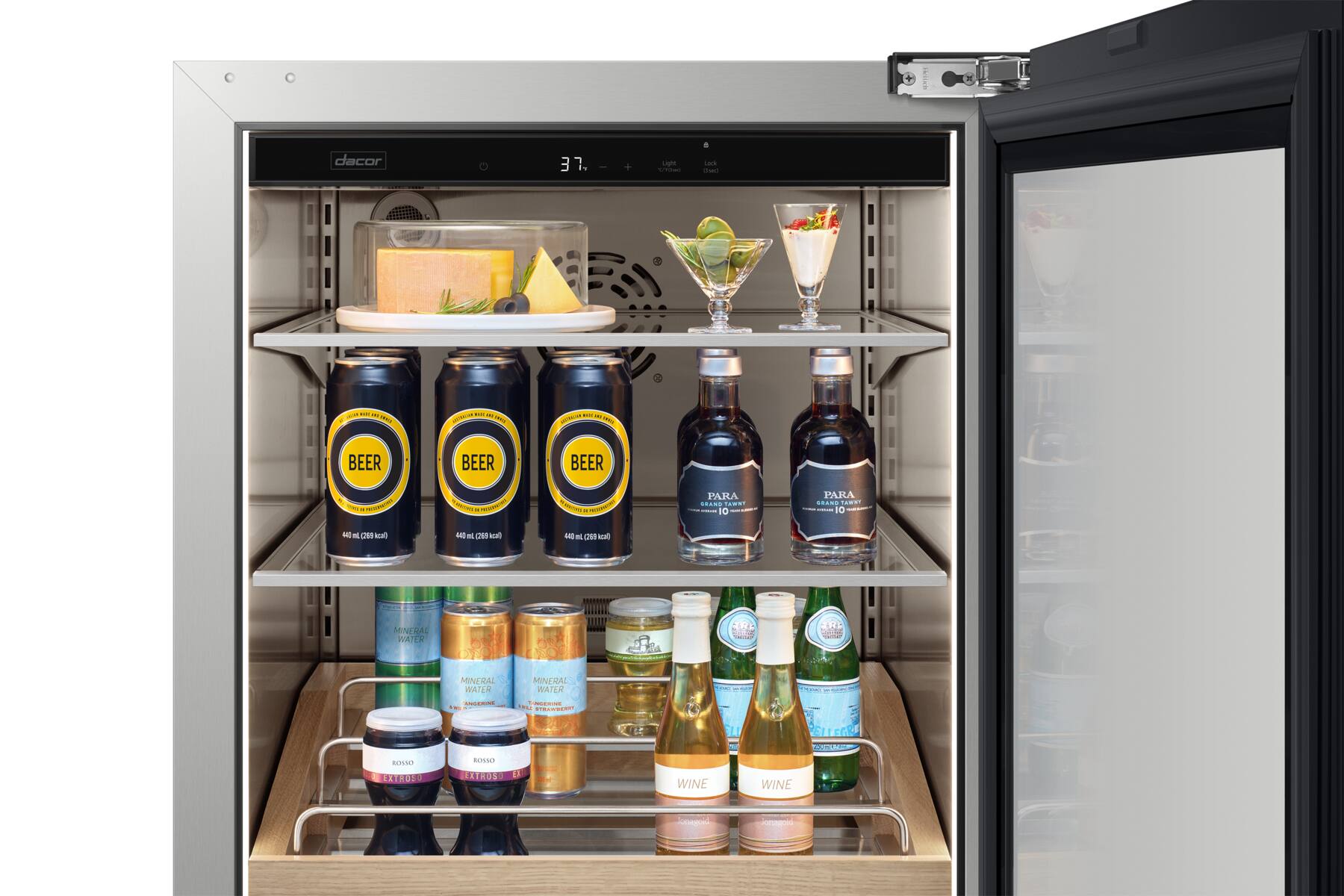

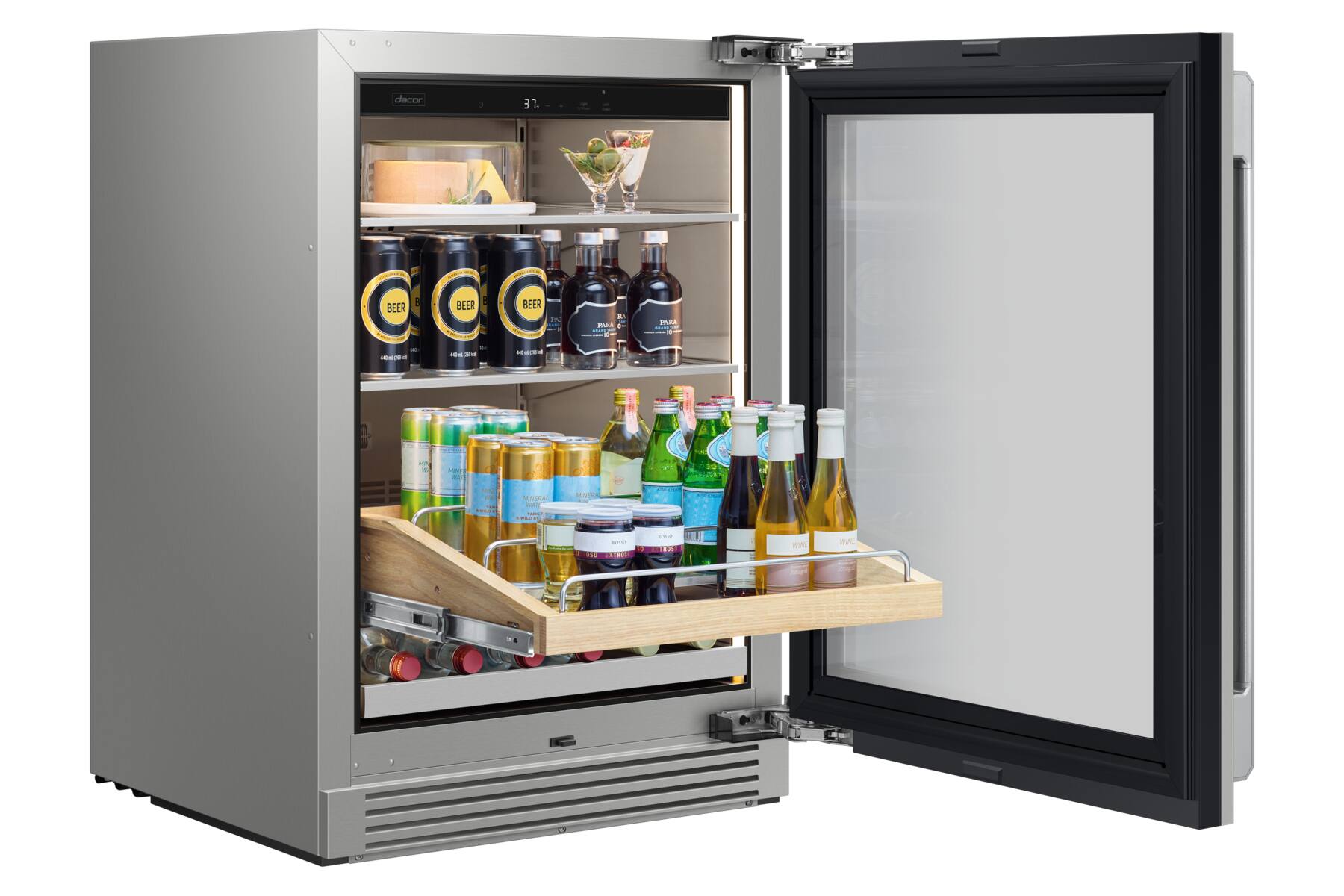

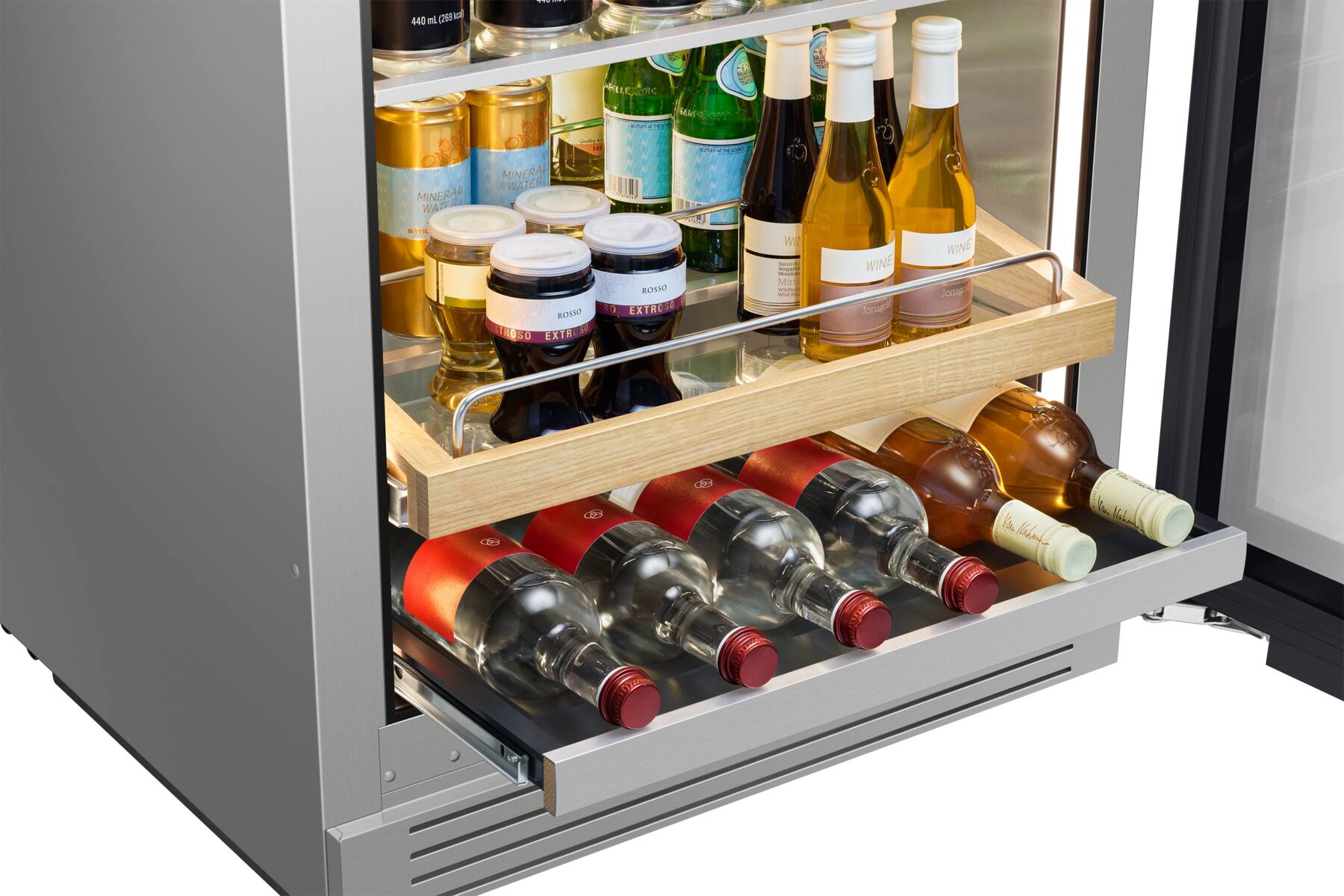

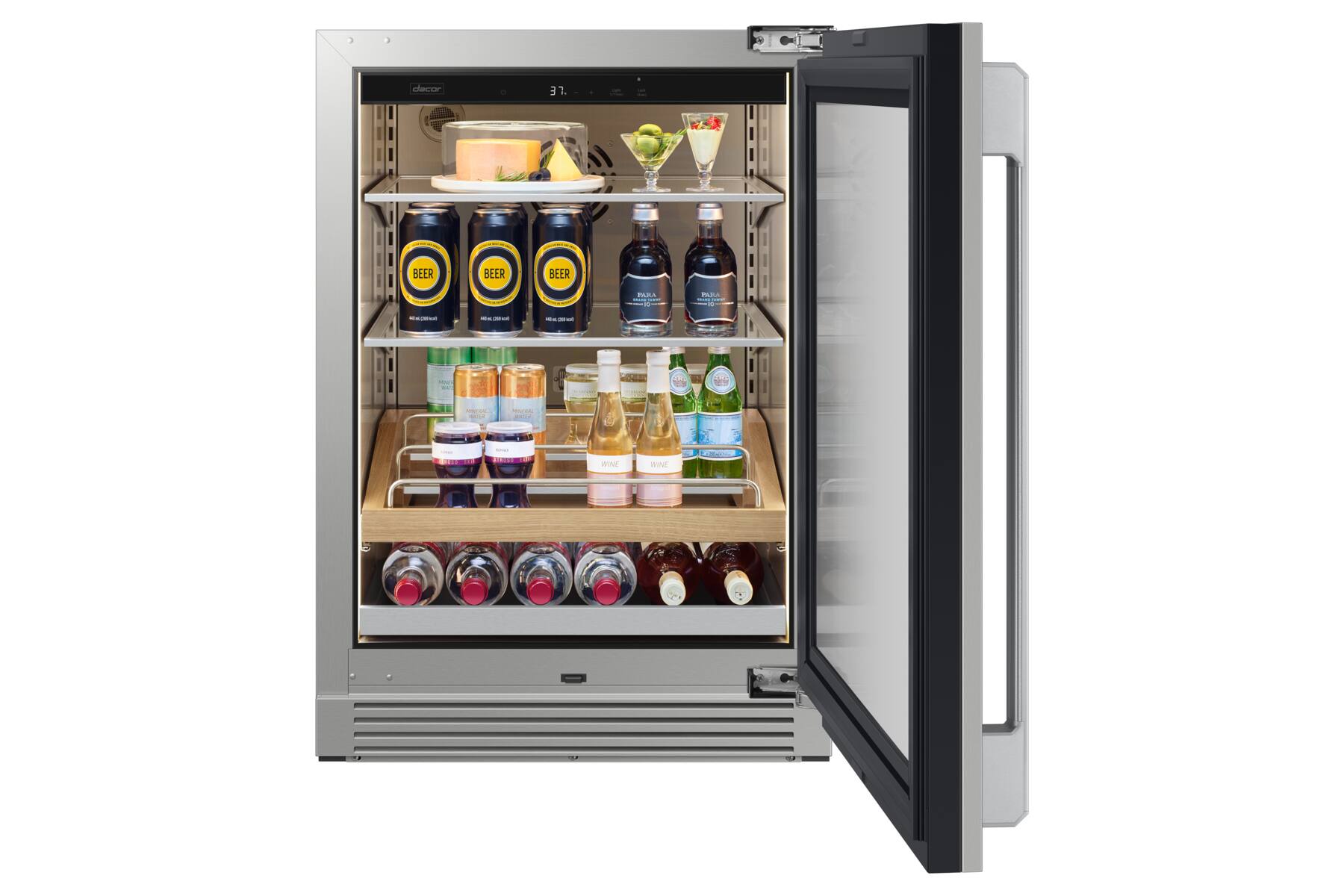

- Presenter Shelf: Add a touch of luxury to your special items with the two-step, full extension shelf. Made from natural oak wood and glass, the shelf features smooth rails for easy access to your beverages.
- Capacity: Easily store and access all your drinks in ample storage provided by 5.0 cu.ft. of internal capacity. Thoughtfully designed glass shelves are adjustable to neatly accommodate up to 128 canned beverages.

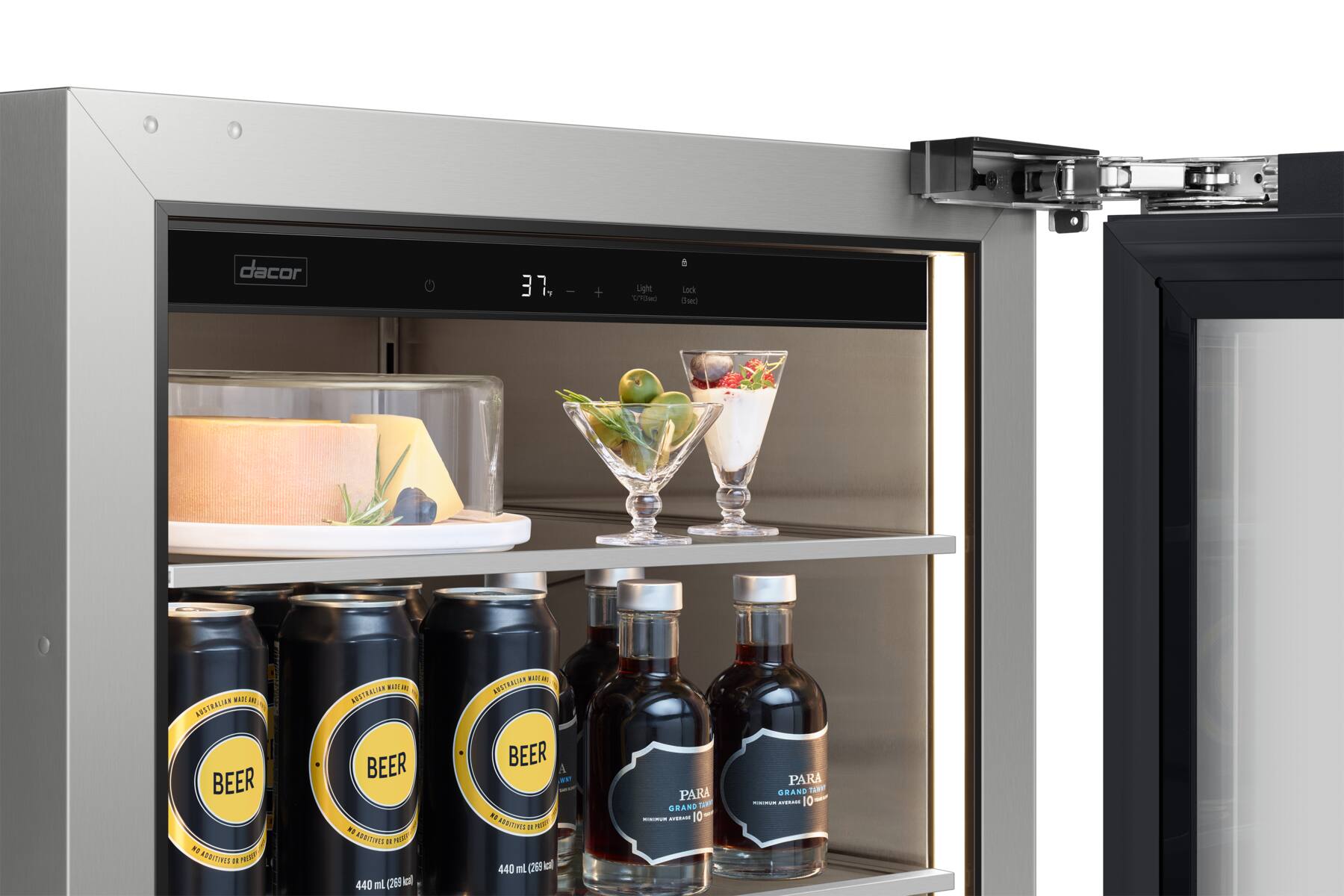

- Touch Control Panel: Set the perfect temperature for your beverages and adjust the LED brightness to your own personal preference with the touch of a button.
- Triple-Pane UV Glass: Keep your drinks refreshing with a specially-engineered argon gas door featuring layered Triple-Pane Glass that easily protects against harmful external factors like UV rays.
- Steelcool Interior With Led 3D Lighting: Enhance your refrigerator’s durability, preservation and beverage display with SteelCool Interior and a full-surround LED 3D Lighting system.
- Field-Reversible Flush-Capable Hinge: Thoughtfully engineered for flush installation, this hinge enables your beverage refrigerator door to swing open to the right or left, offering unparalleled adaptability.
- Presenter Shelf: Add a touch of luxury to your special items with the two-step, full extension shelf. Made from natural oak wood and glass, the shelf features smooth rails for easy access to your beverages.
- Capacity: Easily store and access all your drinks in ample storage provided by 5.0 cu.ft. of internal capacity. Thoughtfully designed glass shelves are adjustable to neatly accommodate up to 128 canned beverages.
- Touch Control Panel: Set the perfect temperature for your beverages and adjust the LED brightness to your own personal preference with the touch of a button.
- Triple-Pane UV Glass: Keep your drinks refreshing with a specially-engineered argon gas door featuring layered Triple-Pane Glass that easily protects against harmful external factors like UV rays.
- Steelcool Interior With Led 3D Lighting: Enhance your refrigerator’s durability, preservation and beverage display with SteelCool Interior and a full-surround LED 3D Lighting system.
Whats Included
- Refrigerator
- Presentation Shelf
- Beverage Shelf
- Bottom Wine Shelf
- Refrigerator
- Presentation Shelf
- Beverage Shelf
- Bottom Wine Shelf
Disclaimers
- Panel Ready Product: Panel Kit required
- Available Panel Kits: RAW24AMAASR/DA (Silver Stainless) & RAW24AMAAMS/DA (Graphite Stainless)
- Panel Ready Product: Panel Kit required
- Available Panel Kits: RAW24AMAASR/DA (Silver Stainless) & RAW24AMAAMS/DA (Graphite Stainless)
Q: Does the refrigerator have a door-open alarm?
A: This refrigerator model does have a door-open alarm.
Q: Can the refrigerator door be opened from either side?
A: This refrigerator has a field-reversible, flush-capable hinge, so the door can open to the left or right.
Q: What type of lighting does the refrigerator use?
A: This refrigerator uses LED lighting.
Q: Is the refrigerator panel ready?
A: This refrigerator is custom panel ready.
Q: What is the estimated annual electricity use?
A: The estimated annual electricity use is 245 kilowatt hours.
Q: How many shelves does the refrigerator have?
A: This refrigerator has four shelves.
