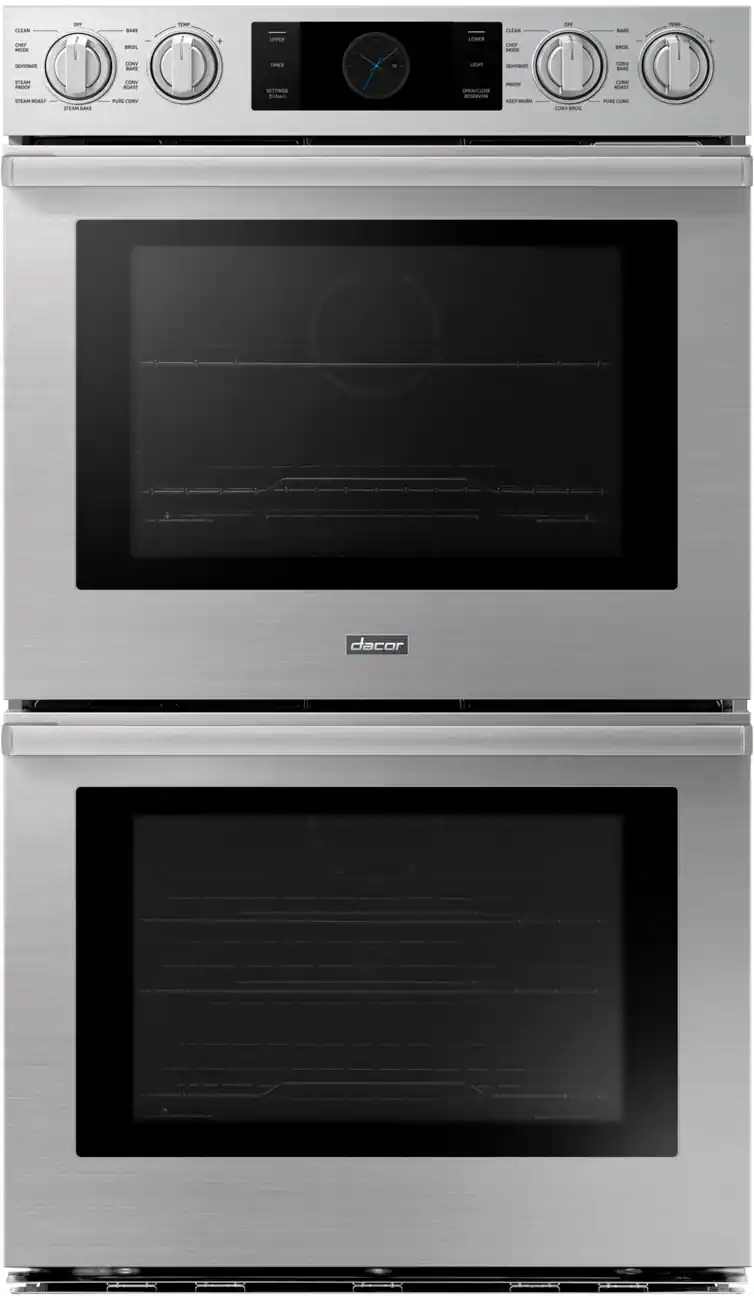

Dacor - Transitional 30" Built-In Electric Four-Part Pure Convection Double Wall Oven with Steam Assist and Chef Mode - Silver Stainless Steel
Related Item
Specifications
- Color FinishStainless steelProduct Height51 1/2 inchesProduct Width29 3/4 inchesProduct Depth24 1/2 inchesOven 1 ConvectionYesOven 2 ConvectionYes
- Key Specs
- Color Finish: Stainless steel
- Product Height: 51 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Dacor
- Model Number: DOB30T977DS/DA
- Product Name: Transitional 30" Built-In Electric Four-Part Pure Convection Double Wall Oven with Steam Assist and Chef Mode
- Color: Silver Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Dacor Transitional (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 51 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 362 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 51 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 1/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 7/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 4.8 cubic feet
- Oven 2 Capacity: 4.8 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Control Type: Backlit knob, Touchscreen
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: LCD
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: true
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Dehydration Settings: true (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Interior Height: 18 7/16 inches
- Oven 1 Interior Width: 25 1/32 inches
- Oven 1 Interior Depth: 19 1/8 inches
- Oven 1 Cavity Material: Enamel
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-Steam Cleaning, Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 6
- Number of Oven 1 Racks: 3
- Oven 1 Bake Element: 3000 watts
- Oven 1 Broil Element: 4400 watts
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 18 7/16 inches
- Oven 2 Interior Width: 25 1/32 inches
- Oven 2 Interior Depth: 19 1/8 inches
- Oven 2 Cavity Material: Enamel
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-Steam Cleaning, Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 3
- Oven 2 Bake Element: 3000 watts
- Oven 2 Broil Element: 4400 watts
- Electrical Specification
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 208 volts (Amount of power needed to support an electrical current.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- Chemical Disclosures: This product contains (Este producto contiene) one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. For more information on PFAS or chemicals in this product, visit (Para obtener mas informacion sobre PFAS o productos quimicos en este producto, visite) https://www.dacor.com/us/professionals/california-disclosure/ (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 887276760605
The recipe for a perfect meal? Take one part personal inspiration and add a professional’s touch. With Four-Part Pure Convection, our wall ovens promise the perfect balance of air movement and heat distribution for perfect results.

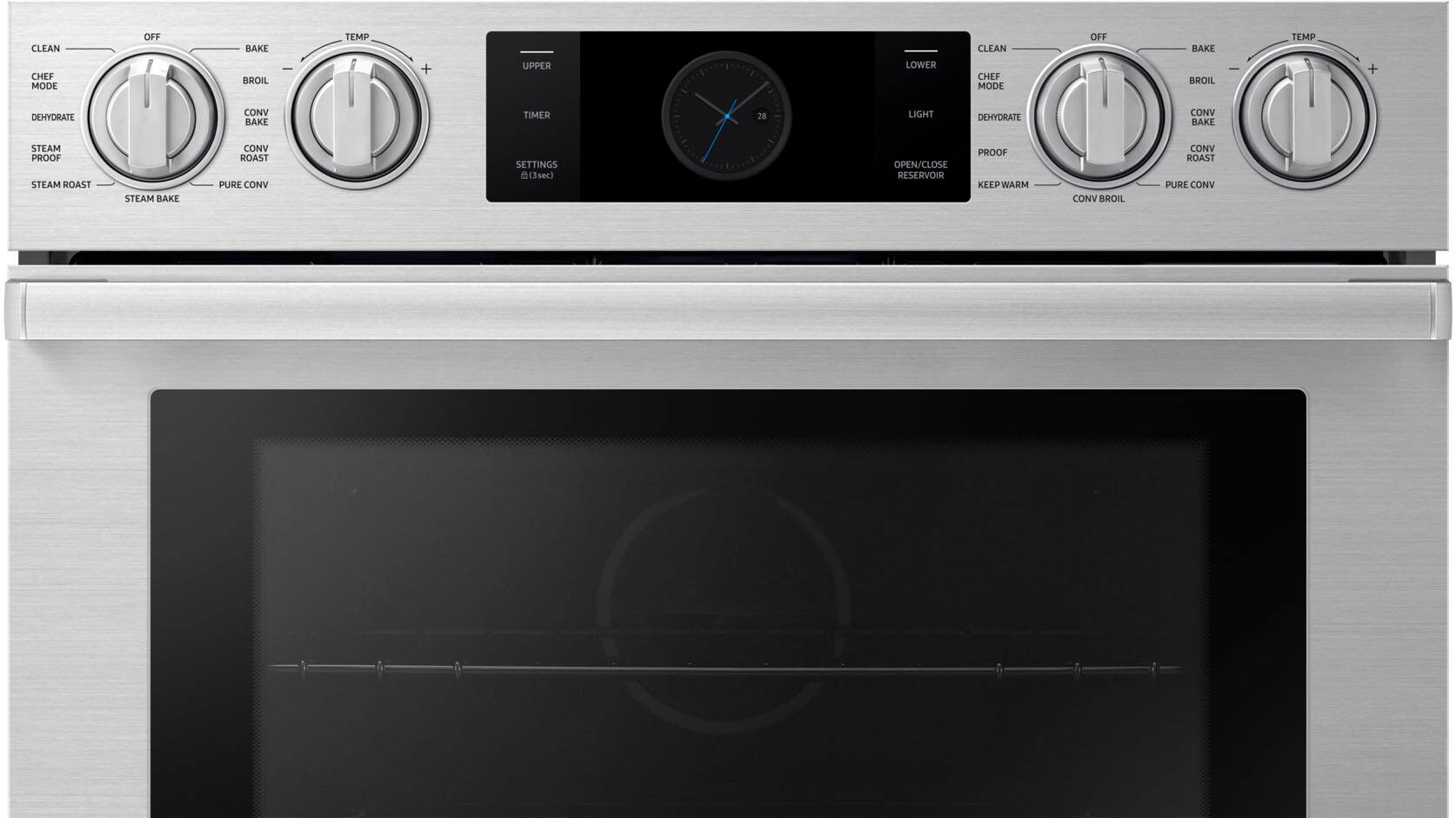

- Wi-Fi-Enabled 7 Inch Lcd Control Panel: 7" smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.

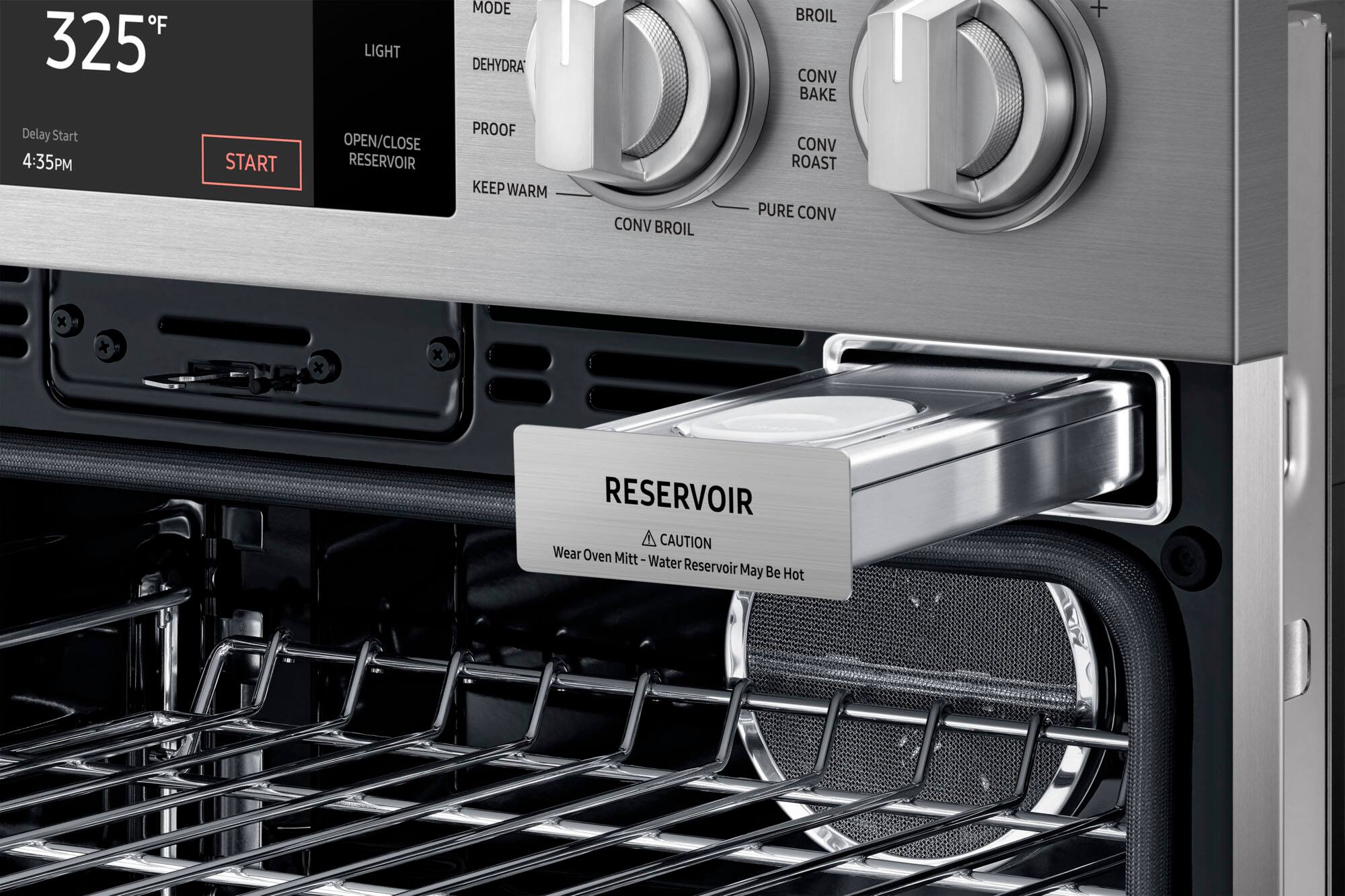

- Steam Assist Oven: For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust.
- Chef Mode: Receive expert cooking advice straight from the 7" screen, guiding the user on the optimum rack setting, temperatures and timing.
- Dual Four-Part Pure Convection: Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection. Reduce cooking time by distributing heat evenly across the entire oven.
- Powerful Broiling: Even browning and powerful searing with a 10 Pass, 4400W broiler.
- True Flush Integration: Complete the look of the modern and clean kitchen with true flush installation that will not hinder rest of the kitchen design.
- SmartThings Integration: Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
Whats Included
- 30" Double Wall Oven
- Standard Racks (3)

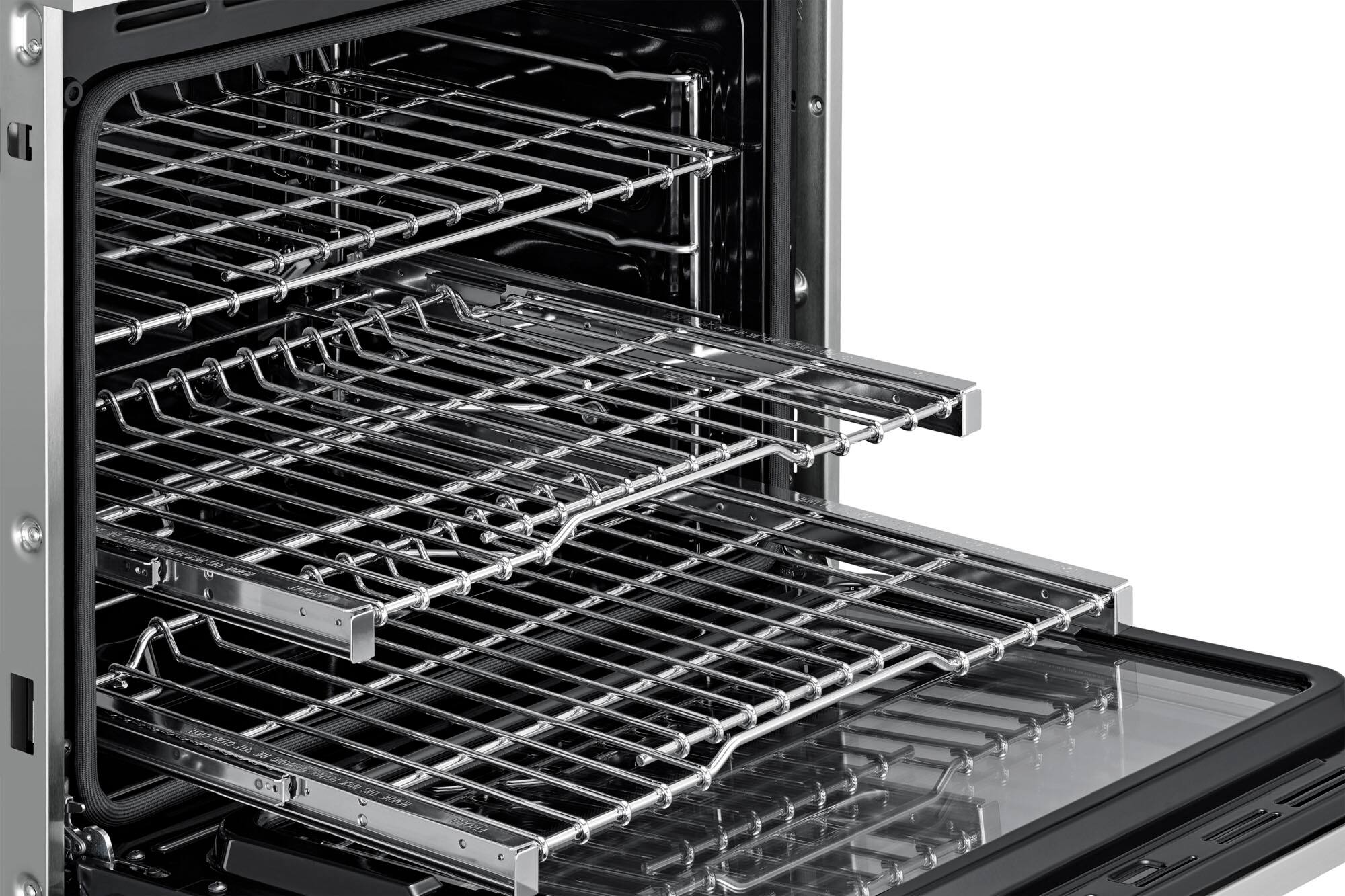

- Glide Racks (3)
- Temperature Probe (1)
- Convection Filter (4)
- Automatic Water Reservoir (1)
Product Manuals
Q: What is the capacity of each oven in this double wall oven?
A: The capacity of each oven in this double wall oven is 4.8 cubic feet.
Q: What type of cleaning method do these ovens use?
A: The ovens use a Self-Steam Cleaning method for both Oven 1 and Oven 2. This feature allows for easy cleaning and maintenance of the oven interior.
Q: Does this oven have a Sabbath Mode?
A: Yes, this oven has a Sabbath Mode feature. The Sabbath Mode can be activated by tapping "Settings" > "Sabbath" on the oven's control panel. Once activated, the oven will remain on continuously until the Sabbath feature is canceled.
Q: How many rack positions are there in each oven?
A: Each oven of the Dacor Transitional 30" Built-In Electric Four-Part Pure Convection Double Wall Oven with Steam Assist and Chef Mode has six rack positions.
Q: Does this oven have a built-in timer?
A: Yes, this oven has a built-in timer. The product specifications indicate that the "Timer" feature is "true". Additionally, the user manual provides instructions on how to set the timer.
Q: What is the maximum temperature that this oven can reach?
A: The maximum temperature that this oven can reach is 550 °F (285 °C). This temperature can be achieved in the following modes: Bake, Convection Bake, Convection Roast, Pure convection, Steam Bake, Steam Roast, and Convection Broil.
Q: What is the Chef Mode feature and how does it assist in cooking?
A: The Chef Mode feature in the Dacor double wall oven offers a guided cooking experience for inexperienced cooks. It provides 11 gourmet auto-cook features, such as garlic prime rib, mustard filet mignon, and soft buttermilk cornbread. When a Chef Mode feature is selected, the oven automatically adjusts the cooking time and temperature based on the chosen recipe, simplifying the cooking process and ensuring optimal results.
Q: Can you explain the True Flush Integration design and its benefits?
A: The True Flush Integration design allows for a seamless installation of the oven, creating a sleek and modern look in the kitchen. It eliminates any gaps or protrusions between the oven and the surrounding cabinetry, resulting in a clean and cohesive appearance. This design also makes it easier to clean the area around the oven, as there are no crevices where dirt and grime can accumulate.
Compare similar products
The recipe for a perfect meal? Take one part personal inspiration and add a professional’s touch. With Four-Part Pure Convection, our wall ovens promise the perfect balance of air movement and heat distribution for perfect results.
The most versatile culinary tool in the kitchen. Multi functional speed in the upper oven combines the power of a microwave and convection technology to enable searing, broiling and even air frying.
Double the fun with the power and flexibility. The Double Wall Oven combines pure convection with the power of superb, healthier and better steam-roasting and steam-baking. With the capacity to handle dishes of any size, you'll never run out of space or imagination.
Nothing about your personal style is standard. So why should your appliances be? Cafe redefines the kitchen space with the Customizable Professional Collection, which gives you the ability to pair matte white, matte black or stainless appliance finishes with your choice of six distinct handle and knob options. Cafe curated hardware offerings include brushed bronze, brushed black, brushed copper, and brushed stainless, alongside the latest bold additions, brushed brass and flat black. Get the look that truly reflects your personality with Cafe's unique finishes and exceptional styling.
| Pros for Dacor - Transitional 30" Built-In Electric Four-Part Pure Convection Double Wall Oven with Steam Assist and Chef Mode - Silver Stainless Steel | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | There were no pros for this product— | Air Fry, Appearance, Ease of use, Performance, Convection |
Specs
Reviews
Customers are saying
Customers frequently mention the good heating of the Transitional 30" Built-In Electric Four-Part Pure Convection Double Wall Oven with Steam Assist and Chef Mode. They appreciate the many features and the nice look of the product.

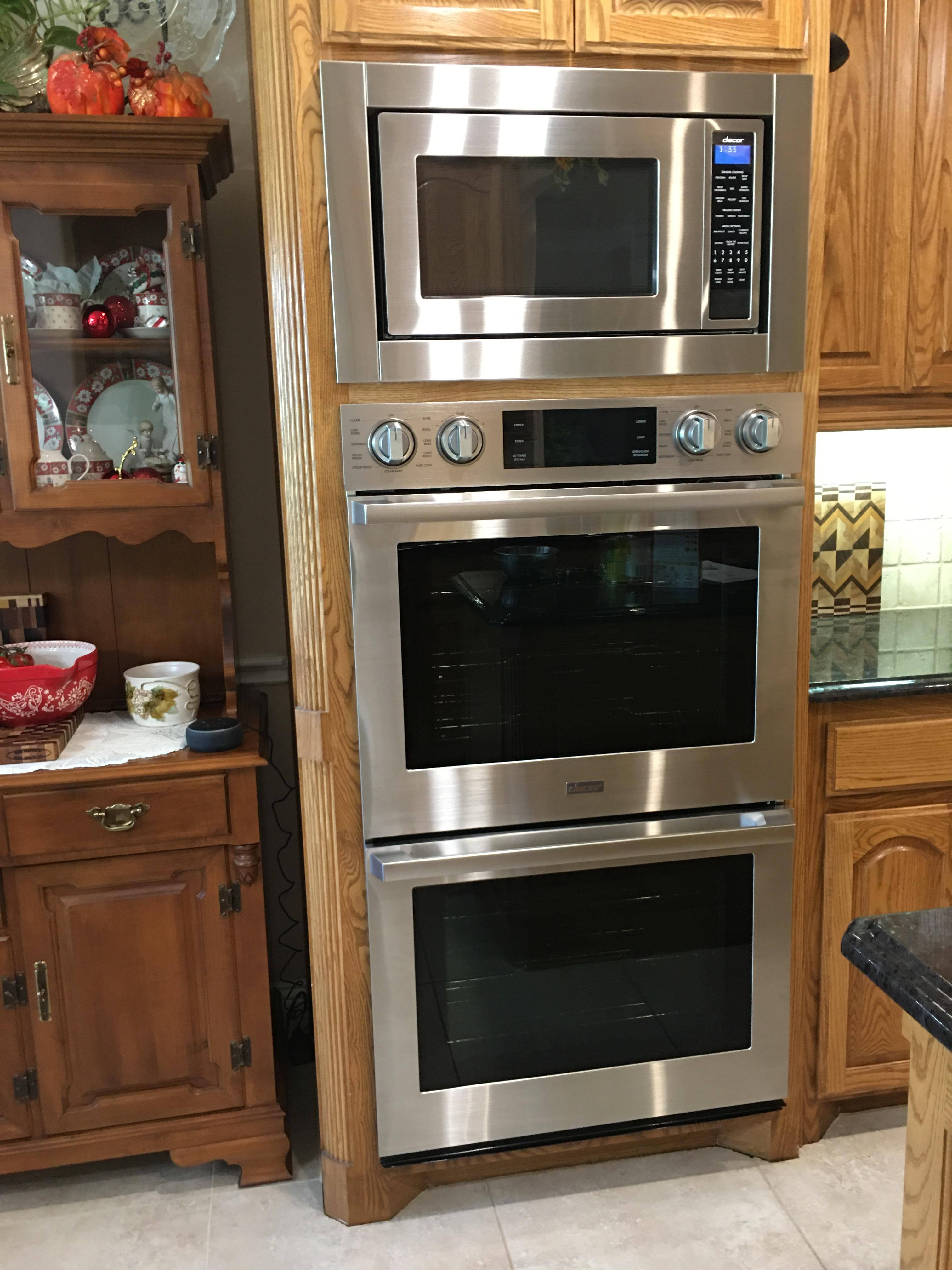

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great oven!
My wife absolutely loves her new Decor double oven! Easy to use. Very good heating ability. And the slide out racks are fantastic!
This review is from Dacor - Transitional 30" Electric Double Wall Oven with Dual Four-Part Pure Convection - Multi
Posted by Great
- Rated 5 out of 5 stars
Dacor Oven
Very nice oven. Pleased with the quality and how nice it looks.
Posted by ChristinaA
- Rated 5 out of 5 stars
Beautiful Oven
Great product…loaded with many features…nice looking.
Posted by awinrm
