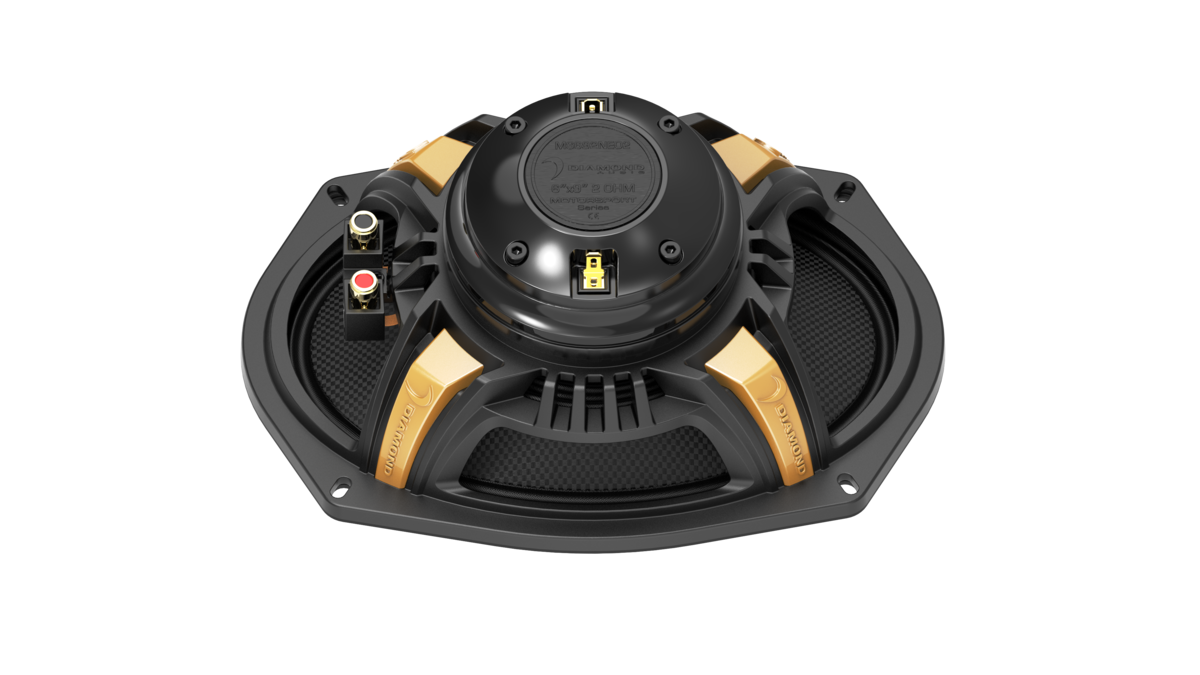

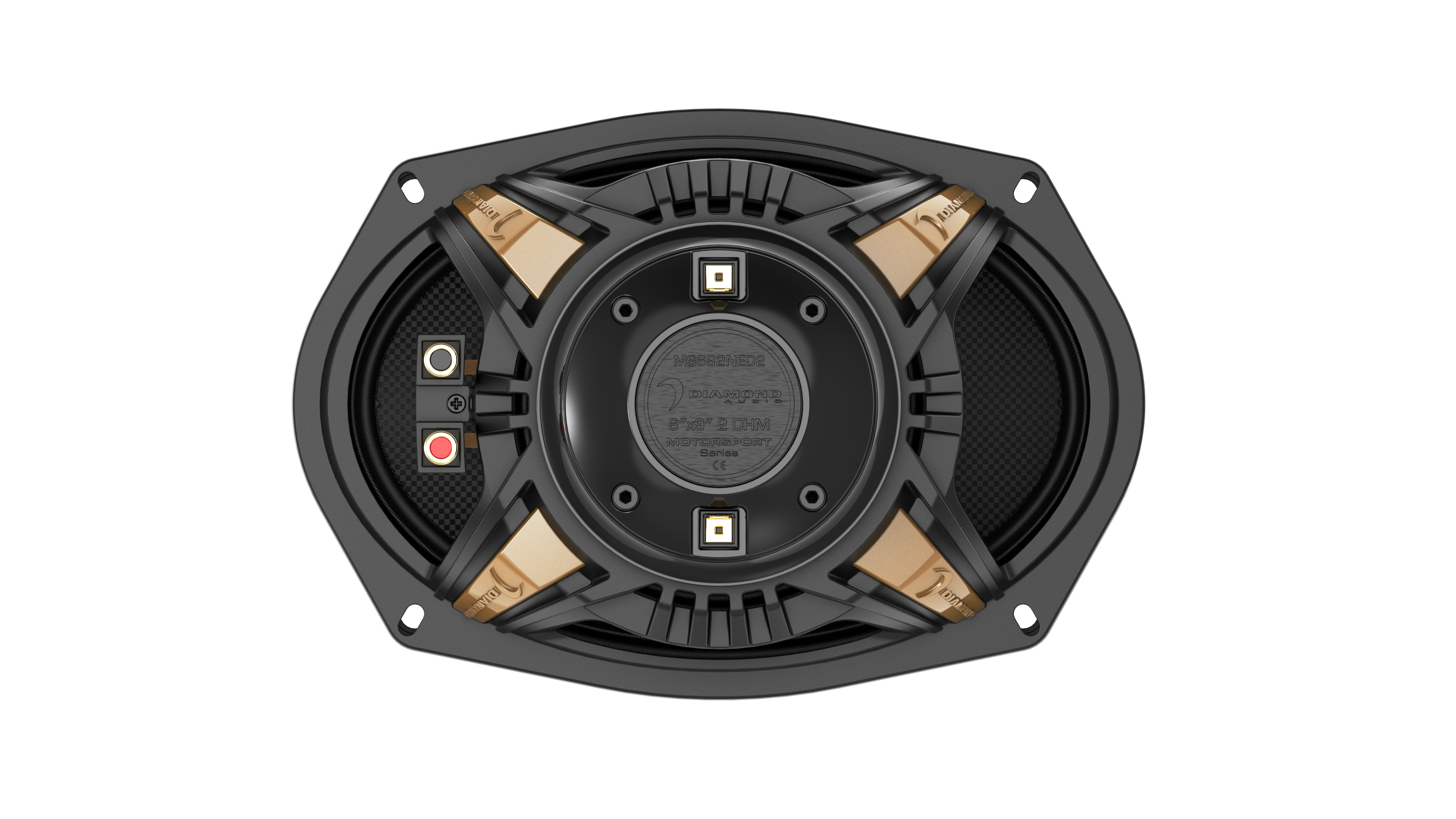

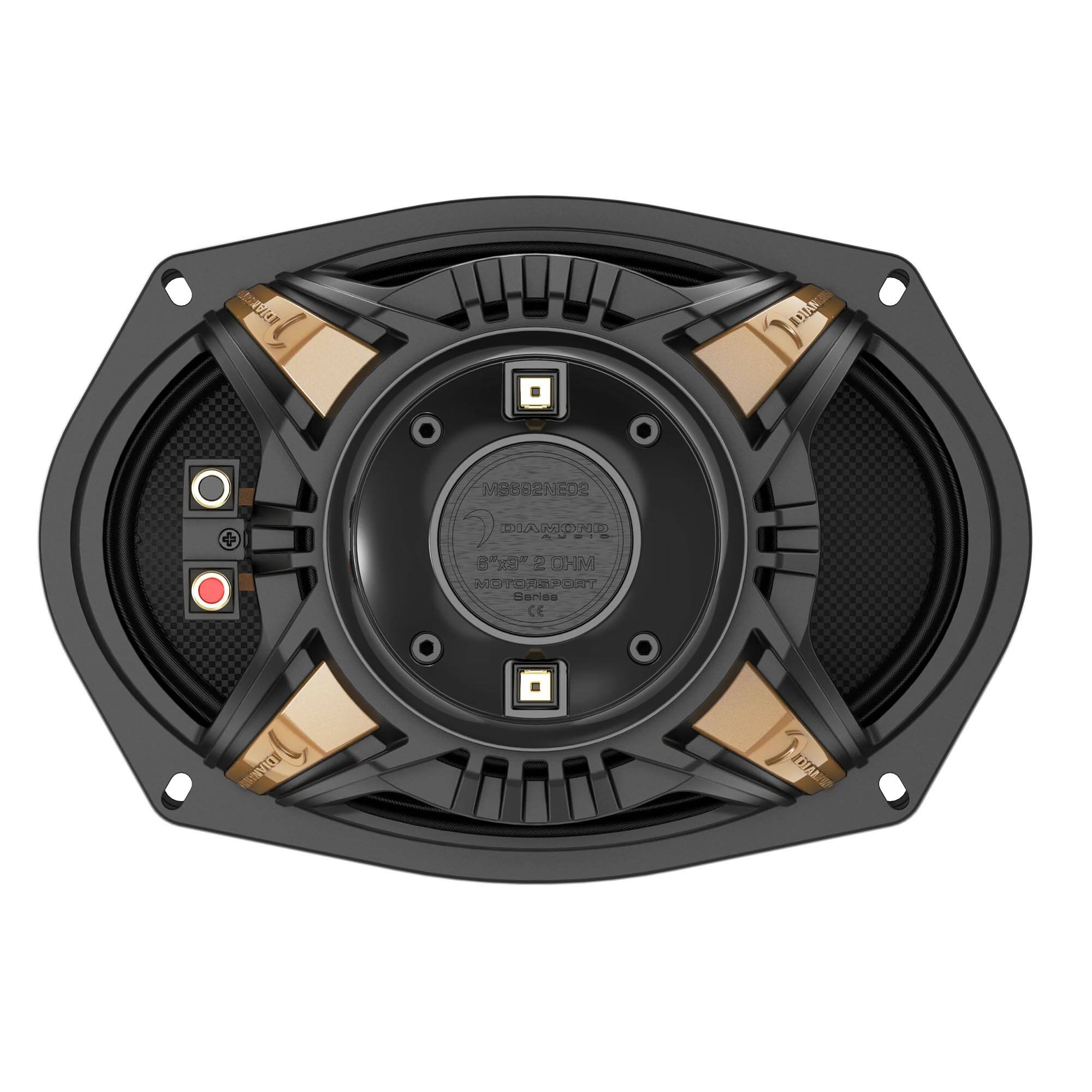

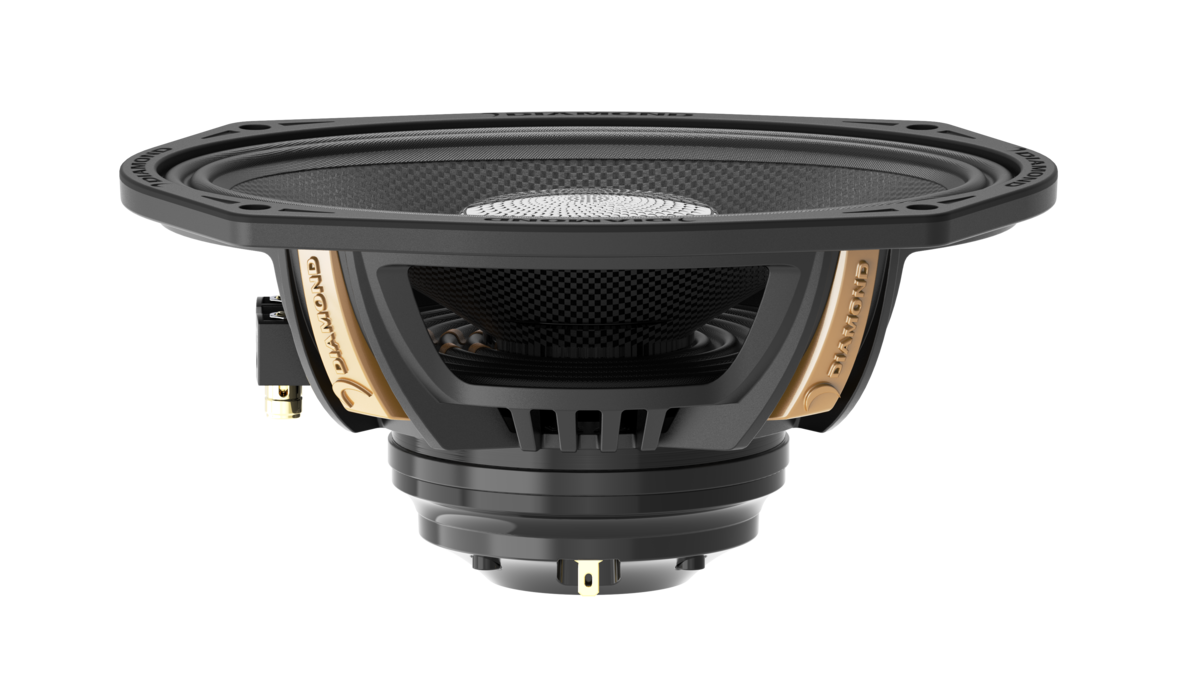

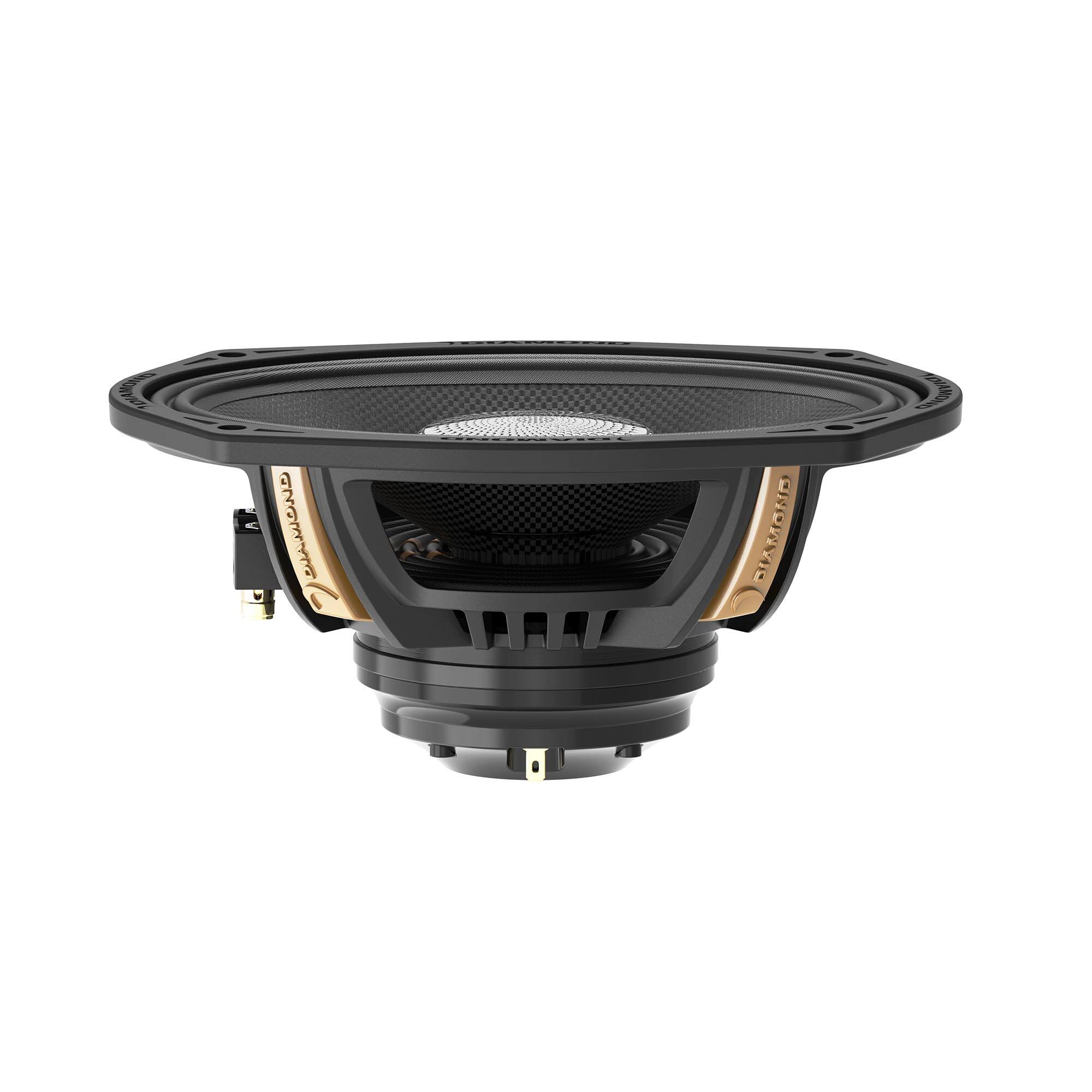

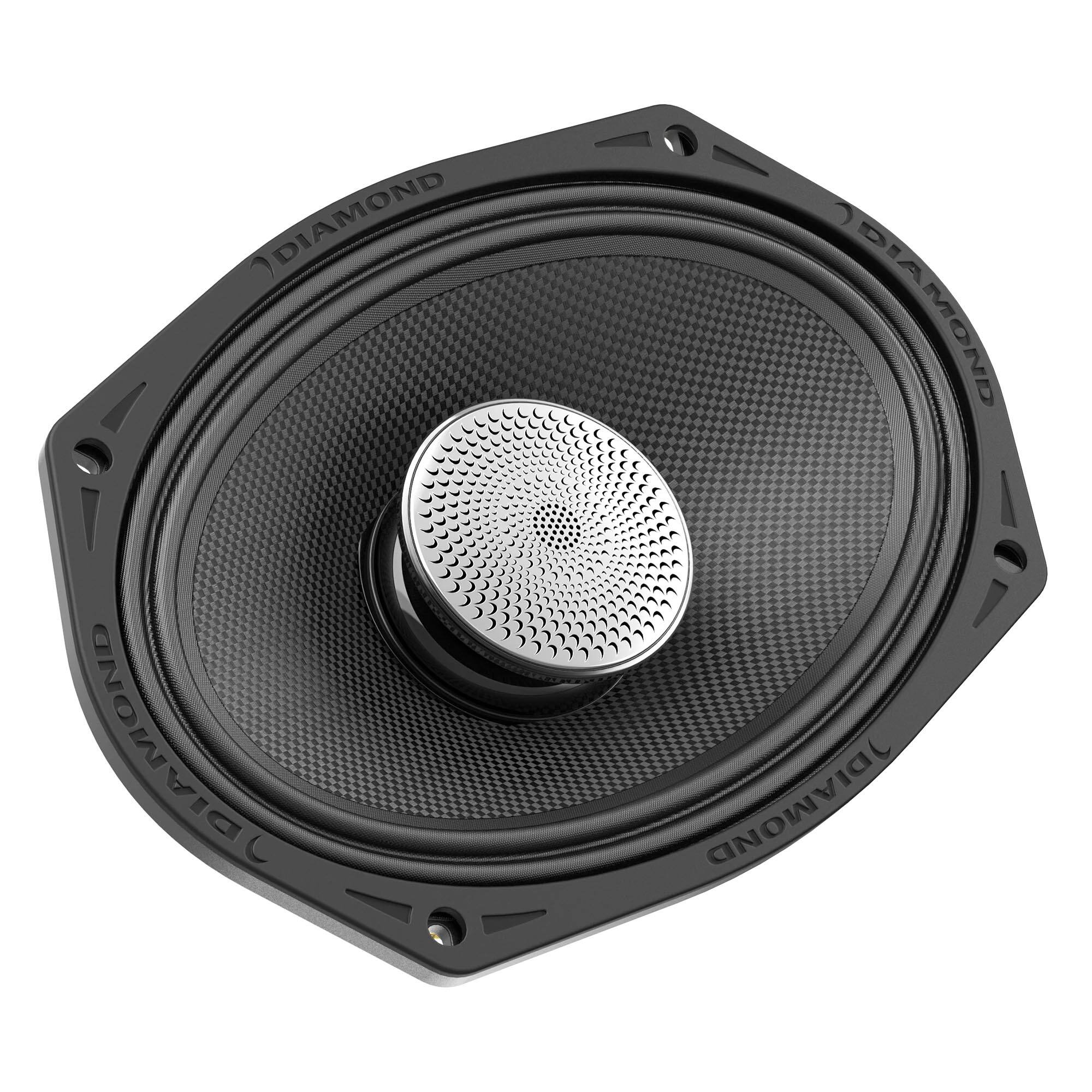

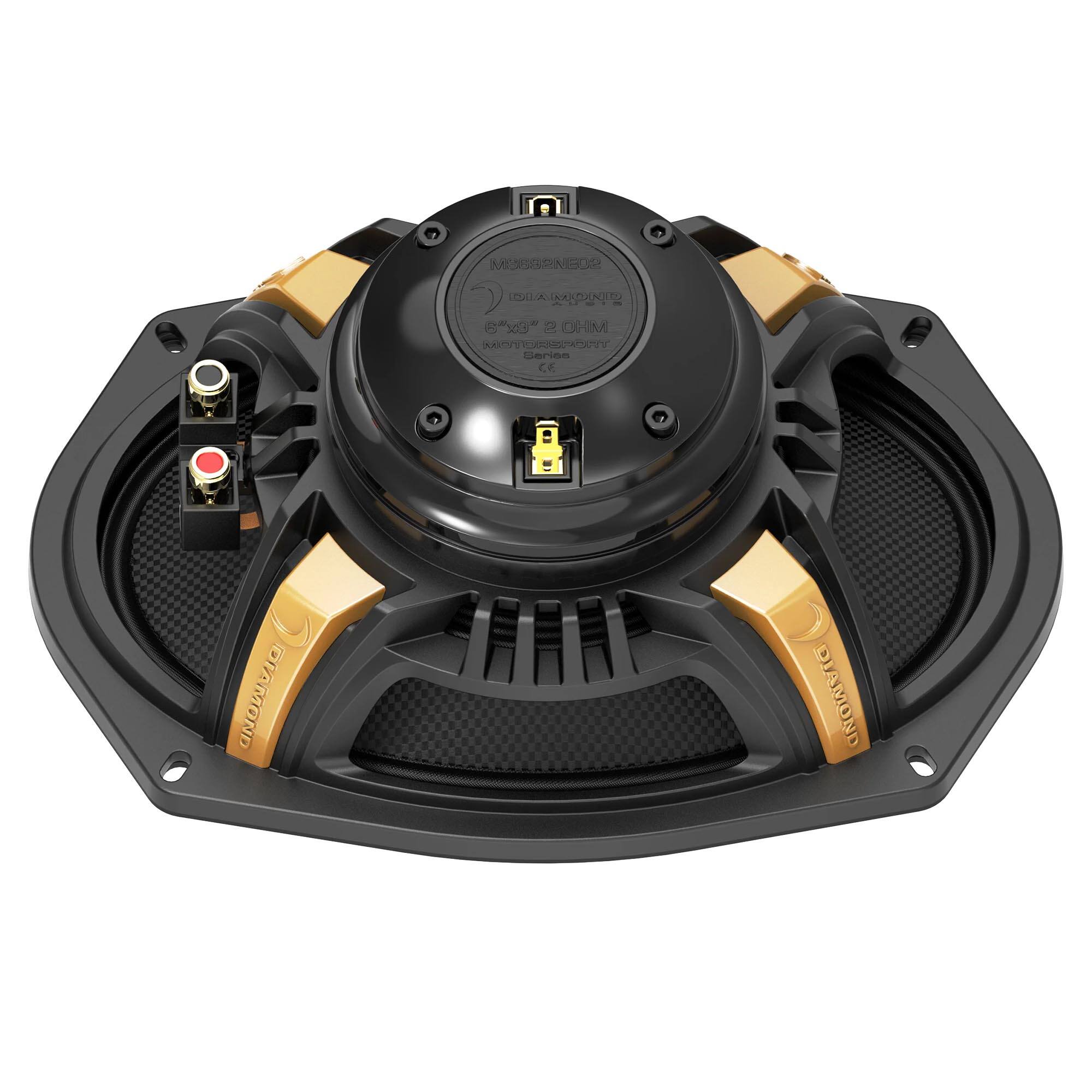

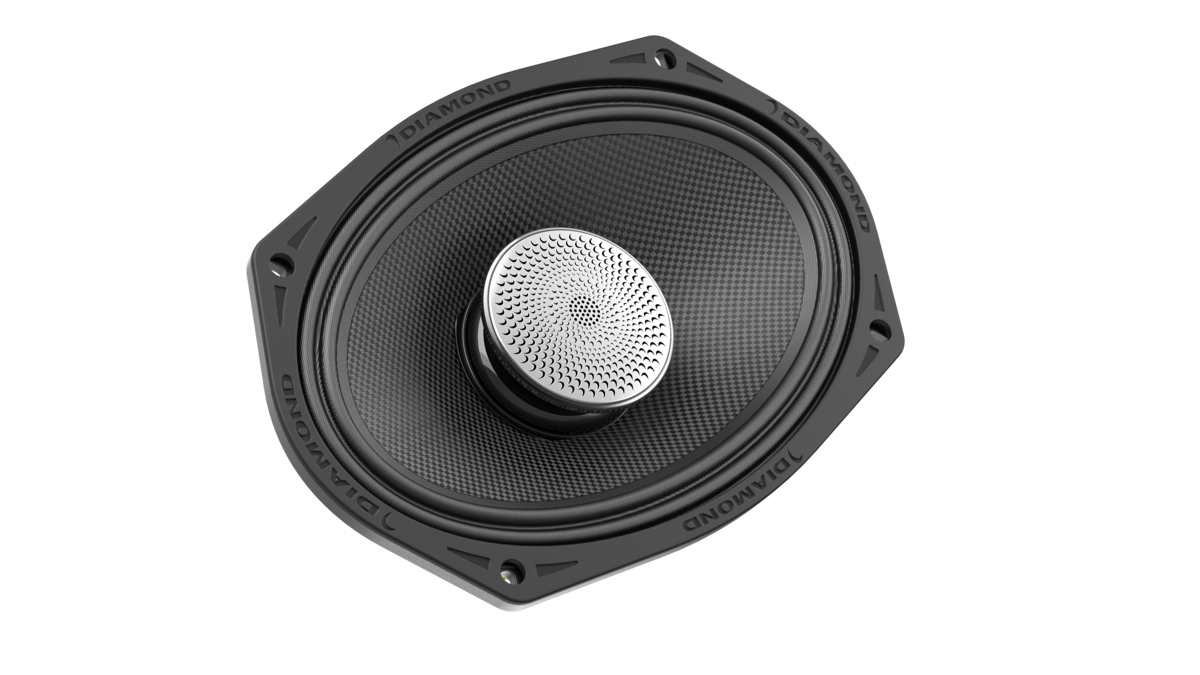

Diamond Audio - MS692NEO2 - 6"x9" 2-WAY CO-AXIAL NEO SPEAKERS (4Ω) - Black
Diamond Audio - MS692NEO2 - 6"x9" 2-WAY CO-AXIAL NEO SPEAKERS (4Ω) - Black
Reviews coming soon
FREE shipping to
Related Item
Specifications
- RMS Power200 wattsPeak Power Handling400 wattsSpeaker Size6" x 9"
- Key Specs
- RMS Power: 200 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 400 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Speaker Size: 6" x 9"
- General
- Brand: Diamond Audio
- Model Number: MS692NEO2
- Product Name: Diamond Audio MS692NEO2 - 6"x9" 2-WAY CO-AXIAL NEO SPEAKERS (4Ω)
- Color: Black
- Number Of Speakers: 1
- Audio
- RMS Power: 200 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 400 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Features
- Marine: false
- Design
- Speaker Size: 6" x 9"
- Dimensions
- Product Height: 9.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.58 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.74 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.01 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 847169070990
Step into the future of sound with Diamond Audio’s NEO Series Coaxial Drivers — the pinnacle of audio innovation. At Diamond Audio, we’re driven by a relentless passion for perfect sound. That’s why we’ve reimagined the legendary Coaxial horn driver with our latest NEO Series, combining the best features of our NEO midbass and midrange drivers with our exclusive waterproof horn technology. The result? Unparalleled sound quality, exceptional output, and effortless installation. Every element of these drivers is crafted to the highest standards, from the premium voice coils and advanced motor structures to the rock-solid basket design, flexible bi-amp capabilities, and waterproof components. These speakers don’t just play music — they transform your listening experience into something extraordinary. If you’ve heard our MS NEO drivers before, get ready for a whole new level of sonic brilliance. Don’t settle for ordinary sound. Choose Diamond Audio’s NEO Series Coaxial Drivers — because your music deserves the best
- Specifications: SPEAKER SIZE - 6X9" SPEAKER TYPE - HORN LOADED CO AXIAL BI-AMPABLE YES OHMS (PER COIL) - 2 NUMBER OF VOICE COILS - DUAL FIELD SERVICABLE VOICE COIL - YES CONE MATERIAL - CARBON FIBER DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL - CAST ALUMINIUM
- Specifications: MAGNET TYPE - NEODYMIUM SURROUND MATERIAL - RUBBER WATER RESISTANCE - VOICE COIL DIAMETER - INCH (MM) - 2" THIELE/SMALL PARAMETERS SENSITIVITY (1W/1M): 94 RE (Ω) [SERIES]: 3.2
- Specifications: QMS: 7.368 QES: 0.597 QTS: 0.552 FS (HZ): 104 VAS (L): 9 CMS (MM/N): 0.148 MMS (G): 15.6 SD (M2): 206.84 BL (T*M): 7.418 XMAX (MM): 1.2 POWER HANDLING RMS: 200 POWER HANDLING MAX: 400
- Specifications: MOUNTING DEPTH: IN.(MM):3.74" (95MM) CUT OUT DIAMETER IN.(MM):8.58" (218MM) OVER ALL DIAMETER IN.(MM):9.19" (233.5MM) OVER ALL HEIGHT IN.(MM):4.08" (103.7MM)
- Key Feature: NUMBER OF VOICE COILS - DUAL
- Specifications: SPEAKER SIZE - 6X9" SPEAKER TYPE - HORN LOADED CO AXIAL BI-AMPABLE YES OHMS (PER COIL) - 2 NUMBER OF VOICE COILS - DUAL FIELD SERVICABLE VOICE COIL - YES CONE MATERIAL - CARBON FIBER DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE BASKET MATERIAL - CAST ALUMINIUM
- Specifications: MAGNET TYPE - NEODYMIUM SURROUND MATERIAL - RUBBER WATER RESISTANCE - VOICE COIL DIAMETER - INCH (MM) - 2" THIELE/SMALL PARAMETERS SENSITIVITY (1W/1M): 94 RE (Ω) [SERIES]: 3.2
- Specifications: QMS: 7.368 QES: 0.597 QTS: 0.552 FS (HZ): 104 VAS (L): 9 CMS (MM/N): 0.148 MMS (G): 15.6 SD (M2): 206.84 BL (T*M): 7.418 XMAX (MM): 1.2 POWER HANDLING RMS: 200 POWER HANDLING MAX: 400
- Specifications: MOUNTING DEPTH: IN.(MM):3.74" (95MM) CUT OUT DIAMETER IN.(MM):8.58" (218MM) OVER ALL DIAMETER IN.(MM):9.19" (233.5MM) OVER ALL HEIGHT IN.(MM):4.08" (103.7MM)
- Key Feature: NUMBER OF VOICE COILS - DUAL
Whats Included
- Speaker
- Speaker
