DS18 Audio - EXL-XX 12" High Excursion Subwoofer, 2000W RMS Dual 4-Ohm

Model: EXL-XX12.4DHE
SKU: 13007837

Reviews coming soon

Sold & shipped by

About this product

The EXL-XX12.4DHE is a 12" car subwoofer from the DS18 EXL-XX series. It handles 2000 watts RMS and uses dual voice coils at 4 ohms per coil, so you can wire multiple subwoofers to the final impedance your amplifier is stable at. Peak power handling is 4000 watts. The high-excursion motor and suspension let the cone travel farther for deeper low-frequency output. Mounting requires an 11.1" cutout diameter and 7.87" of mounting depth, so confirm your enclosure before installing. Pair it with a matching monoblock amplifier and a properly tuned enclosure to get the most low-frequency output.

Features
  • 2000W RMS / 4000W Peak Power Handling

    Rated at 2000 watts RMS and 4000 watts peak. Behind that rating: 3" voice coil on a black aluminum former wound with CCAW wire, a 306 oz ferrite motor and 42mm of one-way excursion. That is what lets a 12" cone move this much air without losing control.

  • Dual 4-Ohm Voice Coil

    Dual voice coils let you wire multiple subwoofers in series or parallel to reach the final impedance your amplifier is stable at, which gives you room to grow the system later.

  • High-Excursion Motor for Deep Bass

    The high-excursion motor and suspension allow the cone to travel farther than a conventional subwoofer, which moves more air and produces the low frequencies you feel rather than just hear. Give it a properly tuned sealed or ported enclosure to take advantage of it.

  • Fitment and Recommended Enclosure

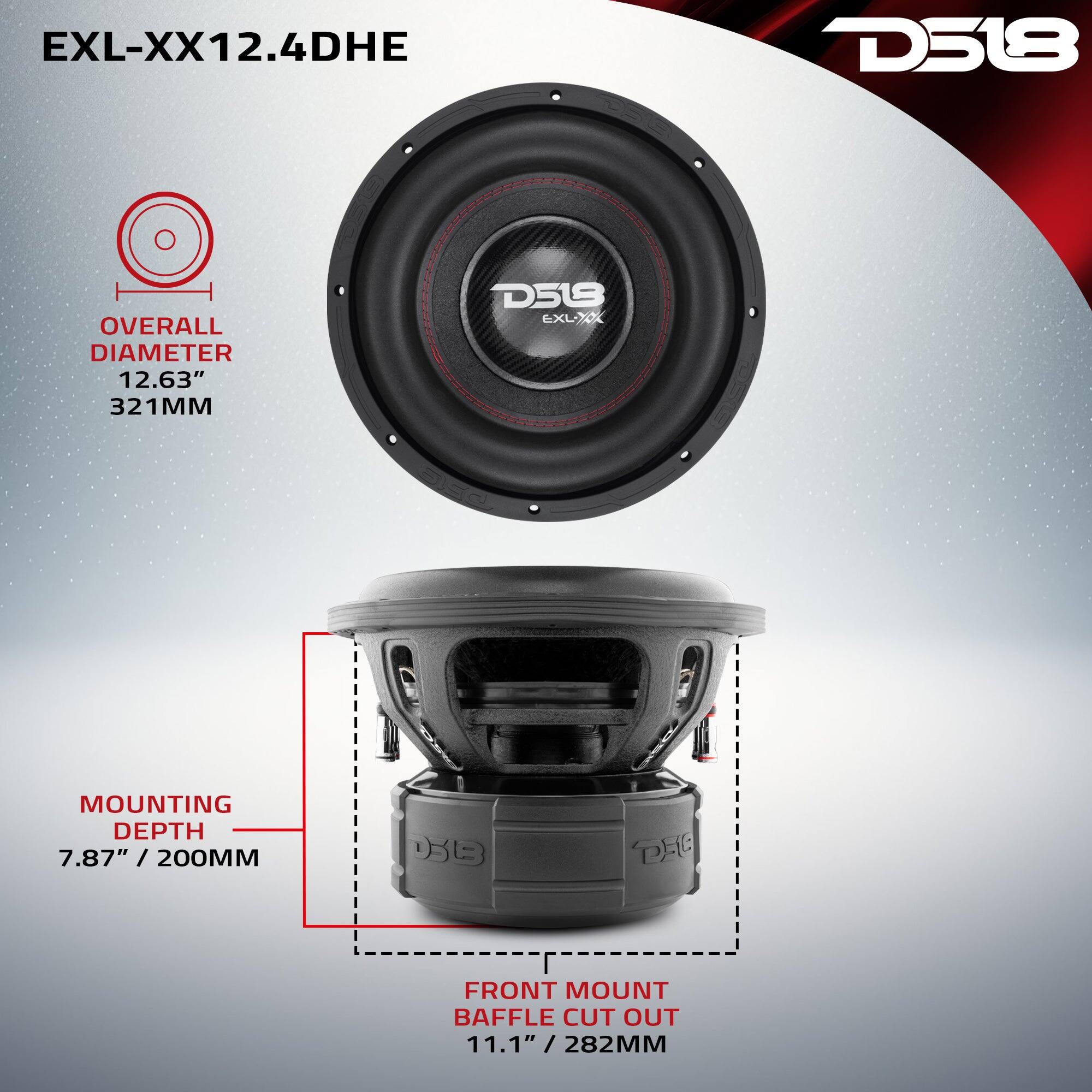

    This 12" subwoofer requires an 11.1" cutout diameter and 7.87" of mounting depth. Check these numbers against your enclosure before ordering: enclosure volume and tuning change the low-frequency response as much as the driver does.

  • 87dB Sensitivity

    A 87dB sensitivity rating turns amplifier watts into audible output efficiently, so you get more usable bass from the power you already have.

See all features
Specifications
  • RMS Power
    2000 watts
    Peak Power Handling
    4000 watts
    Impedance
    4 ohms
    Sensitivity
    87 decibels
    Dual Voice Coils
    Yes
    Woofer Size
    12"
