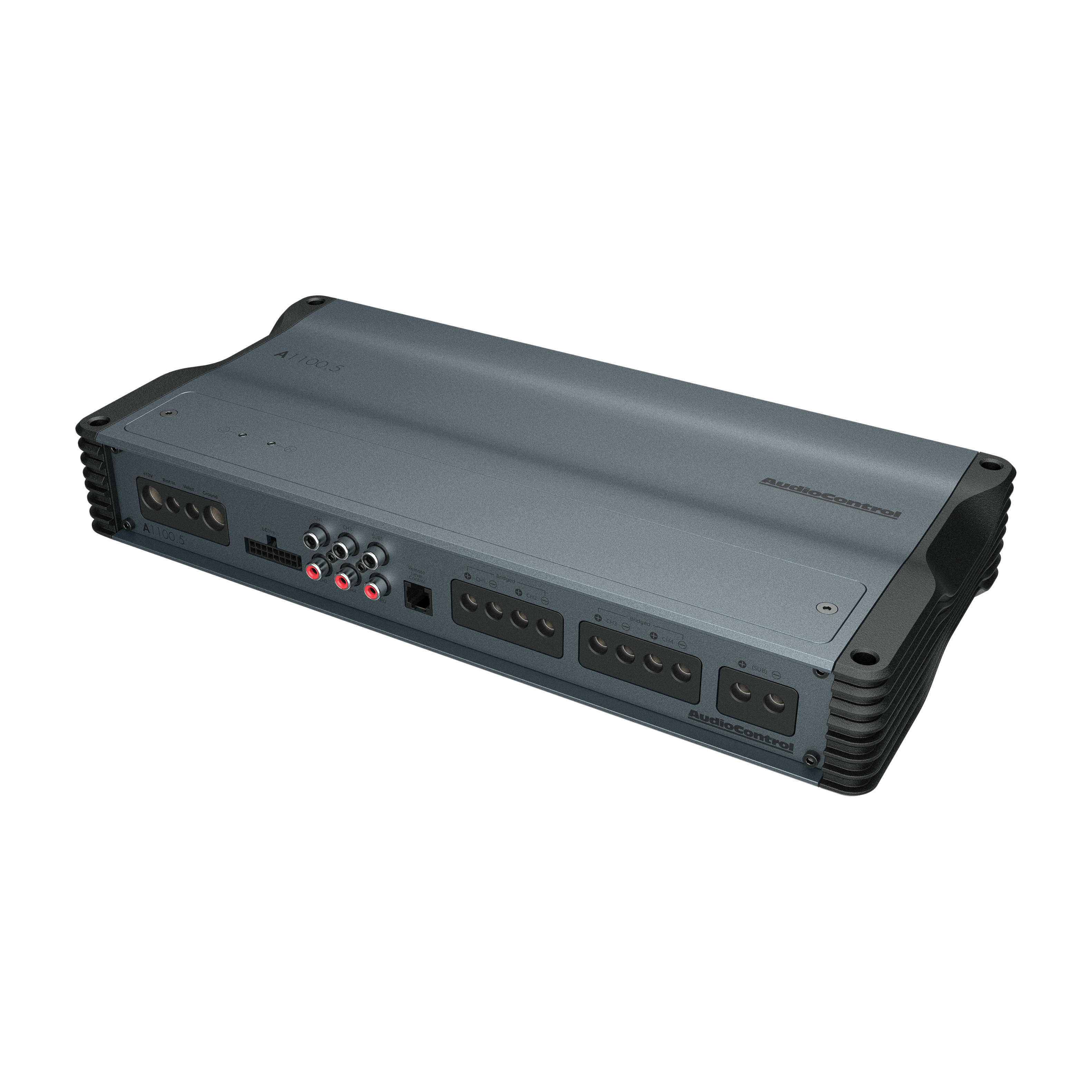

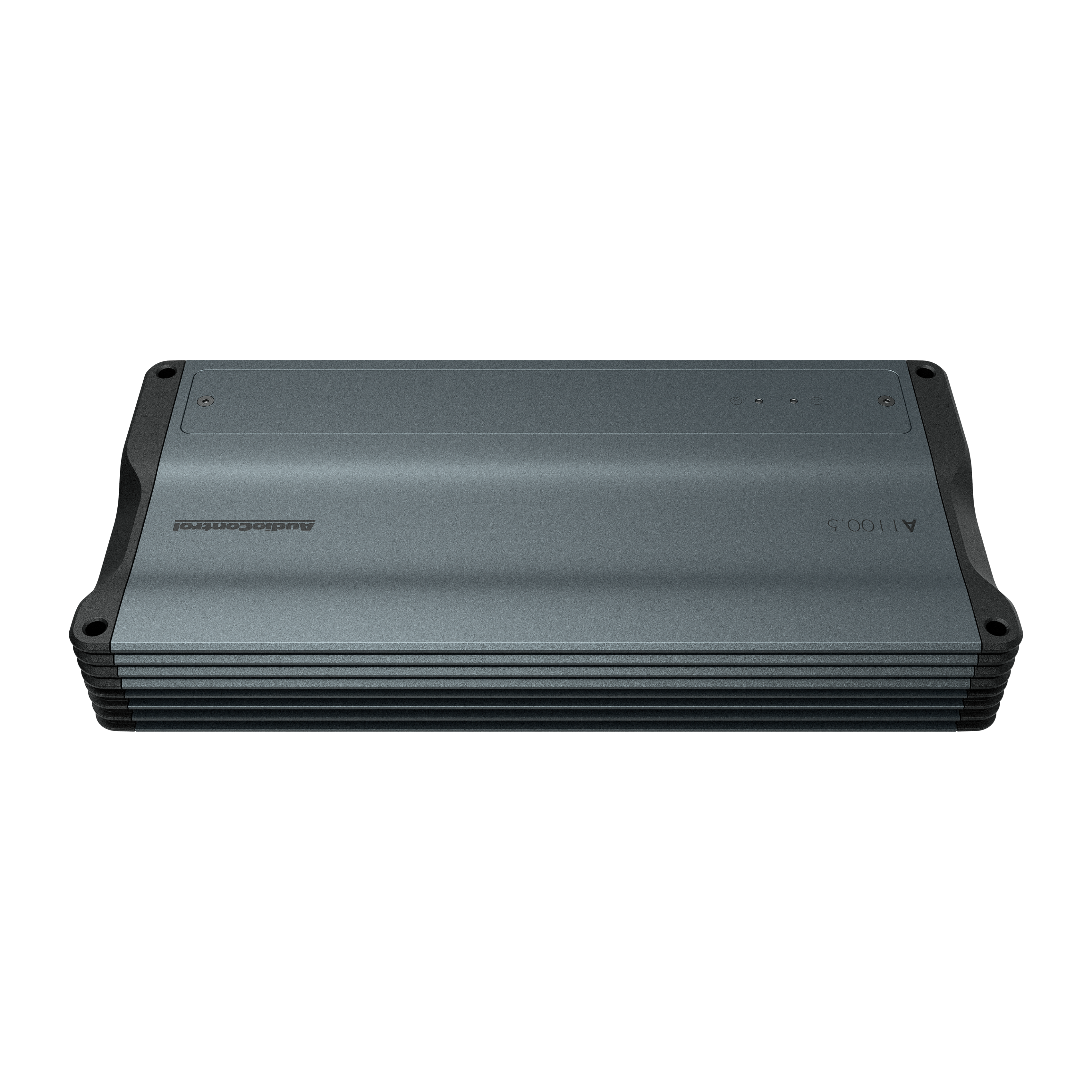

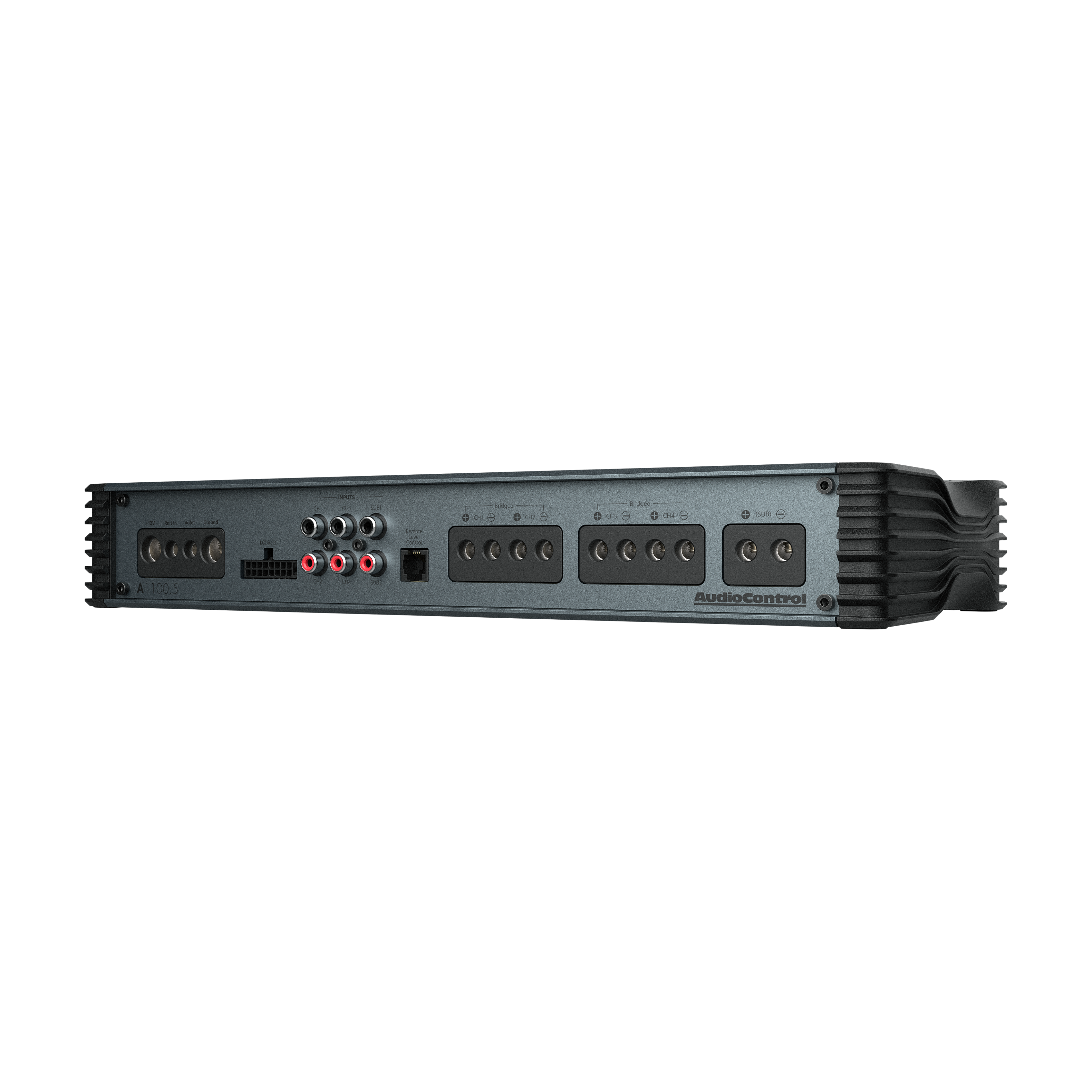

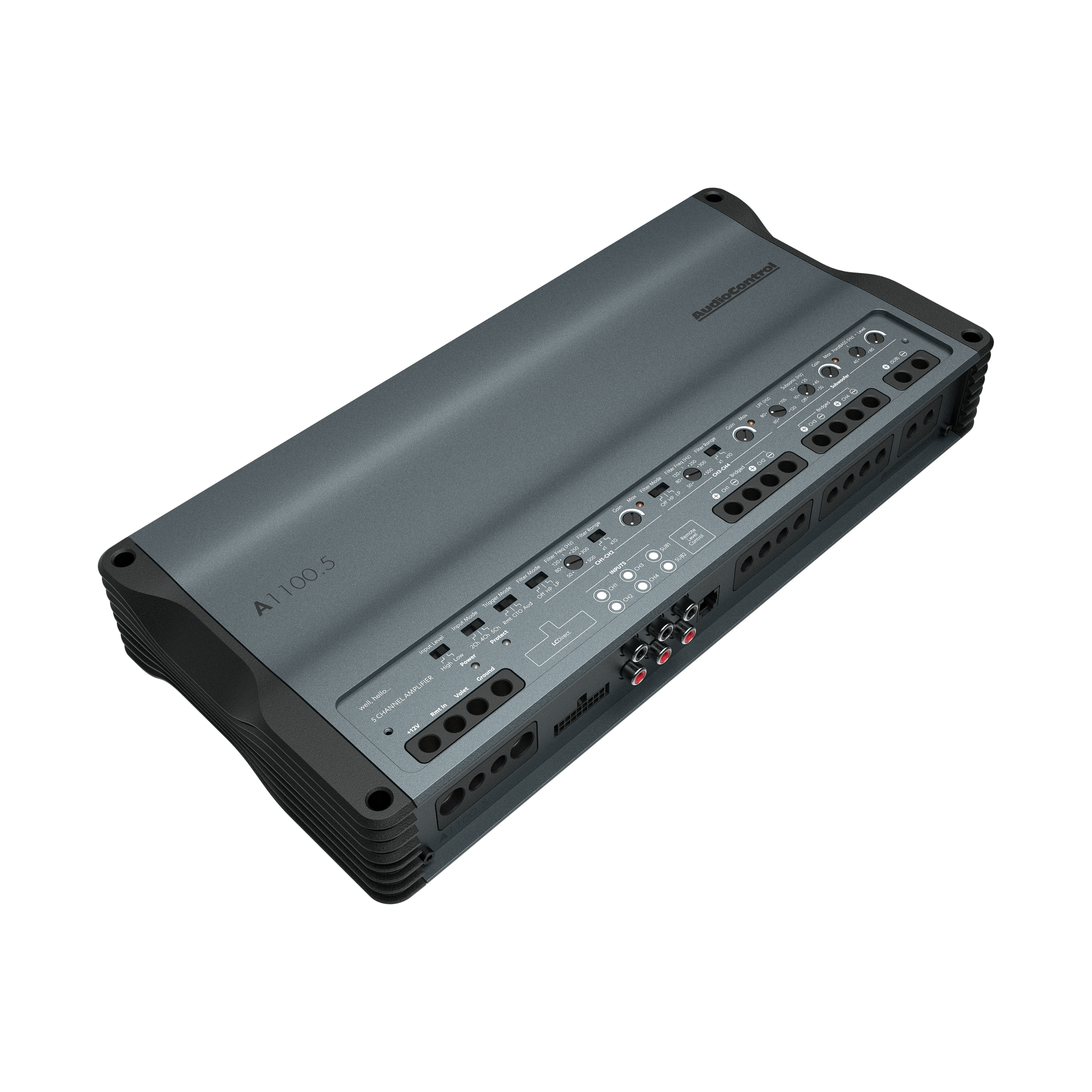

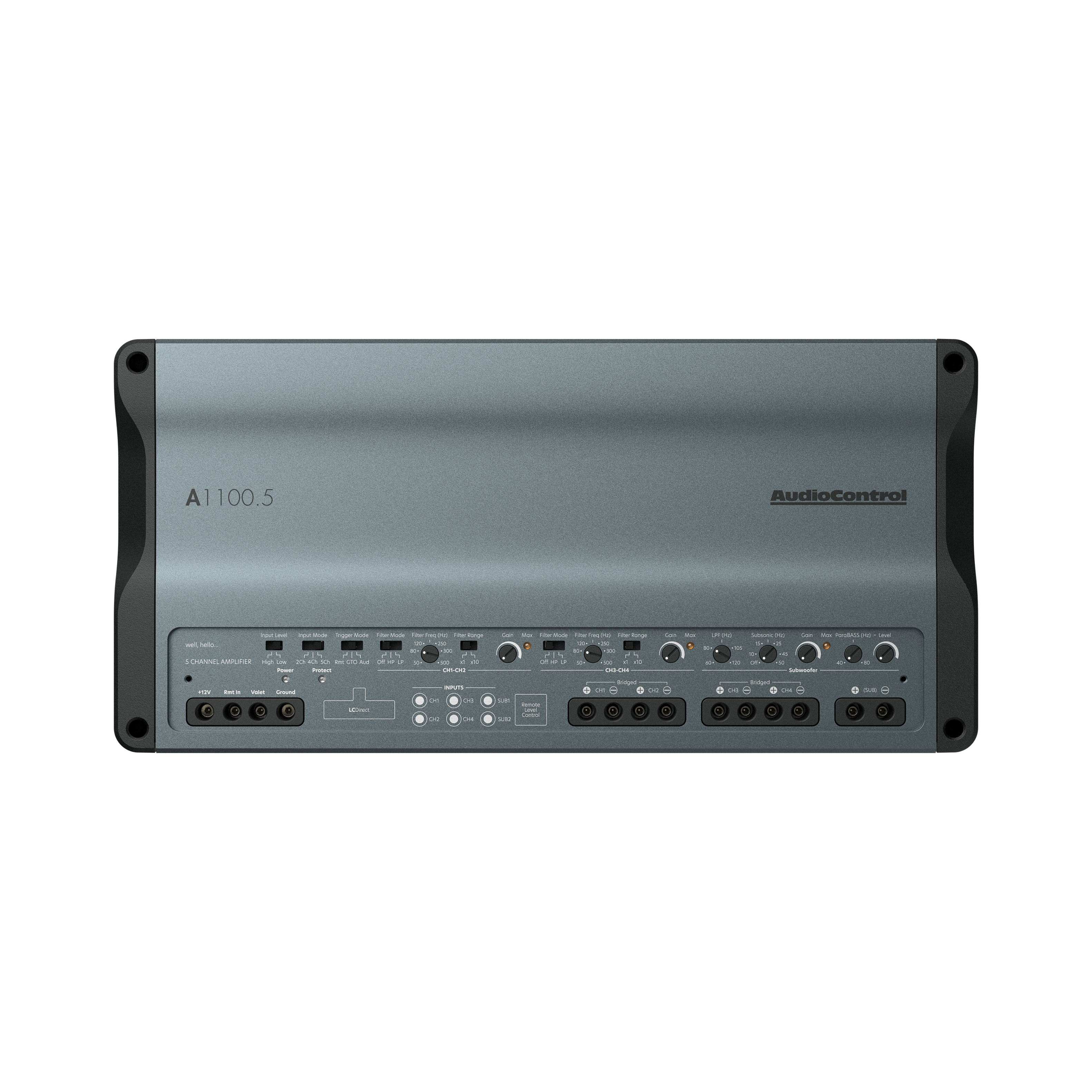

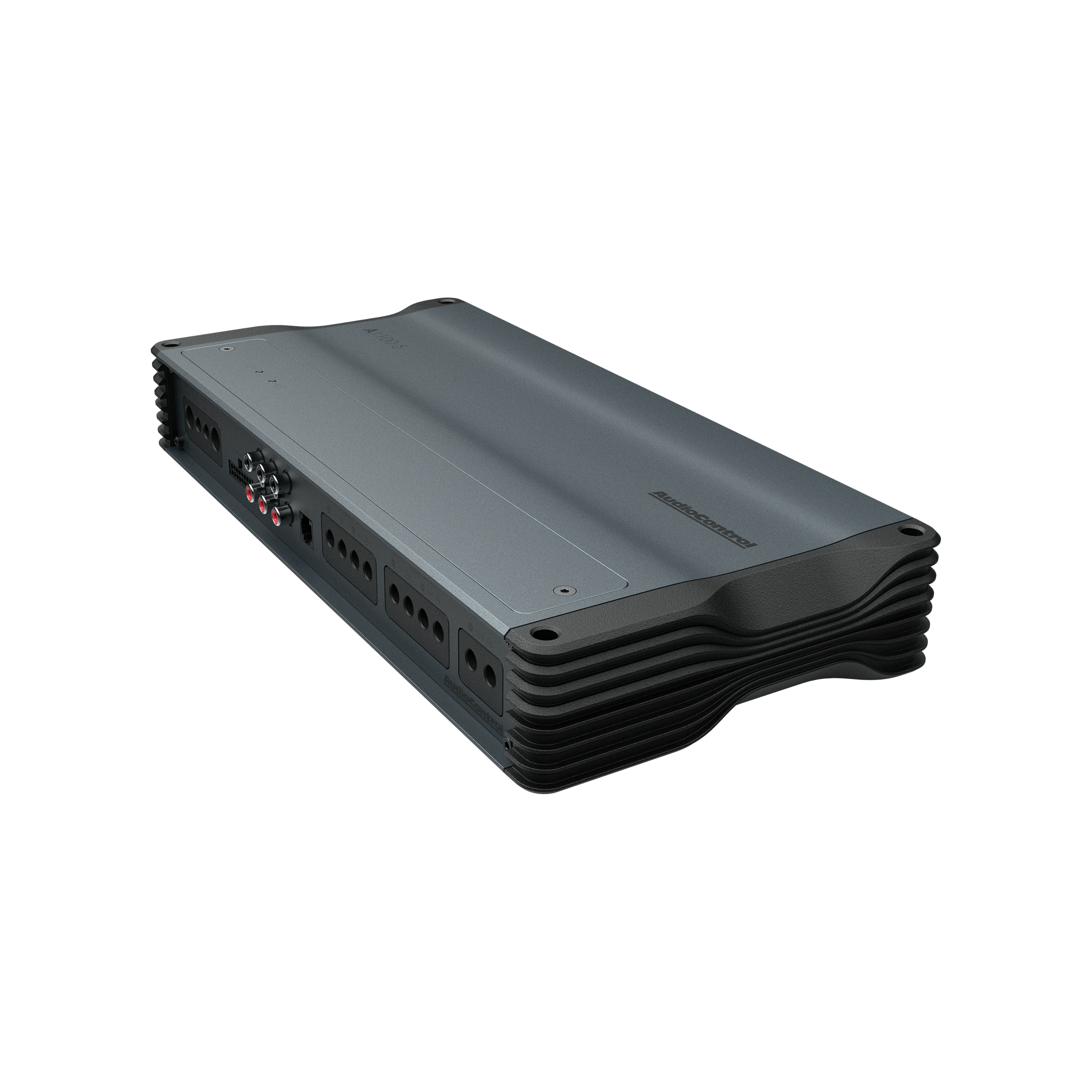

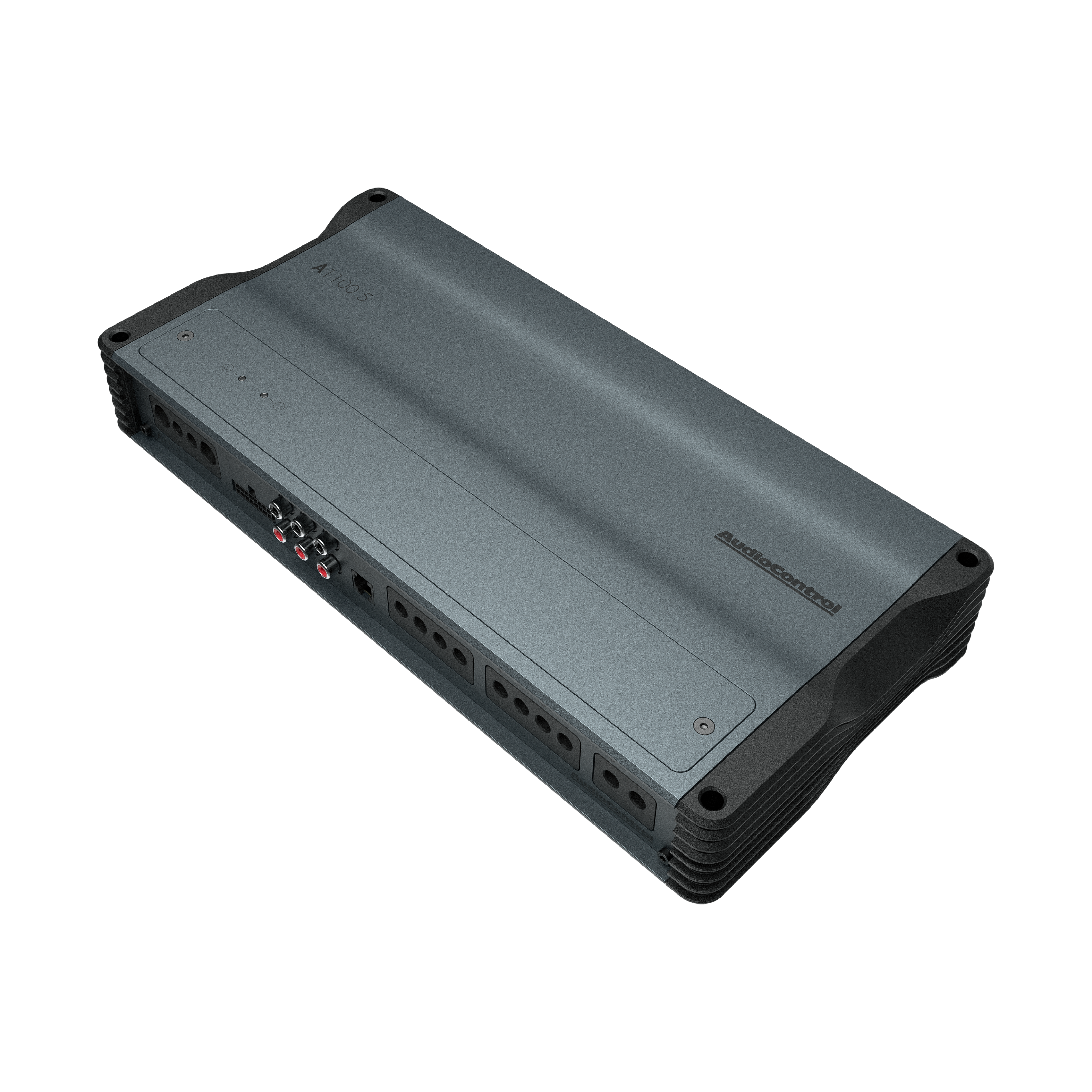

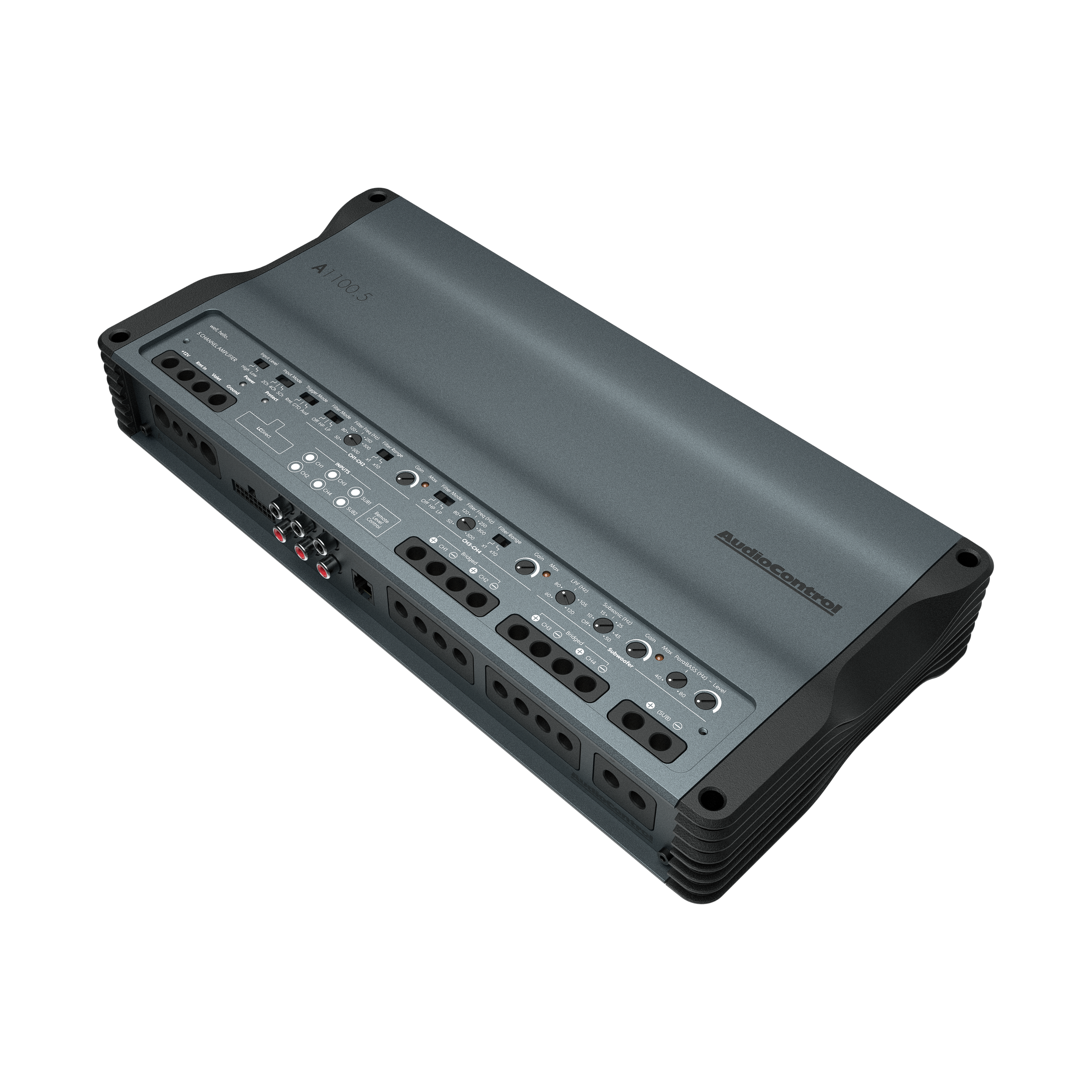

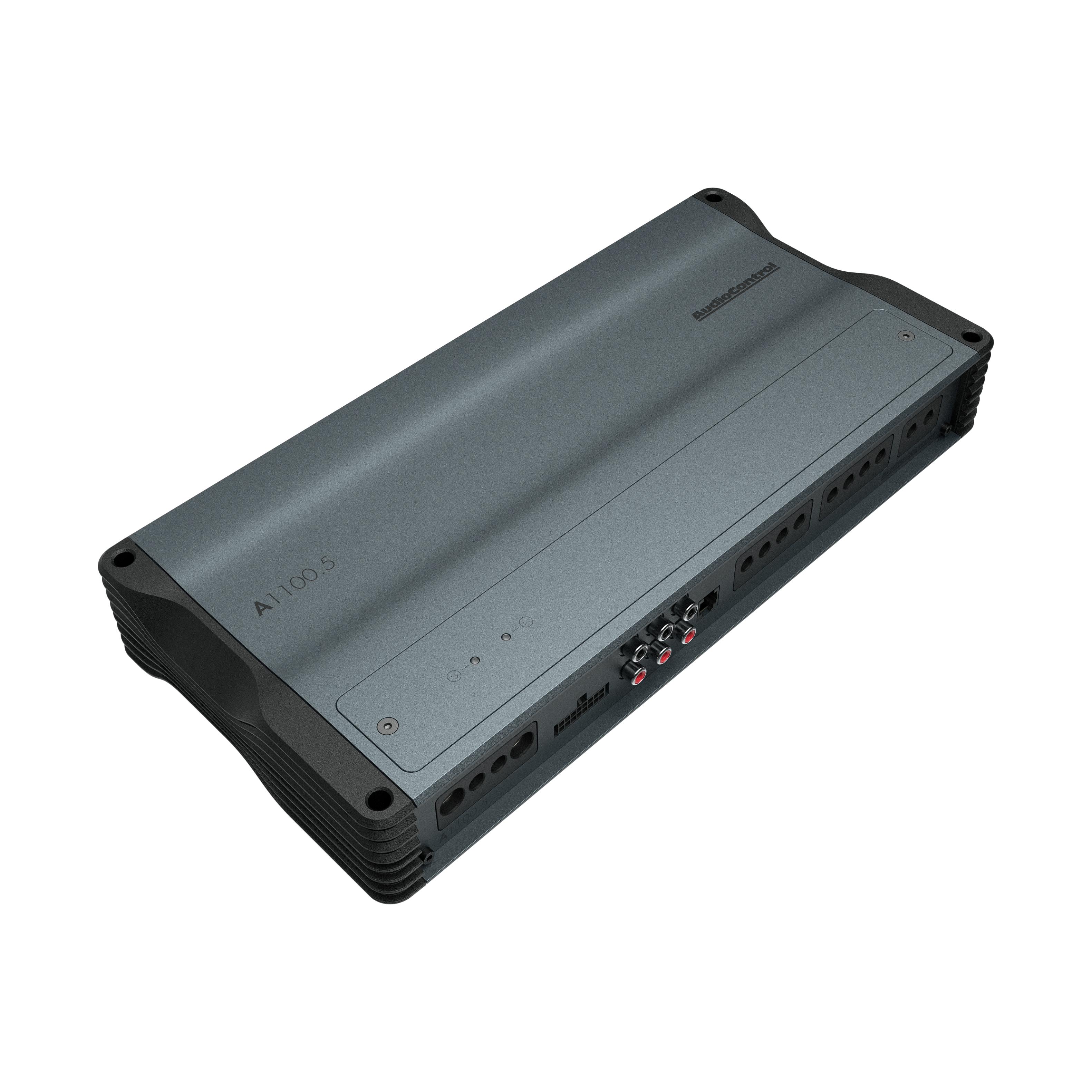

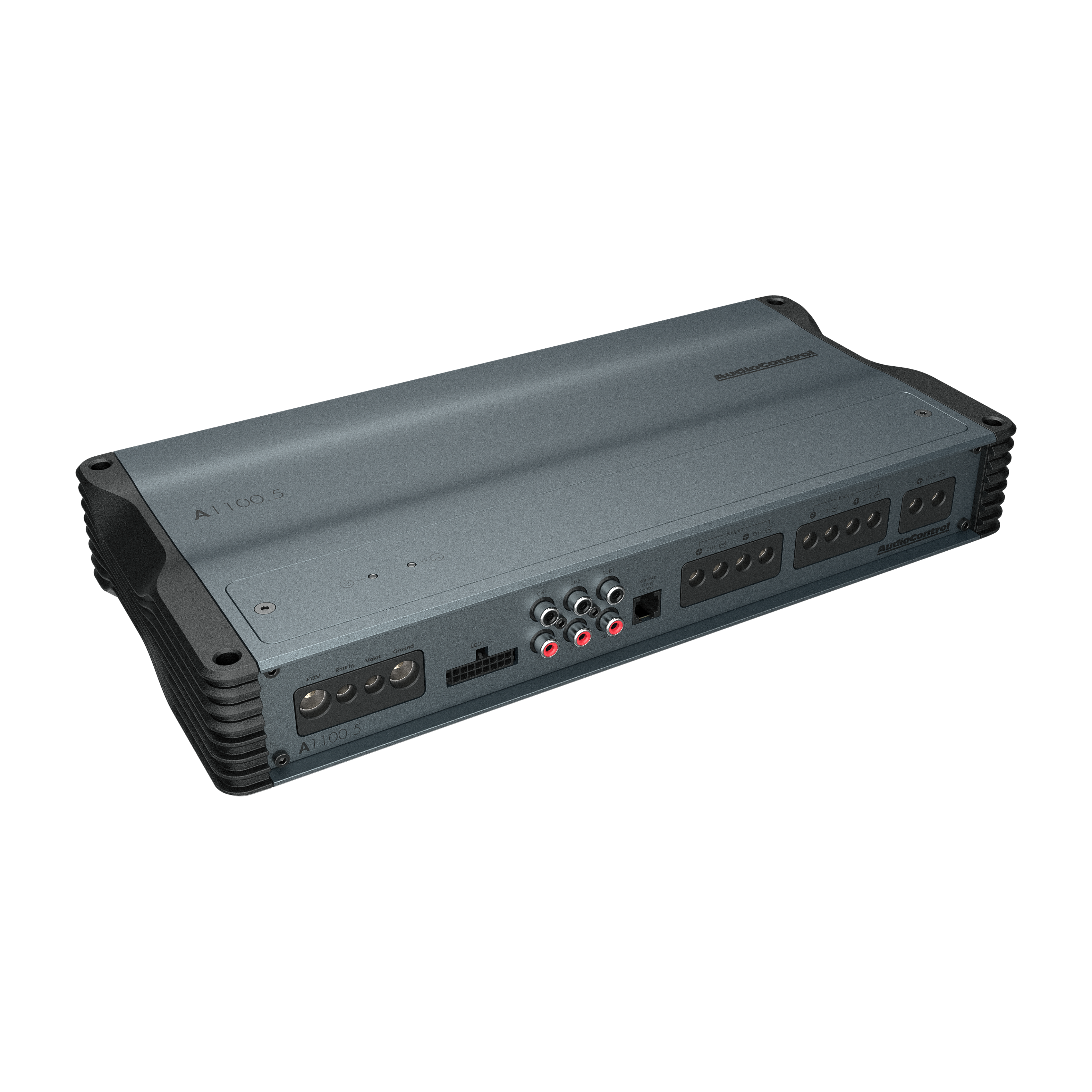

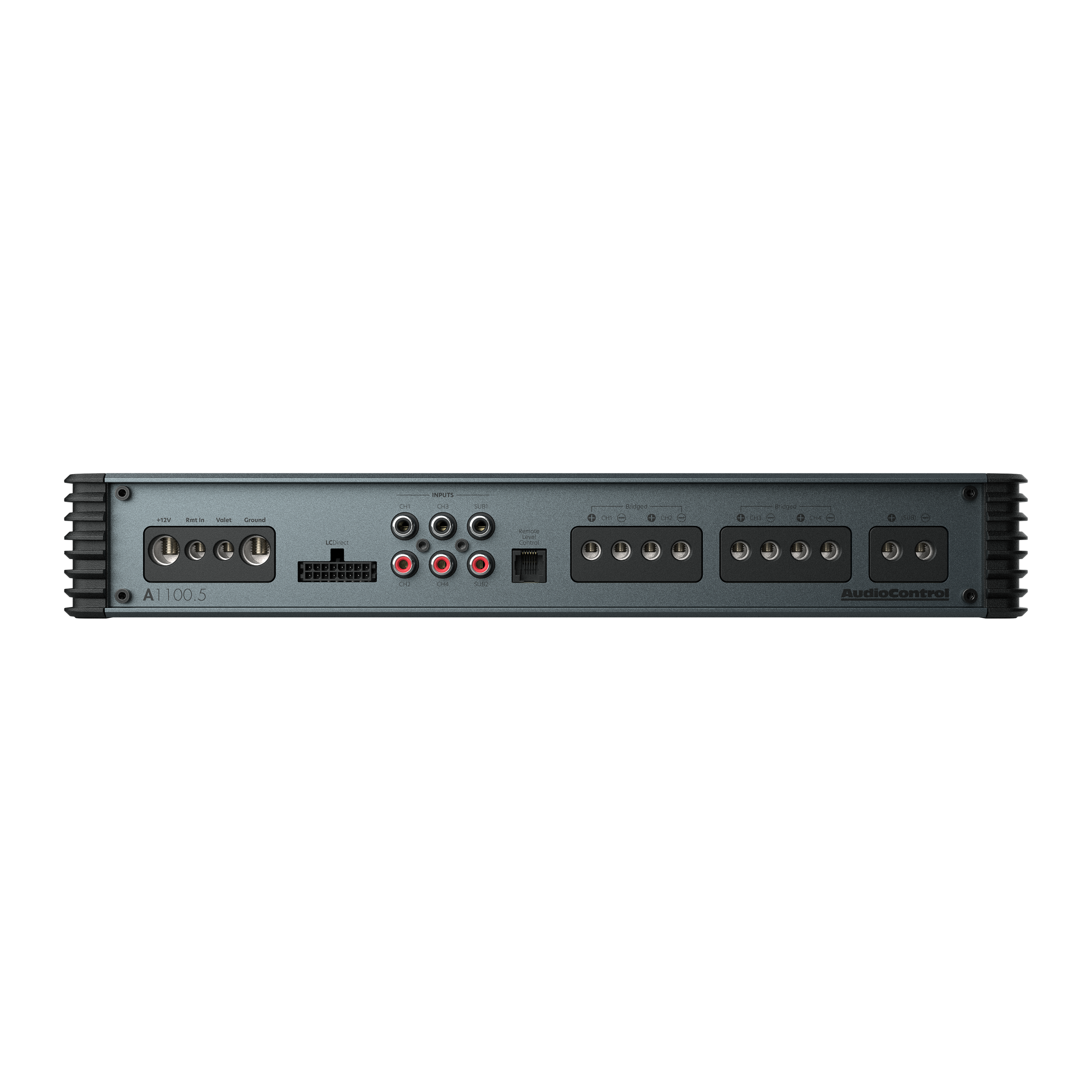

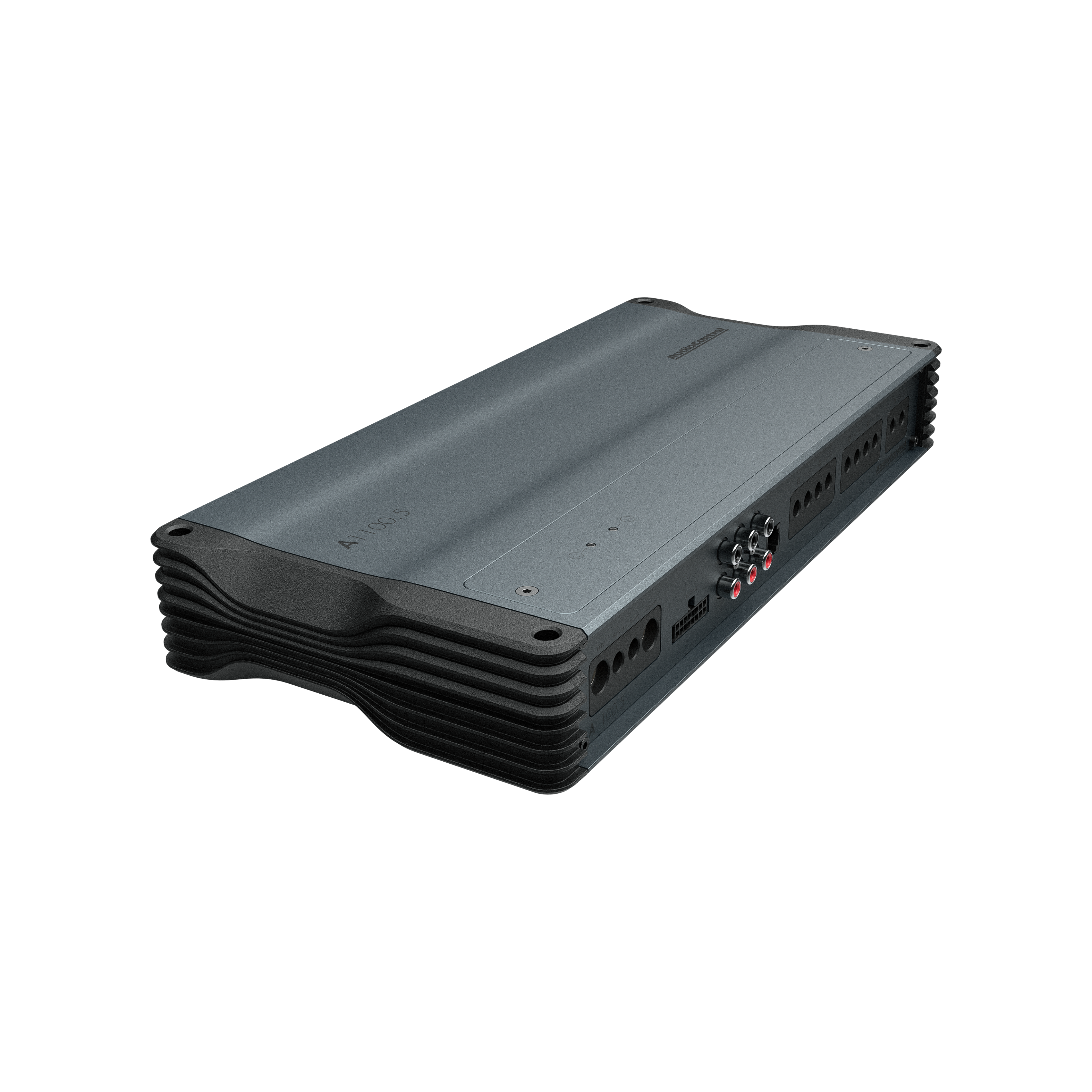

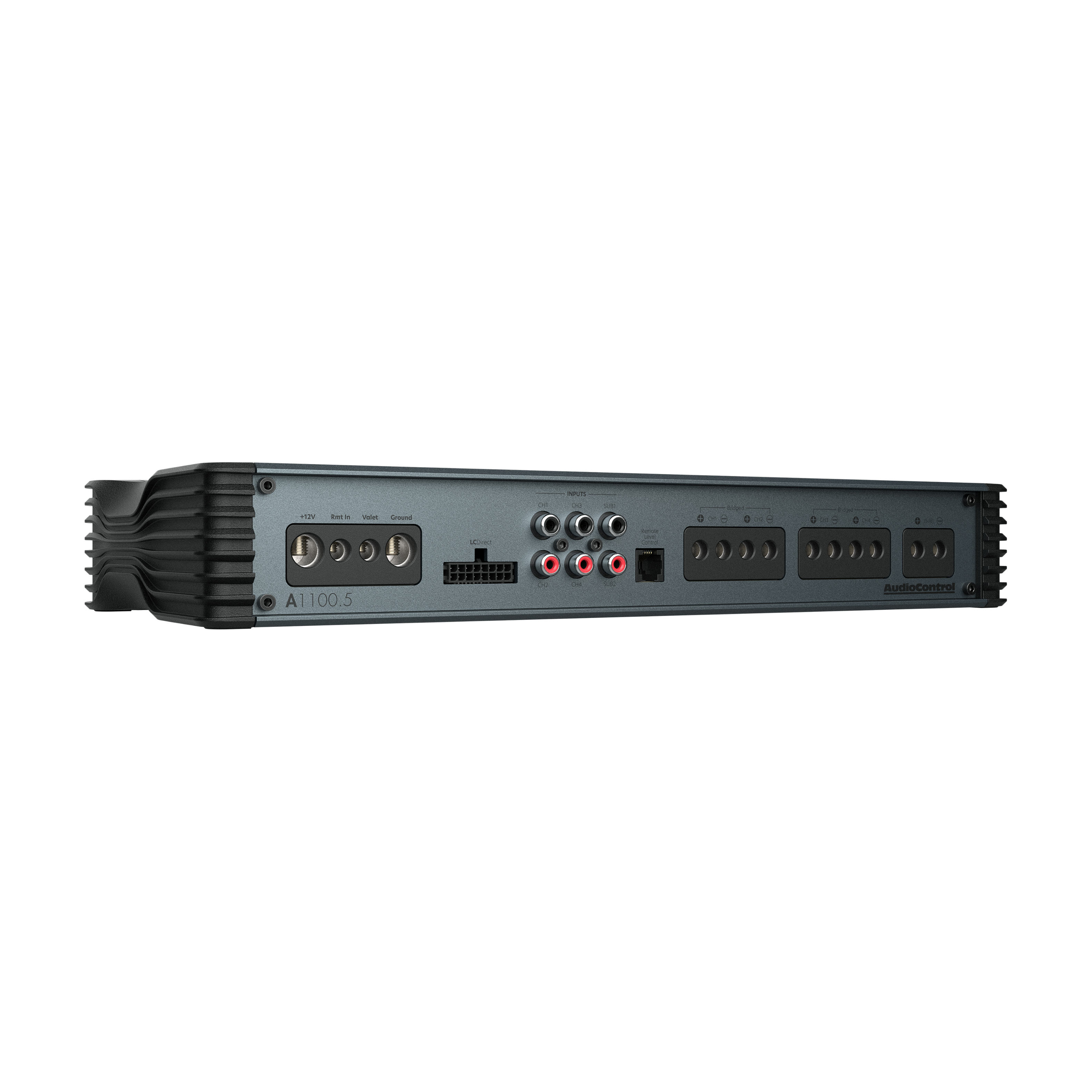

AudioControl - Altitude Series 1100W 5-Channel Class D Amplifier - Gray
Specifications
- Continuous Watts x Channel @ Ohms90W x 4 @ 4 ohms + 400W x 1 @ 4 ohms, 125W x 4 @ 2 ohms + 600W x 1 @ 2 ohmsAmplifier ClassDNumber Of Channels5Bass BoostNoneBridgeableNoLow-Pass CrossoverSelectable
- Key Specs
- Continuous Watts x Channel @ Ohms: 90W x 4 @ 4 ohms + 400W x 1 @ 4 ohms, 125W x 4 @ 2 ohms + 600W x 1 @ 2 ohms
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Selectable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Selectable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: AudioControl
- Model Number: A1100.5
- Product Name: Altitude Series 1100W 5-Channel Class D Amplifier
- Color: Gray
- Mounting Hardware Included: false
- Audio Power
- Continuous Watts x Channel @ Ohms: 90W x 4 @ 4 ohms + 400W x 1 @ 4 ohms, 125W x 4 @ 2 ohms + 600W x 1 @ 2 ohms
- Total Power Handling RMS: 1100 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Minimum Frequency Response: 60 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 5 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.25 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 95.1 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Selectable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Selectable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: true
- Dimensions
- Product Height: 2.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.95 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: None
- Other
- UPC: 850038647711
Demand maximum power from your car’s audio system with the Altitude Series 1100W 5-Channel Class D Amplifier from AudioControl. The A1100.5 combines premium engineered audio components and advanced technology to deliver over-the-top power with a sleek and modern aesthetic. Equipped with ParaBASS low frequency contouring, advanced HEXFET power MOSFETs, and new features like Valet Mode, this amplifier guarantees outstanding performance for any vehicle.
- 5-channel amplifier with class D intelligent driver IC: Engineered with HEXFET power MOSFETs and advanced pulse width modulation to provide powerful sound with high efficiency.
- Compatible with most vehicles: Including electric vehicles* and those equipped with start-stop systems.

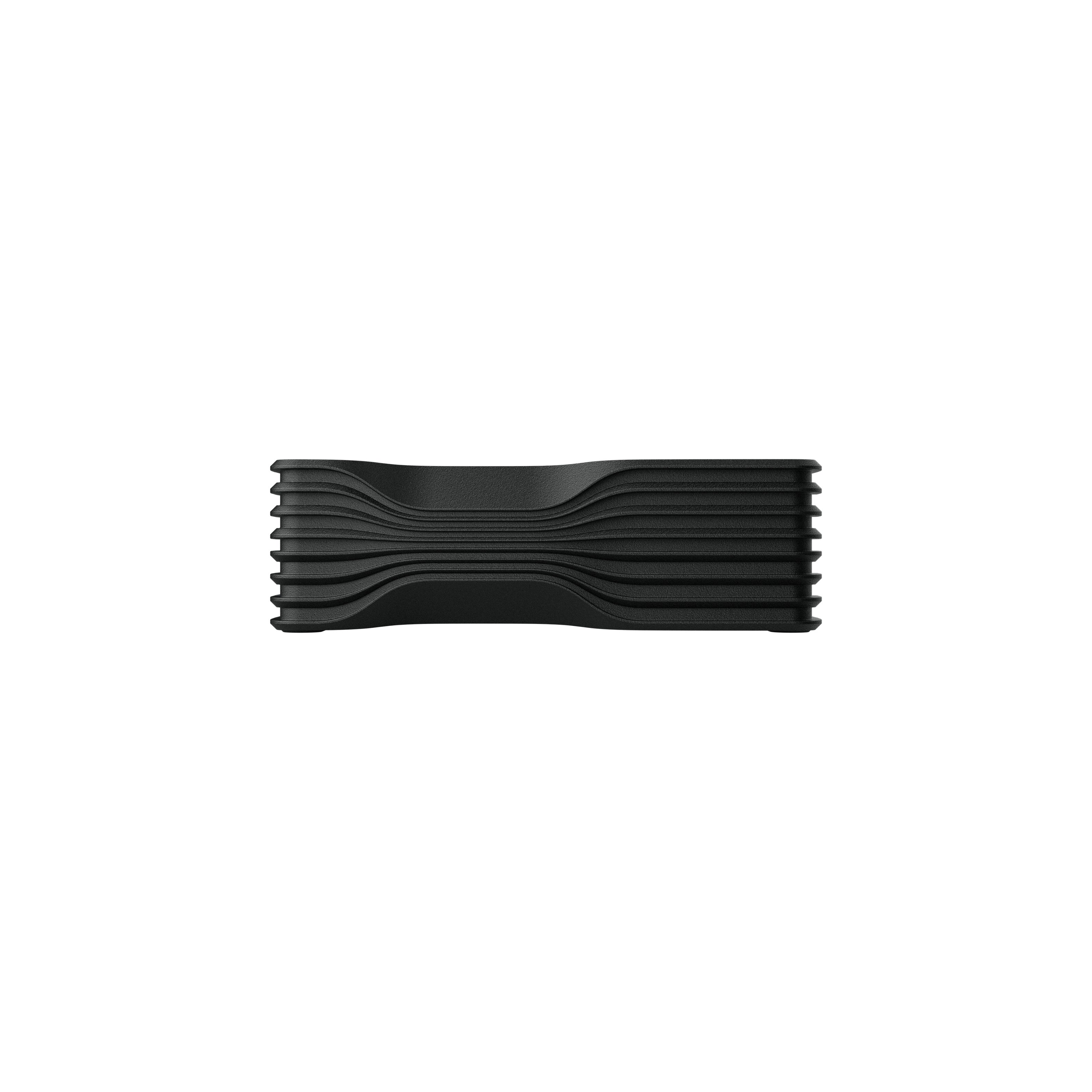

- Anodized matte gray aluminum chassis: Enables superior thermal dissipation.
- Handles up to 90W RMS (continuous) x 4 @ 4 ohms + 400W RMS x 1 @ 4 ohms or 125W x 4 @ 2 ohms + 600W x 1 @ 2 ohms: To deliver robust audio.
- 4 and 2 ohms impedance: Conducts power evenly to keep speakers working at optimal levels.
- Valet Mode: Optional setting limits maximum volume to 25 percent in order to protect your system against unintended damage.
- ParaBASS processing: Remove extremely low frequencies to contour your subwoofer’s tone and help audio components play more efficiently.
- Selectable input modes: Accepts both high-level (speaker level) and low-level (RCA line level) signals for integration with your existing audio system.
- Independent Linkwitz-Riley high-pass and low-pass crossovers with variable subsonic filter: Allow you to fine tune your music.
- <0.25% THD (Total Harmonic Distortion): Provides clean sound. <0.75% THD for channel 5.
- >95.1dBa signal-to-noise ratios: Enjoy crisp audio. >103.9dBA signal-to-noise ratio for channel 5.
- Great Turn On (GTO) Signal Sense: Automatically powers the amplifier when the radio is turned on.
- Optional dash remote: Allows you to add a subwoofer with independent level control (ACR-1 sold separately).
- 5-year warranty: To protect against defects in materials and workmanship.
- 5-channel amplifier with class D intelligent driver IC: Engineered with HEXFET power MOSFETs and advanced pulse width modulation to provide powerful sound with high efficiency.
- Compatible with most vehicles: Including electric vehicles* and those equipped with start-stop systems.
- Anodized matte gray aluminum chassis: Enables superior thermal dissipation.
- Handles up to 90W RMS (continuous) x 4 @ 4 ohms + 400W RMS x 1 @ 4 ohms or 125W x 4 @ 2 ohms + 600W x 1 @ 2 ohms: To deliver robust audio.
- 4 and 2 ohms impedance: Conducts power evenly to keep speakers working at optimal levels.
- Valet Mode: Optional setting limits maximum volume to 25 percent in order to protect your system against unintended damage.
- ParaBASS processing: Remove extremely low frequencies to contour your subwoofer’s tone and help audio components play more efficiently.
- Selectable input modes: Accepts both high-level (speaker level) and low-level (RCA line level) signals for integration with your existing audio system.
- Independent Linkwitz-Riley high-pass and low-pass crossovers with variable subsonic filter: Allow you to fine tune your music.
- <0.25% THD (Total Harmonic Distortion): Provides clean sound. <0.75% THD for channel 5.
- >95.1dBa signal-to-noise ratios: Enjoy crisp audio. >103.9dBA signal-to-noise ratio for channel 5.
- Great Turn On (GTO) Signal Sense: Automatically powers the amplifier when the radio is turned on.
- Optional dash remote: Allows you to add a subwoofer with independent level control (ACR-1 sold separately).
- 5-year warranty: To protect against defects in materials and workmanship.
Whats Included
- AudioControl Altitude Series 1100W 5-Channel Class D Amplifier
- Quick start guide
- AudioControl Altitude Series 1100W 5-Channel Class D Amplifier
- Quick start guide
Product Manuals
Disclaimers
- *EV compliant up to 17V.
- *EV compliant up to 17V.
Q: What is the amplifier's total power handling?
A: The amplifier has a total power handling of 1100 watts RMS.
Q: What is the minimum frequency response of the amplifier?
A: The minimum frequency response of the amplifier is 60 hertz.
Q: What is the warranty on the amplifier's parts?
A: The manufacturer's warranty for parts on the amplifier is 5 years.
Q: What are the amplifier's dimensions?
A: The amplifier's dimensions are 14 inches wide, 6.7 inches deep, and 2.1 inches high.
Q: Does the amplifier have speaker-level inputs?
A: This amplifier has speaker-level inputs.
Q: Can the amplifier be bridged?
A: This amplifier cannot be bridged.
