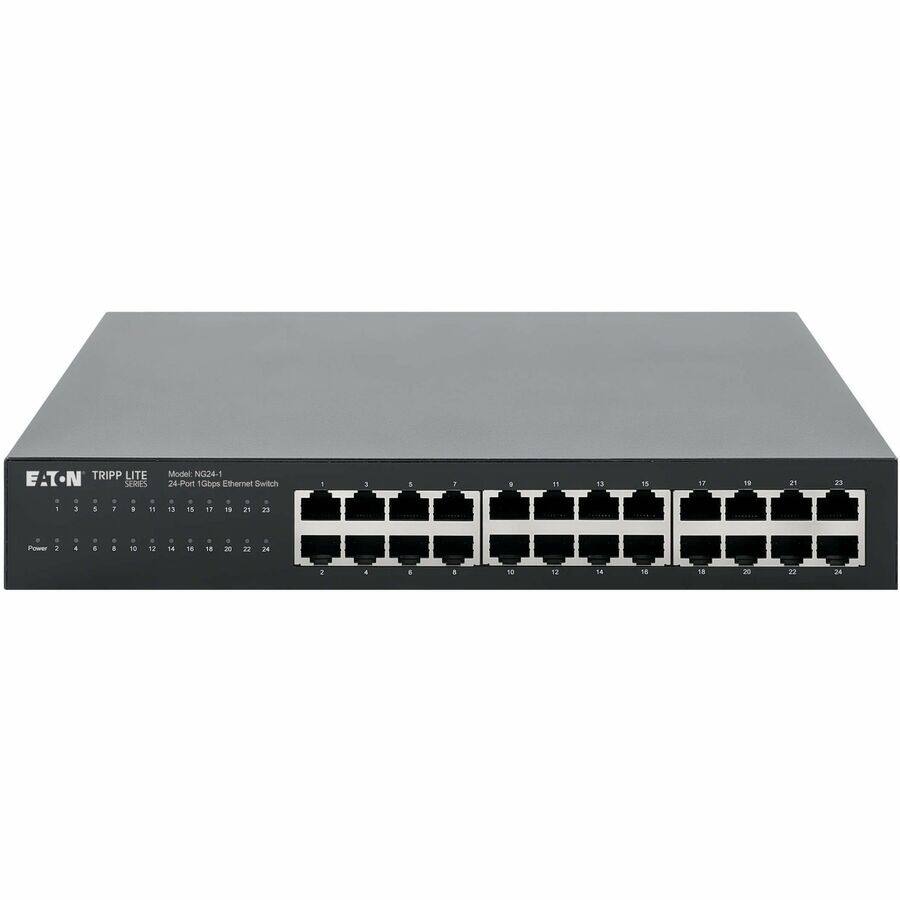

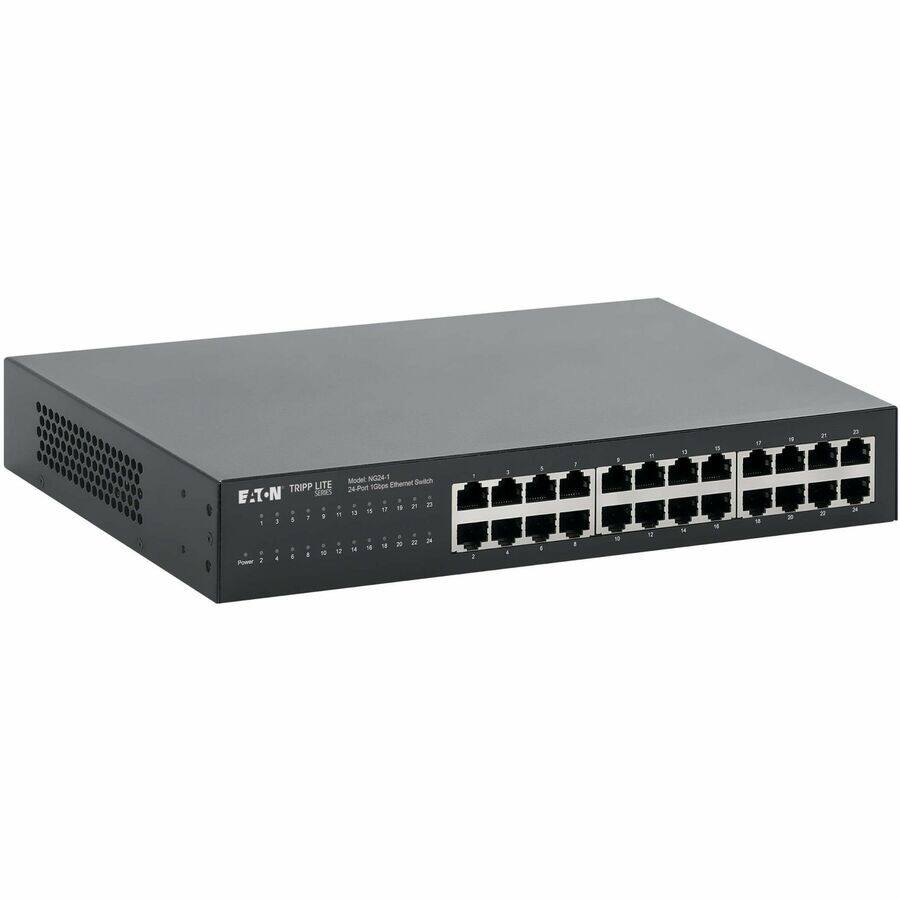

Eaton Tripp Lite Series 24-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Enclosure - 24 Ports - Black
Related Item
Specifications
- Number of LAN Ports28
- Key Specs
- Number of LAN Ports: 28 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Tripp Lite
- Product Name: Eaton Tripp Lite Series 24-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Enclosure - 24 Ports
- Color: Black
- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 7 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 11 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 4.35 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: 2 Year Limited Warranty
- Other
- UPC: 037332287236
Eaton Tripp Lite Series 24-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch, Metal Enclosure - 24 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 17 W Power Consumption - Twisted Pair, Optical Fiber - Black - 1U High - Rack-mountable, Desktop - 5 Year Limited Warranty
- 24-Port Unmanaged Gigabit Ethernet Switch for Small Offic...: The energy-efficient NG24-1 network switch connects up to 24 devices, such as computers, routers, printers and servers, to a Gigabit Ethernet network and allows them to communicate with each other. It's recommended for your small office or data center, workgroup or creative production environment. It helps you share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit (1000 Mbps/1 Gbps) speeds, improving

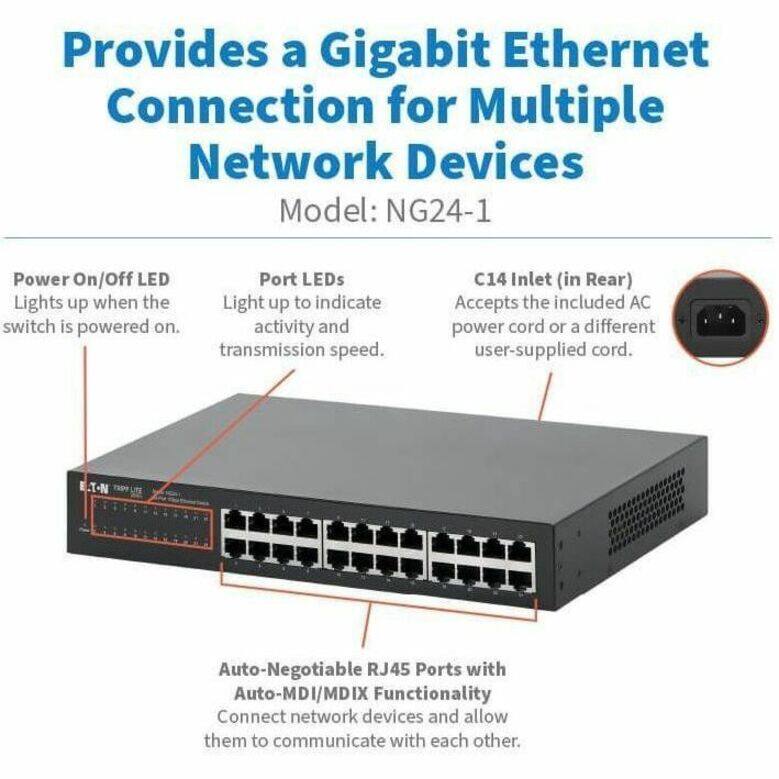

- Maximum Network Functionality: The NG24-1 features 24 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX functionality, so crossover cables and uplink ports are not needed for connections to PCs, routers and other switches. No configuration is required, so you can have your Gigabit network up and running immediately. IEEE 802.3x flow control (full duplex) and back pressure (half duplex) allow smooth transmission
- Complies with IEEE Energy Efficient Ethernet Standards: The NG24-1 supports IEEE 802.3az Energy Efficient Ethernet standards by automatically shifting unused ports into a low-power state without interrupting network connections. It consumes very little input power-just 10W. It also meets IEEE 802.3ab, 802.3i and 802.3u standards.
- Plug-and-Play Functionality for Easy Use: No configuration is required in setting up the unmanaged NG24-1, so you can have your 10/100/1000 Mbps network up and running immediately. Cat5/5e/6/6a UTP/STP cables (sold separately) provide optimal performance. Easy-to-read LEDs indicate connection and activity status for each port. The NG24-1 supports MAC address auto-learning and auto-aging for efficient routing.

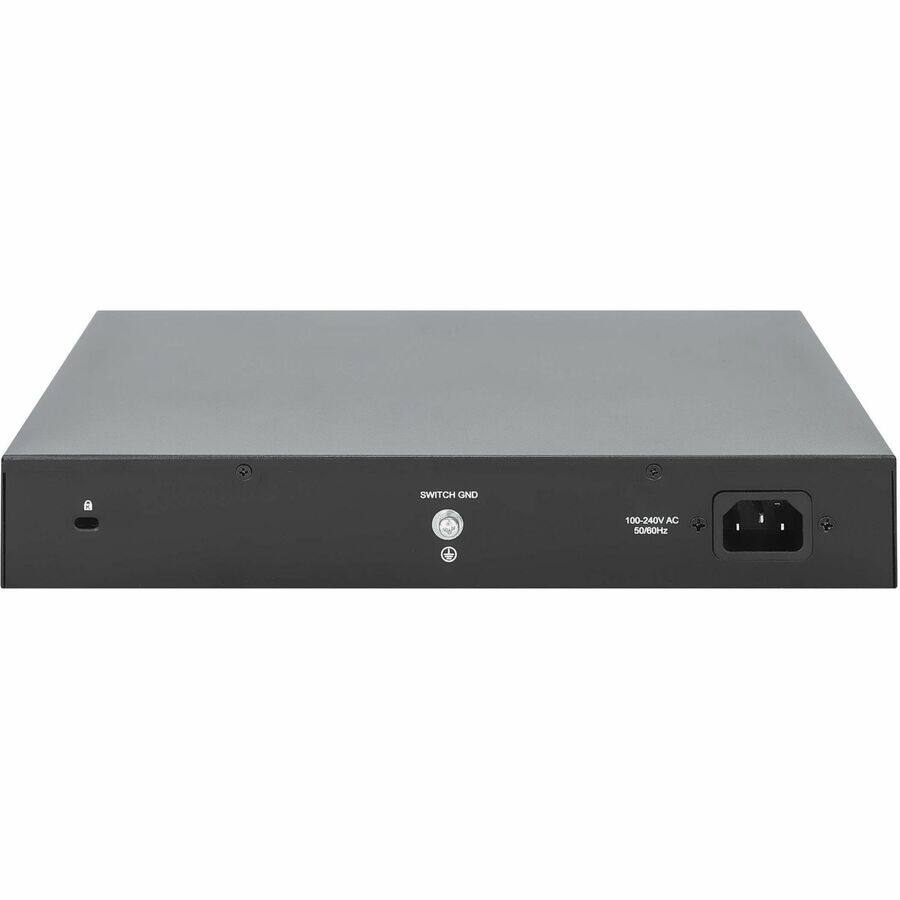

- Heavy-Duty Metal Enclosure with Versatile Installation Op...: This rugged switch features a detachable C13/C14 power cord that connects to a protected UPS or AC wall outlet. The housing contains no fan, resulting in silent operation. The NG24-1 is designed for desktop placement with the included rubber feet or 1U rack mounting using the included brackets.
Whats Included
- Intelligent L2 Network switch with PoE, Owner's Manual, Power Cord, Power Cord Clamp, Legs
