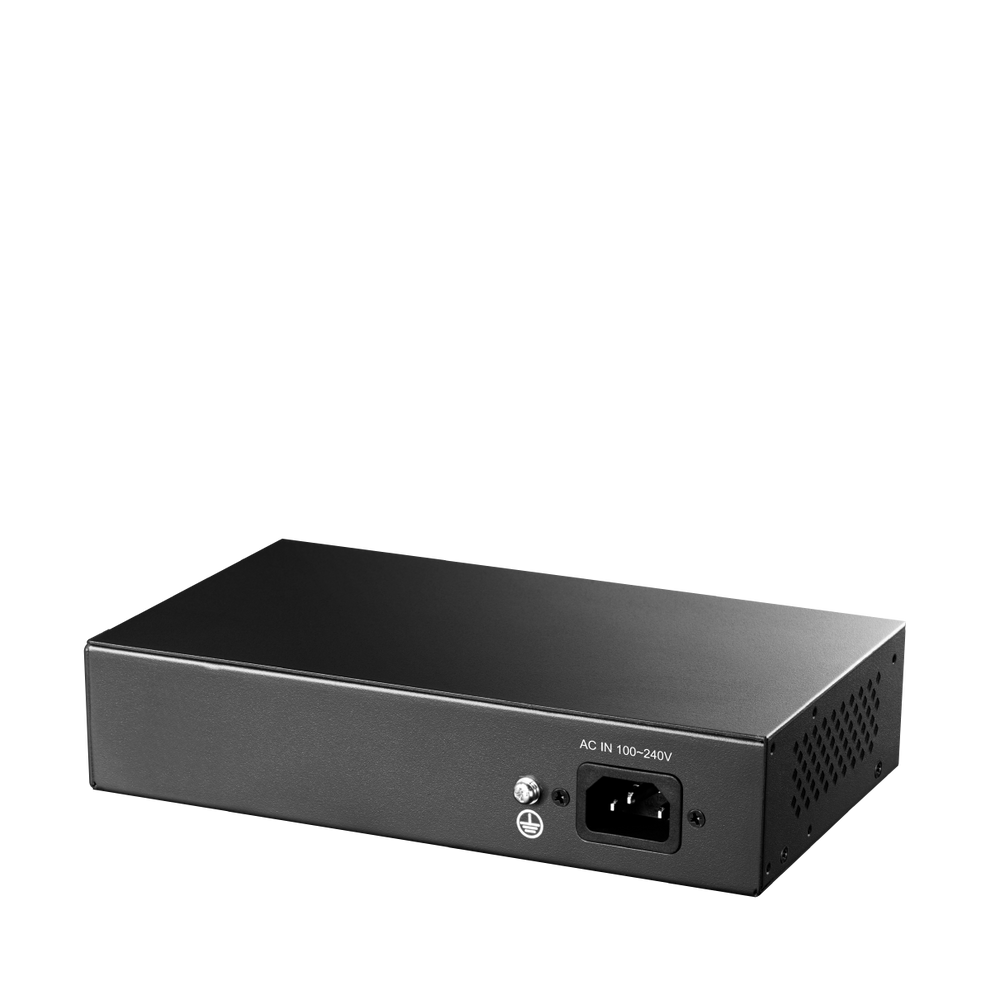

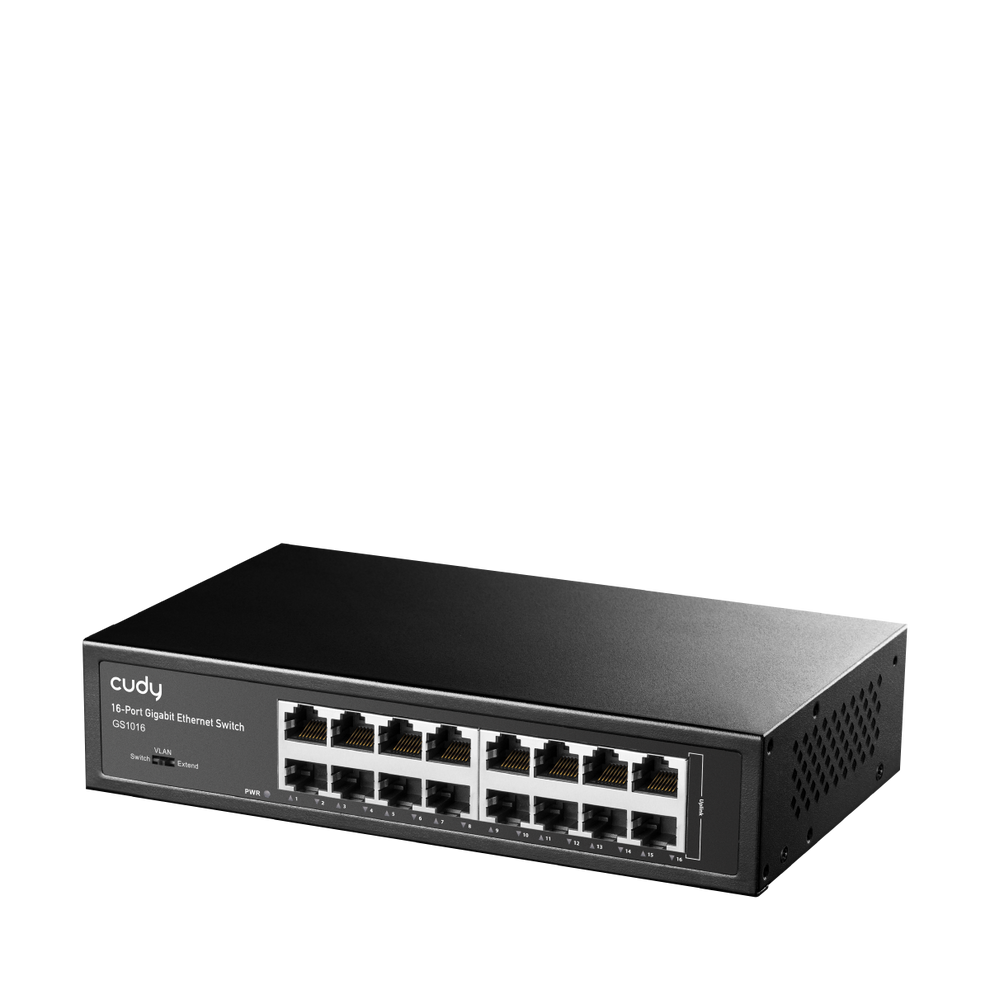

Cudy - 16-Port Gigabit Unmanaged Switch - Black
More Buying Options from Marketplace sellers
Specifications
- Number of PoE (Power over Ethernet) Ports0Form FactorDesktop, Rack mountable (mount kit included)Maximum Data Speed28000 megabits per secondSwitch Management TypeUnmanagedNumber of LAN Ports16
- Key Specs
- Number of PoE (Power over Ethernet) Ports: 0 (Allow connection of a single cable that provides both data connection and electrical power (Power over Ethernet).)
- Form Factor: Desktop, Rack mountable (mount kit included)
- Maximum Data Speed: 28000 megabits per second
- Switch Management Type: Unmanaged (Unmanaged switches don't require user configuration and are typically used for basic connectivity. Managed switches have more features and can be configured by the user for custom network use.)
- Number of LAN Ports: 16 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Cudy
- Model Number: GS1016
- Product Name: 16-Port Gigabit Unmanaged Switch
- Color: Black
- Network
- Uplinking Capability: true (Devices with an uplink port are capable of connecting to other networking devices, such as switches and hubs, to expand the network. For example, two switches may be connected together in a larger network using a daisy-chain setup.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Features
- Auto Detecting: true
- Auto Speed Sensing: true
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 7.87 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.65 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 1.73 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.36 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 644925515012

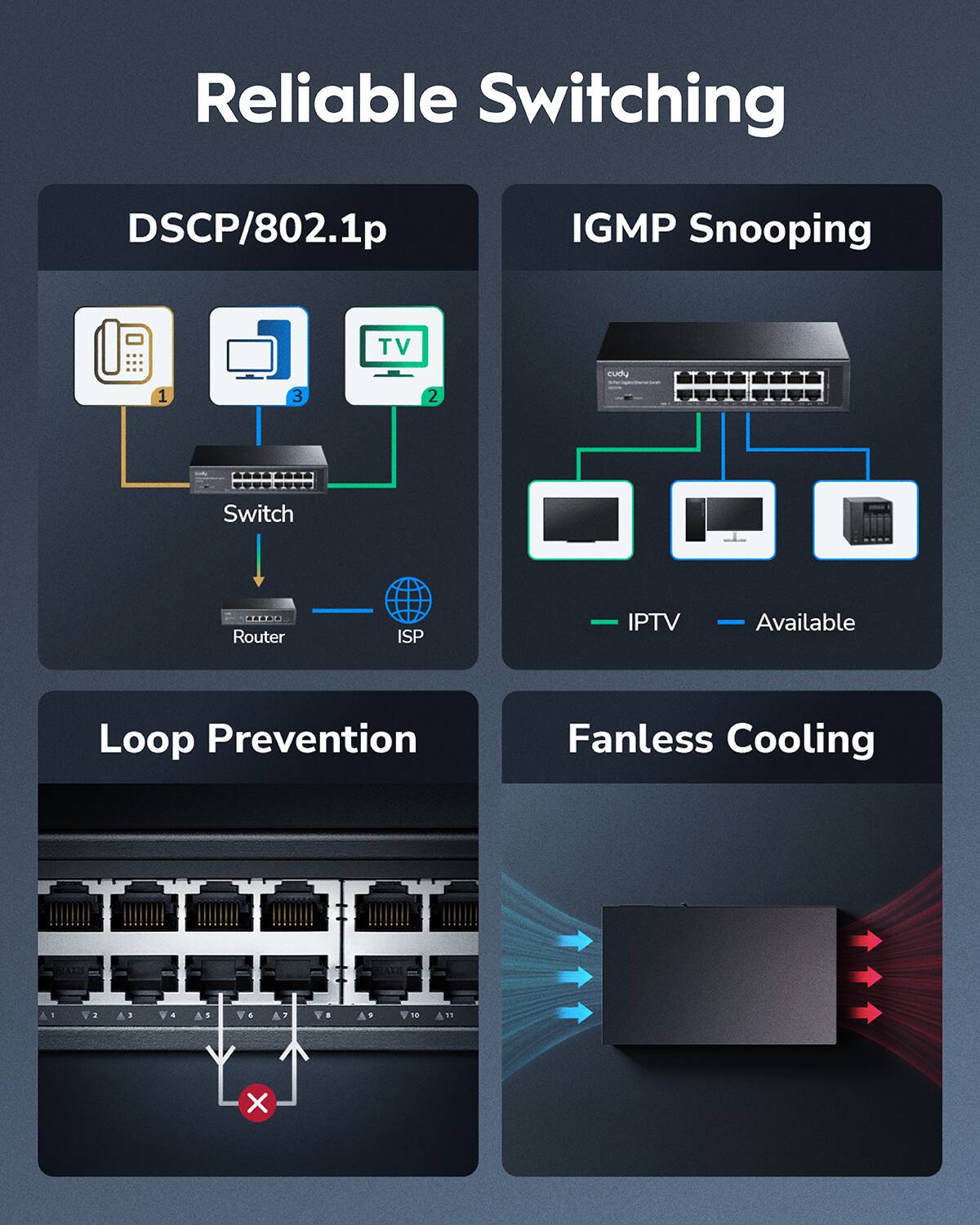

A 16-GbE switch with VLAN/Extend functions and a fanless cooling system.
- Full Gigabit Speed for High-Performance Networking: Equipped with 16 auto-negotiation 10/100/1000Mbps Ethernet ports, delivering fast and stable connections for offices, surveillance systems, and home or commercial networks.
- 32Gbps High Backplane Bandwidth: Features a 32Gbps switching capacity, ensuring smooth data forwarding across multiple ports simultaneously and reducing network congestion under heavy traffic.
- One-Key Mode Switching for Flexible Use: Supports one-key function switching with three operating modes: Normal Mode, VLAN Mode, and Extend 250m Mode, allowing easy adaptation to different network environments without complex configuration.

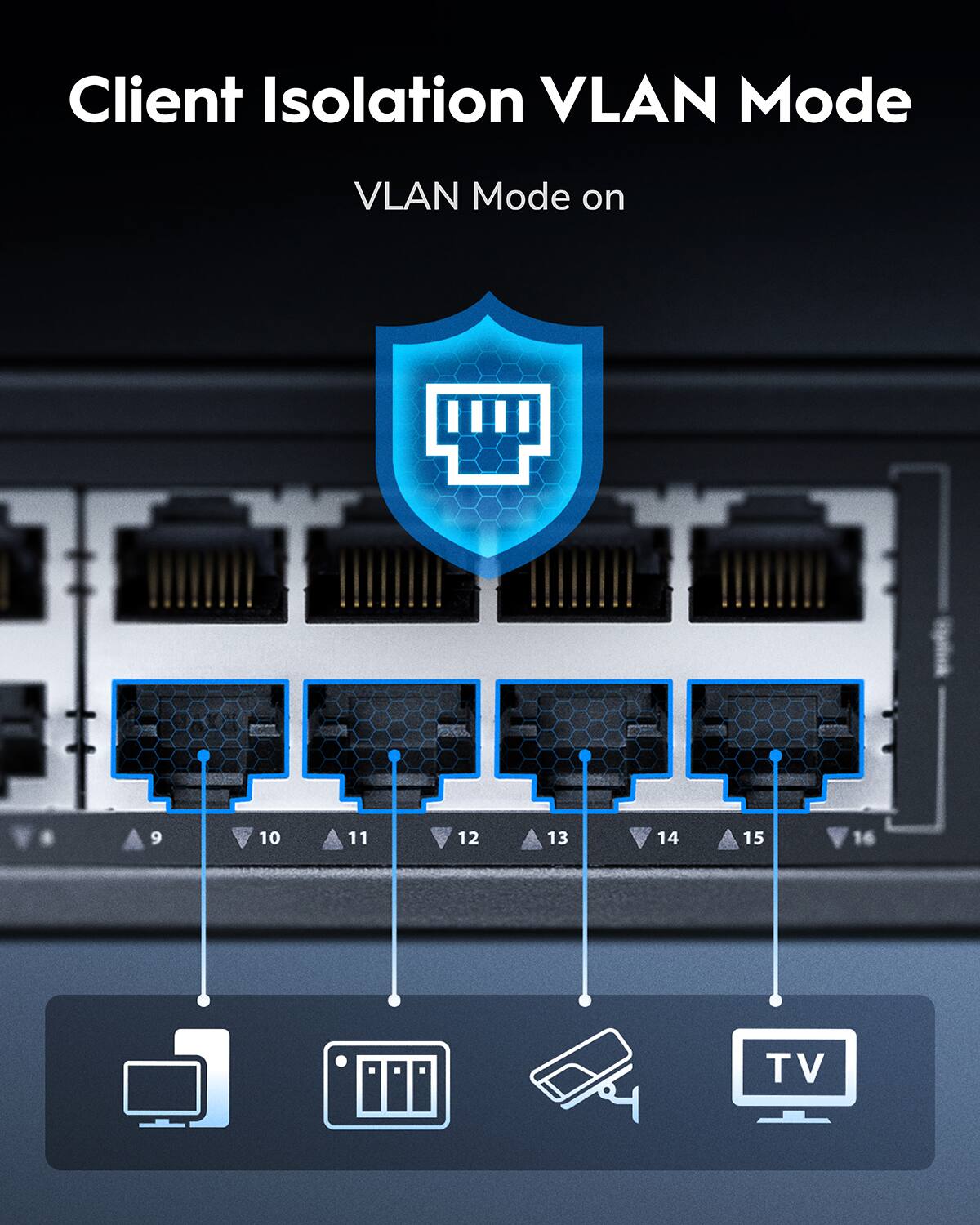

- VLAN Isolation for Enhanced Network Security: In VLAN mode, ports 1–14 are isolated from each other and communicate only with uplink ports 15–16, effectively reducing broadcast storms and improving data security—ideal for surveillance and business networks.

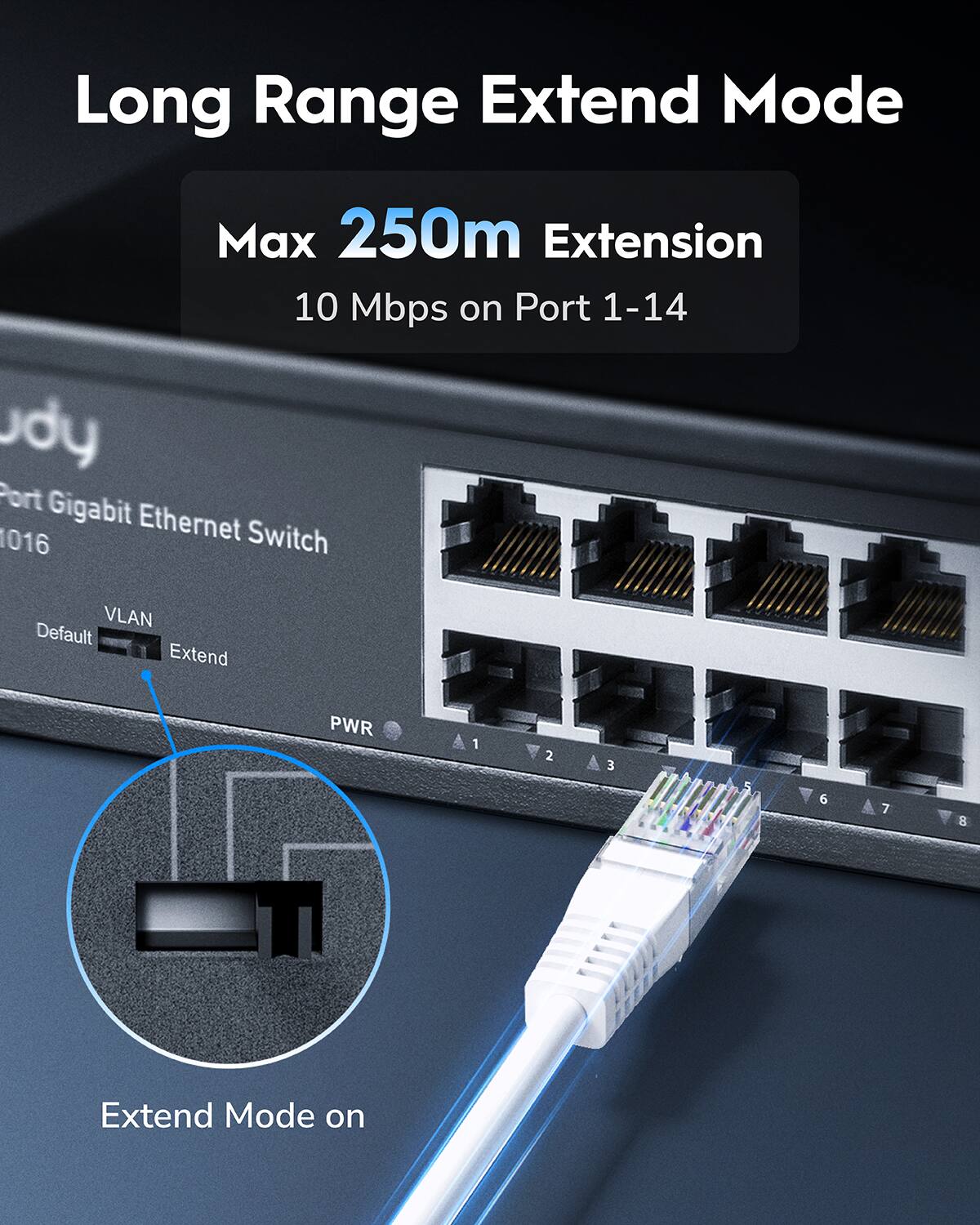

- Long-Distance Transmission up to 250 Meters: In Extend 250m mode, ports 1–14 support transmission distances up to 250 meters when using Cat5e, Cat6, or higher-grade Ethernet cables, making it perfect for long-distance deployments such as warehouses and security monitoring.

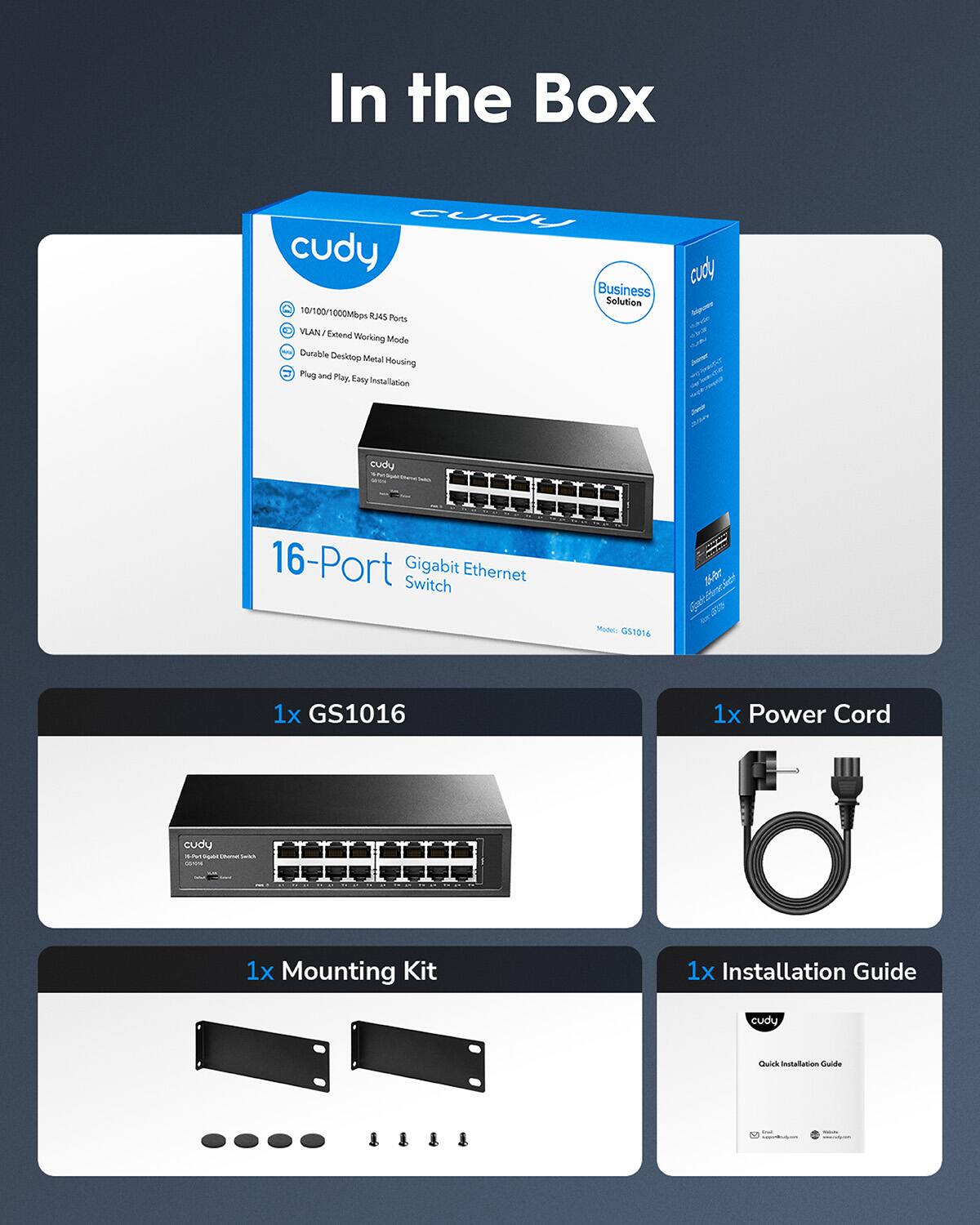

Whats Included
- GS1016, Power Cord, Installation Guide, Mounting Kit
