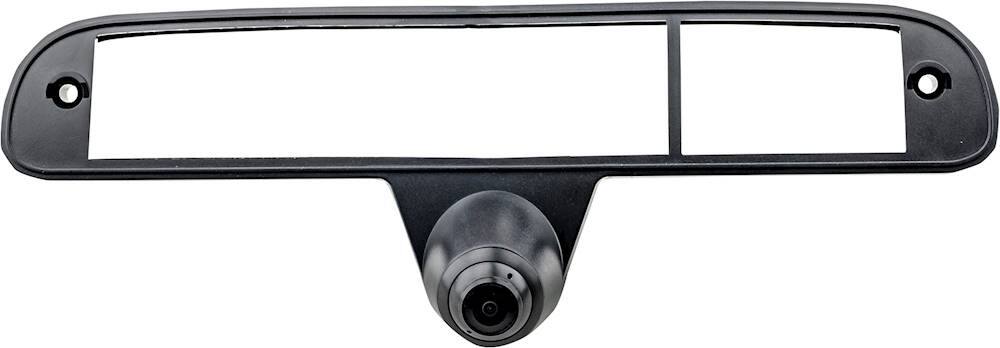

EchoMaster - Third Brake Light Back-Up Camera for Select 1999-2016 Ford F-Series Super Duty Trucks - Black
Model: PCAM-CHMSL2-FD99
SKU: 6397070
This item is no longer available in new condition. See similar items below
- Key Specs
- Field of View: 90 degrees
- G-Sensor: false
- Compatibility: 1999-2016 Ford F-250, 1999-2016 Ford F-350, 1999-2016 Ford F-450
- Camera Mounting Location: Brake light
- Vehicle Camera Type: Back-up
- Professional Installation Recommended: true
- General
- Brand: EchoMaster
- Model Number: PCAM-CHMSL2-FD99
- Product Name: Third Brake Light Back-Up Camera for Select 1999-2016 Ford F-Series Super Duty Trucks
- Color: Black
- Vehicle Camera Type: Back-up
- Professional Installation Recommended: true
- Recording & Playback
- Field of View: 90 degrees
- G-Sensor: false
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Power Source: Vehicle battery
- Expandable Memory Compatibility: None
- Recording Feature: false
- Compatibility
- Compatibility: 1999-2016 Ford F-250, 1999-2016 Ford F-350, 1999-2016 Ford F-450
- Features
- Lane Guidance: false
- Integrated Microphone: false
- Night Vision: false
- Display
- Screen Included: false
- Mounting
- Camera Mounting Location: Brake light
- Mount Included: true
- Mount Type: Vehicle specific, Screws
- Input
- Number Of Auxiliary Inputs: 0
- Number of USB Port(s): 0
- Dimensions
- Product Height: 19.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.75 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.75 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: None
- Other
- UPC: 609098831109
Get a close-up view of your truck bed and blind spots while driving with this Third Brake Light Back-Up Camera for Select 1999-2016 Ford F-Series Super Duty Trucks by EchoMaster. The PCAM-CHMSL2-FD99 adds three viewing angles to your vehicle including a 90° rear view and 95° left and right views that automatically activate when using your turn signals. This durable cargo camera also features an ultra-low LUX video sensor for use day or night.
- Compatible with select Ford F-Series Super Duty trucks: Including 1999-2016 F-250, 1999-2016 F-350, and 1999-2016 F-450 models equipped with a monitor and standard video input for a customized fit.
- Third brake light mount design: Allows you to view your truck’s bed to make hauling safer and easier.
- 95° right, 95° left, and 90° rear viewing angles: Increases your range of vision so you can clearly see what is behind your vehicle including left and right blind spots when using turn signals.
- IP67 rated water- and debris-resistant design: Enables all-weather use.
- Operates at 0.3 LUX: Offers additional visibility for drivers to see what's behind them even in low-light conditions.
- 1/3" CMOS image sensor: Ensures crisp, clear images.
- Three-year warranty: To protect you against defects in materials and workmanship.
- Compatible with select Ford F-Series Super Duty trucks: Including 1999-2016 F-250, 1999-2016 F-350, and 1999-2016 F-450 models equipped with a monitor and standard video input for a customized fit.
- Third brake light mount design: Allows you to view your truck’s bed to make hauling safer and easier.
- 95° right, 95° left, and 90° rear viewing angles: Increases your range of vision so you can clearly see what is behind your vehicle including left and right blind spots when using turn signals.
- IP67 rated water- and debris-resistant design: Enables all-weather use.
- Operates at 0.3 LUX: Offers additional visibility for drivers to see what's behind them even in low-light conditions.
- 1/3" CMOS image sensor: Ensures crisp, clear images.
- Three-year warranty: To protect you against defects in materials and workmanship.
Whats Included
- EchoMaster Third Brake Light Back-Up Camera for Select 1999-2016 Ford F-Series Super Duty Trucks
- 17.5' extension cable
- Mounting bracket
- Phillips mounting screws (2)
- Camera adjustment tool
- Installation guide
- EchoMaster Third Brake Light Back-Up Camera for Select 1999-2016 Ford F-Series Super Duty Trucks
- 17.5' extension cable
- Mounting bracket
- Phillips mounting screws (2)
- Camera adjustment tool
- Installation guide
