EchoMaster - Universal Side Blind Spot System - Black
- General
- Brand: EchoMaster
- Model Number: PBS-MW01
- Product Name: Universal Side Blind Spot System
- Color: Black
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: None
- Other
- Product Width: 7.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 4.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 3.5 pounds (The out of box weight of the item.)
- UPC: 609098832816
Improve driver awareness and enhance vehicle safety with this Universal Side Blind Spot System by EchoMaster. The PBS-MW01 features advanced microwave radar technology that identifies moving objects in your side blind spots and provides audible alerts and visual alerts that can easily be seen within the line of sight of the side view mirrors. This kit provides full integration into your vehicle’s system, automatically triggering alerts based on driver behavior (placing car in reverse, turn signal activation, hazards, speed). Alerts are given for many common driving scenarios such as changing lanes, getting out of the vehicle, other cars passing in the blind spot, and reversing. This blind spot system is weather and debris-proof for durability and easy to install with no need to remove the bumper to add the sensors in some applications.
- Universal rear bumper mount design: Install left and right blind spot sensors on any vehicle with a plastic rear bumper.
- Reliable >99% alarm accuracy: Correctly identifies and alerts the driver of moving objects in blind spot zones using 24GHz advanced microwave radar technology.
- In-vehicle LED indicator lights: Illuminate to notify the driver of moving vehicles or pedestrians in the vehicles’ blind spot zones or rear cross traffic, when changing lanes, and when doors are open.
- Audible speaker: Produces a warning tone to correspond with the visual alerts.
- Complete vehicle integration: Reads power, ground, and speed from the vehicle’s system and triggers alerts based on driving behavior via the included OBD II cable.
- IP67-rated water-resistant and debris-proof housing: Provides trouble-free operations in all weather conditions and prevents the elements from damaging the rear sensors.
- Automatic or manual system activation: Activate the system when the ignition is started or use the included power button to turn alerts ON/OFF.
- Three-year warranty: To protect you against defects in materials and workmanship.

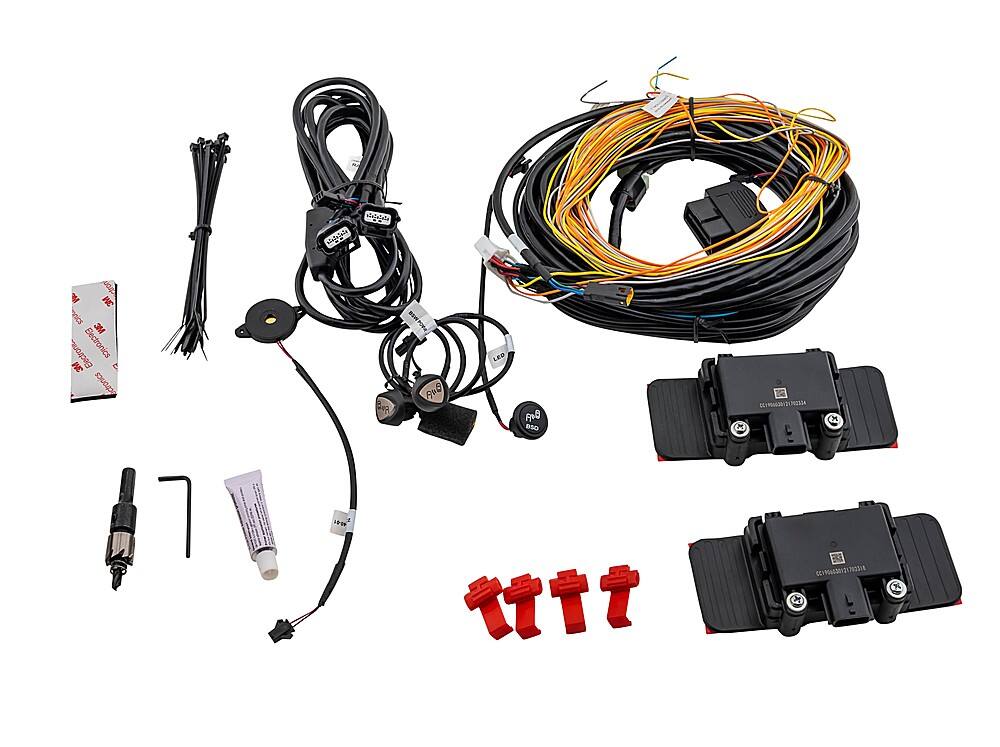

Whats Included
- EchoMaster Universal Side Blind Spot System
- Sensors (2)
- LED indicators (2)
- Power harness
- Control module
- Audible speaker
- Power on/off button
- Installation tools
- Installation guide
- User manual
Q: What is the direction of movement and detection range?
A: This unit will notify you when a vehicle enters into your side blind spots. Triggered by your turn signals, advanced microwave radar technology identifies moving objects in your side blind spots and provides visual and audible alerts. The visual alert is located within the vehicle, easily seen within the line of sight of the side view mirrors. The system is automatically activated when the vehicle exceeds 15 MPH to alert you of vehicles in your side blind spot. The warning indicator lamps will illuminate when a vehicle is within the warning zone (75 Ft range in the lanes to the right and left of you).
Q: Can the system be installed on a 1998 Dodge Pick up truck with metal rear bumpers?
A: Unfortunately a 1998 Dodge truck will not have the required vehicle network present at the OBD2 connector for this system to operate.
Q: Can this be installed on a 2021 Toyota 4Runner Limited?
A: These blind spot sensors can be installed on any vehicle with a plastic rear bumper.
