Elgato - Wave XLR - XLR/USB-C Microphone Interface & Digital Mixing Solution - Black
FREE shipping to
Elgato - Facecam Neo 1080p60 Full HD Webcam for Video Conferencing, Gaming, and Streaming - White$59.99
- General
- Brand: Elgato
- Model Number: 10MAG9901
- Product Name: Wave XLR - XLR/USB-C Microphone Interface & Digital Mixing Solution
- Color: Black
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- Product Width: 3.47 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 4.63 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.66 pounds (The out of box weight of the item.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Input(s): 3.5mm audio
- Volume Control: true
- UPC: 840006642886
Wave XLR does the work of multiple devices and packs features you won't find in conventional audio interfaces. Like proprietary Clipguard anti-distortion technology, a capacitive mute button, and integration with custom Wave Link mixing software. With up to 75 dB of ultra-low-noise gain, even notoriously insensitive dynamic mics sound loud and clear. 48 volts of phantom power bring condenser mics to life, and two switchable low-cut filters let you remove low frequencies for close and distant mic positions. You can even swap out the faceplate and control dial. Wave XLR — a compact USB interface that gives your mic superpowers.
- Frequency Response: Preserve your mic’s tone and sound signature with a frequency range of 20hz-20khz.
- Dynamic Range: Be heard with up to 100 dB of dynamic range (120 dB with Clipguard engaged)
- Equivalent Input Noise (EIN): Ensure an ultra-clean signal with an EIN of -130 dBV @ 60 dB gain.
- Gain Range: Up to 75 dB of ultra-low-noise gain amplifies insensitive mics.
- Phantom Power: 48 V phantom power drives condenser microphones.
- Maximum Input Level: 10 V @ 0 dB gain (Clipguard engaged)
- Maximum Output Level: Power high fidelity headphones with up to 77 mW of output.
- Resolution / Sample Rate: 24-bit 48/96 kHz audio ensures professional broadcast audio quality.
- Interface: Features a modern USB-C port.
- Frequency Response: Preserve your mic’s tone and sound signature with a frequency range of 20hz-20khz.
- Dynamic Range: Be heard with up to 100 dB of dynamic range (120 dB with Clipguard engaged)
- Equivalent Input Noise (EIN): Ensure an ultra-clean signal with an EIN of -130 dBV @ 60 dB gain.
- Gain Range: Up to 75 dB of ultra-low-noise gain amplifies insensitive mics.
- Phantom Power: 48 V phantom power drives condenser microphones.
- Maximum Input Level: 10 V @ 0 dB gain (Clipguard engaged)
- Maximum Output Level: Power high fidelity headphones with up to 77 mW of output.
- Resolution / Sample Rate: 24-bit 48/96 kHz audio ensures professional broadcast audio quality.
- Interface: Features a modern USB-C port.
Whats Included
- Wave XLR
- USB-C Cable
- Quick Start Guide
- Wave XLR
- USB-C Cable
- Quick Start Guide
Q: Does the Elgato Wave XLR support phantom power?
A: Yes, it provides 48 V of phantom power for condenser microphones.
Q: What kind of connector does the Elgato Wave XLR use?
A: This device uses a modern USB-C port.
Q: What is the frequency response of this microphone interface?
A: The Elgato Wave XLR has a frequency response of 20hz-20khz.
Q: How much gain does the Elgato Wave XLR offer?
A: It offers up to 75 dB of ultra-low-noise gain.
Q: What is the maximum input level of the Elgato Wave XLR?
A: The maximum input level is 10 V @ 0 dB gain (Clipguard engaged).
Q: What kind of USB C cable does this come with, is it USB C to USB C or is it USB C to USB A?
A: USB-c to usb-A
Q: Can the interface work with a USB-C microphone?
A: No, unfortunately not. The Wave XLR is designed to connect your XLR microphone to your system via USB. For additional help feel free to contact our support at help.elgato.com
Compare similar products
Wave XLR does the work of multiple devices and packs features you won't find in conventional audio interfaces. Like proprietary Clipguard anti-distortion technology, a capacitive mute button, and integration with custom Wave Link mixing software. With up to 75 dB of ultra-low-noise gain, even notoriously insensitive dynamic mics sound loud and clear. 48 volts of phantom power bring condenser mics to life, and two switchable low-cut filters let you remove low frequencies for close and distant mic positions. You can even swap out the faceplate and control dial. Wave XLR — a compact USB interface that gives your mic superpowers.
Iconic Stream Deck tech with LCD keys, dials, and touch strip. Fully customizable. Perfect for any workflow. Stream Deck + is your audio mixer, studio controller, production console – anything you want it to be. Trigger actions. Control mics and cameras. Adjust volume, lighting, and much more. Create limitless pages for different apps and swipe between them on the fly. Set up with ease in the Stream Deck app. Unlock Elgato Wave Link mixing software, and hit the Stream Deck Store for plugins, icon packs, thousands or royalty-free music tracks, sound effects, and more. With new plugins and updates added regularly, Stream Deck + evolves with your workflow.
Great content made easy. Play stunning 4K60 HDR games without image quality loss or lag, and record or stream your adventures in beautiful Full HD 1080p60 resolution. Game Capture Neo sends two video signals from your console – one to your gaming screen and the other to your laptop, PC, Mac, or iPad. Capture everything you see and hear – gameplay, cutscenes, soundtrack – without watermarks or time limits, directly to your hard drive, YouTube, or Twitch. Stick to simple QuickTime recordings or develop your streaming expertise in OBS. As your skillset expands, Game Capture Neo evolves with your growing needs. So you can keep growing your community.

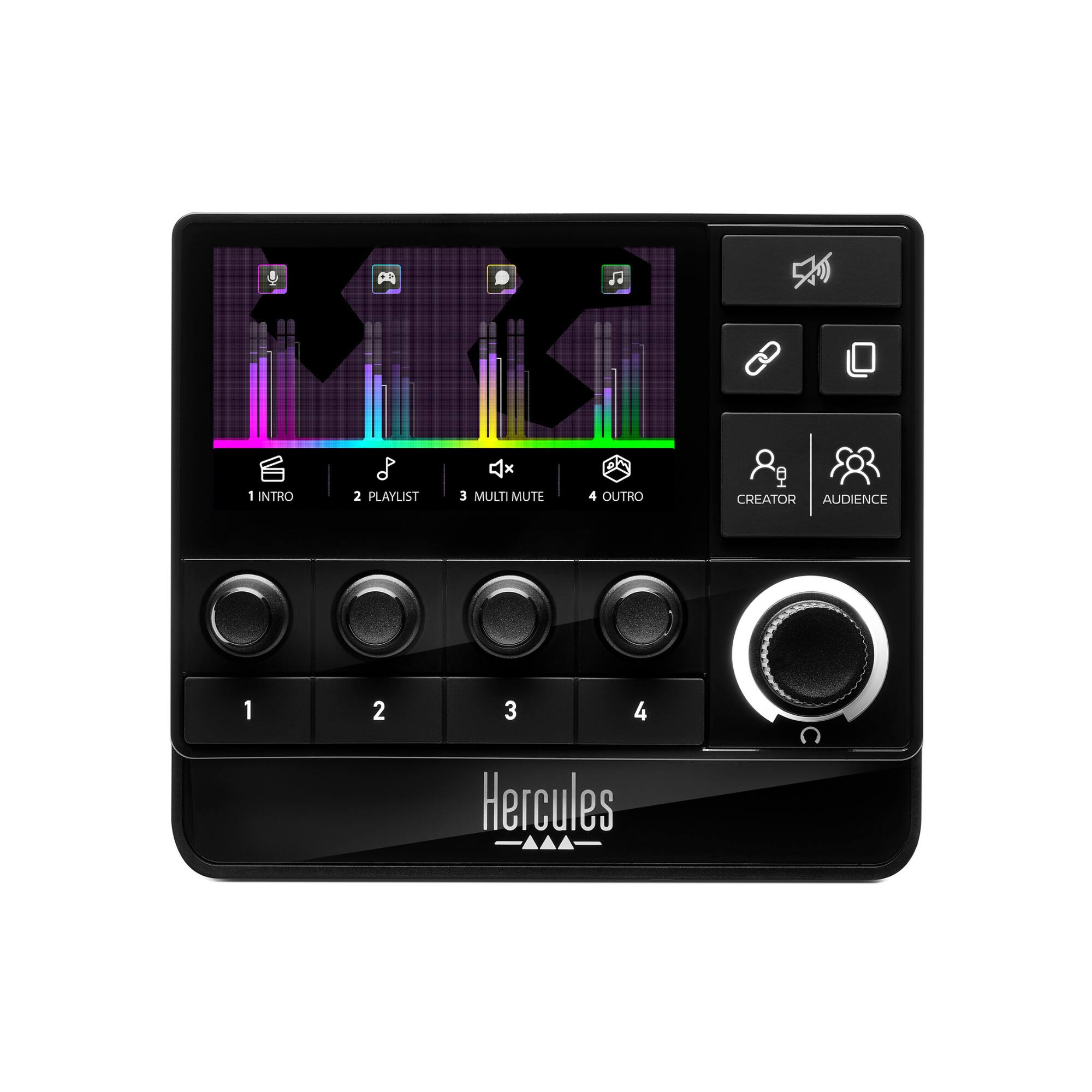

Hercules Stream 200 XLR is an audio controller featuring a built-in sound card, allowing streamers to separate the audio mix that they’re listening to from the mix being played for their audience. Thanks to this audio controller with a built-in LCD screen, you can manage all your audio sources in real time: games, chat software, music, XLR microphone, game console, second computer, and more. Hercules Stream 200 XLR lets you enjoy a customized experience by individually viewing and controlling the sound level of each audio track — for you, and for your audience! Instantly enable, turn down the volume, turn up the volume, mute or unmute the sound!
| Pros for Elgato - Wave XLR - XLR/USB-C Microphone Interface & Digital Mixing Solution - Black | |||
|---|---|---|---|
| Ease of use, Quality, Compatibility, USB-C | Ease of use, Quality, Knobs, Customization, Volume Control | Compatibility, Overall Performance, Ease of Use, Video Quality, Design | There were no pros for this product— |
| Cons for Elgato - Wave XLR - XLR/USB-C Microphone Interface & Digital Mixing Solution - Black | |||
| Software, Mute Button | There were no cons for this product— | Connectivity | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers praise the Wave XLR for its ease of use and high-quality performance with XLR microphones. Users appreciate its compatibility and USB-C connectivity. However, some customers have expressed concerns regarding the complexity of the software and the functionality of the mute button.

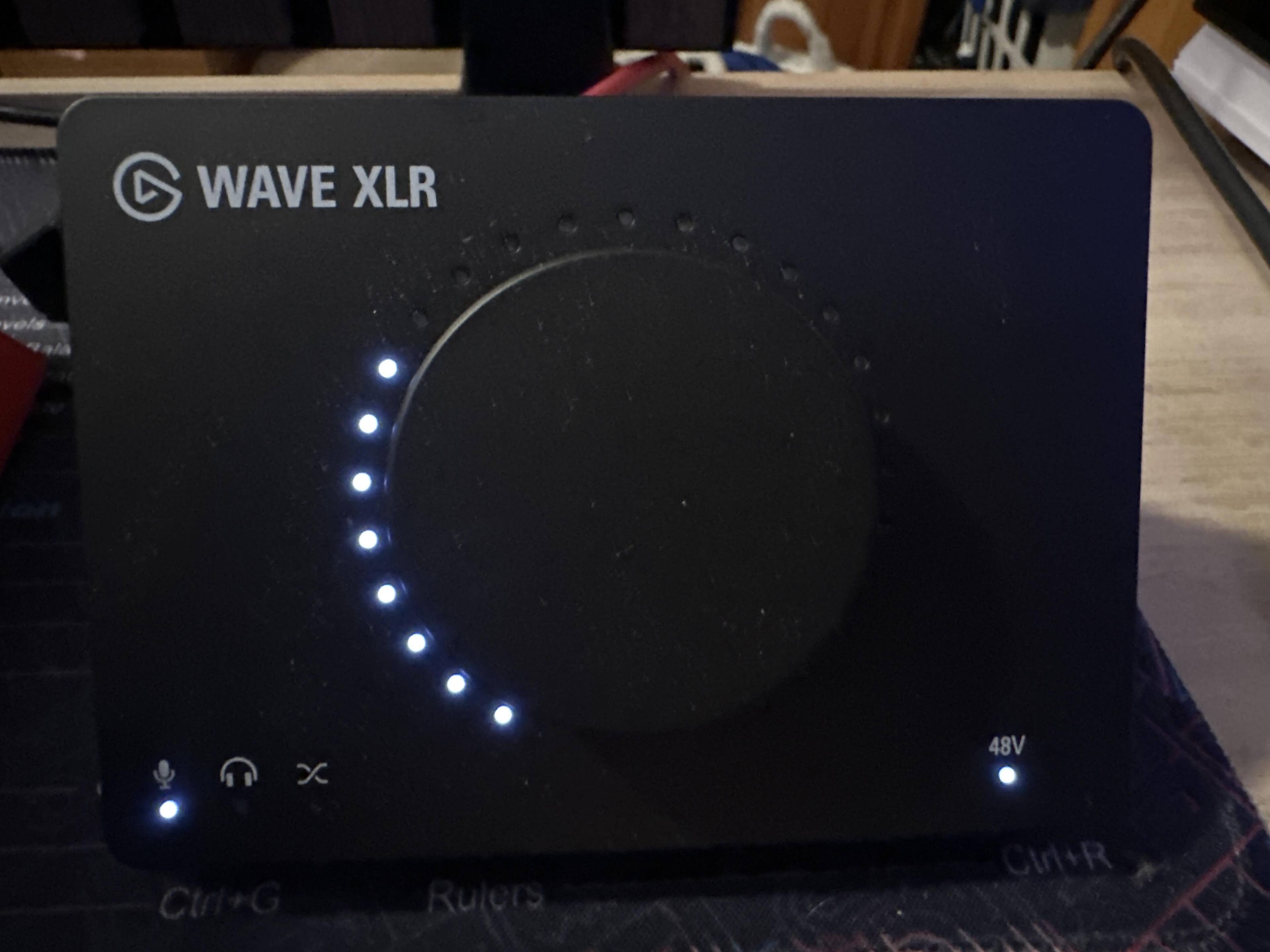

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Looks nice and sounds great!
Works amazingly with my XLR microphone and the software is excellent with lots of available plugins for Noise Suppression, De-essing, etc.
Posted by JonathanM
- Rated 5 out of 5 stars
A Complete Solution
This review will encompass the Elgato Wave DX dynamic mic, the Elgato XLR, the XLR microphone cable, and Elgato's Wave Link software as they all work together as a complete solution. When I started streaming a year ago, I went with the Elgato Wave 3 condenser mic because it was a very cost-effective option and it gave me access to their Wave Link digital mixing software. As I became more experienced in streaming and audio configuration, I upgraded to the XLR system using the Wave DX dynamic microphone. You can do your own research regarding the differences between condenser mics and dynamic mics, but in a nutshell the dynamic mic produces better audio, but requires amplification and mixing through a physical hardware device (enter the Wave XLR). Dynamic mics also work better in environments where you don't want the mic to pickup background noise, which is the reason why virtually every professional podcaster and radio stations exclusively use them. As a whole, the Elgato ecosystem with the Wave DX, Wave XLR, XLR mic cable, and Wave Link software is a great option for people looking for professional quality audio without spending two or three times more for other brands.
Posted by RonnieRukus
- Rated 5 out of 5 stars
Easy xlr
Amazing product. Easy to use and set up works well with my podcast mic
Posted by RyanH
