ERP - Replacement Radiant Heat Surface Element Part WB30T10155 for GE
Reviews coming soon
About This Item
- Key Specs
- Product Height: 2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- General
- Brand: ERP
- Model Number: WB30T10155
- Product Name: Replacement Radiant Heat Surface Element Part WB30T10155 for GE
- Dimensions
- Product Height: 2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.25 pounds (The out of box weight of the item.)
- Compatibility
- Compatible Appliance Type: Range
- Model Compatibility: 3026597, AP5791281, PS8754838
- Features
- Accessory Type: Surface Elements
- Material
- Material: Metal
- Other
- UPC: 840993035982

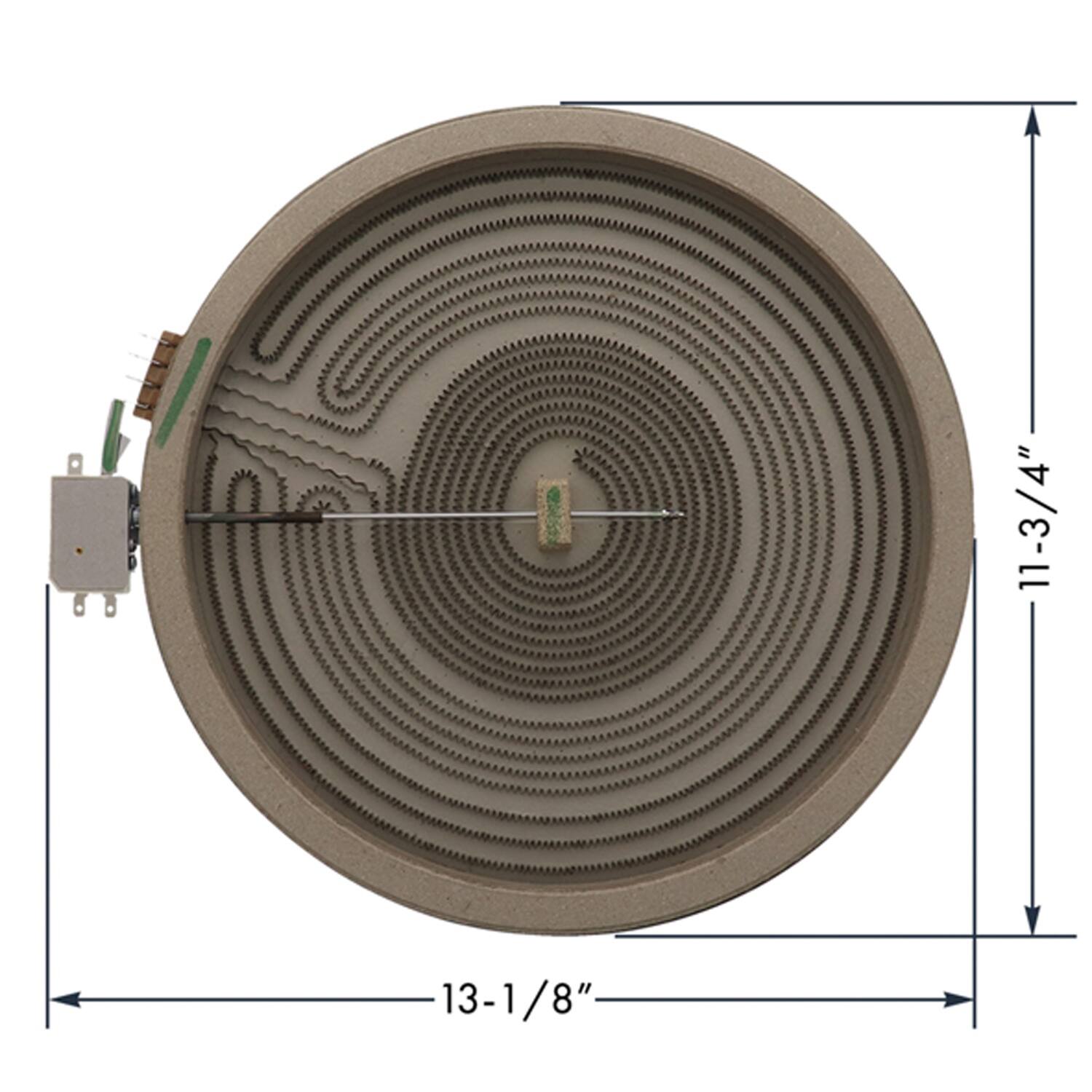

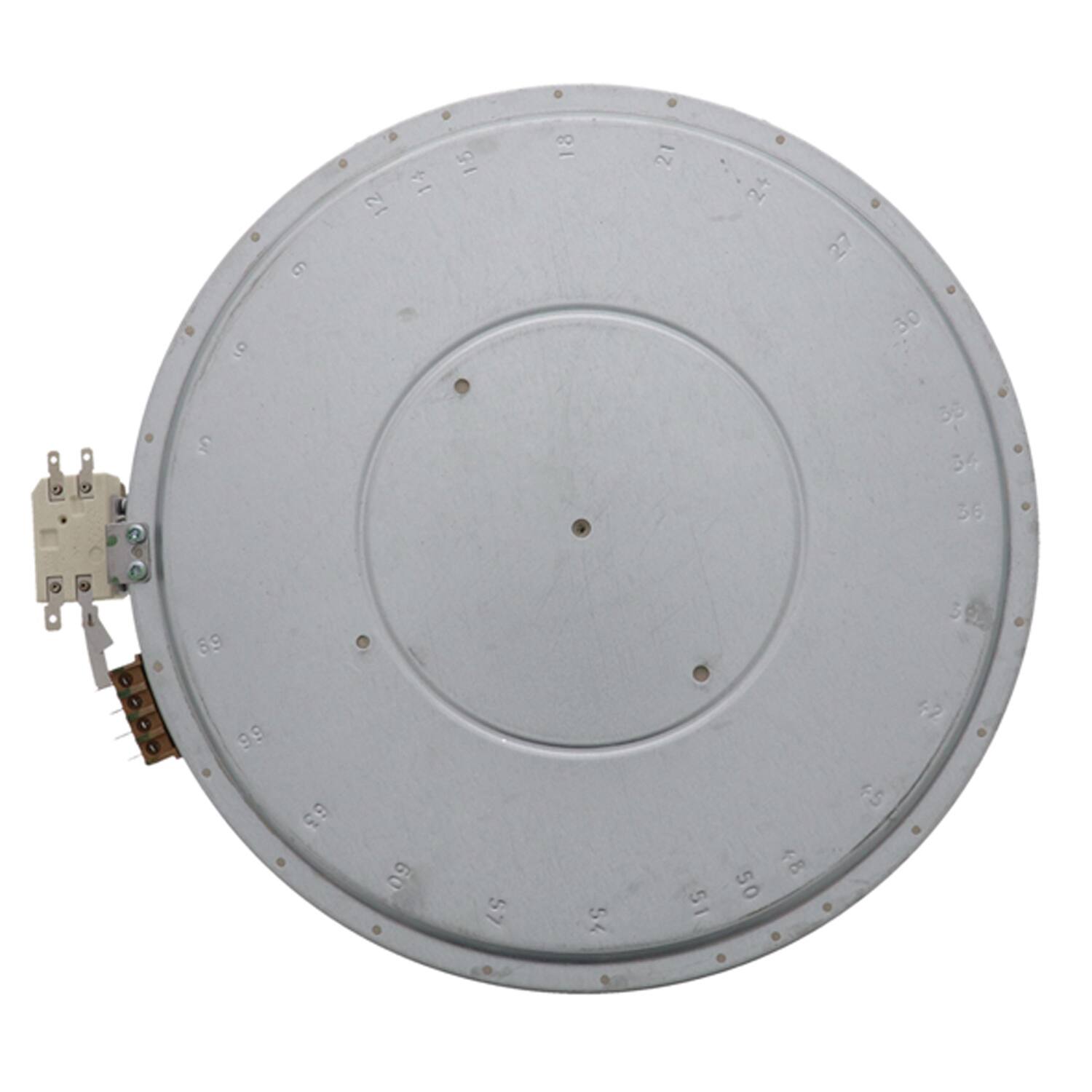

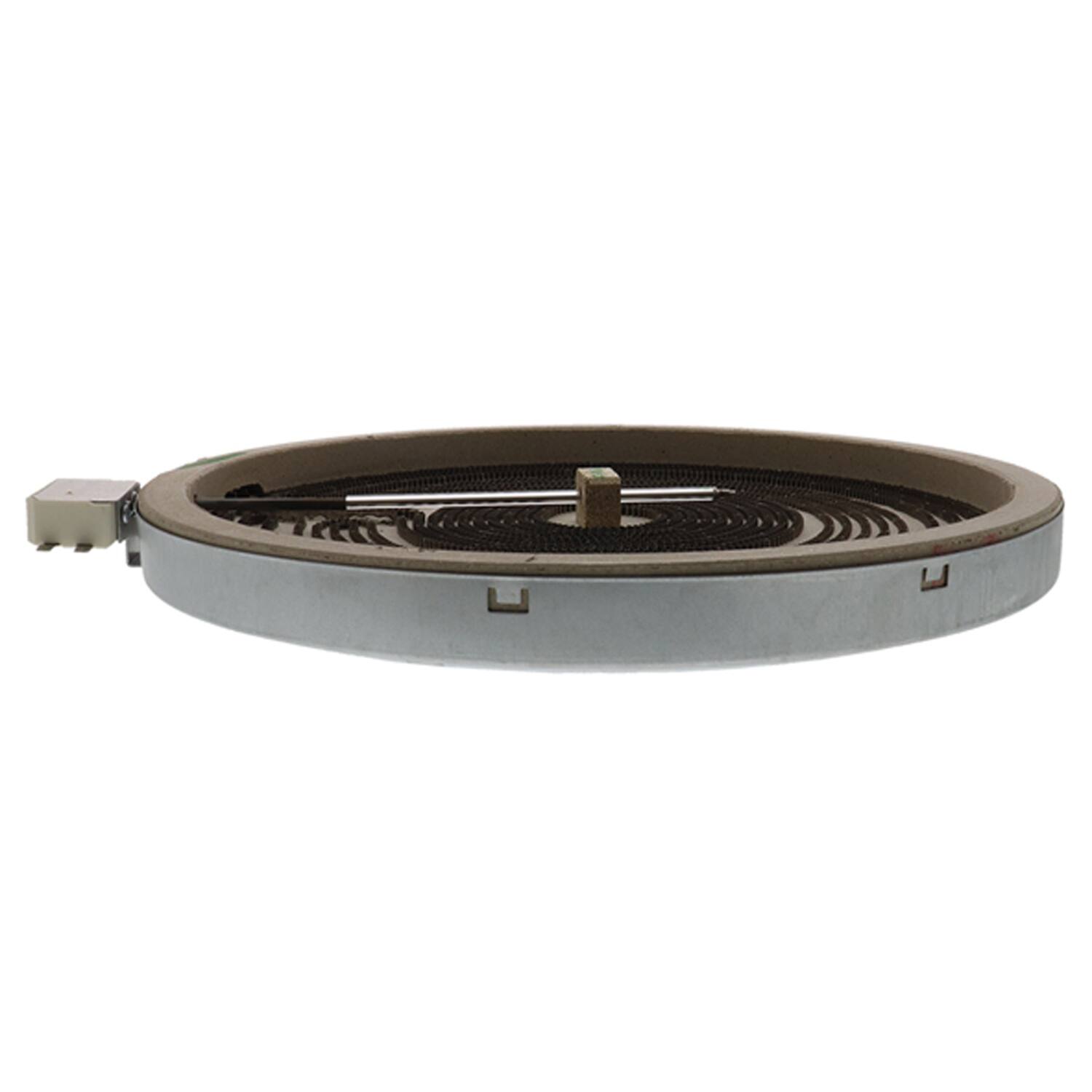

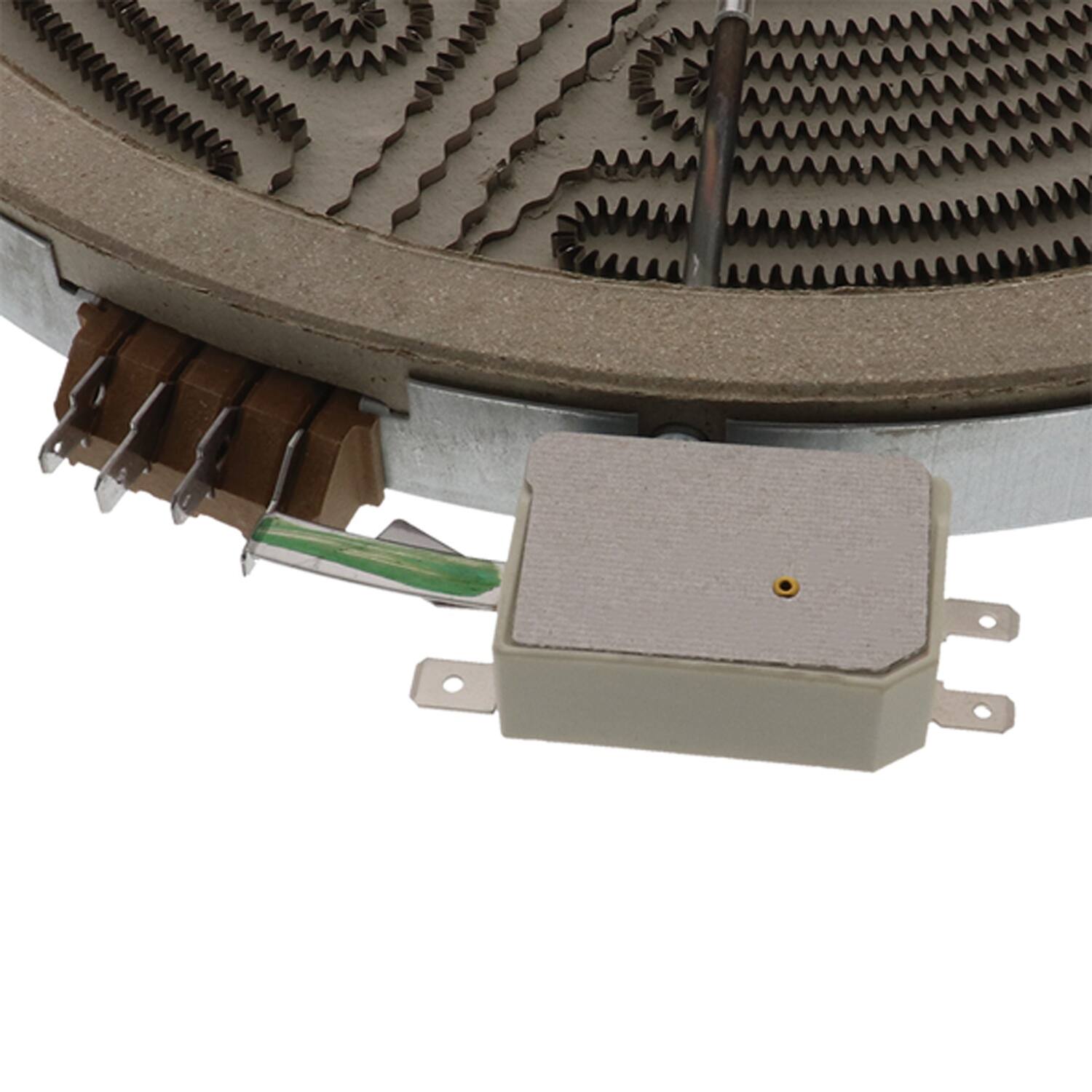

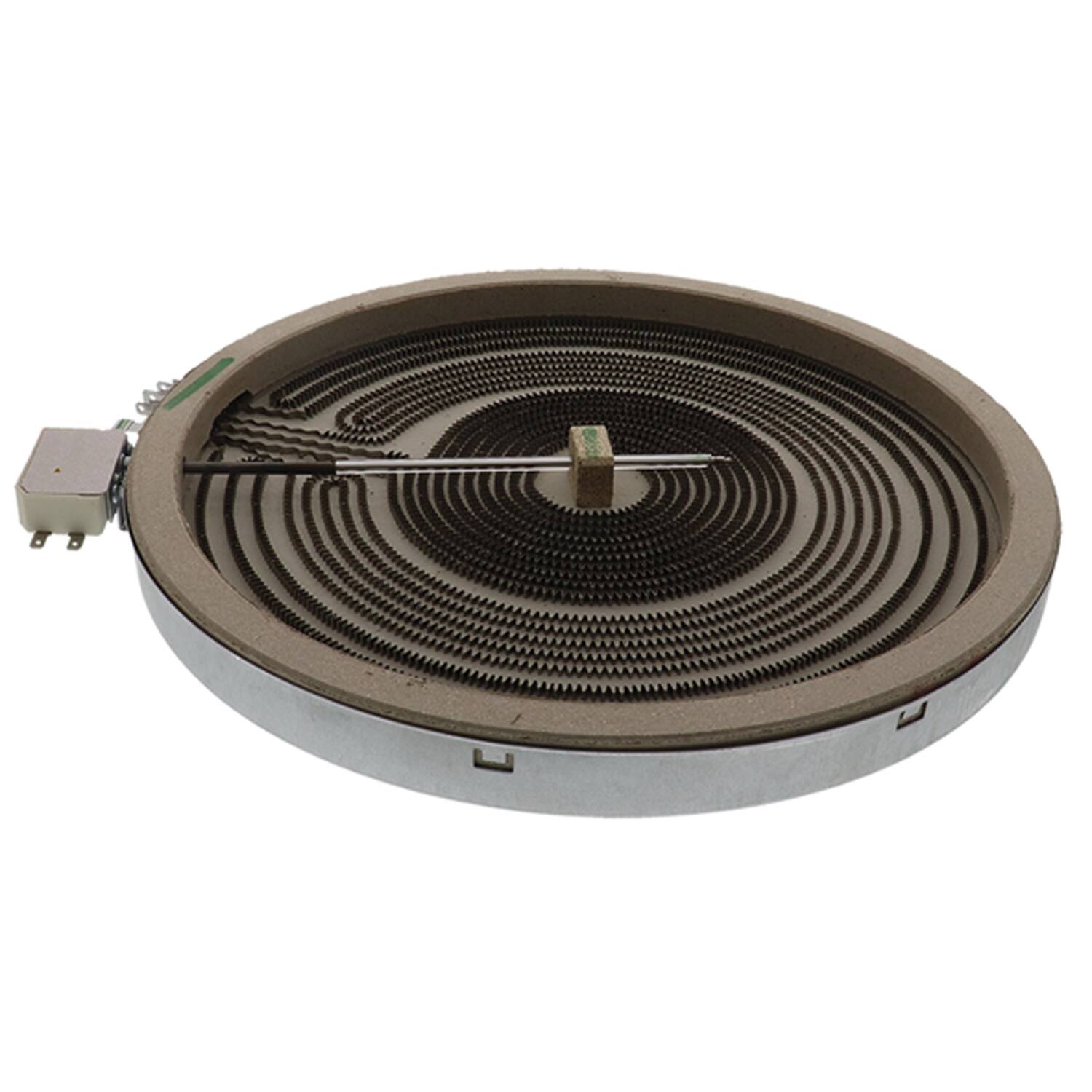

The ERP Replacement WB30T10155 Range Radiant Heat Element supplies the heat to a cooking area on top of the glass cooktop range. It functions similar to a traditional element but is mounted under the glass cooktop surface. Your radiant heat element might have to be replaced if it does not heat when energized by the control or the coils or terminals are damaged. Be sure to disconnect the power either at the breaker box or by unplugging the stove. You may need a stick to prop up the cooktop surface. The radiant elements are held in place by a bracket that you will need to remove. Before removing the radiant element from the bracket, mark the holes being used to hold the element. These brackets are often used on multiple models and may have many mounting holes.
- Compatible With Ranges: Designed specifically for select glass cooktops on electric ranges, ensuring proper fit and function
- Exact Replacement: Replaces GE® part number WB30T10155 and cross-references like AP5791281 and 3026597 for easy installation
- Radiant Heat Element: Provides consistent heat from beneath the glass cooktop surface for effective cooking performance
- Durable Materials: Made from high-quality materials to offer years of trouble-free use and reliability
- Easy Installation: Includes mounting brackets with multiple hole options for secure and proper placement
